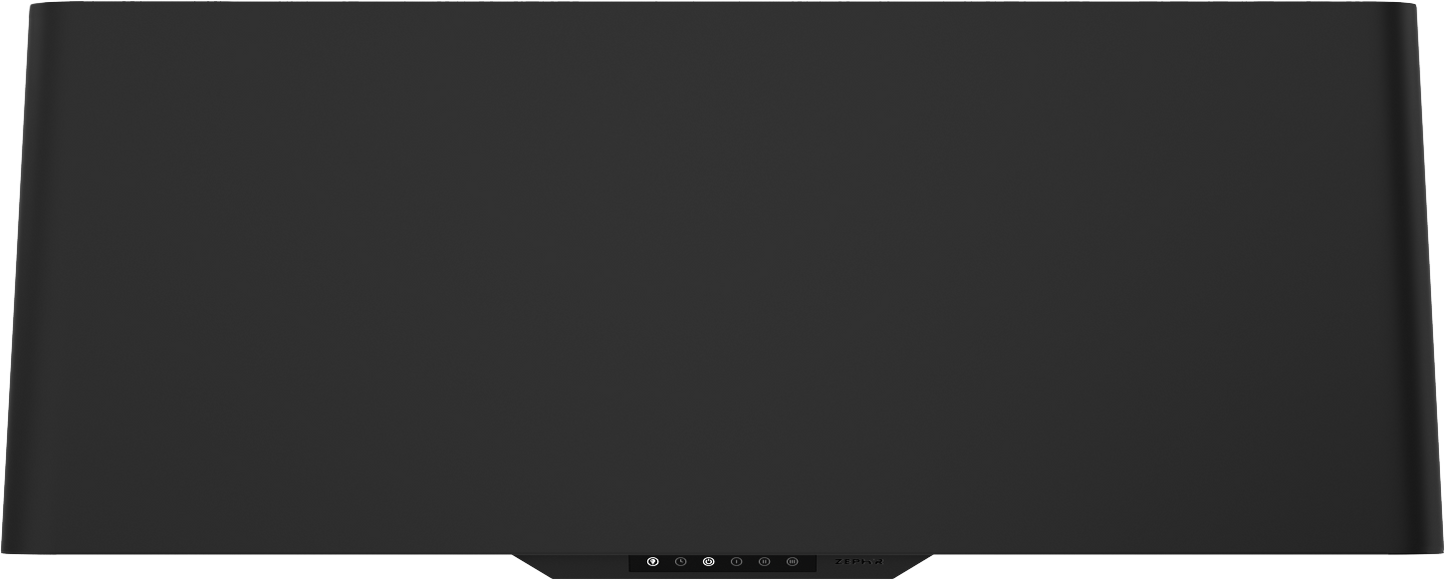

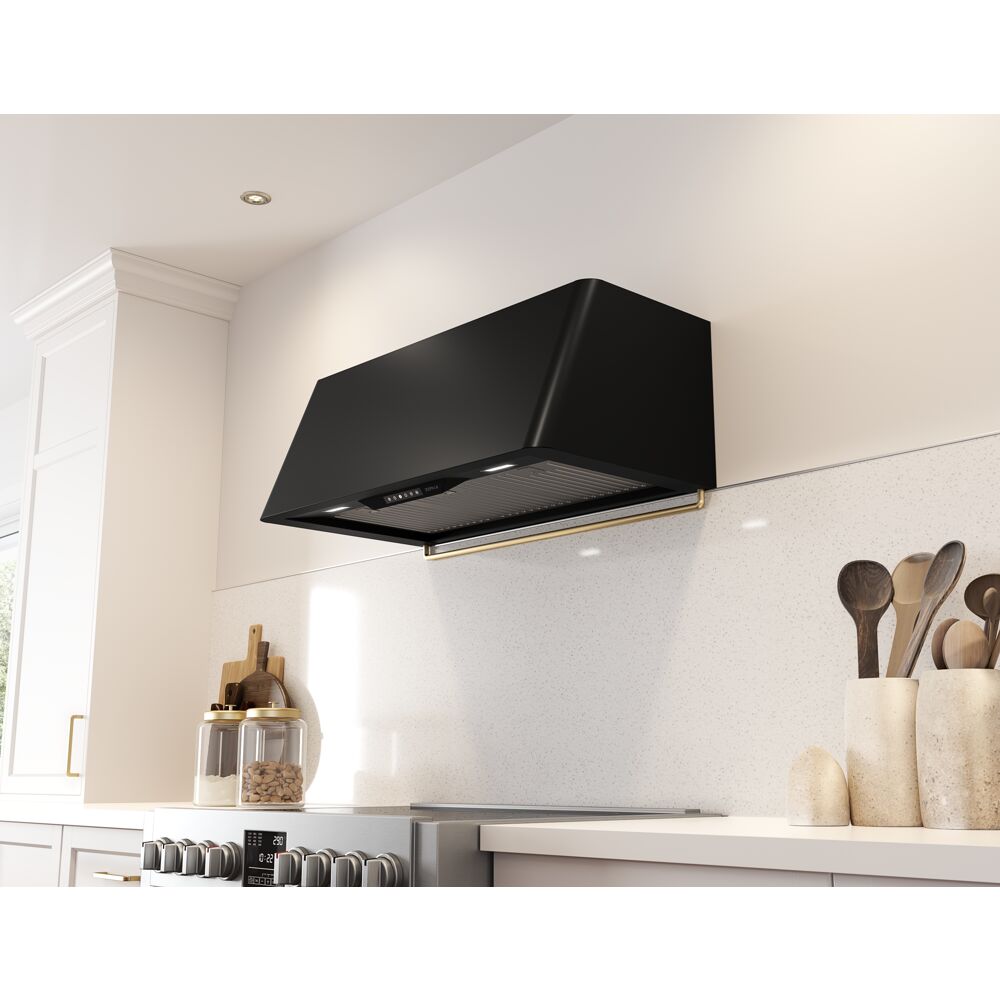

• Black sleek wall mounted range hood with invisible touch controls and baffle filters from Hartville Hardware Appliances collection
1 21
Zephyr
Sold out In Store Only IN-STORE ONLY

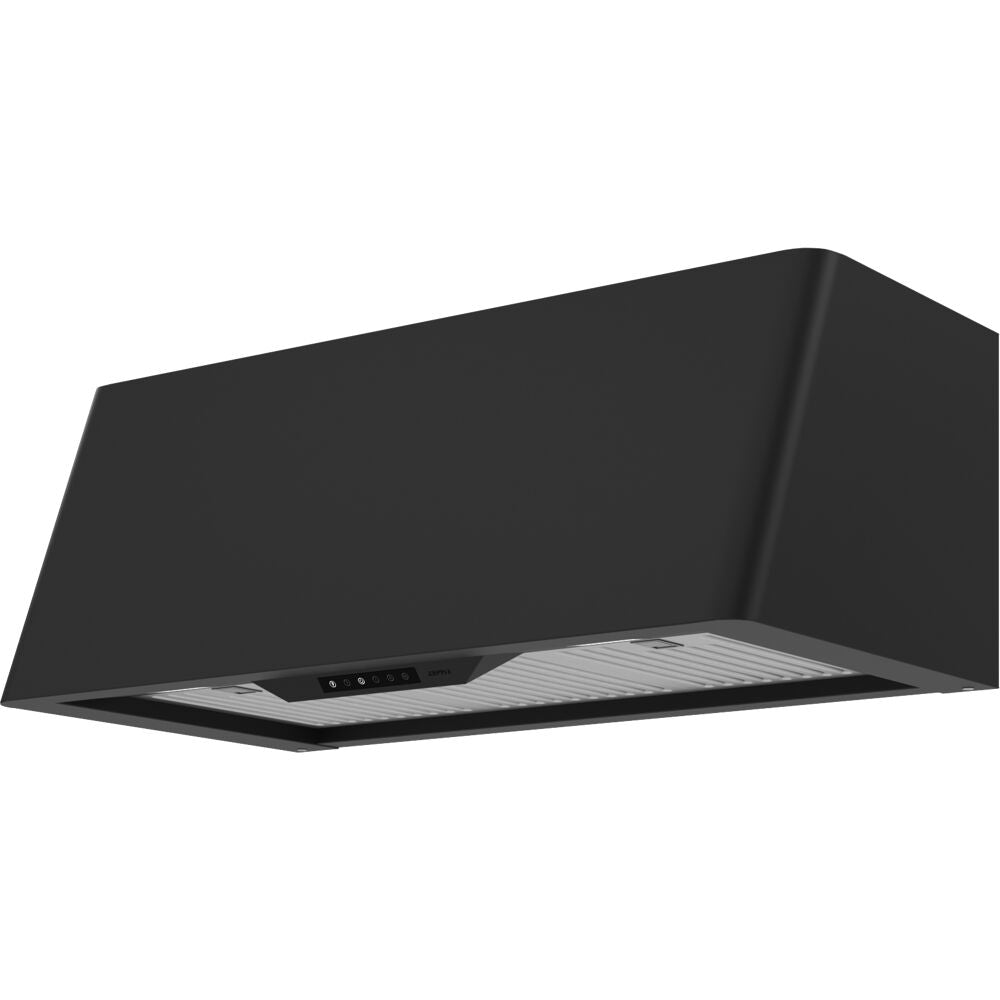

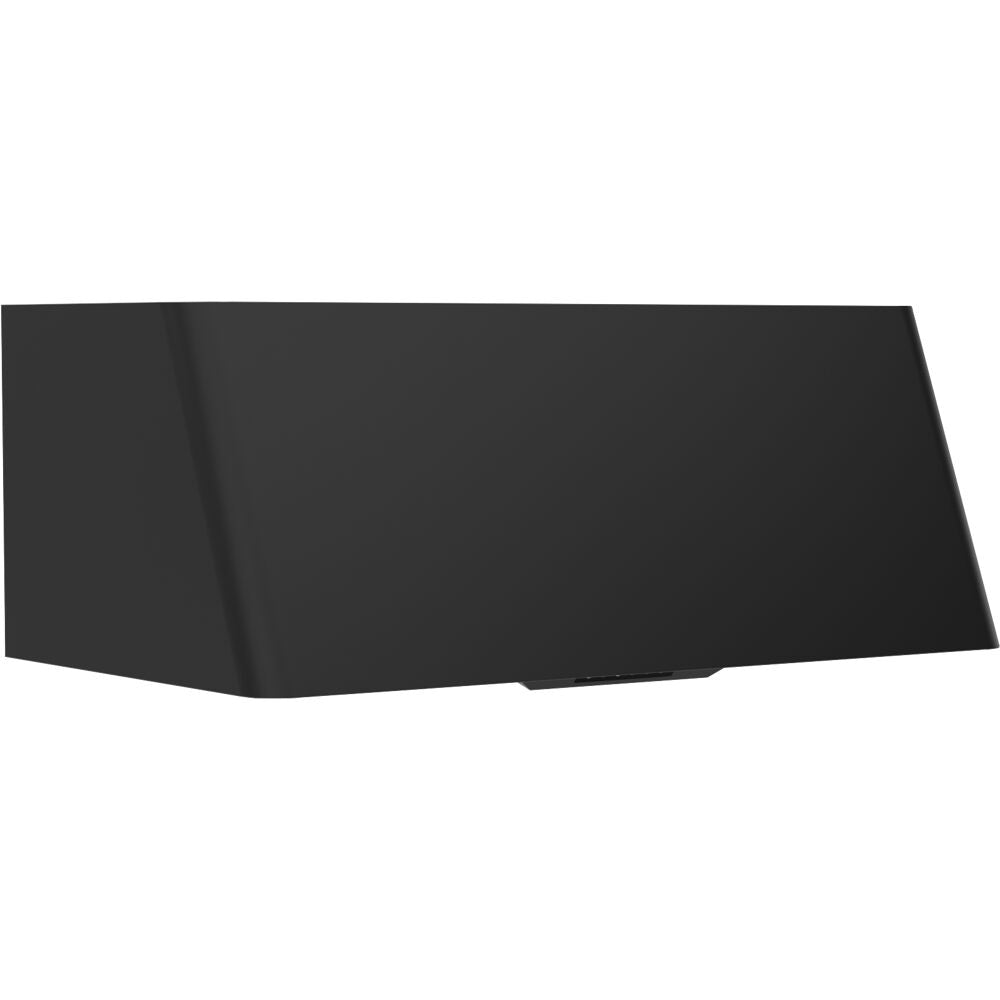

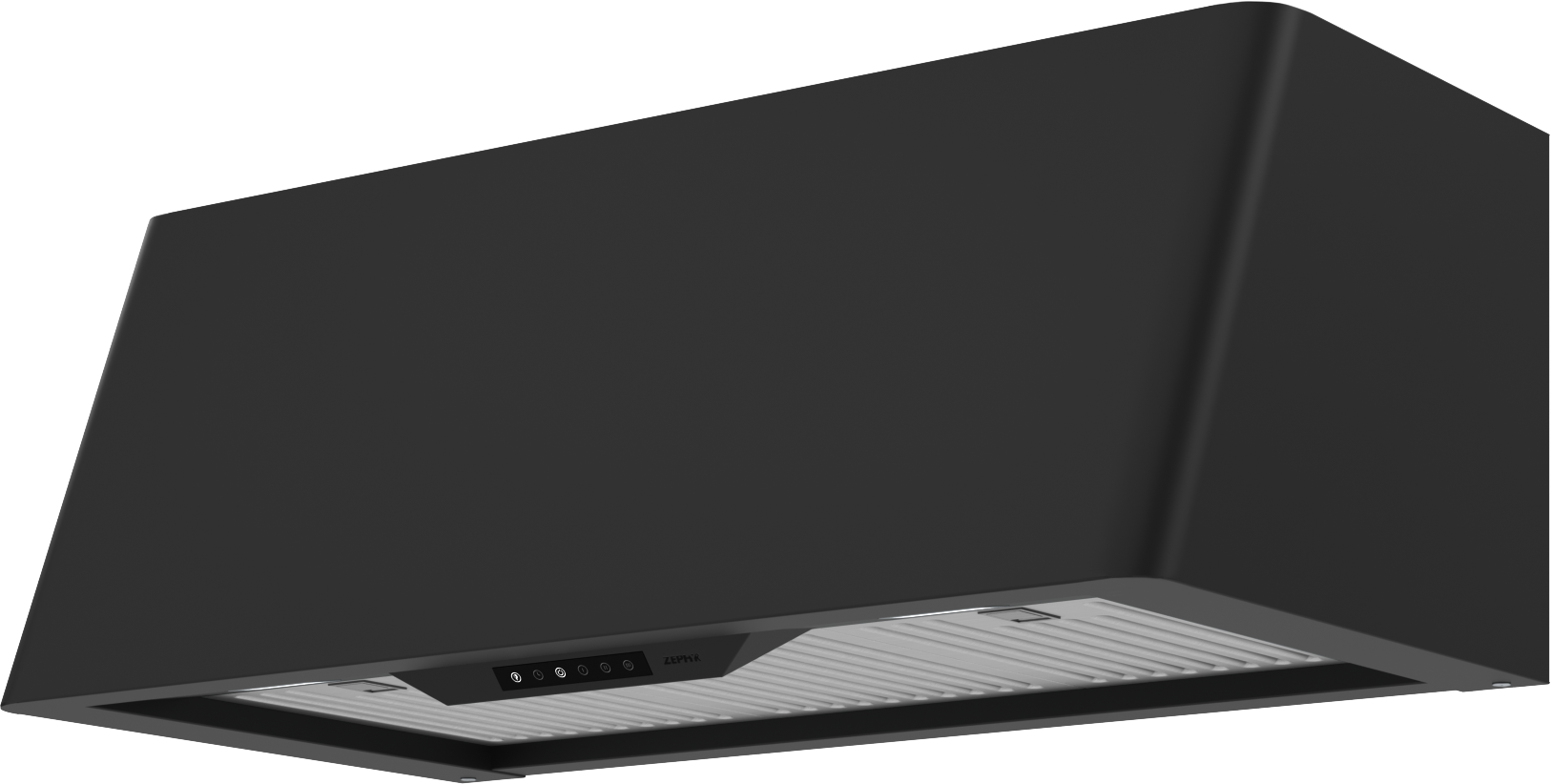

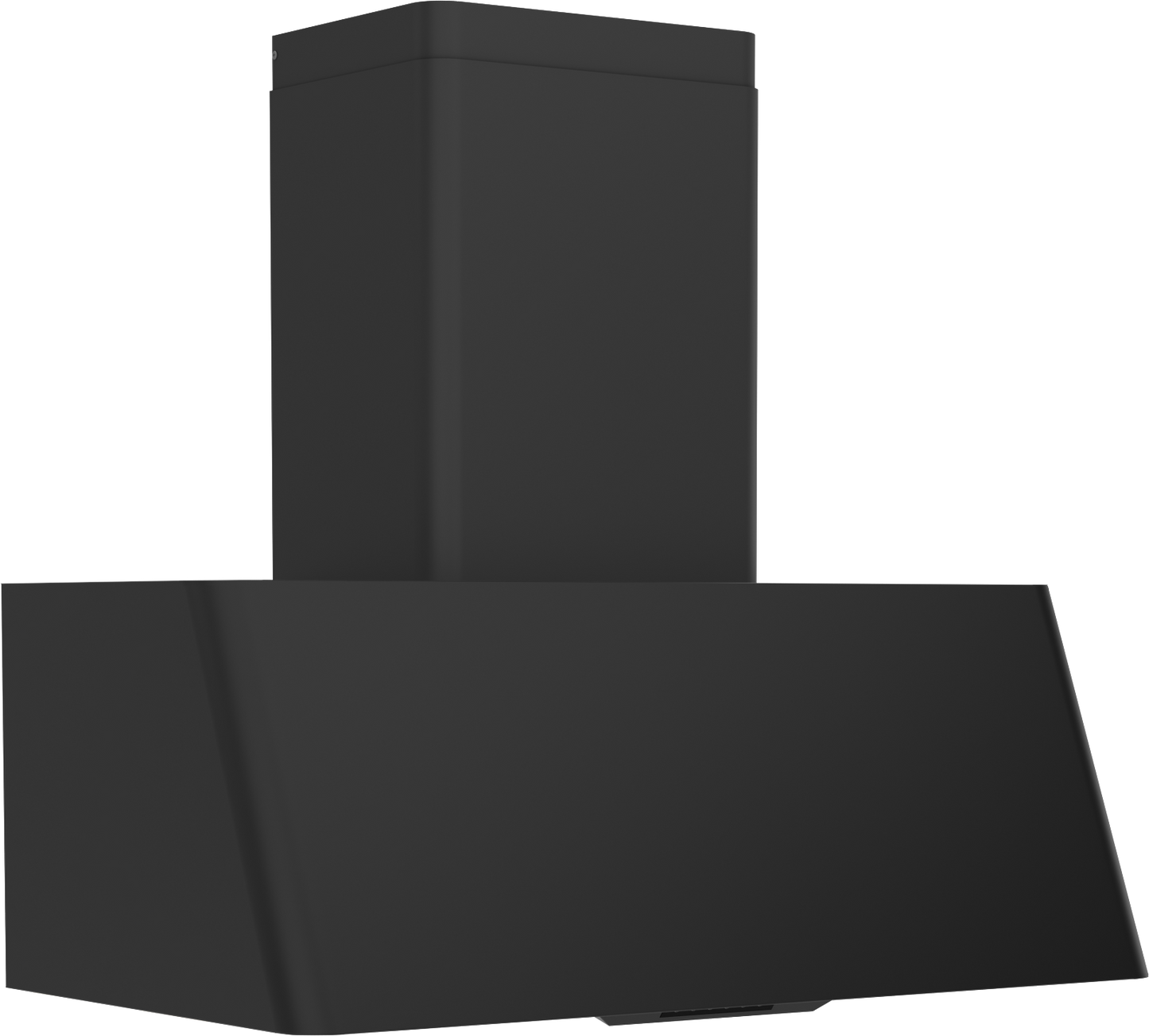

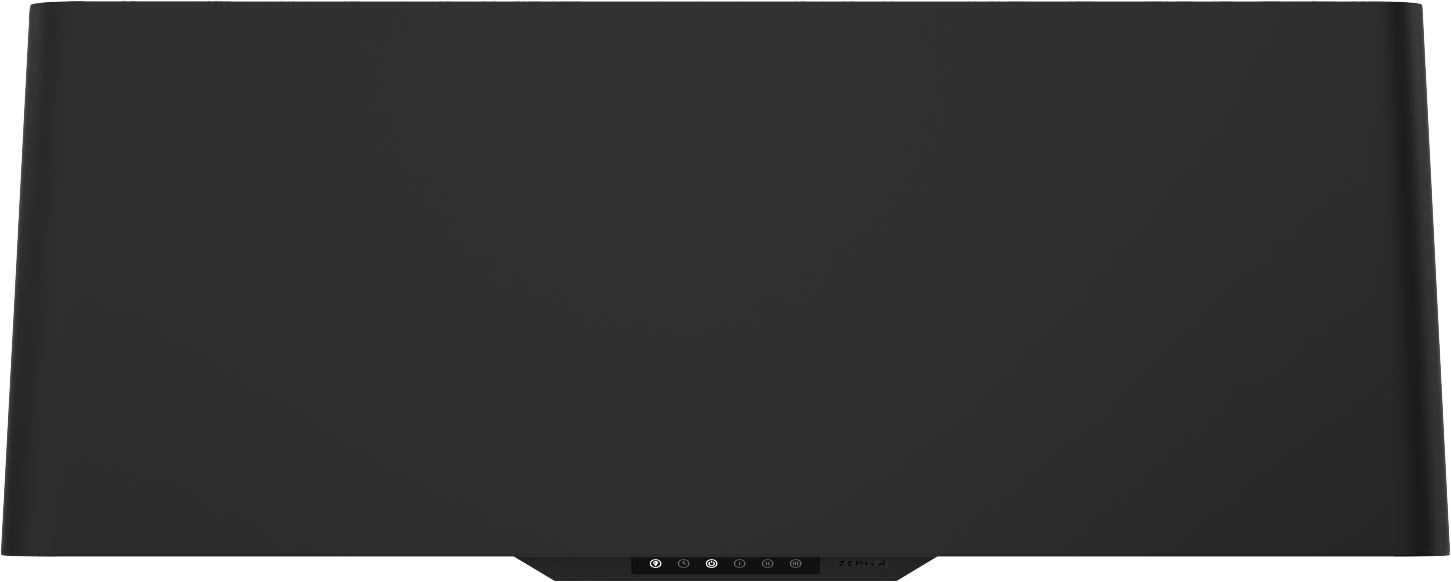

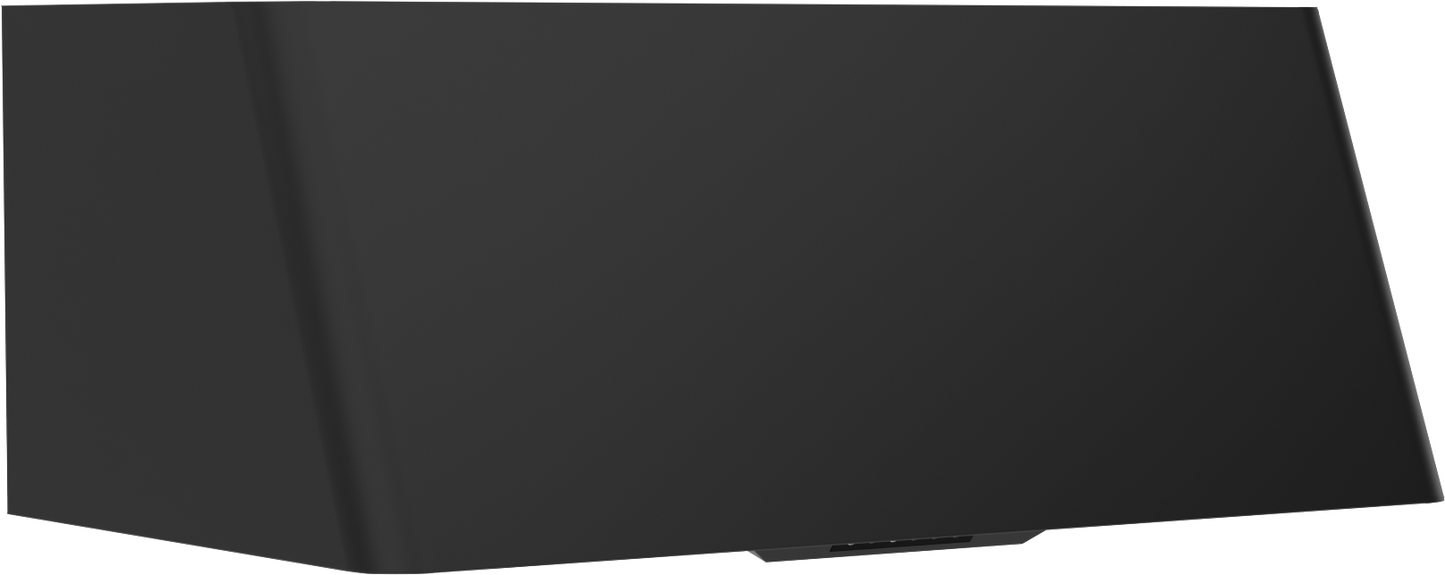

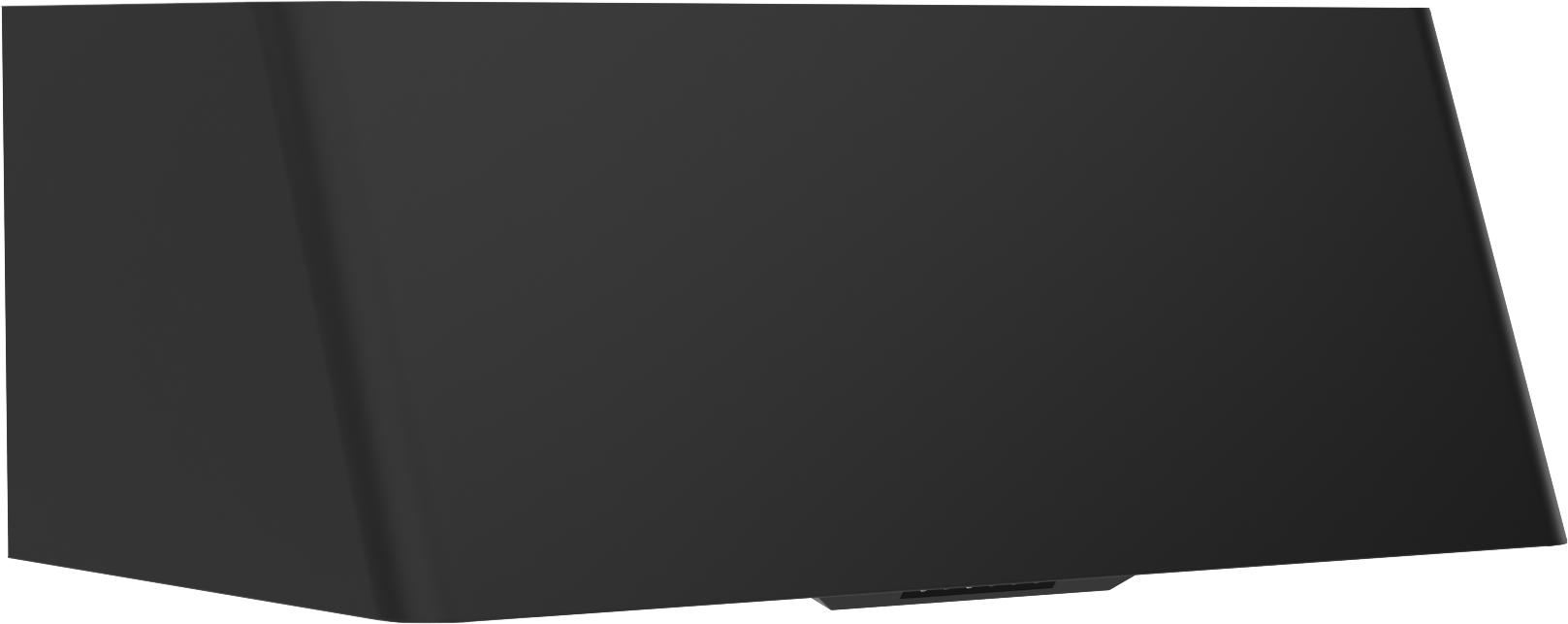

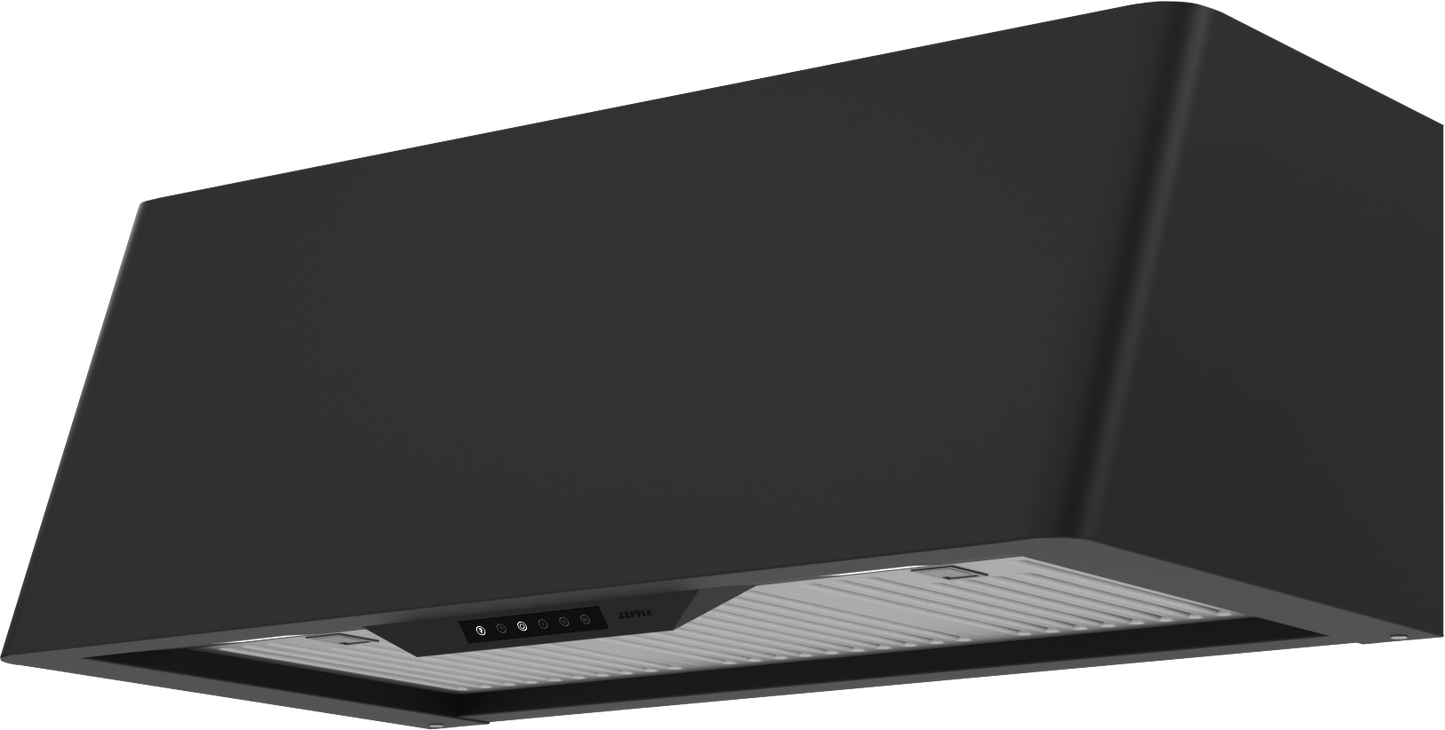

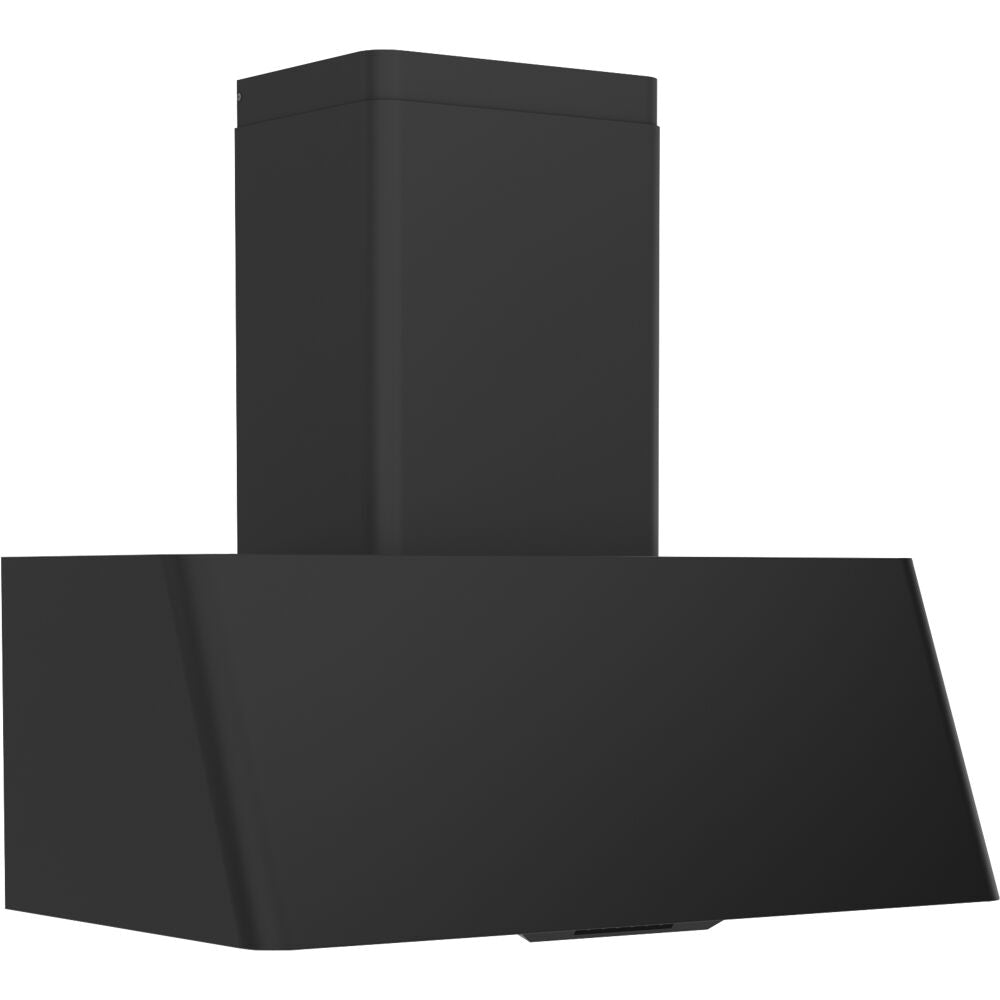

Mesa Wall Hood 36" BODY ONLY

Mesa Wall Hood 36" BODY ONLY

SKU: DMEM90AMBX

Shop All Zephyr
Add to Favorites
now $1,999 .00 $2,199.00

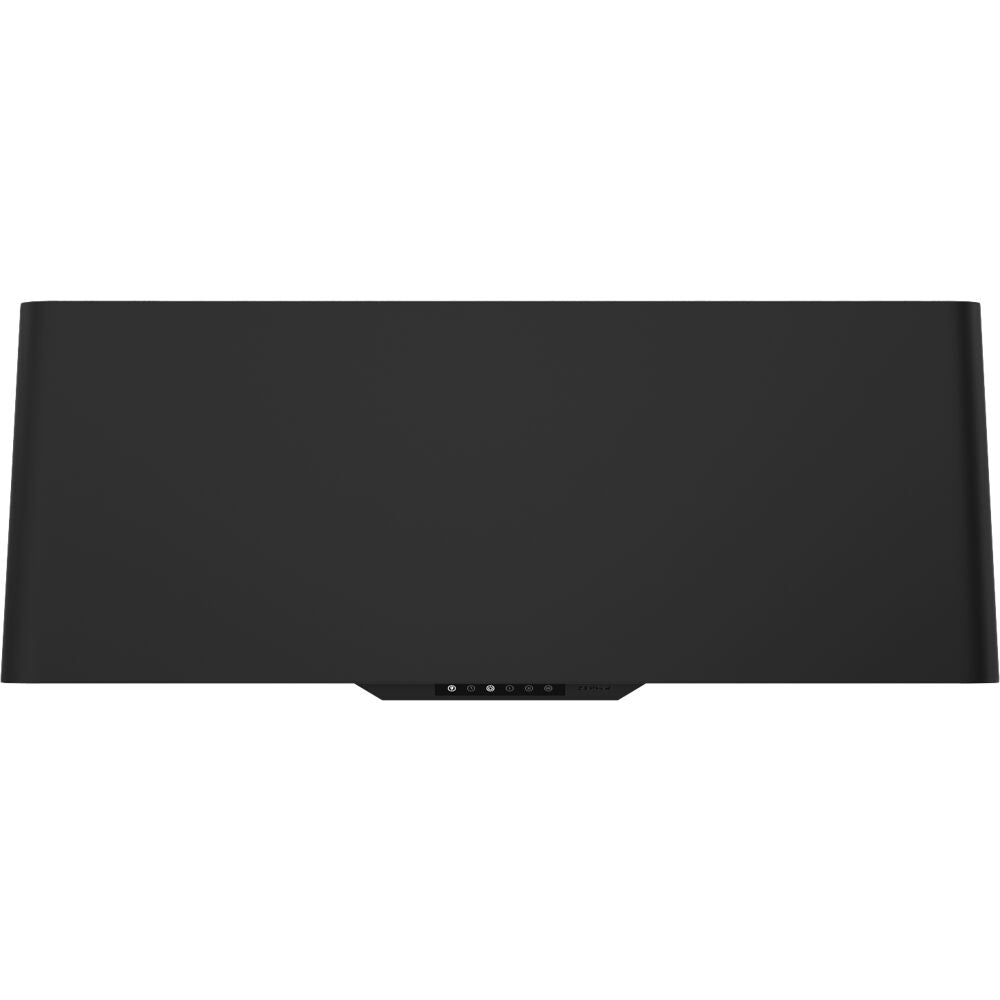

Stylish 36" wall hood with invisible touch controls and customizable finishes.
sorry, this item is out of stock
Taking kitchen glamour to new heights, the Mesa Wall is available in three finishes, including satin gold, for the very latest in kitchen design trends. With Invisible Touch Controls, baffle filters and multiple blower options, the Mesa is set to become the hardworking star of the most fashionable kitchens. Other options include a remote control, duct covers in 3 finishes, and accent rail in satin gold or stainless.
View full details

Technical Specs Technical Specs

Overview
Taking kitchen glamour to new heights, the Mesa Wall is available in three finishes, including satin gold, for the very latest in kitchen design trends. With Invisible Touch Controls, baffle filters and multiple blower options, the Mesa is set to become the hardworking star of the most fashionable kitchens. Other options include a remote control, duct covers in 3 finishes, and accent rail in satin gold or stainless.
Product Specifications
Finish Color Info
Black
Range Hood Type Info
Wall Mounted
Appliance Type Info
Range Hood
Manufacturer Part Number Info
DME M90 AMBX
ADA Compliant Info
Yes
Automatic Delay Off Info
Yes
Blower Speeds Info
3
CEC Title 20 Compliant Info
Yes
Ceiling Height Maximum Info
10.5 Ft.
Ceiling Height Minimum Info
8 Ft.
Certification Info
UL
Clean Air Function Info
Yes
Clean Filter Alert Info
Yes
Compatible Appliances Info
CBI 390A, CBE 1000, CBI 290A, CBI 600A, PBN 1000A, CBI 290C, PBI 1000B DME, Z0F C010, Z1C 00MEMB, ZRC 01ME, MERAIL 00SG, MERAIL 00SS, MERAIL 00MB, MUA006A, MUA008A, RC 0003
Controls Type Info
Invisible Touch
Duct Discharge Info
Vertical Or Horizontal
Duct Size Horizontal In. Info
8
Duct Size Vertical In. Info
6, 8
Duct Type 2 Info
Horizontal
Duct Type Info
Vertical
External Blower CFM Info
1000
For Outdoor Use Info
No
Grease Filter Type Info
Hybrid Baffle
In Line Blower CFM Info
1000
Installation Type Info
Wall
Internal Blower 1 CFM Info
600
Internal Blower 1 Max Sones Info
6
Internal Blower 1 Min Sones Info
1.4
Internal Blower 2 CFM Info
290
Internal Blower 2 Max Sones Info
3
Lighting Type Info
LED
Lights Levels Info
3
Lights Quantity Info
2
Maximum Amperage Info
6.53
Minimum CFM Info
200
Mounting Height Above Cooktop In. Info
24 - 36
Net Depth In. Info
19.6875
Net Height In. Info
13.8125
Net Width In. Info
35.3125
Nominal Width In. Info
36
Primary Material Info
Steel
Remote Optional Info
Yes
Voltage Info
120
Warranty Parts / Labor Info
2 / 1
Wattage Info
783
Watts Per Bulb Info
5
Weight Lbs. Info
70
