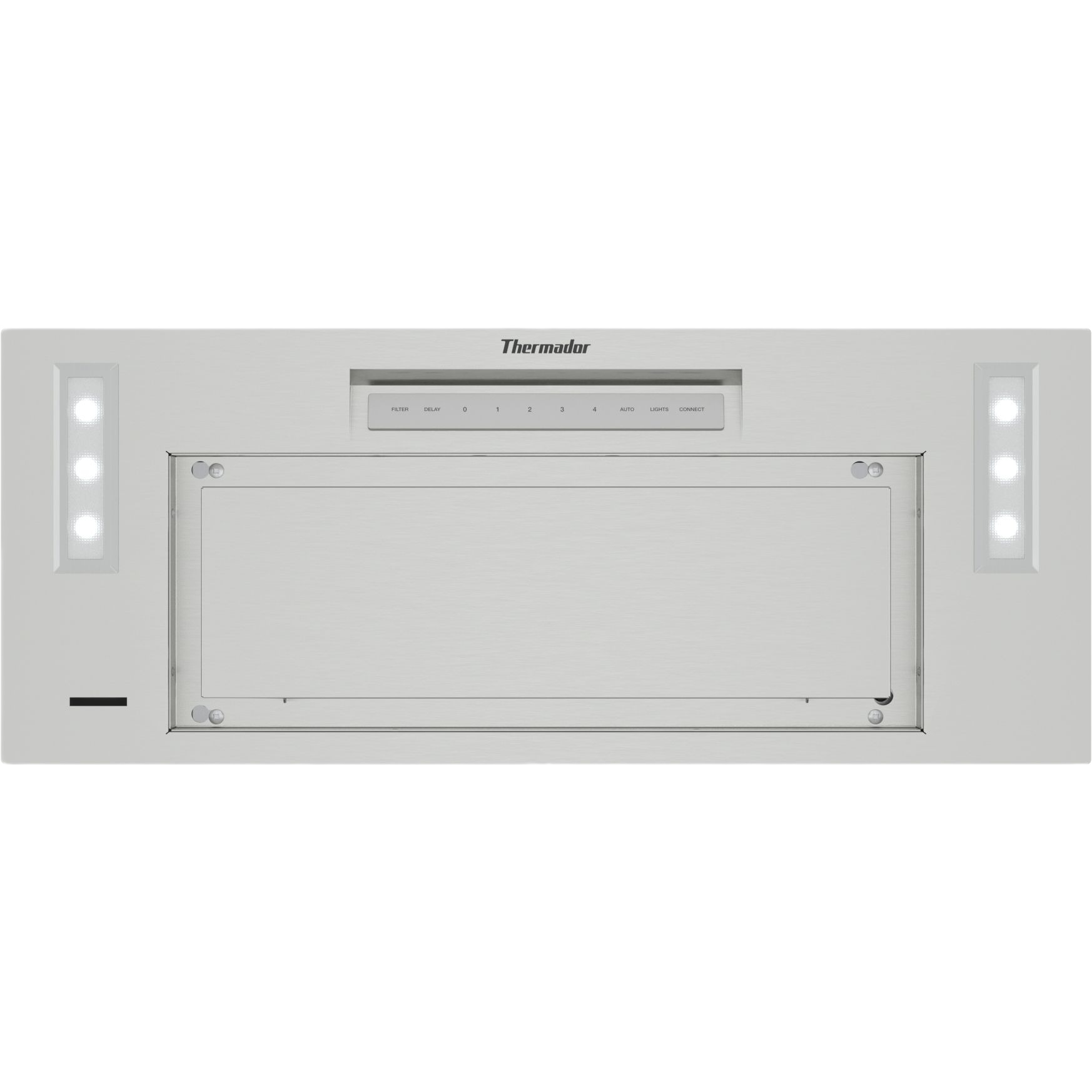

• Stainless steel insert hood with built-in lights and control panel from Thermador range hoods collection

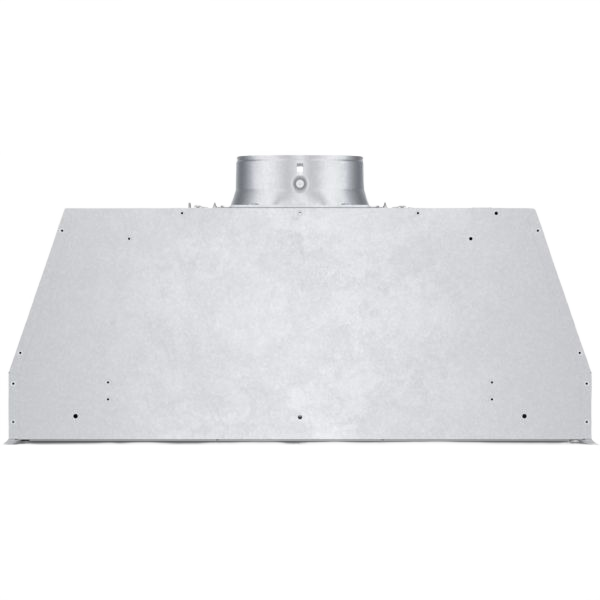

  • Stainless steel custom insert hood with top vent, part of Thermador range hoods in Kitchen & Kitchenware collection

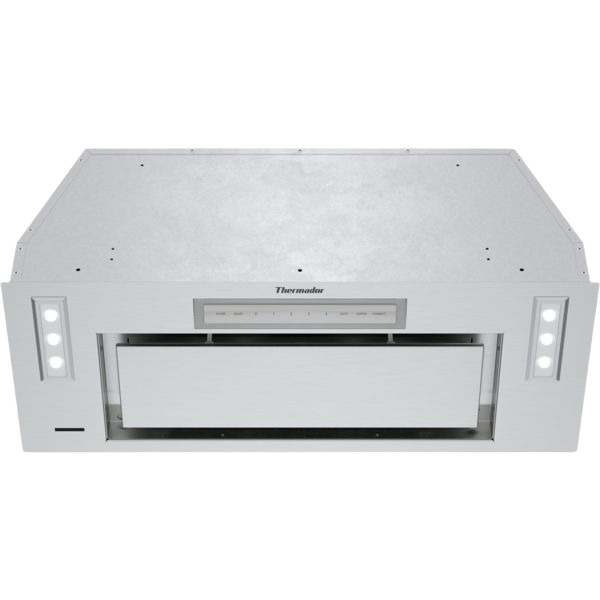

  • Stainless steel custom insert range hood with built-in LED lights and control panel from Thermador Appliances collection
1 7
Thermador
Sold out In Store Only IN-STORE ONLY

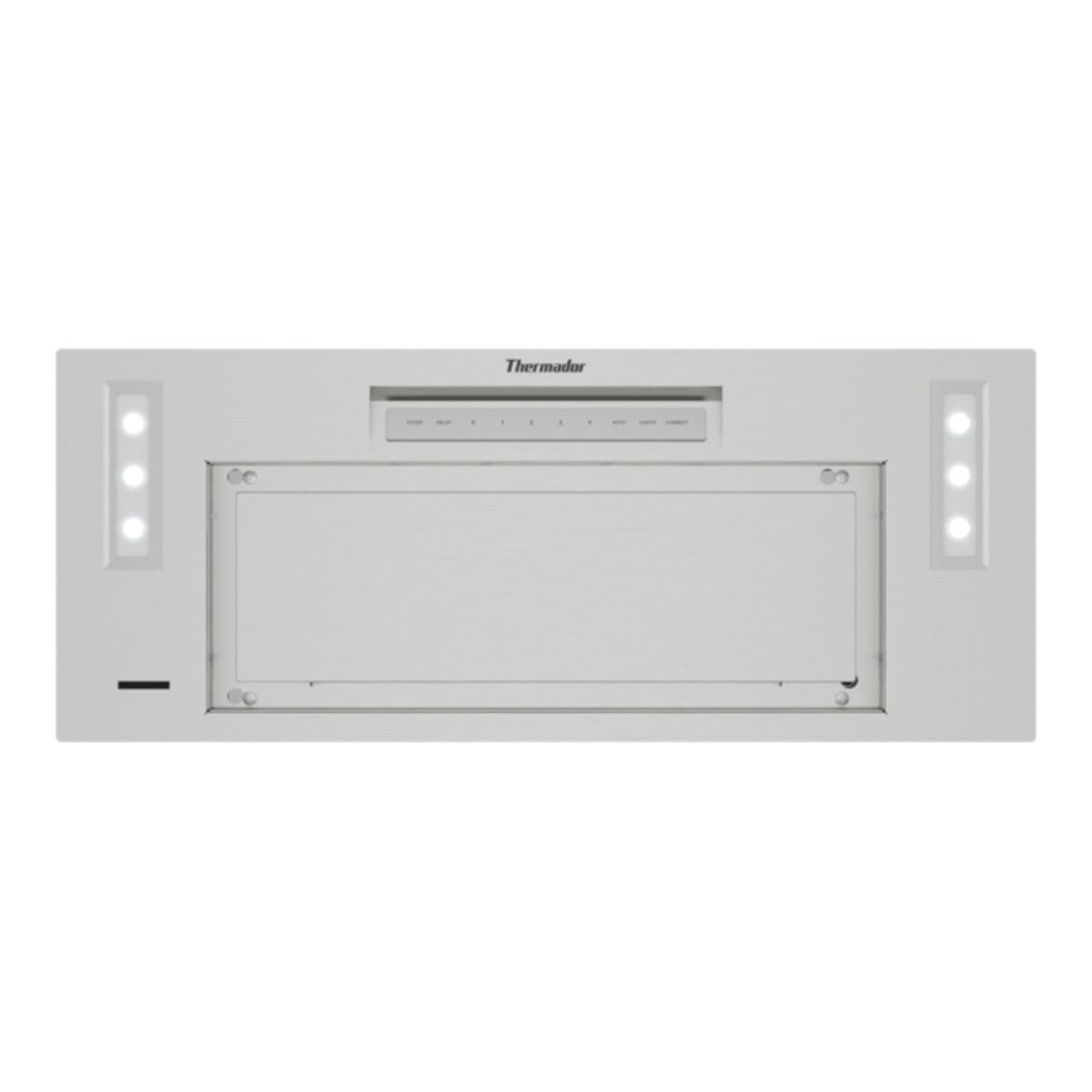

Masterpiece®, Custom insert, Stainless Steel

Masterpiece®, Custom insert, Stainless Steel

SKU: VCI3B30ZS

Shop All Thermador
Add to Favorites
$1,649.00
Powerful 30" stainless steel insert with Smart Cooktop Hood Sync and quiet ventilation.
sorry, this item is out of stock
30-Inch Masterpiece® Custom Insert with 300 CFM Innovation Cooktop Hood Sync allows hood control on Freedom® cooktop touchscreen Cooktop Hood Sync enables hood activation once Freedom® cooktop is on Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings the through Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Suitable for wall or island applications Select the precise fan speed needed with four different settings Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation Delayed shut off tackles lingering odors for up to 10 minutes Filter systems are highly efficient at capturing grease Perimetric design allows for efficient capture of smoke and steam Powerfully Quiet® ventilation systems Design Beautiful illumination with white multiple level LED lighting Recessed control set at an angle for easy view-ability and completely flush design Built-in remote control panel accessory available, sold separate
View full details

Technical Specs Technical Specs

Overview
30-Inch Masterpiece® Custom Insert with 300 CFM Innovation Cooktop Hood Sync allows hood control on Freedom® cooktop touchscreen Cooktop Hood Sync enables hood activation once Freedom® cooktop is on Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings the through Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Suitable for wall or island applications Select the precise fan speed needed with four different settings Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation Delayed shut off tackles lingering odors for up to 10 minutes Filter systems are highly efficient at capturing grease Perimetric design allows for efficient capture of smoke and steam Powerfully Quiet® ventilation systems Design Beautiful illumination with white multiple level LED lighting Recessed control set at an angle for easy view-ability and completely flush design Built-in remote control panel accessory available, sold separate
Product Specifications
Features Info
Air Exhaust Yes
Brand Info
Thermador
Color Body Info
Stainless Steel
Construction Type Info
Built In
Depth For Installation Mm Info
260
Depth Of The Packed Product Mm Info
794
Design Info
Integrated Hood
Diameter Of Air Duct Top Info
6
Diameter Of Air Duct Mm Info
150
Discharge Direction Info
Vertical
Ean Code Info
825225961260
Frequency Hz Info
60
Gross Weight Kg Info
12.8
Height Of Product Without Chimney Mm Info
267
Height Of The Packed Product Mm Info
394
Installation Type Info
Wall Mounted
Internal Article Number Info
Vci3B30Zs
Light Control Type Info
Continuous
Material Info
Stainless Steel
Maximum Height For Installation Mm Info
584
Maximum Width For Installation Mm Info
660
Minimum Height For Installation Mm Info
381
Minimum Width For Installation Mm Info
660
Motor Location Info
Integrated Motor In Hood Body
Net Weight Kg Info
10.9
Number Of Lights Info
2
Number Of Speed Settings Info
4 Stage
Overall Appliance Dimensions HxWxD Info
5 3/4'' x 26 1/2'' x 10 5/8''
Plug Type Info
No Plug
Power Cord Length Cm Info
150
Product Group Info
Hood
Product Packaging Dimensions HxWxD Info
15 1/2'' x 31 1/4'' x 13''
Remote Control Info
Yes
Required Distance Above Cooktop Ranges Info
30'' 30''
Sku Info
Vci3B30Zs
Total Annual Energy Consumption Info
48.5
Total Luminance Lux Info
150
Total Output Power Of The Motors Info
150
Total Power Of The Lamps W Info
40
Type Of Automatic Control Devices Info
Control Via Cooker Hotplate
Type Of Control Info
Touch Control Electronic
Type Of Lamps Used Info
Low Consumption
Typology Info
Built In Built Under
Upc Code Info
825225961260
Volts V Info
120
Watts W Info
159
Width Of The Packed Product Mm Info
330
Finish Color Info
Stainless Steel
Range Hood Type Info
Cabinet Insert
Appliance Type Info
Range Hood
Manufacturer Part Number Info
Vci3B30Zs
