• Stainless steel telescopic downdraft vent system designed for kitchen air extraction in home improvement projects

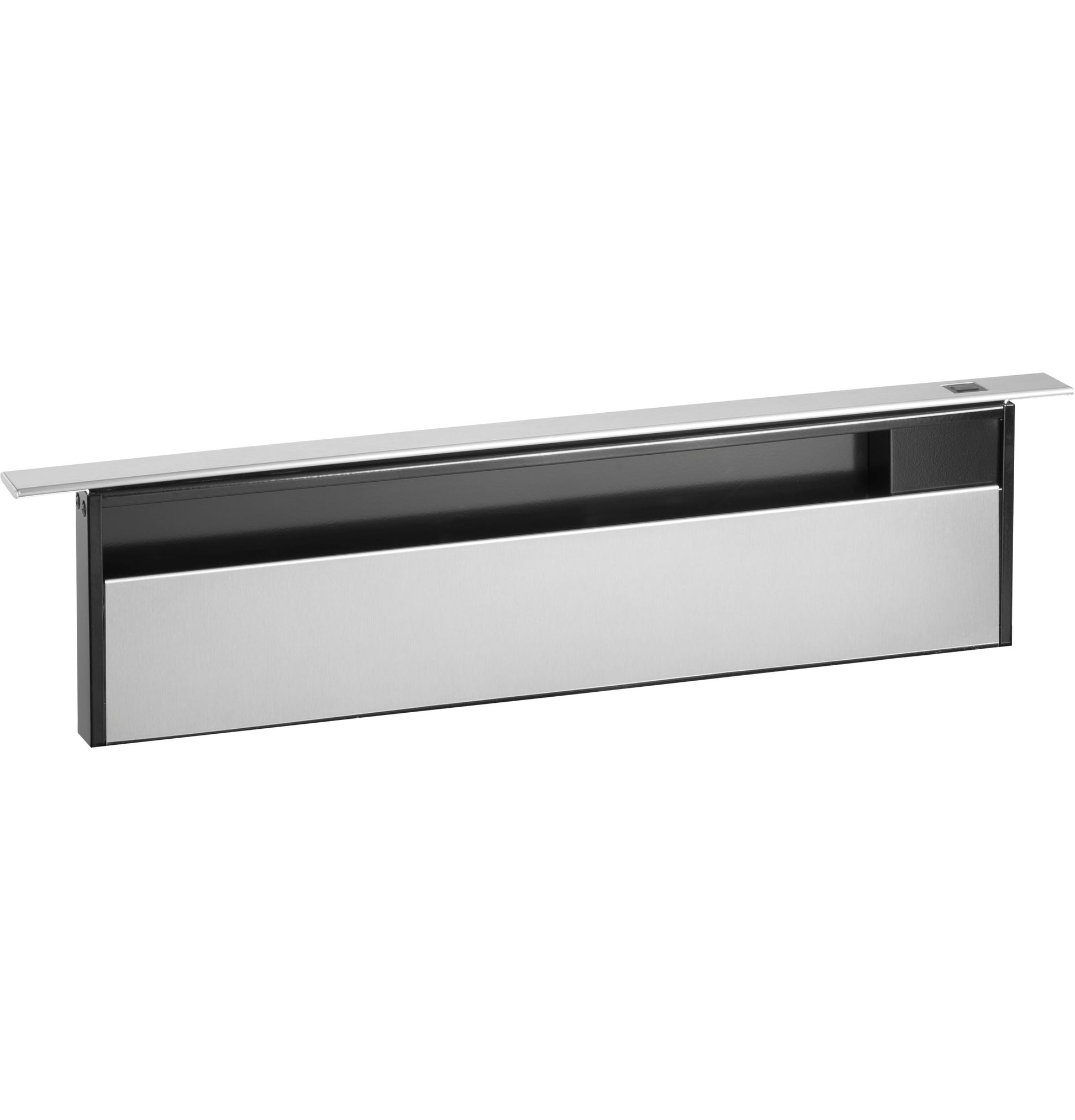

  • Stainless steel telescopic downdraft vent system for kitchens in Range Hoods and Appliances collections

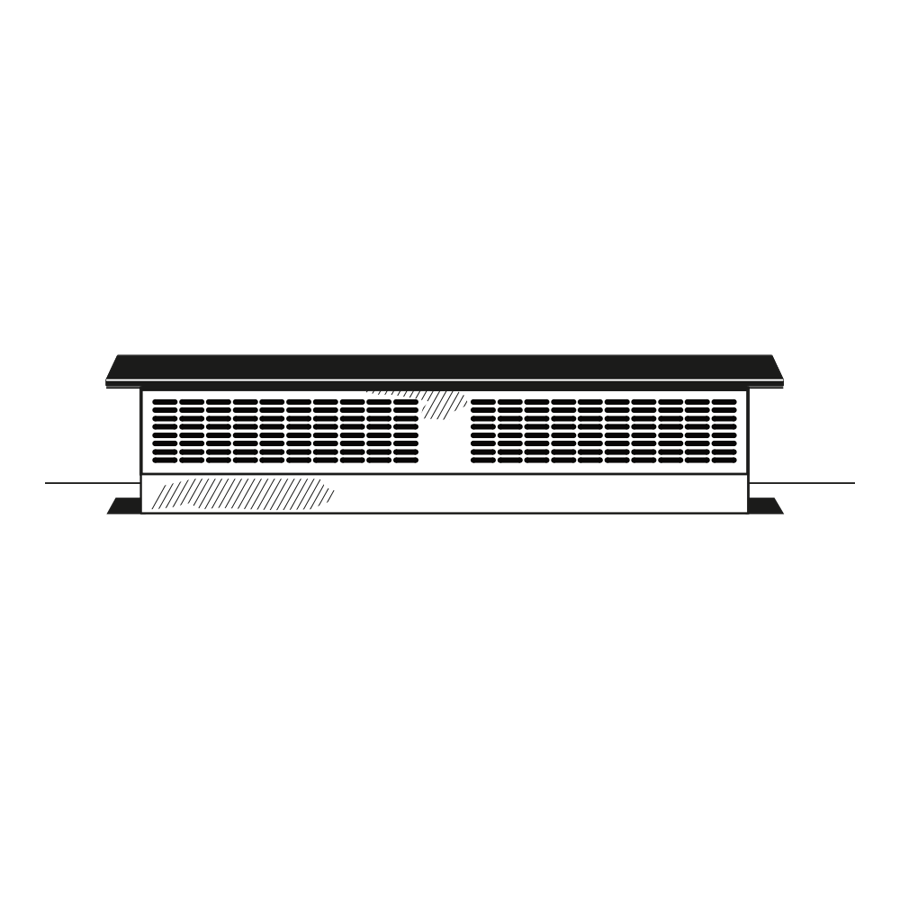

  • Black and stainless steel telescopic downdraft vent system designed for kitchens in Range Hoods and Appliances collections

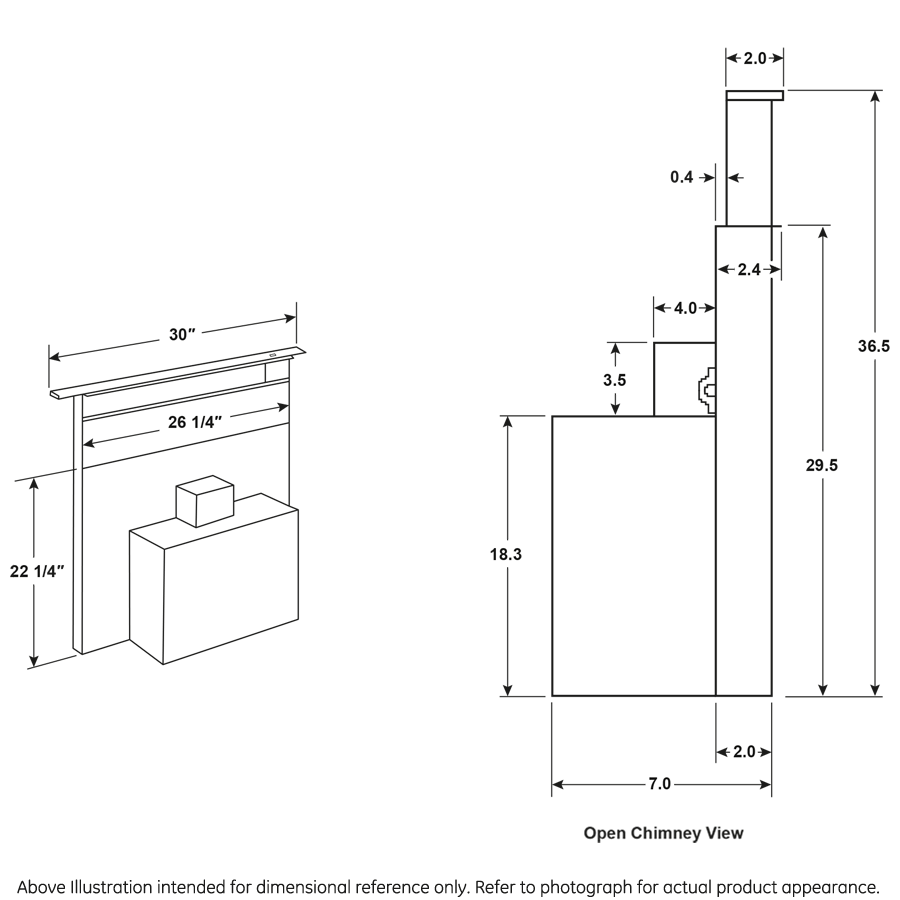

  • Technical line drawing showing dimensions and design details of a 30-inch telescopic downdraft system for range hoods and kitchen appliances collections

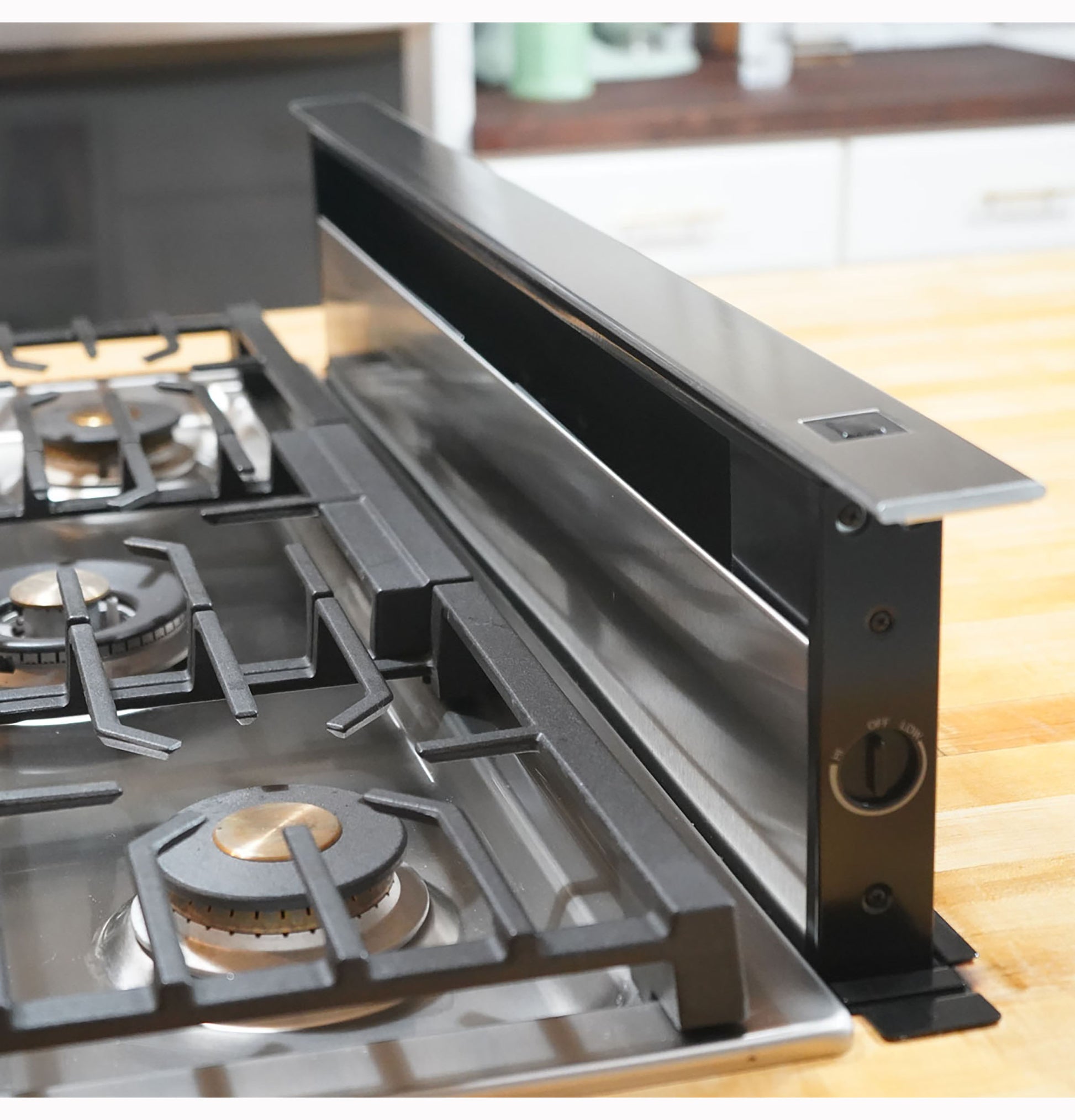

  • Black telescopic downdraft vent system installed behind gas cooktop for ventilation in kitchen appliances and range hoods collections

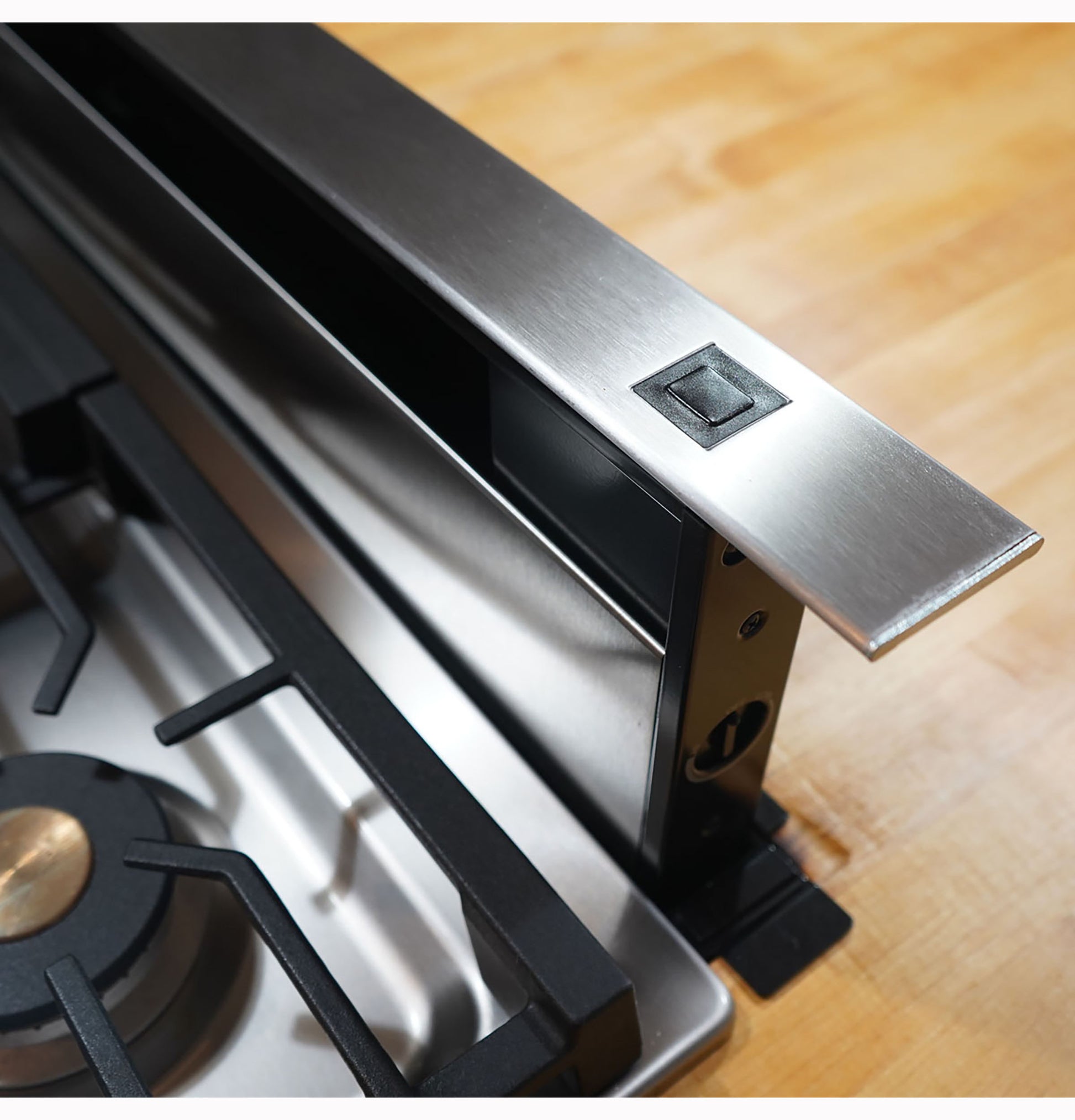

  • Stainless steel telescopic downdraft vent installed adjacent to a gas stove burner in kitchen appliance setting

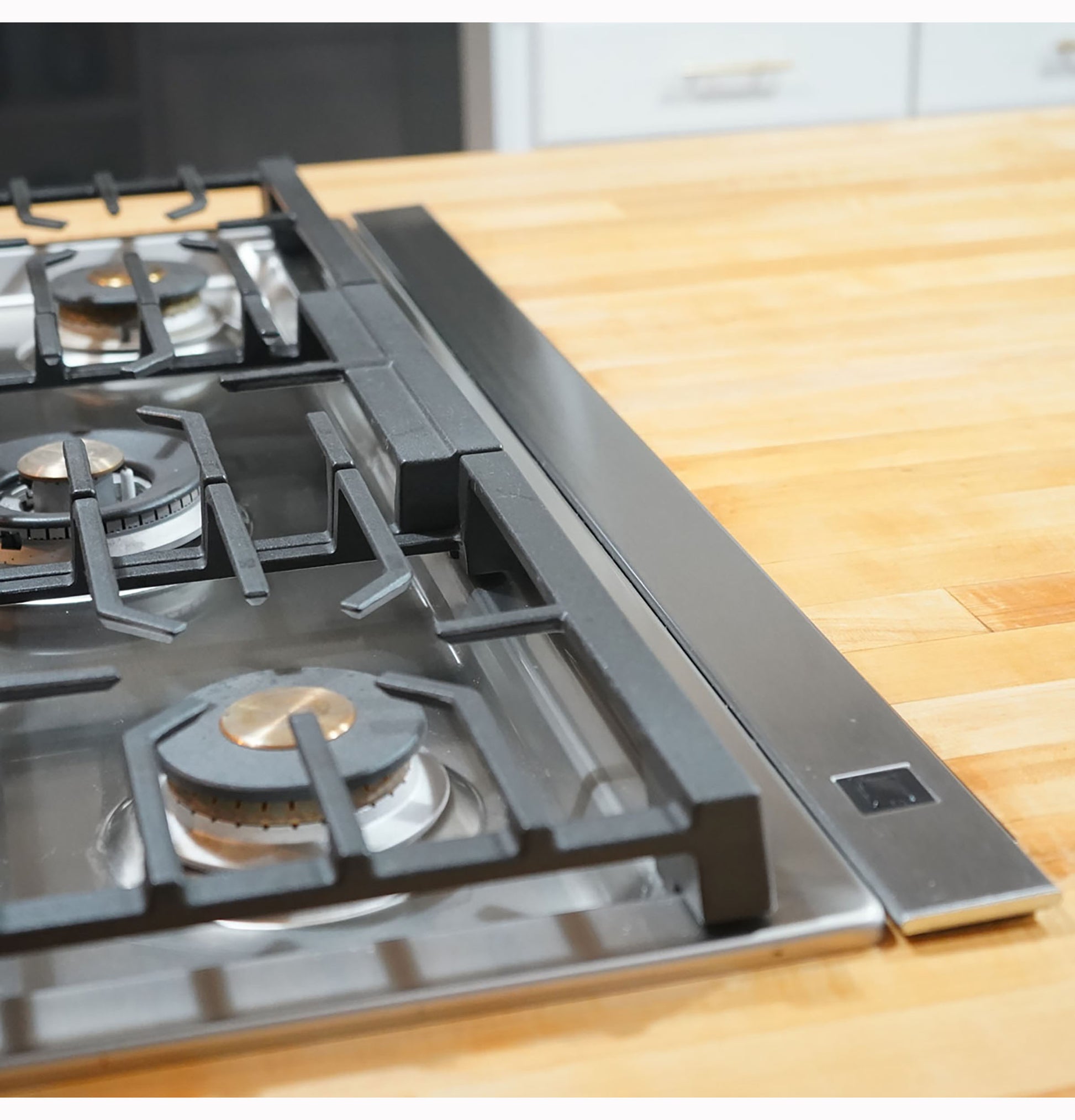

  • Black telescopic downdraft vent installed beside gas cooktop on wooden countertop in kitchen appliance setting

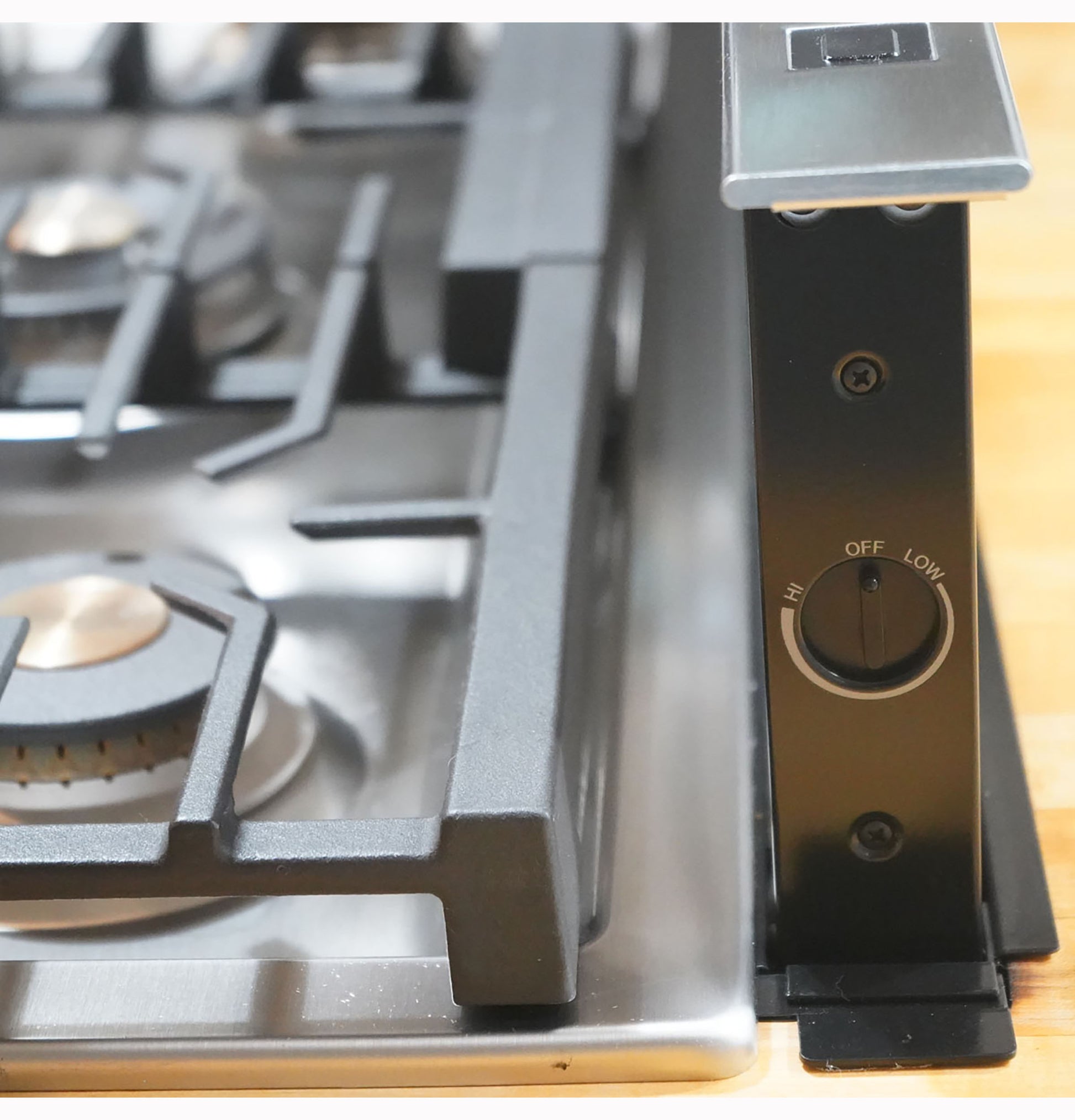

  • Close-up of stainless steel telescopic downdraft vent control knob near gas stove burner in kitchen appliance setting

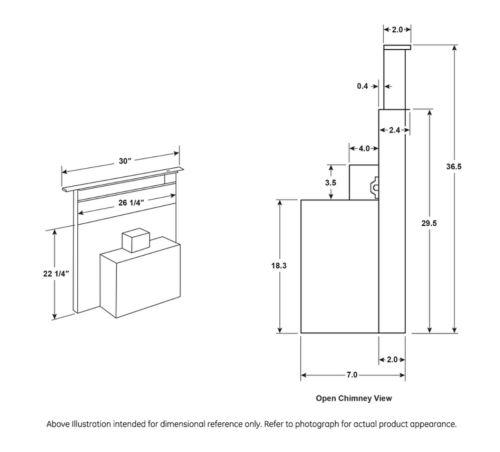

  • Technical line drawing with dimensions for a telescopic downdraft vent used in kitchen range hood installations.
1 9
Sold out In Store Only IN-STORE ONLY

Universal 30" Telescopic Downdraft System

Universal 30" Telescopic Downdraft System

SKU: UVD6301SPSS

Shop All Profile
Add to Favorites
now $1,241 .00 $1,379.00
Universal 30" telescopic downdraft system for efficient ventilation and dust control.
sorry, this item is out of stock
Universal 30" Telescopic Downdraft System
View full details

Technical Specs Technical Specs

Overview
Universal 30" Telescopic Downdraft System
Measurements & Specs
Width Info
{"value":30.0,"unit":"in"}
Height Info
{"value":7.0,"unit":"in"}
Other Tech Specs
Finish Color Info
Stainless Steel
Range Hood Type Info
Downdraft
Appliance Type Info
Range Hood
Features Info
Duct Extension 100 Ft. Color Appearance Stainless Steel Venting Type Externally Vented Blower Type Internal CFM Sones Rating 500 / 11.0 Control Type Rotary Mechanical Cover Plate Stainless Steel Downdraft Exhaust CFM 500 Exhaust Options 3-1/4 Inch x 10 Inch Rectangular Duct Downdraft Vented to Outside Fan Speed Control Variable Max CFM 500 Optional Blower Mount Capabilities Yes Product Type Telescopic Downdraft Removable Grease Filters Mesh Yes Telescopic Assembly Stainless Steel App Filter Cabinet Width Vent 30 In. Standard App Filter Hood Type Telescopic Downdraft App Filter Venting Type External App Filter Multi Brand Cafe GE Monogram Amp Rating at 120 V 4.0 Electrical Requirements 120 V 60 Hz 4.0 A Hertz 60 Watts 375 Labor Warranty Limited 1 Year Entire Appliance Parts Warranty Limited 1 Year Entire Appliance Warranty Notes See Written Warranty for Full Details Approximate Shipping Weight 67 Lb Cabinet Width 30 In Net Weight 63 Lb Overall Depth 7 In Overall Height 7 In Overall Width 30 In Telescoping Height 7 In
