Technical Specs
Overview
Measurements & Specs
-
Width
- {"value":23.75,"unit":"in"}
-
Height
- {"value":34.0,"unit":"in"}
Other Tech Specs
-
Features
- Optional 12' Drain Hose Optional Hose Kit WD24X10065
-

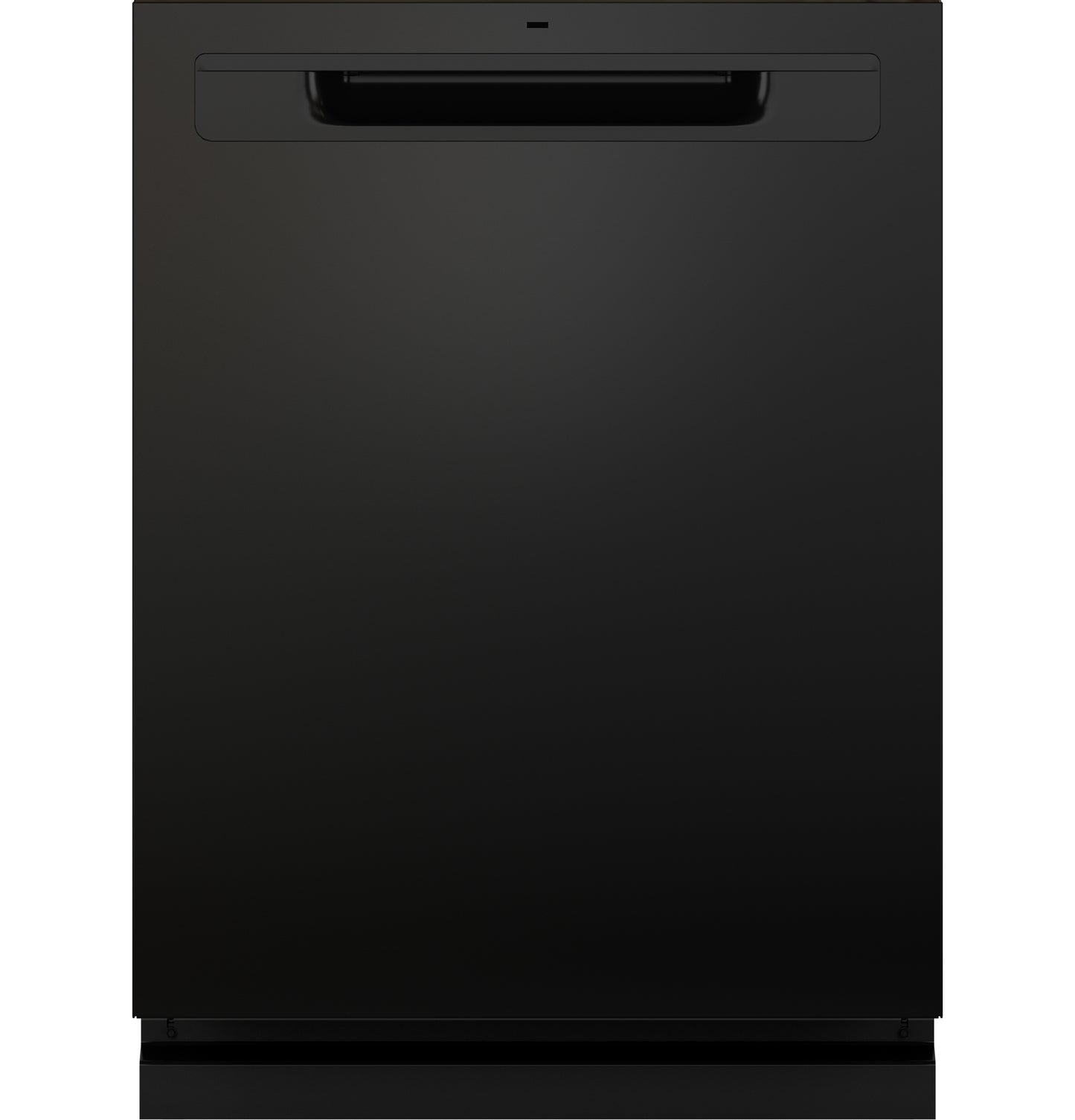

Color Appearance
- Black
-
Control Panel Color
- Storm Gray
-

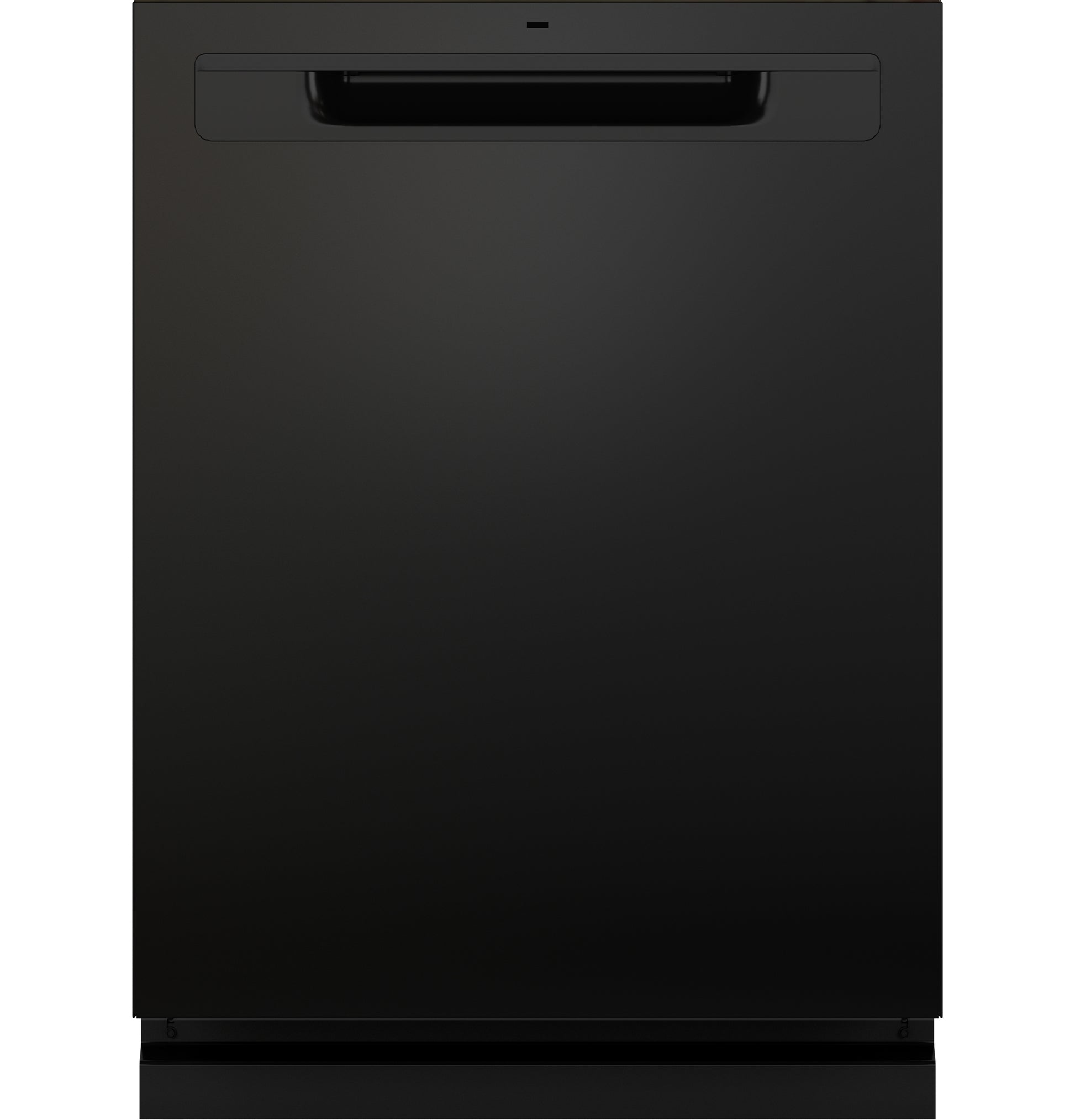

Door Appearance
- Full-length Door
-
Door Style
- Long Door with Top Controls
-
Handle
- Pocket Handle
-
Handle Color
- Black
-
Installation
- Built-Up Floor Capable Flush Cabinet Installation Side or Top Mount Install Brackets Included
-
Door Insulation
- Insulation Mastic
-
Motor Type
- Variable Speed
-
Outer Wrap
- Bitumen Full-wrap Blanket
-
Quiet Features
- Quiet Water Valve Sealed Toe Kick Tub Collar Trim
-
Quiet Package
- 45 dBA
-
Additional Protection
- Active Flood Protect
-

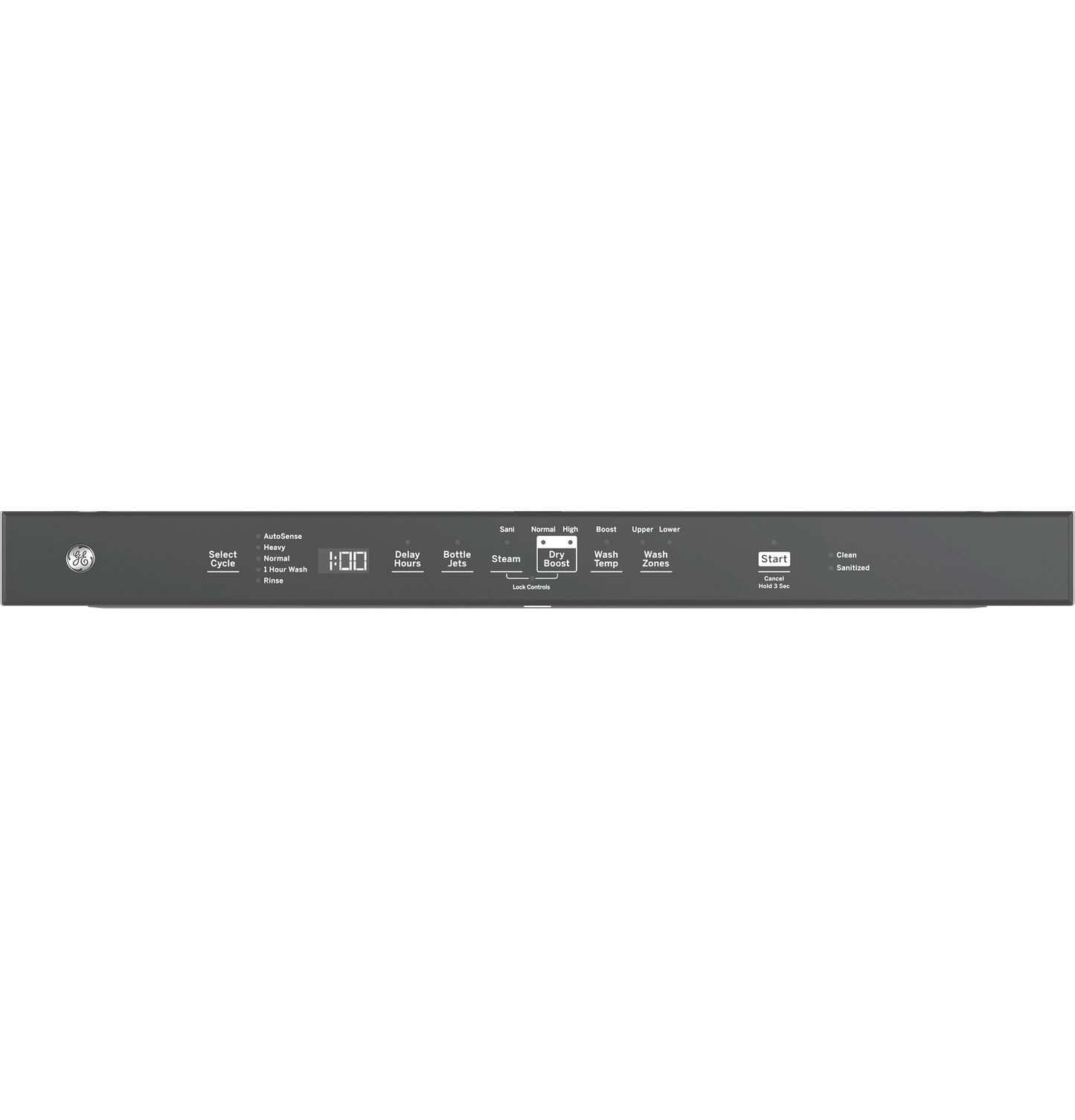

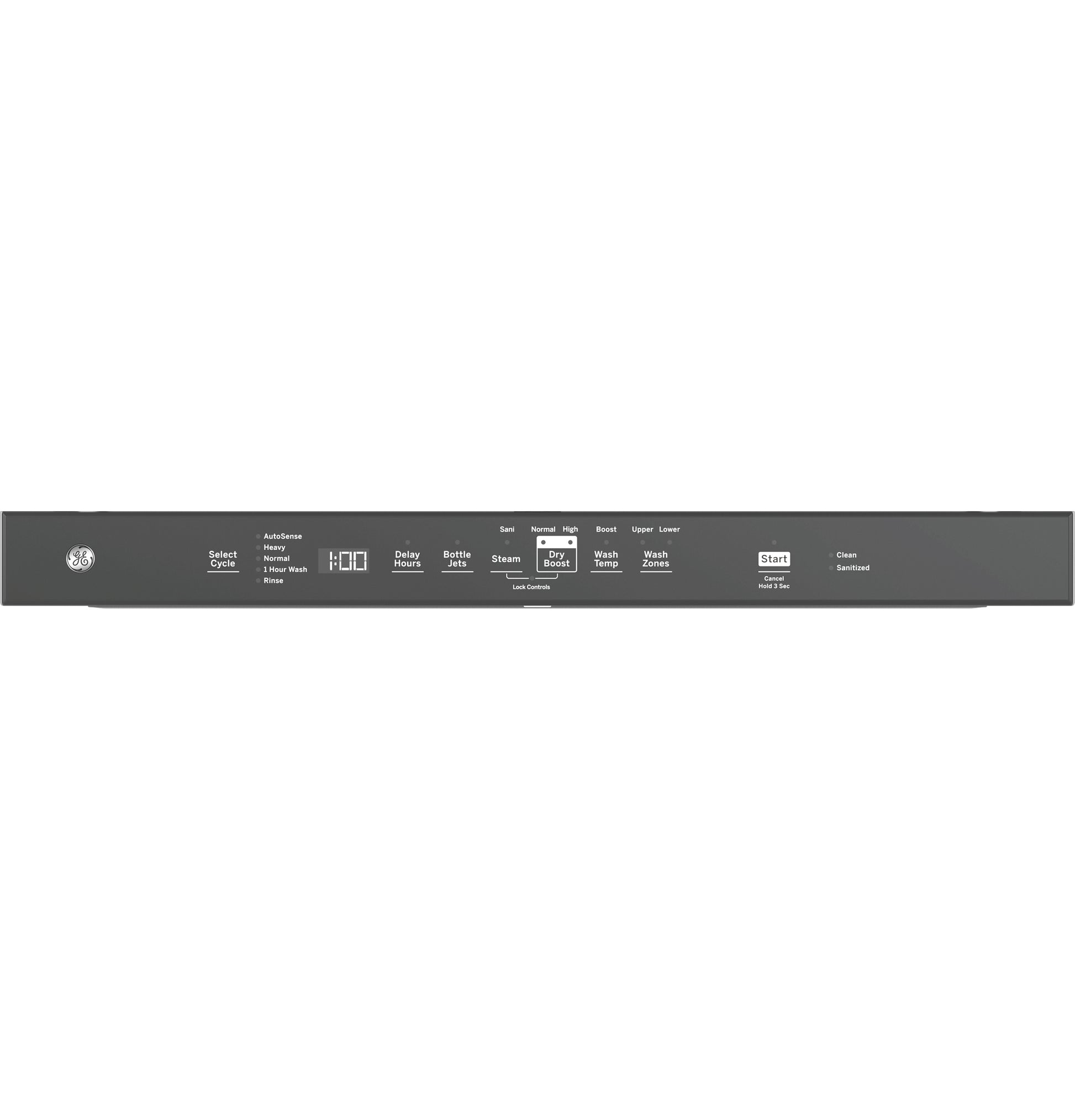

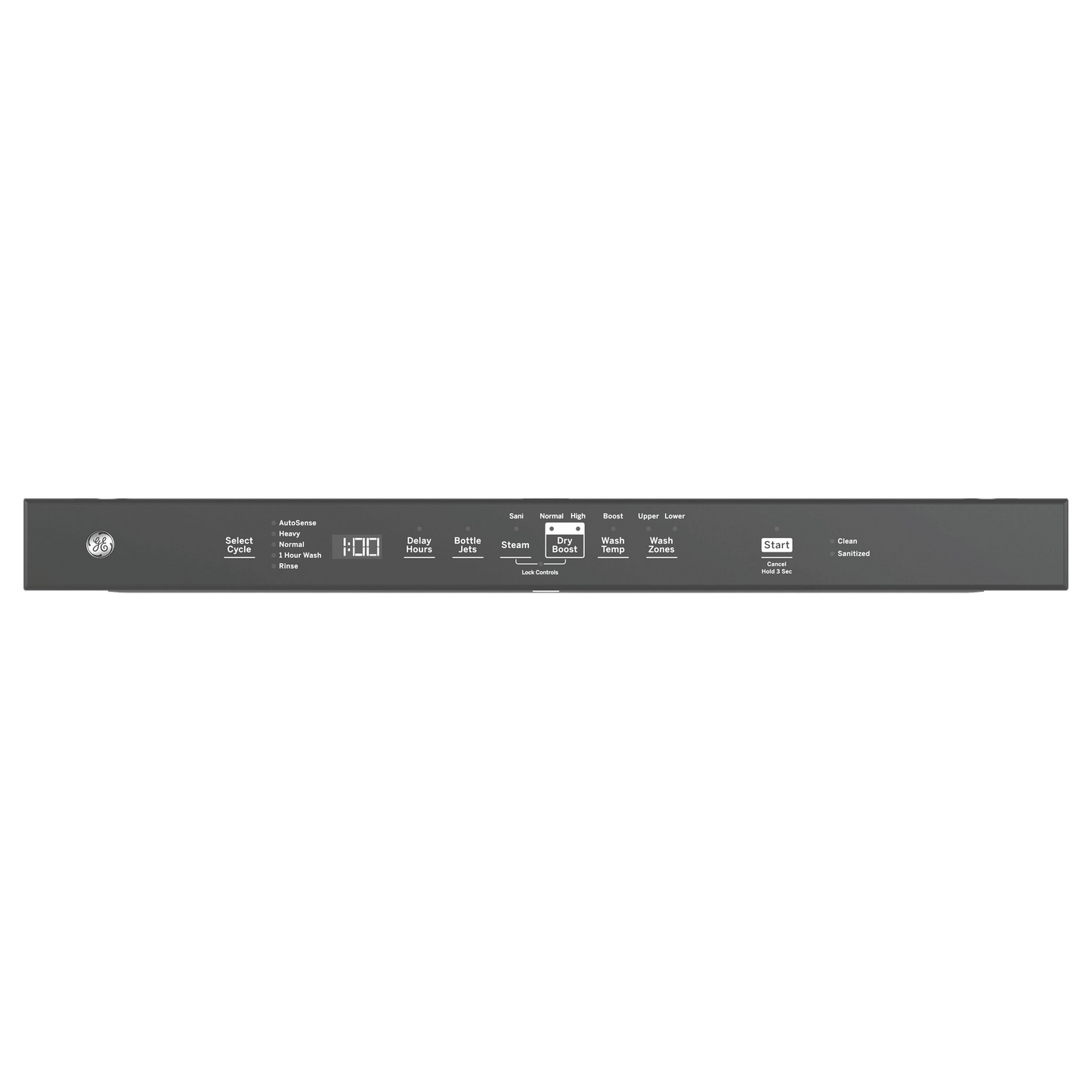

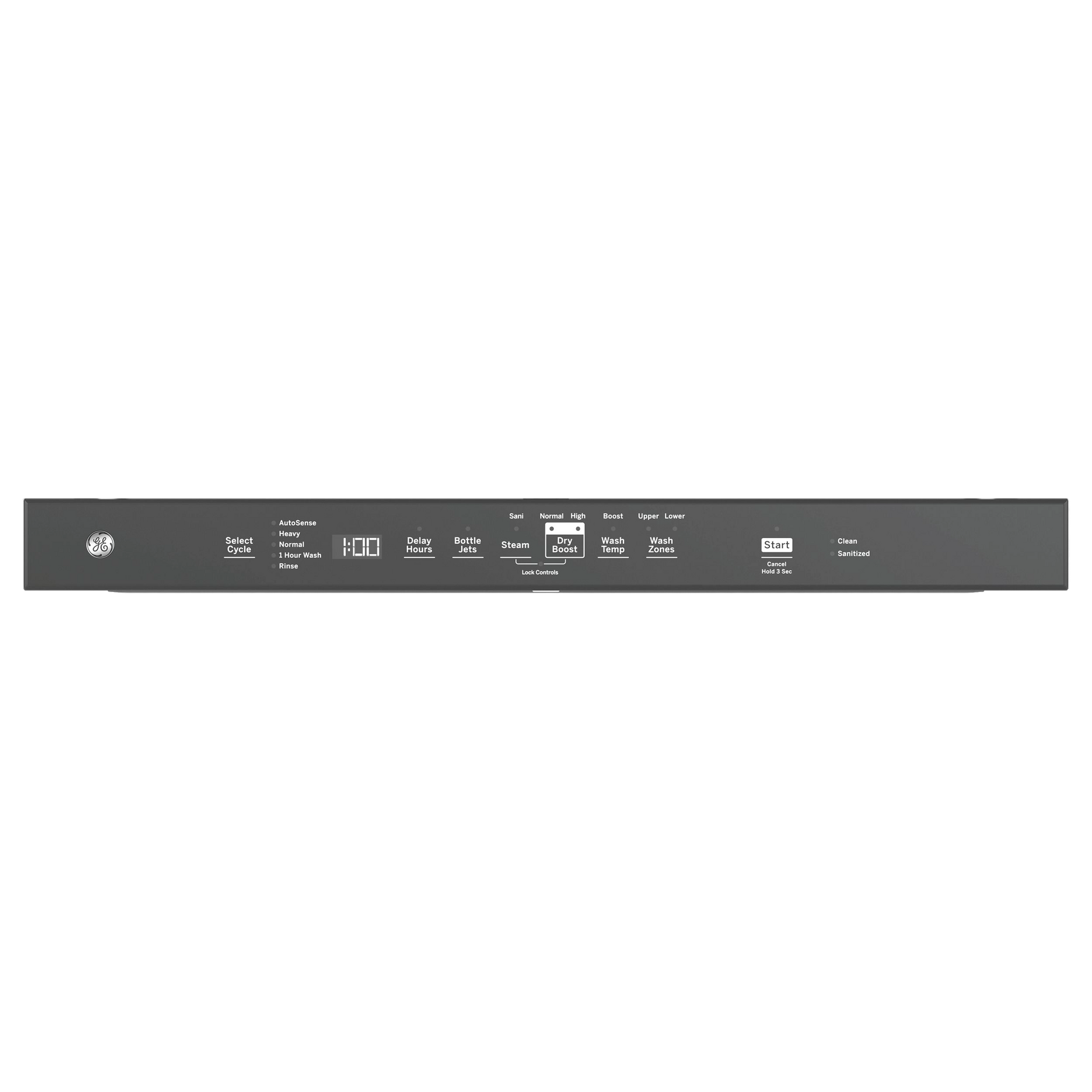

Control Type
- 8 Touchpads Cap Touch Controls Top Controls
-
Cutlery Tray
- One Piece Removable 3rd Rack
-
Dishwasher Control Features
- 1 Clean Light 1 Sanitized Light Cycle Progress Indicators 3 Digit Display Cycle Countdown with Bi-Color LED Status Light on Door Audible End-of-Cycle Signal Control Lock with 1 Light Last Cycle Memory
-
Dishwasher Cycles
- 1 Hour Wash Auto Sense Heavy Wash Normal Wash Rinse
-
Dishwasher Drying Features
- Dry Boost™ Normal High Off
-
Dishwasher Options
- Bottle Jets Child Lock Delay Start 1-12 Hr Dry Boost™ High Dry Boost™ Normal Sabbath Mode Start Cancel Steam + Sani Certified to NSF Standard 184 Wash Temp Boost Wash Zone Lower Only Wash Zone Upper Only
-
Dispenser
- Rinse Aid with Indicator and Adjustment
-
Exterior Style
- Traditional
-
Latch
- Pull with Handle
-
Leveling System
- 4 Leveling Legs
-
Lower Rack
- Ball-Tip Tines
-
Number of Cycles
- 5
-
Number of Options
- 11
-

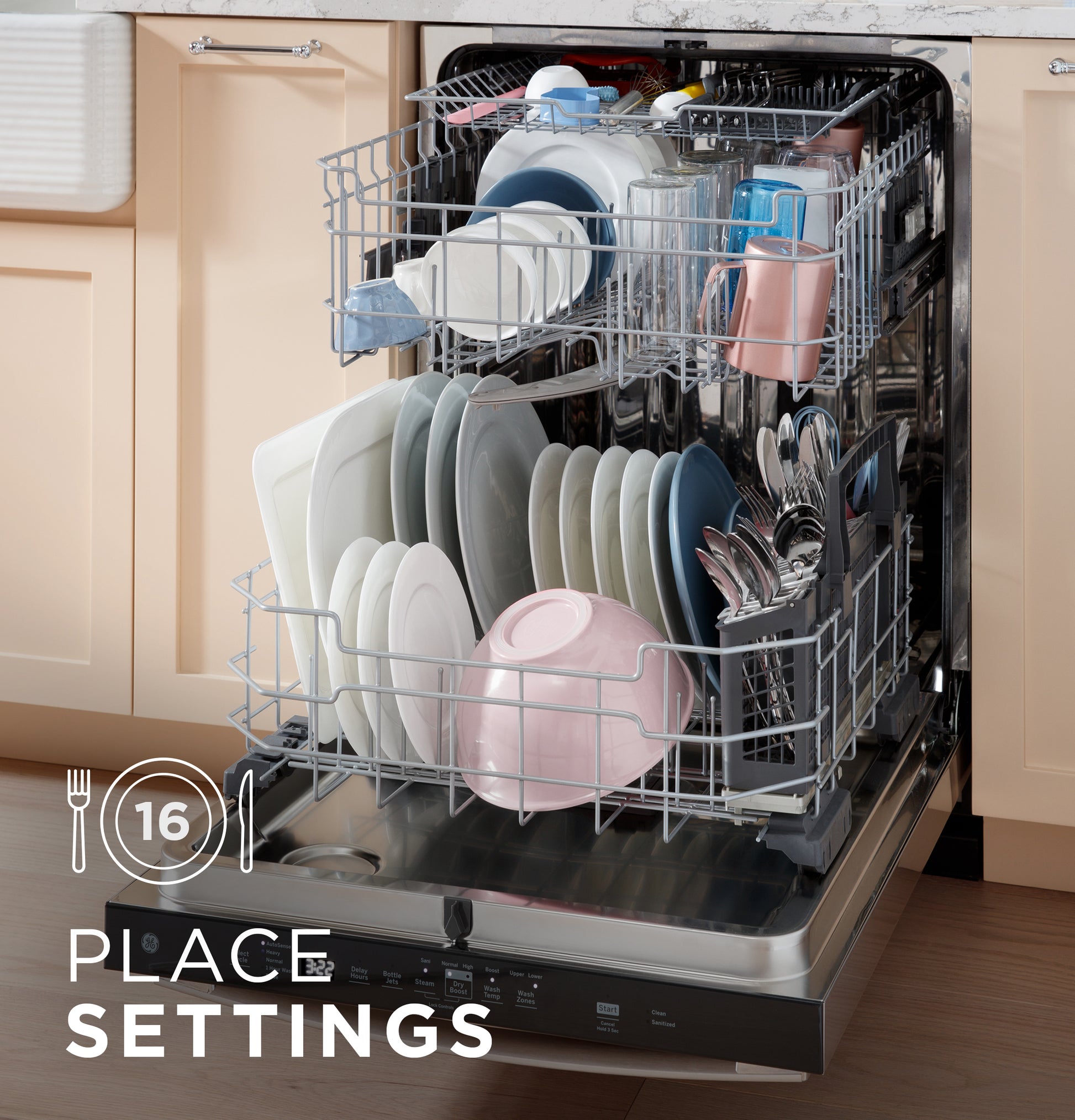

Number of Place Settings
- 16
-
Product Type
- Built-In
-
Rack Color
- Silver
-

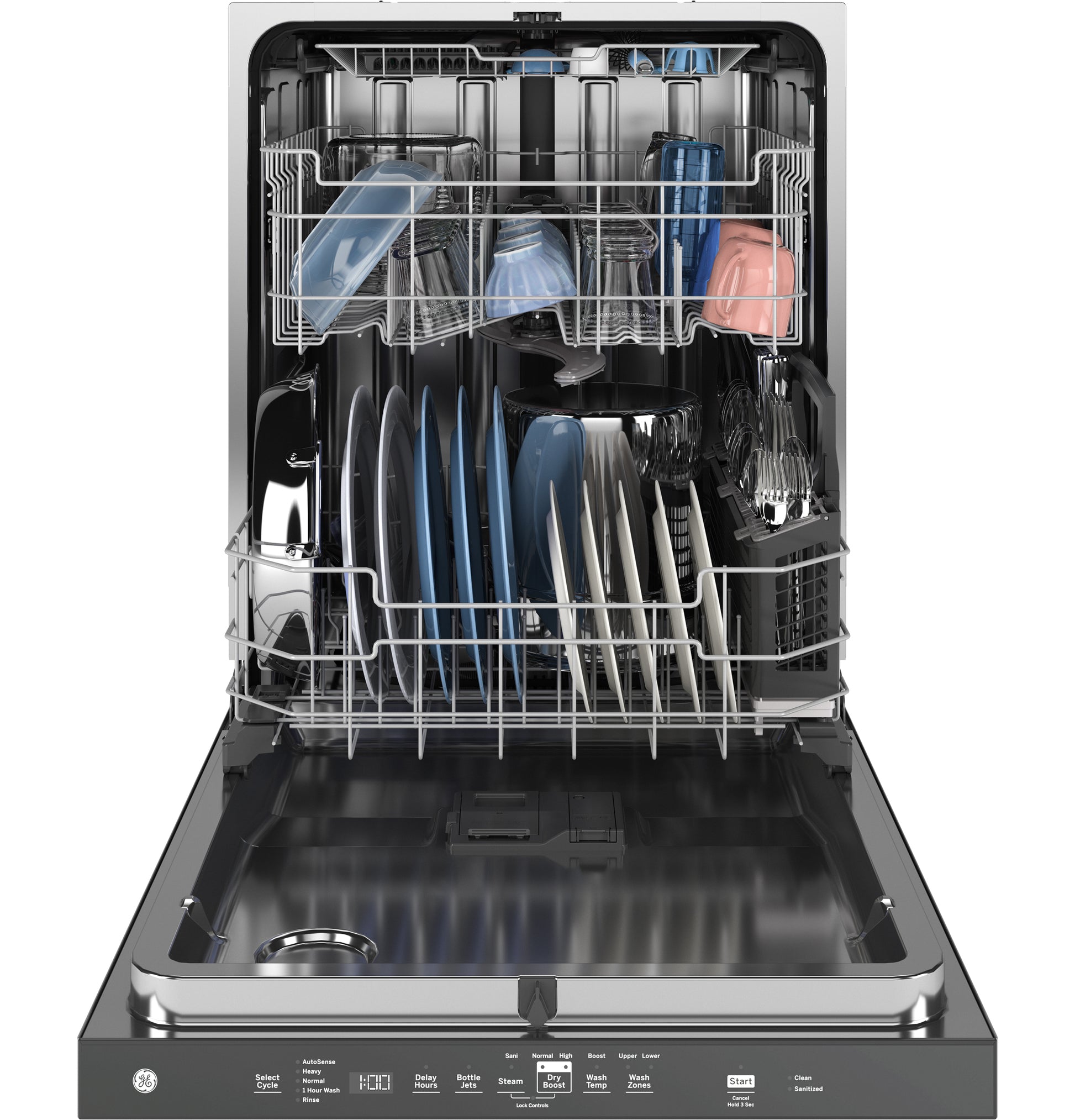

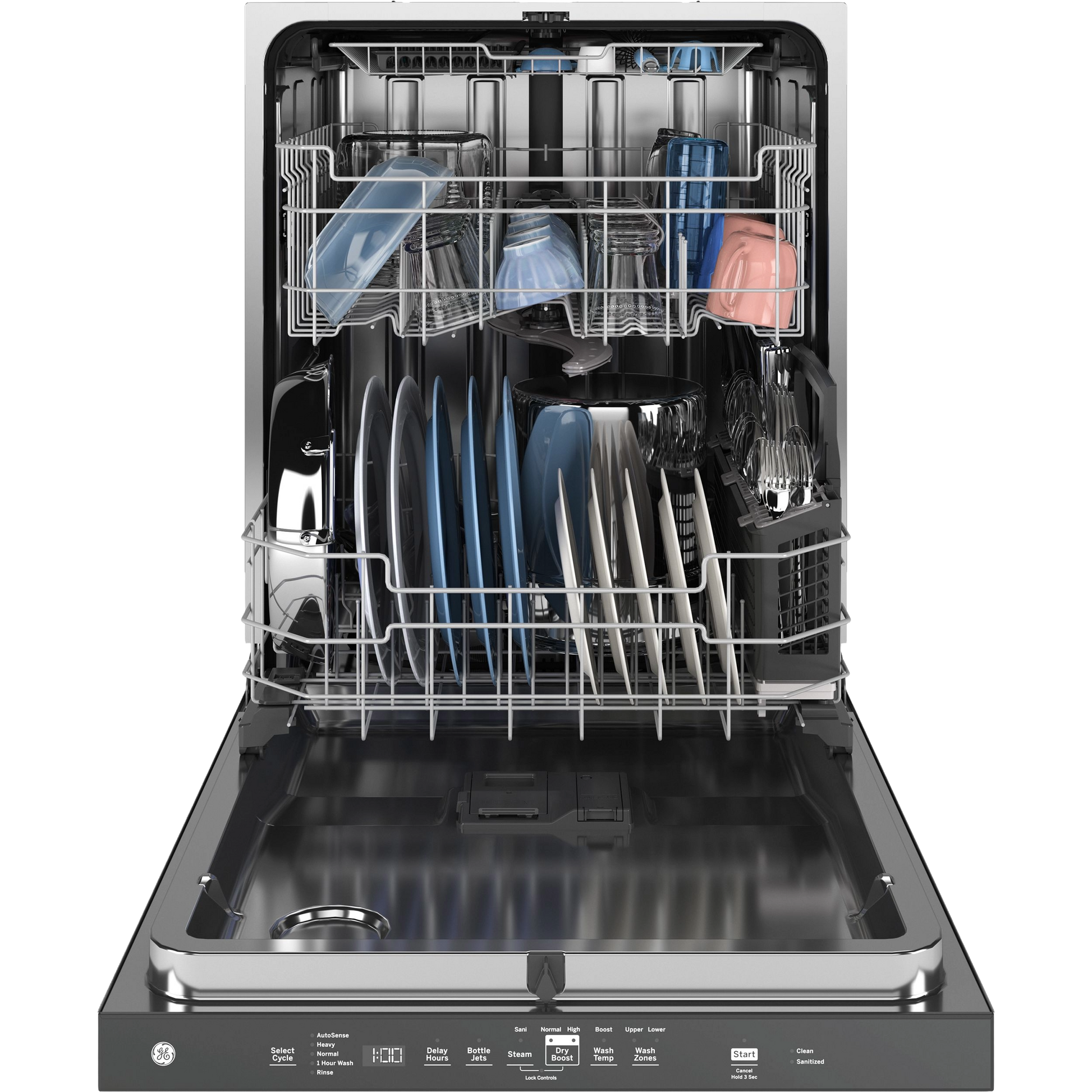

Rack Features
- 1 Piece Silverware Basket with 3 Cell Covers Adjustable Upper Rack Ball-Tipped Tines
-
Racking Material
- Nylon
-

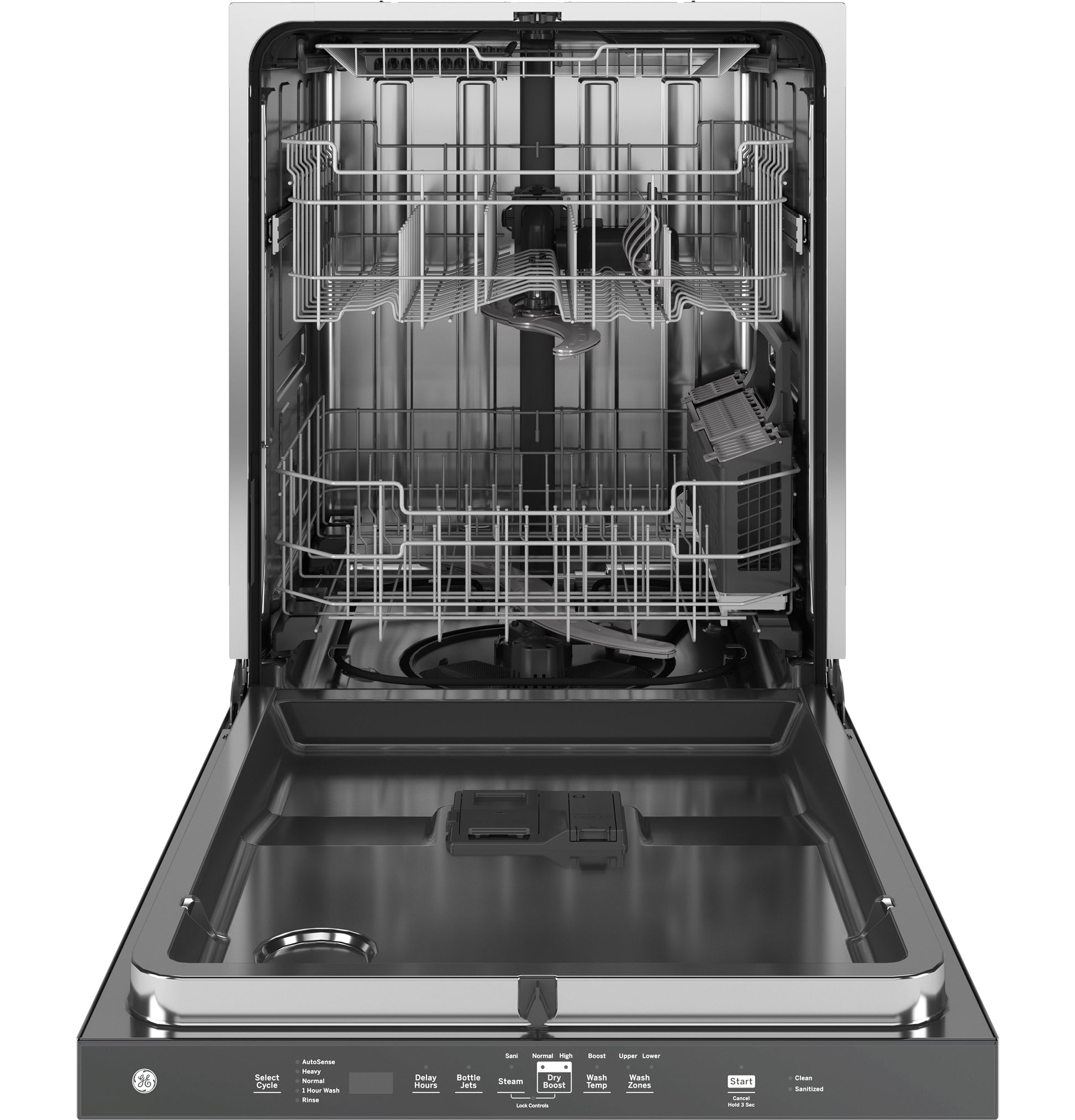

Racking System
- Full 3rd Rack + Caddy
-
Sabbath Mode
- Yes
-
Sensor
- Clean Sensor
-
Showroom Power Mode
- Yes
-
Style
- Built-In Top Control
-

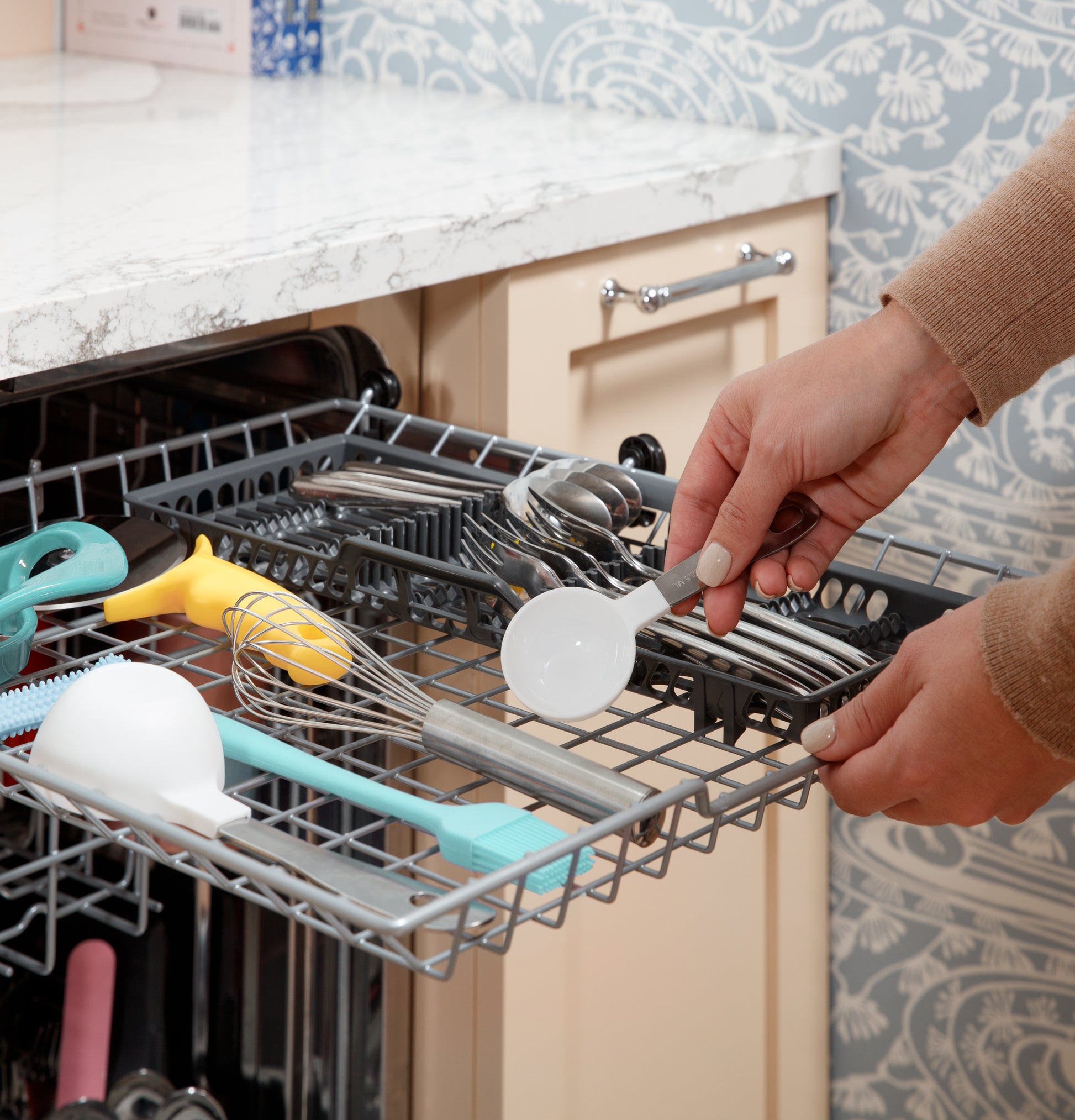

Top Rack/3rd Rack
- 3rd Rack + Caddy
-
Tub and Door Liner
- Stainless Steel
-
Tub Type
- Tall Tub
-

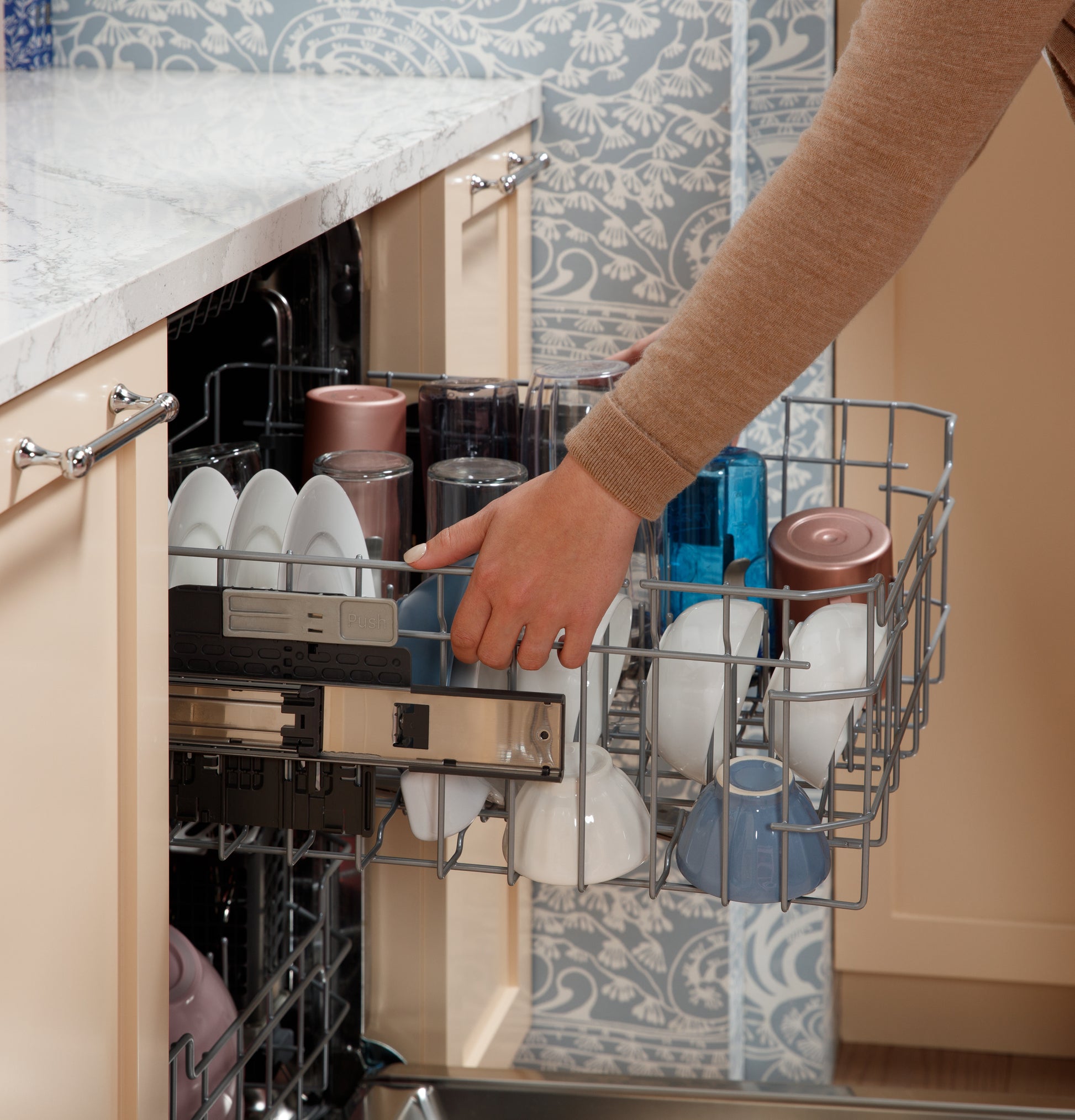

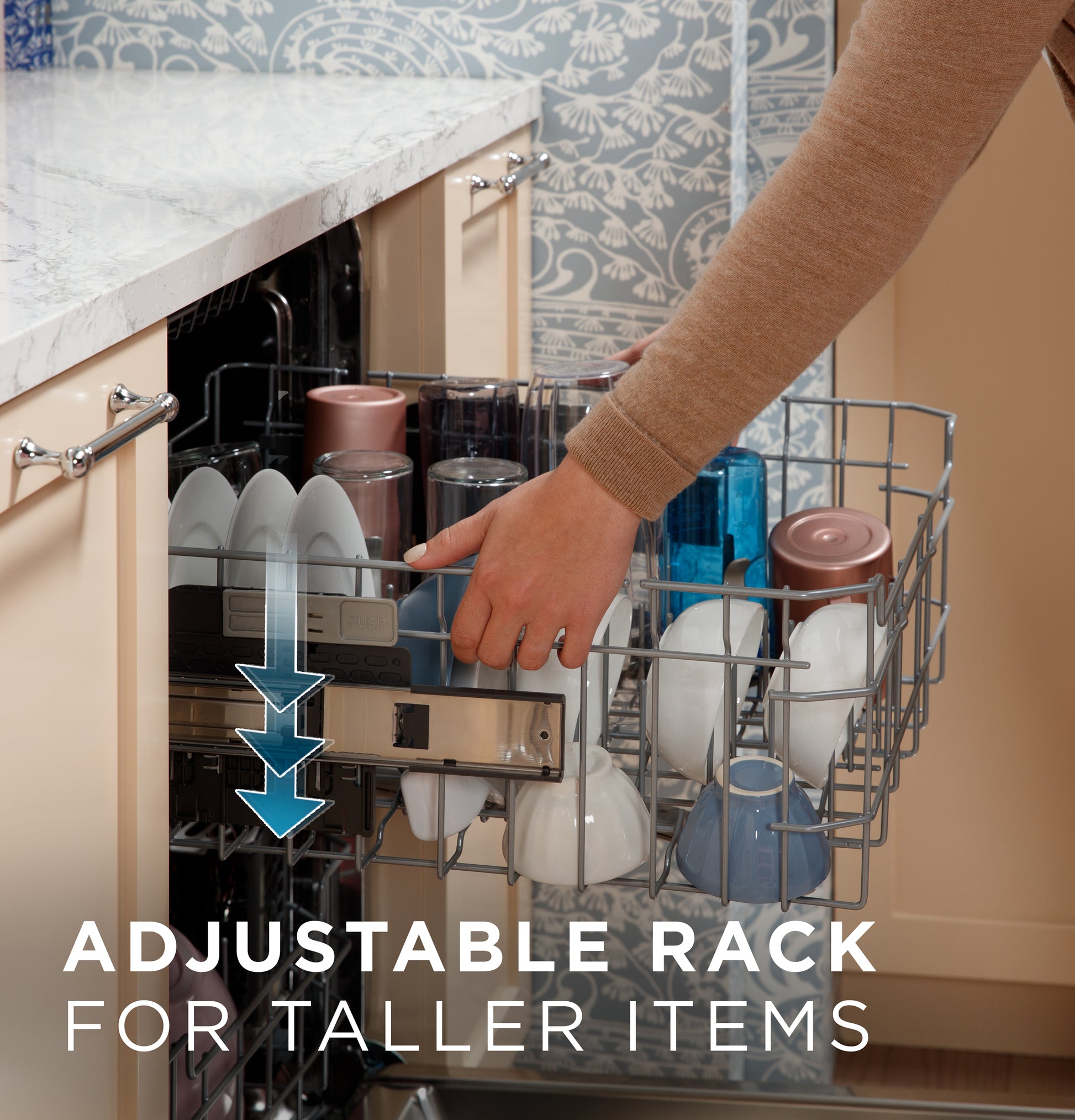

Upper Rack
- Ball-Tip Tines Premium Height Adjustable Smooth Glide Upper Rack
-

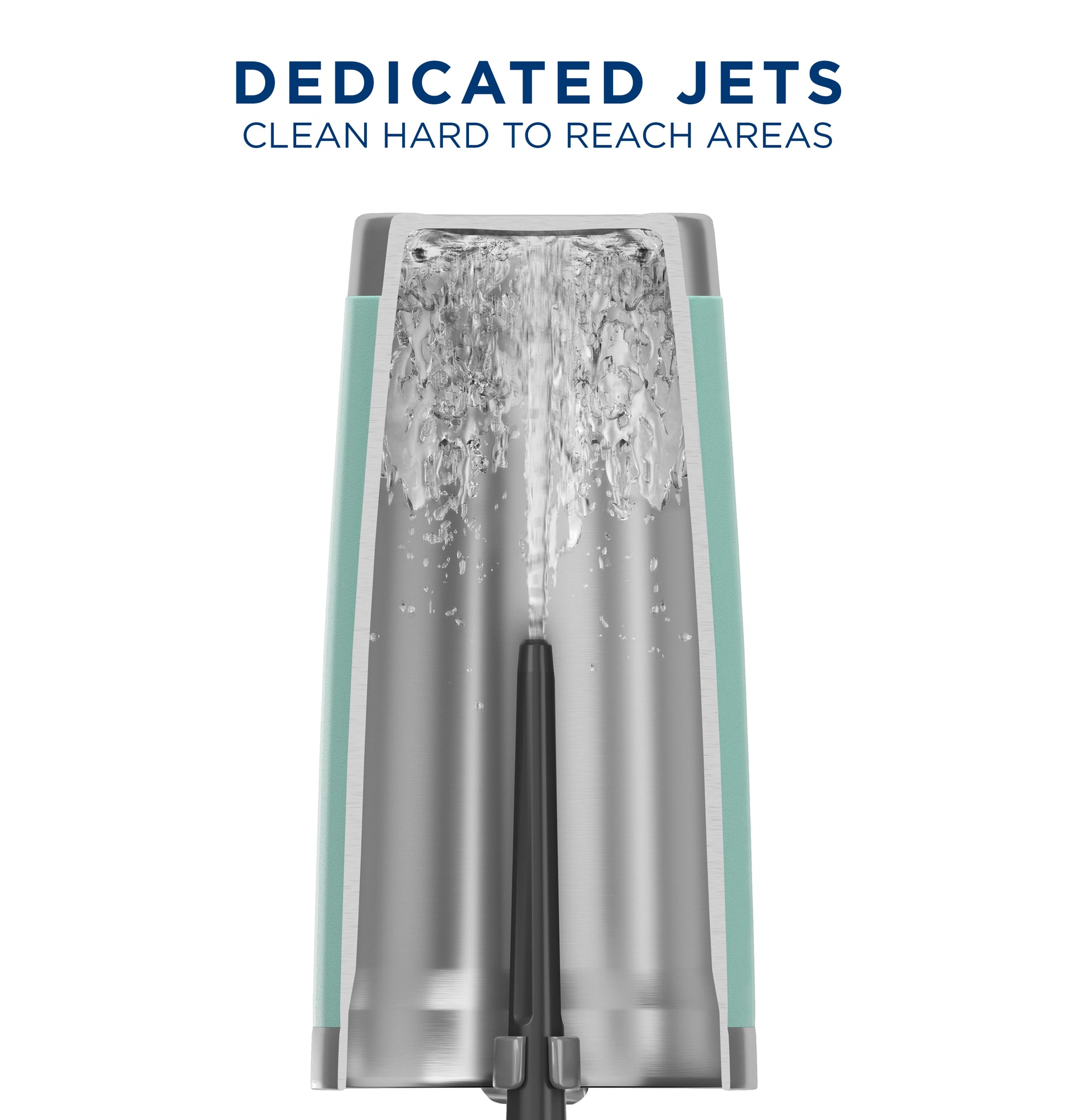

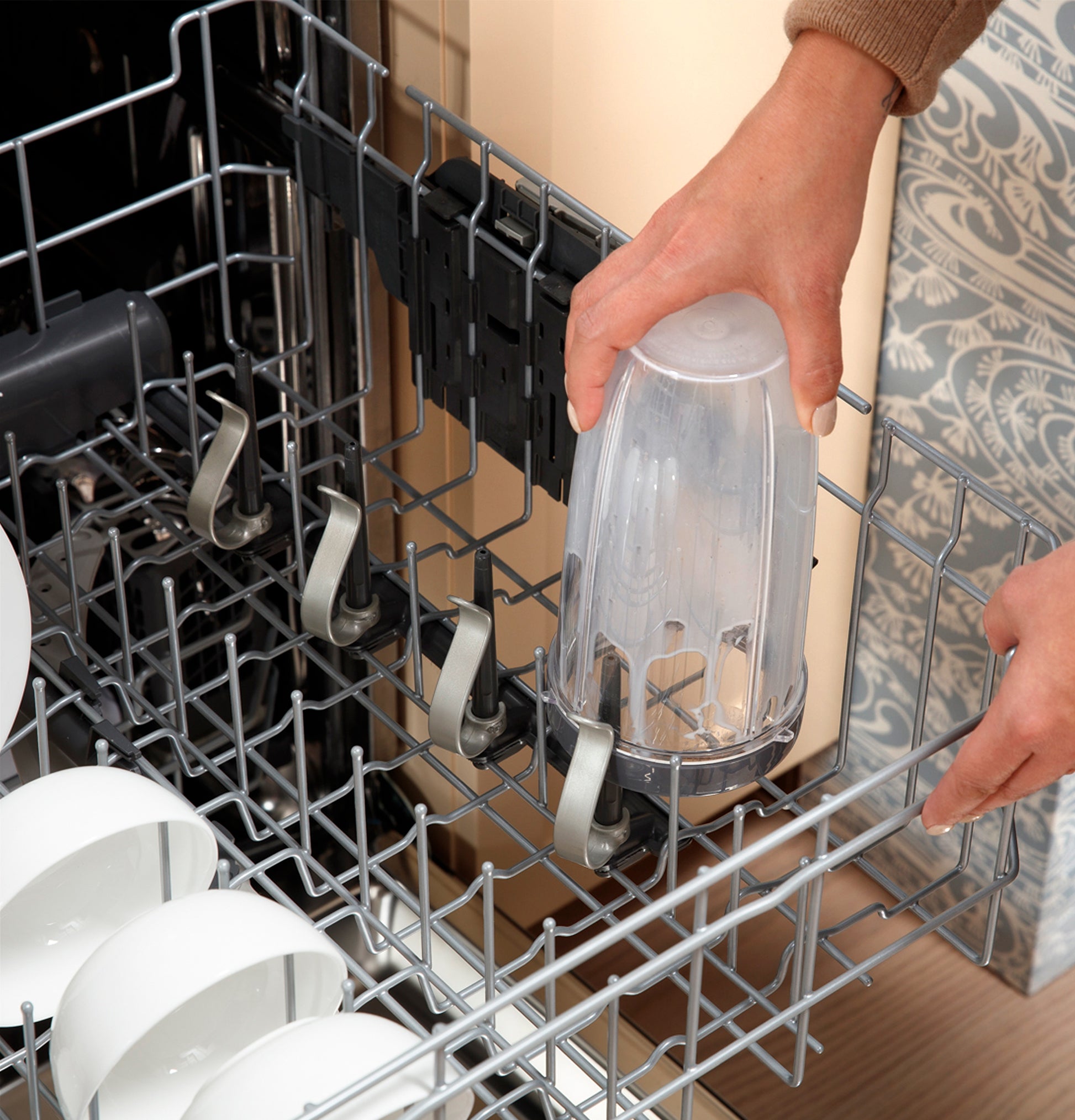

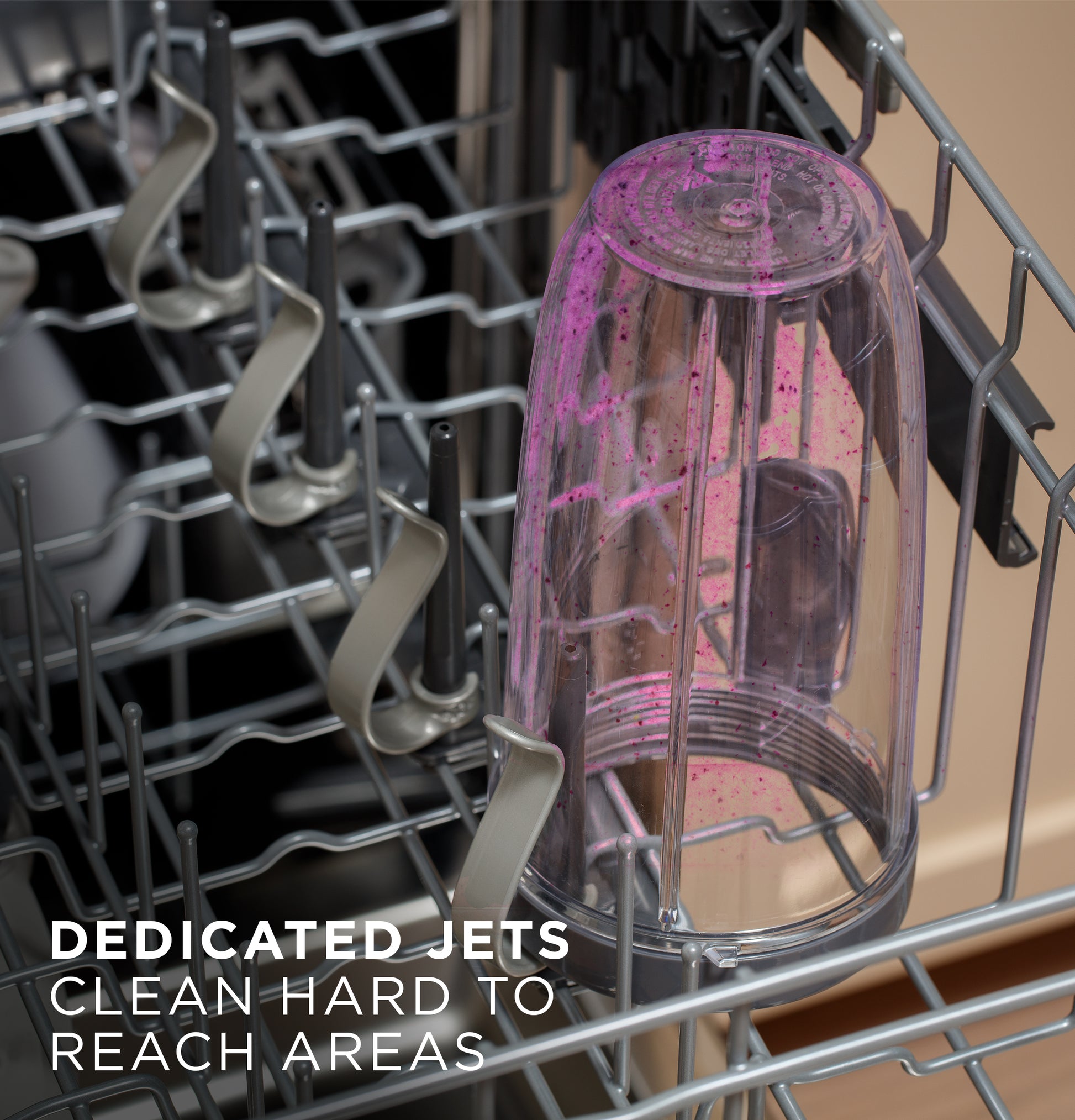

Wash Arms

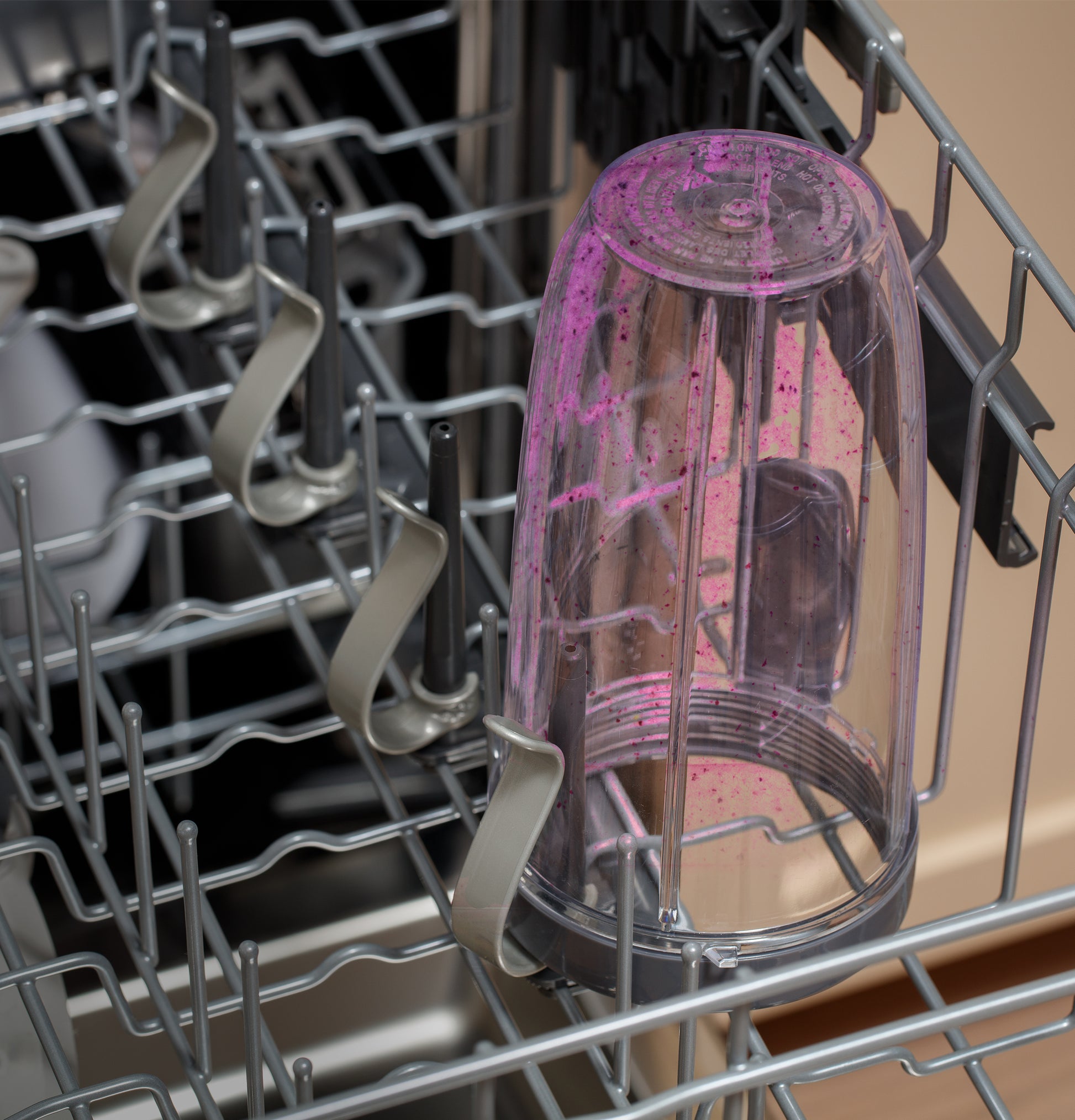

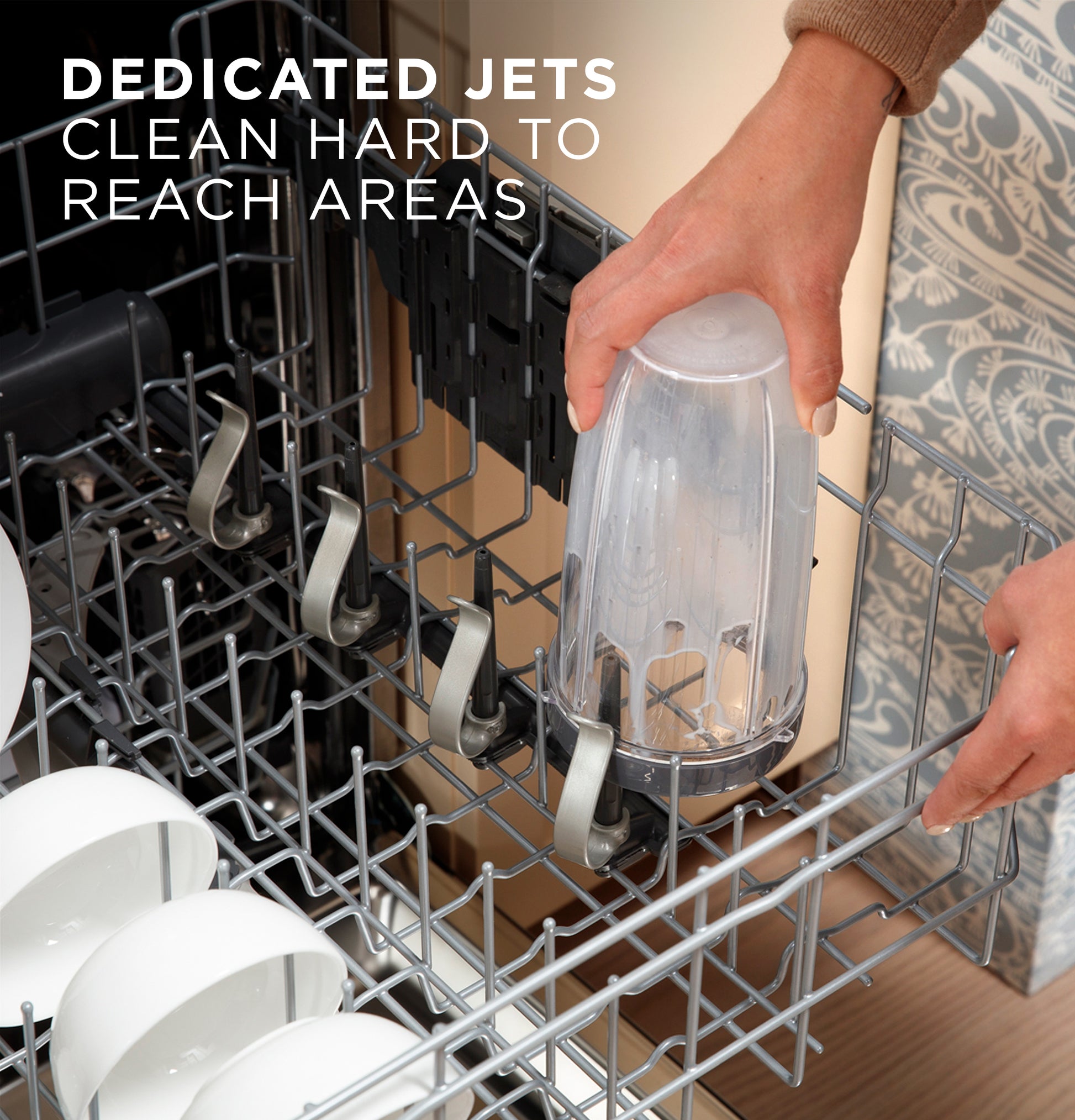

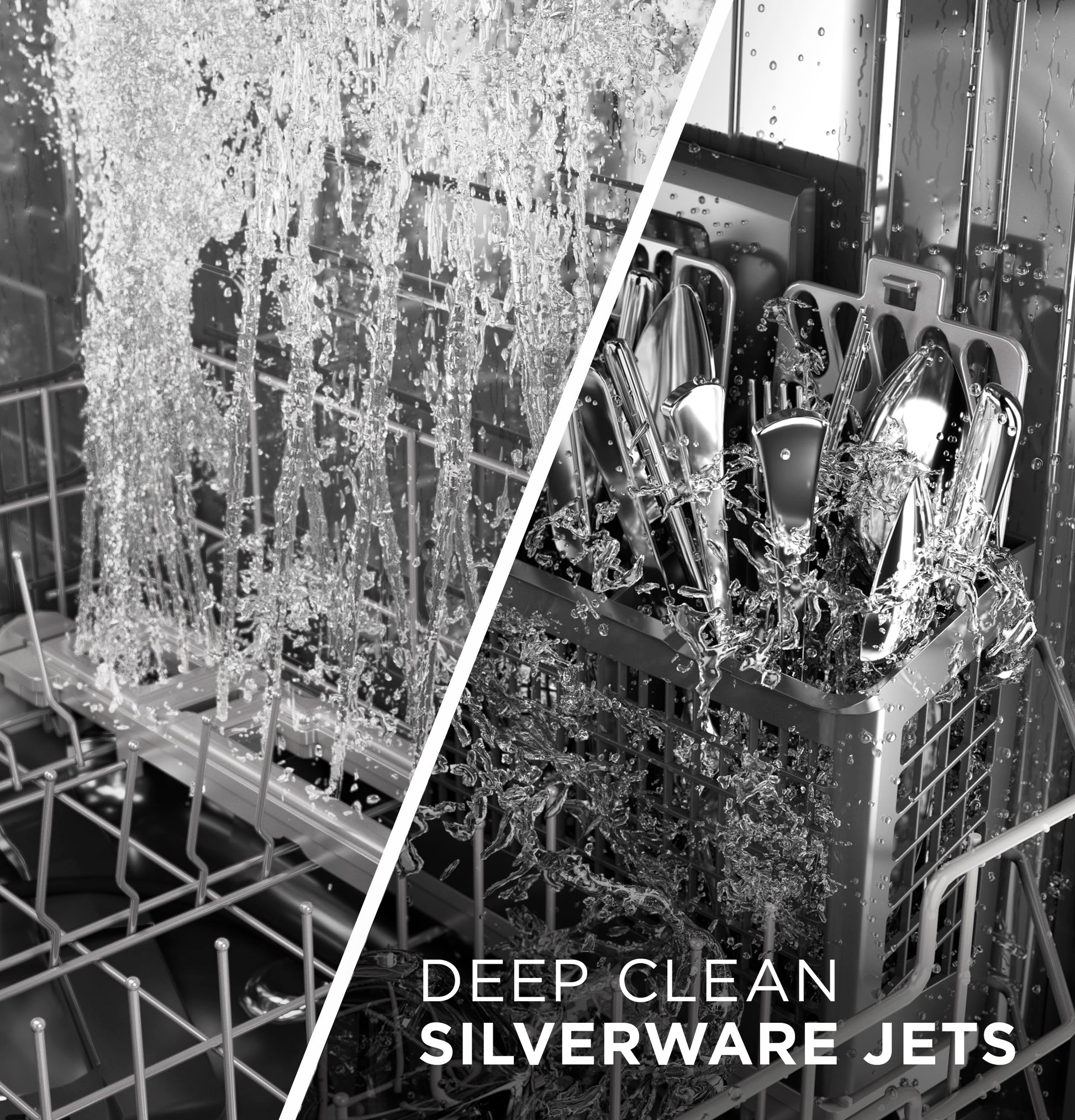

- 3 Wash Levels Bottle Jets Bottle Wash Jets Deep Clean Silverware Jets Lower Middle Upper
-
Wash System
- 3-Level 600 Series
-
Wash System Features
- Automatic Hot Start Automatic Temperature Control Bottle Jets 4 Drain Pump Piranha™ Hard Food Disposer with Removable Filter Variable Speed Dual Pumps and Motors
-
Water Filtration System
- 100% Filtration with Piranha Hard Food Disposer and Removable Filter
-
WiFi Connect
- Optional Requires Part No PBX23W00Y1
-
Calrod Heater Watts
- 800 500
-
Electrical Requirements
- 120V 60Hz 6.6A
-
Energy Consumption (kWh/year)
- 240
-
Hertz
- 60
-
Power Connection
- Optional Cord Kit GPFCORD WX09X70910 WX09X70911
-
Volts/Hertz/Amps
- 120V 60Hz 6.6A
-
Watts
- 936
-
Labor Warranty
- Limited 1-Year Entire Appliance
-
Parts Warranty
- Limited 1-Year Entire Appliance
-
Warranty Notes
- See Written Warranty for Full Details
-
Approximate Shipping Weight
- 112 lb
-
Cabinet Depth
- 24 in
-
Cabinet Width
- 24 in
-
Cutout Depth (in)
- 24
-
Cutout Height (in)
- 33.5
-
Cutout Width (in)
- 24
-
Depth with Door Open
- 27.5 in
-
Depth Without Handle
- 24 in
-
Height w Legs Retracted - Minimum Height
- 33.375 in
-
Height w Legs Extended - Maximum Height
- 34.625 in
-
Net Weight
- 99 lb
-
Overall Depth
- 24 in
-
Overall Depth with Handle
- 24 in
-
Overall Height
- 34 in
-
Overall Width
- 23.75 in
-
Finish Color
- Black
-
Appliance Type
- Dishwasher
-
Portable or Stationary
- Stationary
