Technical Specs
Overview
Measurements & Specs
-

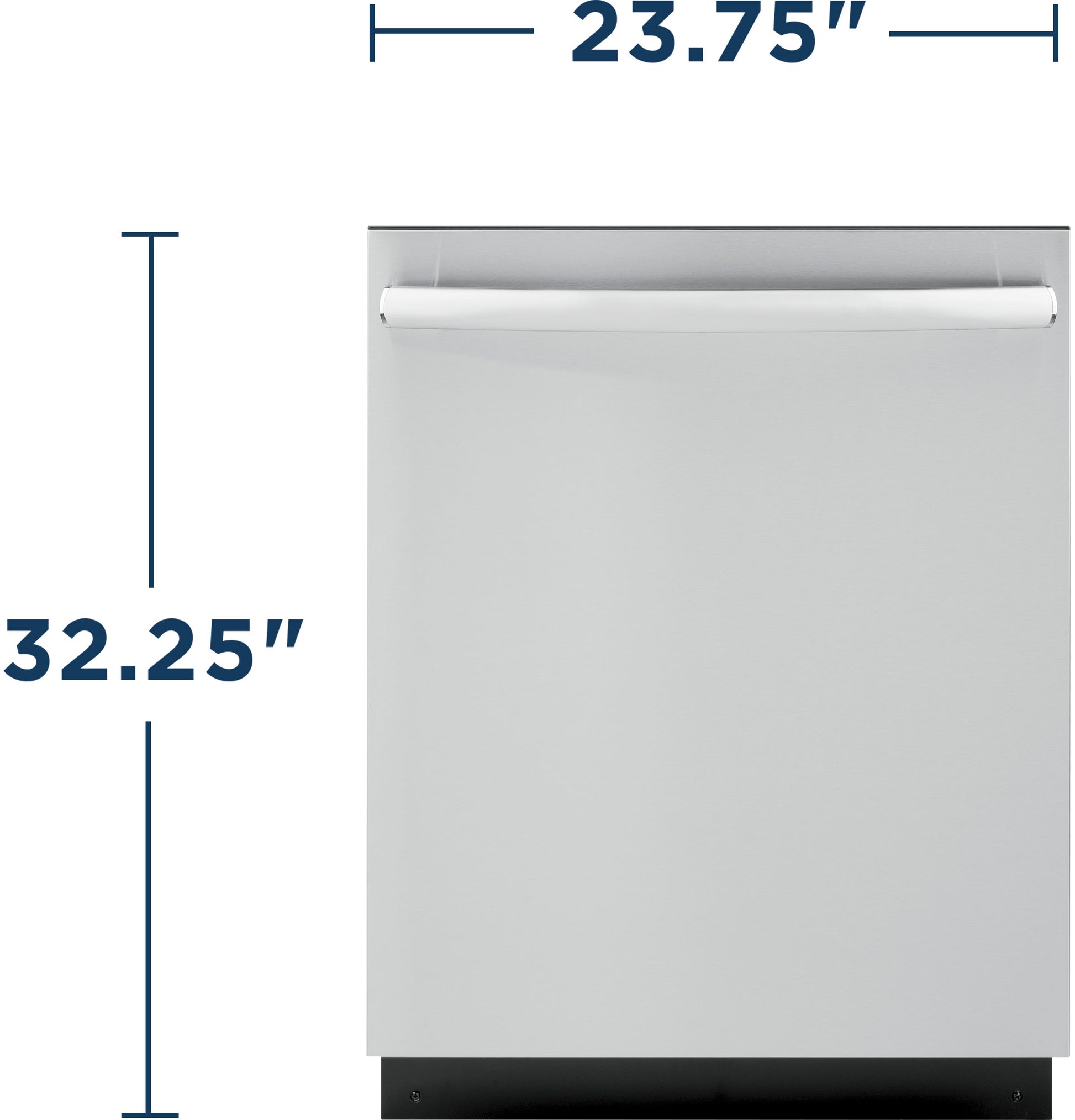

Width
- {"value":23.75,"unit":"in"}
-
Height
- {"value":32.25,"unit":"in"}
Other Tech Specs
-
Appliance Type
- Dishwasher
-
Finish Color
- Stainless Steel
-
Portable Or Stationary
- Stationary
-
Features
- Color Appearance Stainless Steel Door Style Stainless Full Length Flat Door Handle Towel Bar Handle Color Stainless Steel Installation Flush Cabinet Installation Door Insulation Insulation Mastic Motor Type Single Speed Outer Wrap U Blanket Quiet Features Sealed Toe Kick Tub Collar Trim Quiet Package 51 dBA Connected Capabilities Amazon Alexa IFTTT Sonos The Google Assistant Control Type 4 Pushbuttons Fully Integrated Electronic Top Controls Dishwasher Control Features 3 Digit Countdown Display with 1 Clean Light 1 Sanitized Light Cycle Progress Indicators Audible End Of Cycle Signal Cycle Countdown Last Cycle Memory Start Reset Pad Dishwasher Cycles Auto Sense Heavy Wash Light Wash Dishwasher Drying Features Condensate Dry Dishwasher Options Child Lock Delay Start 1 12 Hr Sani Certified to NSF Standard 184 Start Reset Temp Boost Dispenser Rinse Aid with Indicator and Adjustment Exterior Style Built In Latch Center Pull Leveling System Leveling Legs Lower Rack Nylon Number of Cycles 3 Number of Options 5 Number of Place Settings 12 Product Type Built In Rack Features 1 Plastic Utility Shelf Upper 2 Piece Silverware Basket with Cell Covers Ball Tipped Tines Stem Safe Racking System Gray Sensor Clean Sensor Style Built In Top Control Tub and Door Liner Stainless Steel Upper Rack Adjustable Nylon Wash Arms 2 with Upper Nozzle Wash System 3 Level Standard Wash System Features Automatic Hot Start Automatic Temperature Control Dual Pump Flood Control System Piranha Hard Food Disposer Water Filtration System 3 Stage Manual Clean Filtration WiFi Connect Optional Requires Part No PBX23W00Y1
-
Electrical Requirements
- 120V 60 Hz 8.9 A
-
Energy Consumption (kWh/year)
- 240
-
Hertz
- 60
-
Power Connection
- Optional Cord Kit GPFCORD WX09X70910 WX09X70911
-
Watts
- 1068
-
Labor Warranty
- Limited 1 Year Entire Appliance
-
Parts Warranty
- Limited 1 Year Entire Appliance
-
Warranty Notes
- See Written Warranty for Full Details
-
Approximate Shipping Weight
- 96 lb
-

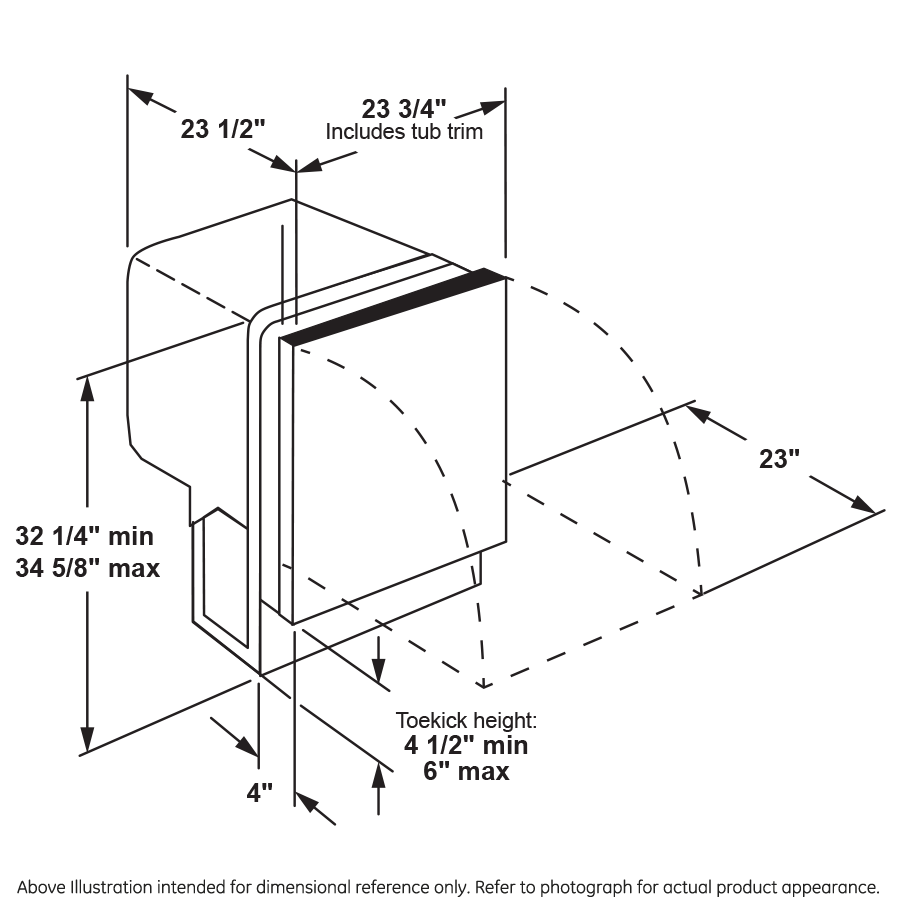

Cabinet Depth
- 24 in
-
Cabinet Width
- 24 in
-
Cutout Depth (in)
- 24
-
Cutout Height (in)
- 32.375
-
Cutout Width (in)
- 24
-
Depth with Door Open
- 23 in
-
Depth Without Handle
- 23.5 in
-
Height w Legs Retracted Minimum Height
- 32.25 in
-
Height w Legs Extended Maximum Height
- 34.625 in
-
Net Weight
- 81 lb
-
Overall Depth
- 23.5 in
-
Overall Depth with Handle
- 23.5 in
-
Overall Height
- 32.25 in
-
Overall Width
- 23.75 in
-
App Filter Food Disposer
- Yes
-
App Filter Product Type
- Dish Built In Top Control
-
App Filter Stainless Steel Interior
- Yes
-
App Filter WiFi Connect
- Optional
