Technical Specs
Overview
Measurements & Specs
-
Width
- {"value":29.75,"unit":"in"}
-
Height
- {"value":4.0,"unit":"in"}
Other Tech Specs
-
Finish Color
- White
-
Power Source
- Electric
-
Appliance Type
- Cooktop
-
Features

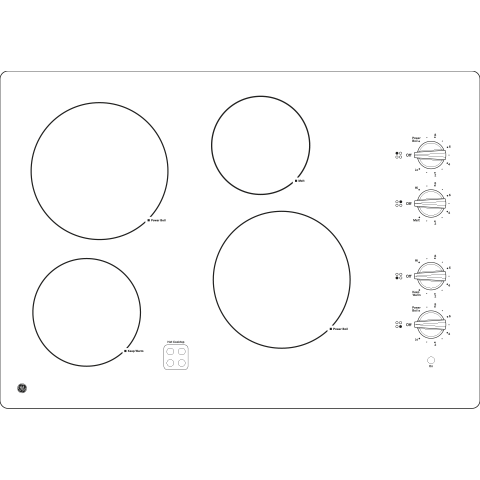

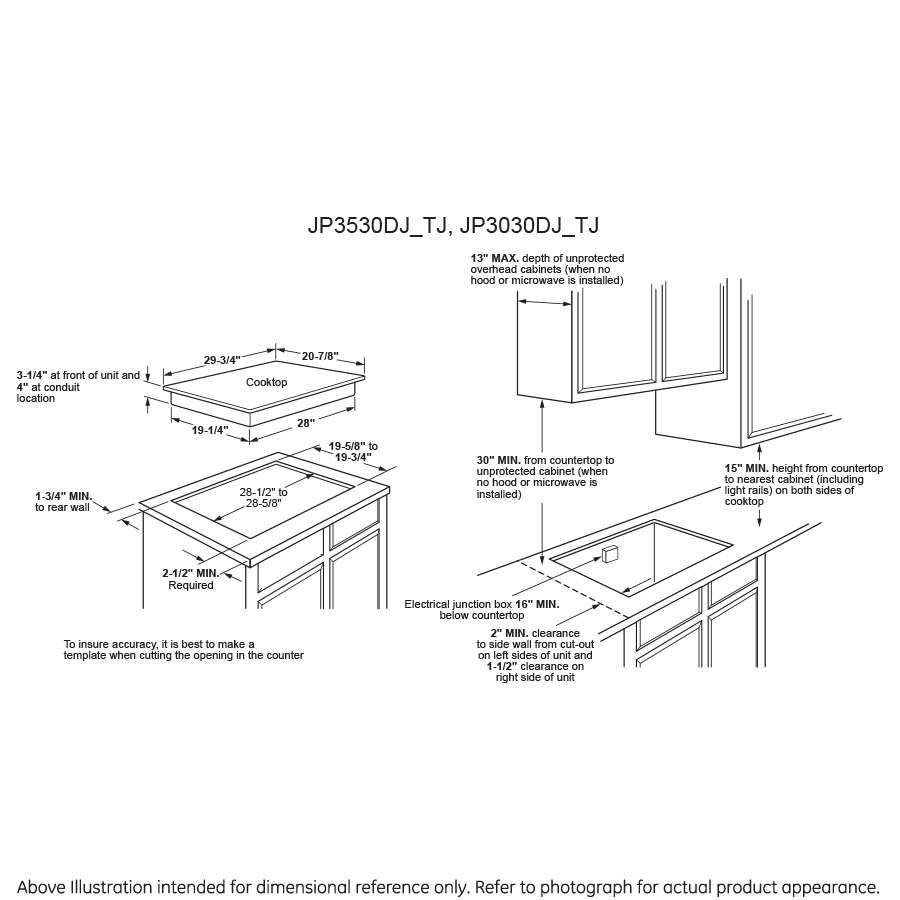

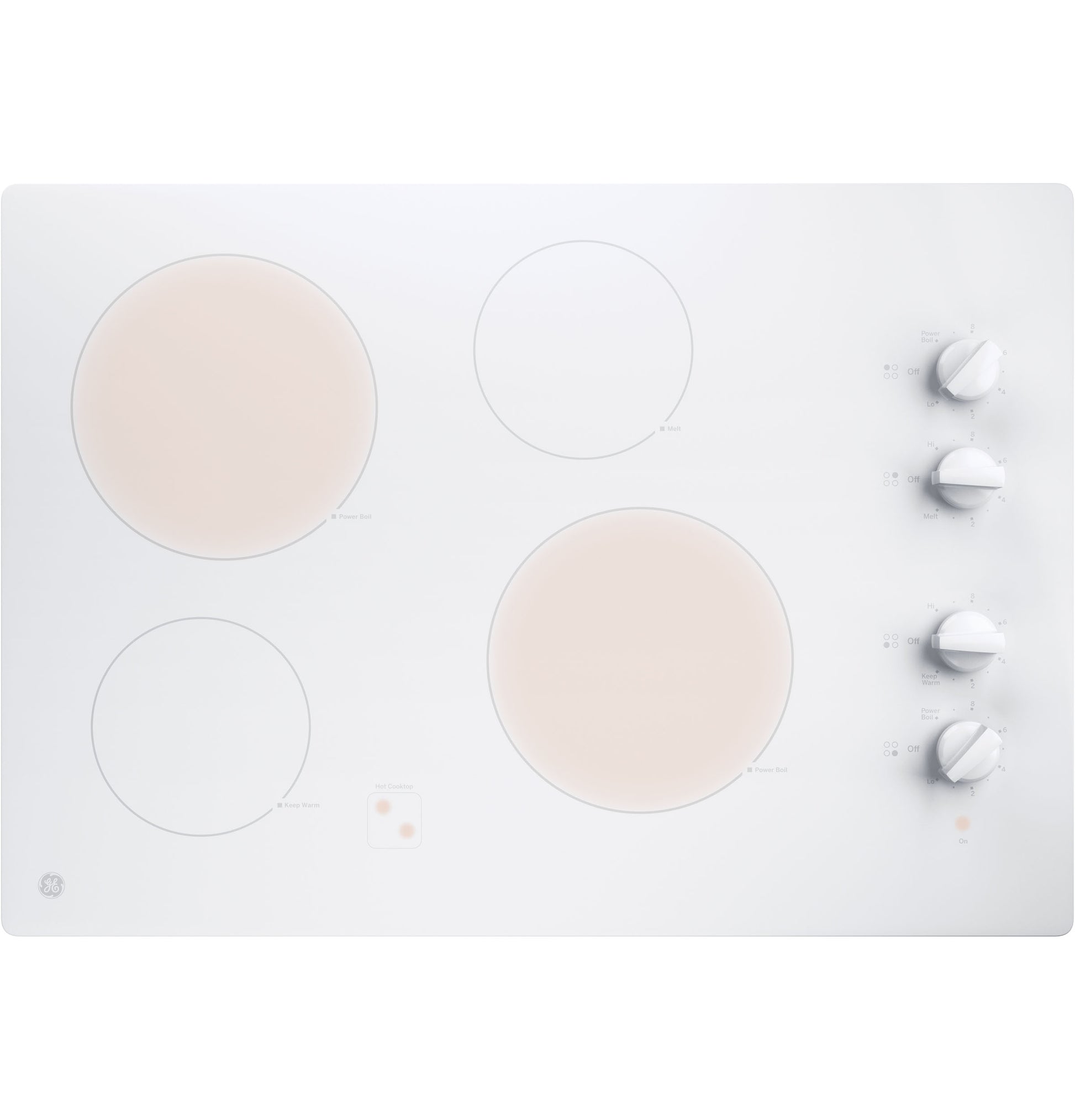

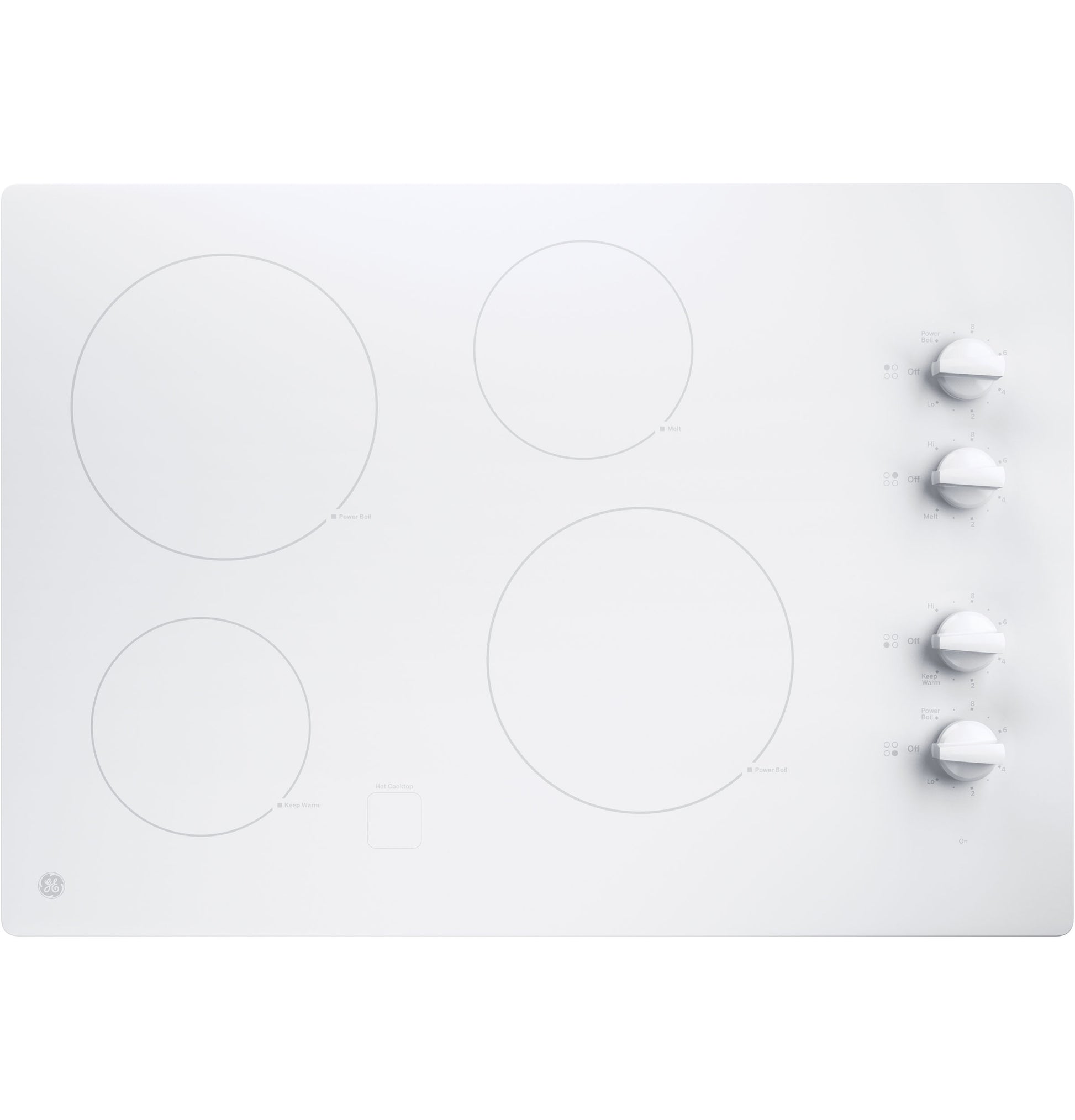

- Color Appearance White Control Knobs Gloss White Frameless Yes Control Location Right Side Control Type Knob Infinite Switch Cooktop Burner Type 4 Ribbon Smoothtop Cooktop Control Features Keep Warm Setting Melt Setting Cooktop Surface True White Ceramic Glass Cooktop Type Radiant Smoothtop Dishwasher Safe Knobs Yes Element Left Front 6 Inch 1200 W Element Left Rear 8 Inch 2500 W Power Boil Element Right Front 8 Inch 2500 W Power Boil Element Right Rear 6 Inch 1200 W Filler Trim Kit JXTR32W Fuel Type Electric Indicator Lights 4 Hot Surface Red Surface Element ON Melt Setting Yes Power Boil Burner Yes Product Type Cooktop Electrical Requirements 208 240 V 60 Hz 40 A Hertz 60 Max Connected Load KW at 208 V 5.6 Max Connected Load KW at 240 V 7.4 Max Current Draw Amps at 208 V 26.7 Max Current Draw Amps at 240 V 30.8 Recommended Circuit Breaker Amps at 208 V 30 Recommended Circuit Breaker Amps at 240 V 40 Labor Warranty Limited 1 Year Entire Appliance Parts Warranty Limited 1 Year Entire Appliance Warranty Notes See Written Warranty for Full Details Approximate Shipping Weight 43 lb Cabinet Width 30 in Cooktop Size 30 in Cutout Depth in 19.625 Cutout Height in 4 Cutout Width in 28.5 Net Weight 37 lb Overall Depth 20.875 in Overall Height 4 in Overall Width 29.75 in
