Gardner Bender Underground UF Wire Splice Kit

Name: Gardner Bender Underground UF Wire Splice Kit
Brand: Gardner Bender
SKU: 513172
Price: 14.07 USD
Availability: InStock

Gardner Bender Underground UF Wire Splice Kit

SKU: SKU: 513172

Shop All Gardner bender

Add to Favorites

$14^.07

Waterproof splice kit for UF cables with heat-shrink tubing and connectors.

hurry, only 9 items left in stock

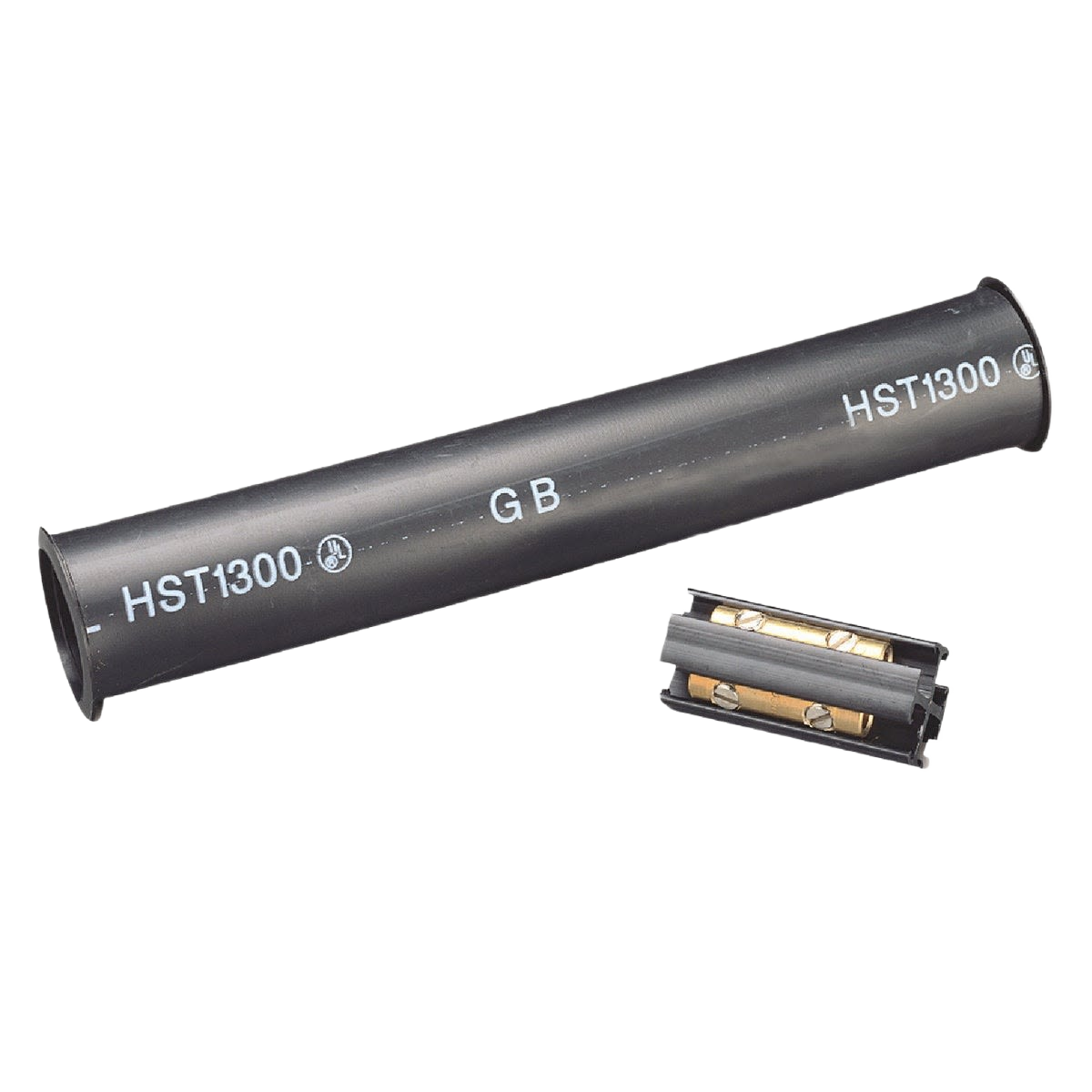

Gardner Bender Underground UF Wire Splice Kit is designed for waterproof splicing of UF cables ranging from minimum No. 14/3 and No. 12/2 up to a maximum of No. 8. This kit includes a set screw splice connector and an 8-inch by 1.3-inch diameter heavy wall heat-shrink tubing with a watertight adhesive liner. To use, simply strip the outside jacket and insulation from the conductors, insert the cable through the tubing, install the conductors into the connectors, and tighten the set screws. Then center the heat-shrink tubing over the connector and apply heat until the tubing conforms to the connector’s shape, ensuring a secure, waterproof seal. The kit comes packaged in a polybag with a header and is UL listed for safety and reliability. Model Number: HST-1300

View full details

Technical Specs

Overview

Gardner Bender Underground UF Wire Splice Kit is designed for waterproof splicing of UF cables ranging from minimum No. 14/3 and No. 12/2 up to a maximum of No. 8. This kit includes a set screw splice connector and an 8-inch by 1.3-inch diameter heavy wall heat-shrink tubing with a watertight adhesive liner. To use, simply strip the outside jacket and insulation from the conductors, insert the cable through the tubing, install the conductors into the connectors, and tighten the set screws. Then center the heat-shrink tubing over the connector and apply heat until the tubing conforms to the connector’s shape, ensuring a secure, waterproof seal. The kit comes packaged in a polybag with a header and is UL listed for safety and reliability. Model Number: HST-1300

Product Specifications
