Technical Specs
Overview

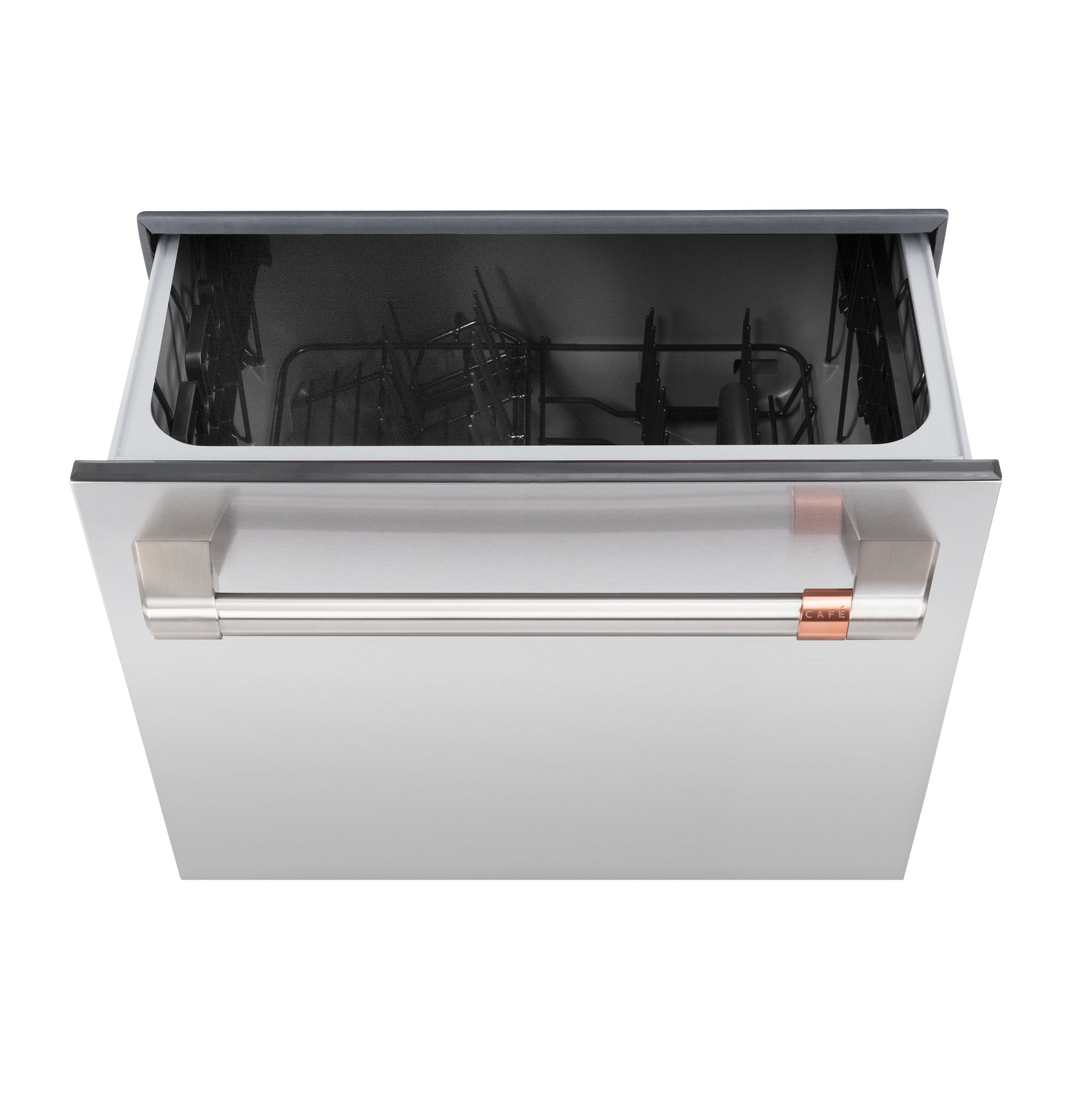

CAFÉ™ ENERGY STAR Smart Single Drawer Dishwasher
Product Specifications
-
Features
- Optional Kits C X A D T H 1 P M B T Brushed Black, C X A D T H 1 P M B Z Brushed Bronze, C X A D T H 1 P M C G Brushed Brass, C X A D T H 1 P M C U Brushed Copper, C X A D T H 1 P M F B Flat Black, C X A D T H 1 P M S S Brushed Stainless
-
Color Appearance
- Stainless Steel
-
Control Panel Color
- Grey
-
Door Appearance
- 1 Drawer
-
Door Style
- 1 Drawer
-

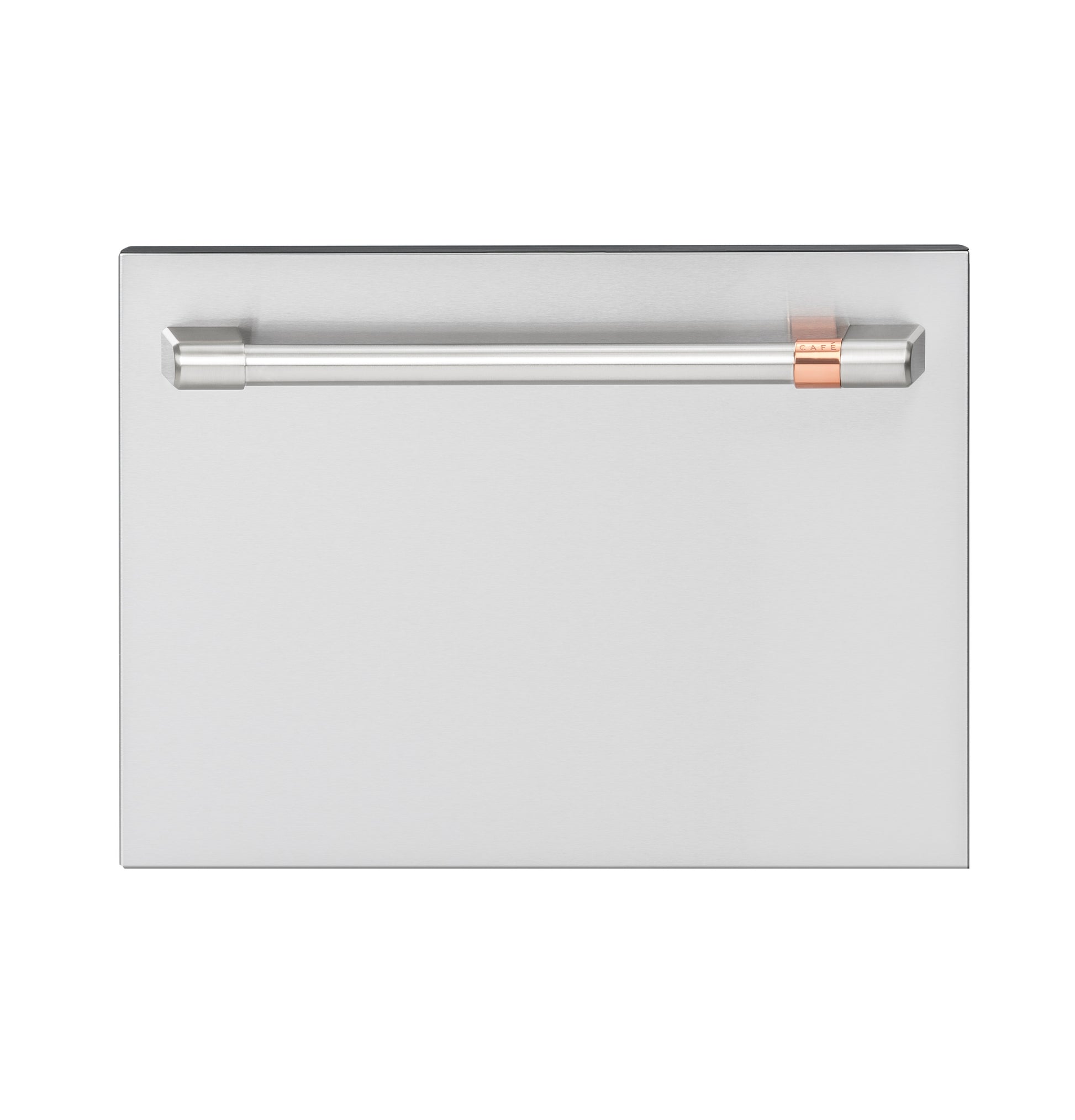

Handle
- CAFÉ
-
Handle Color
- Brushed Stainless
-
Handle Design
- Customizable
-

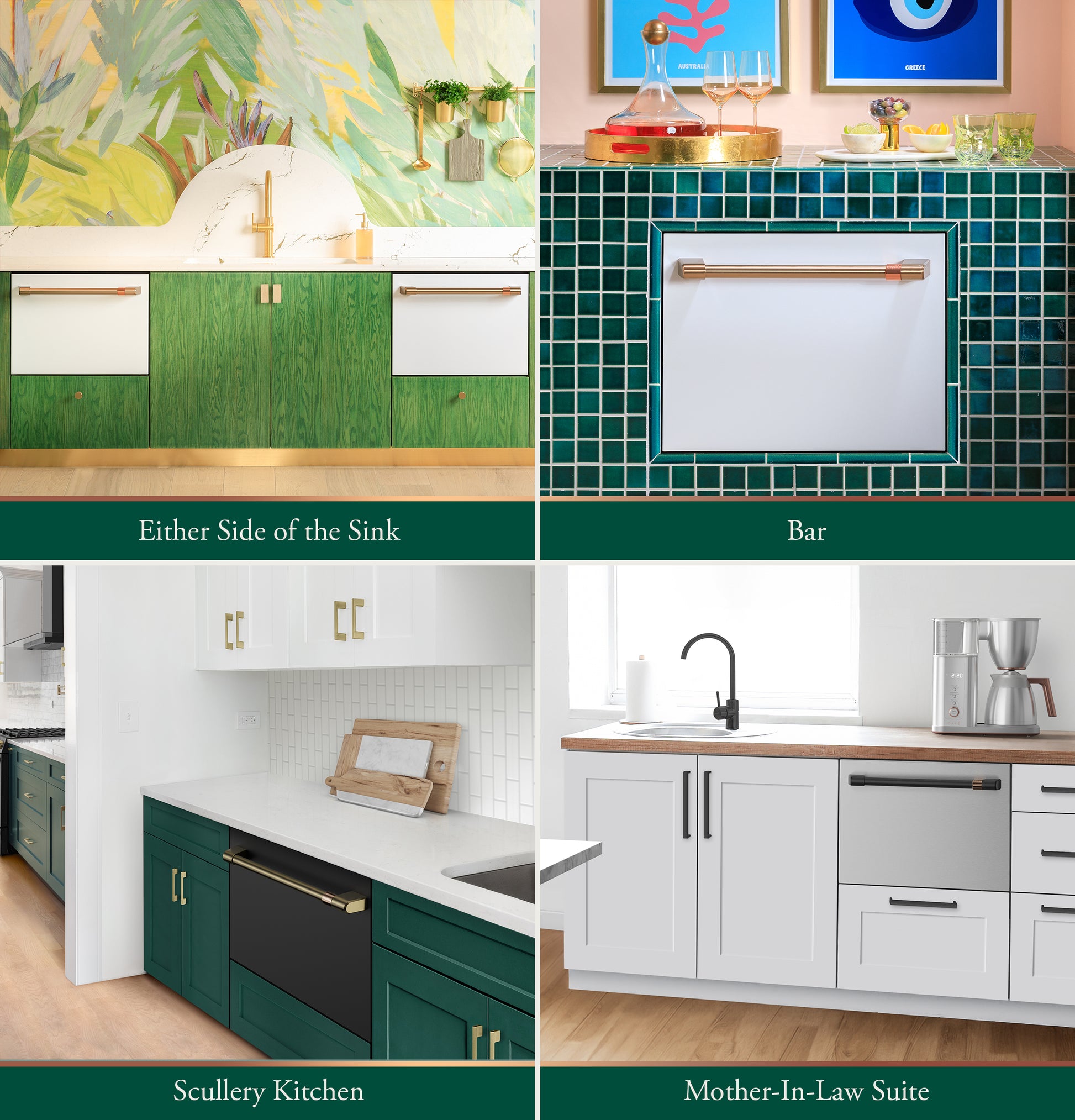

Installation
- Built-Up Floor Capable, Flush Cabinet Installation, Side Installation or Top Installation Included
-
Door Insulation
- Yes
-
Motor Type
- Variable Speed, B L D C
-
Outer Wrap
- Full Steel Inclosure
-

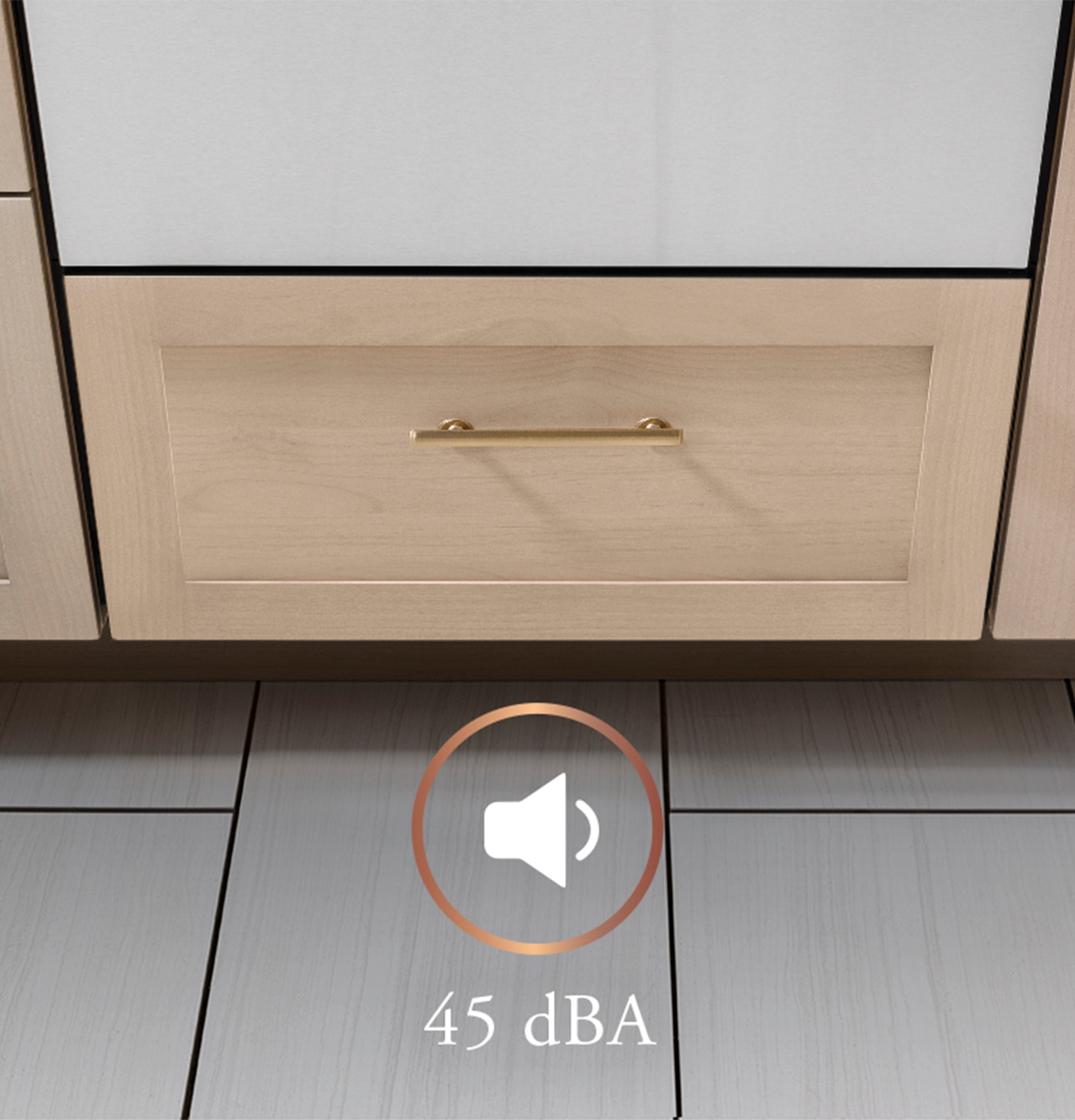

Quiet Package
- 45 d B A
-
Active Flood Protection
- Active Flood Protect
-
Additional Protection
- Active Flood Protect
-
Connected Capabilities
- Amazon Alexa, Google Home
-

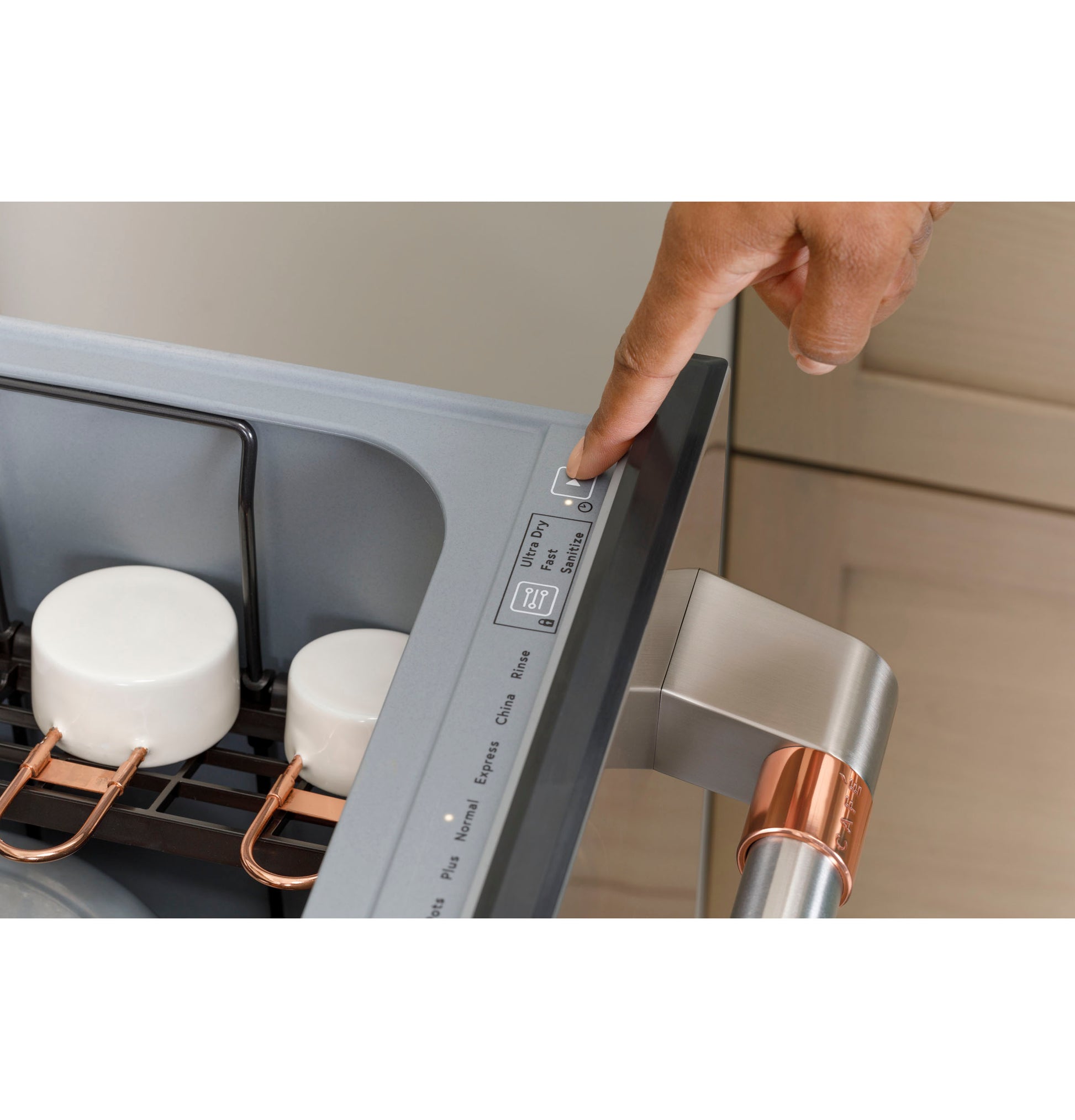

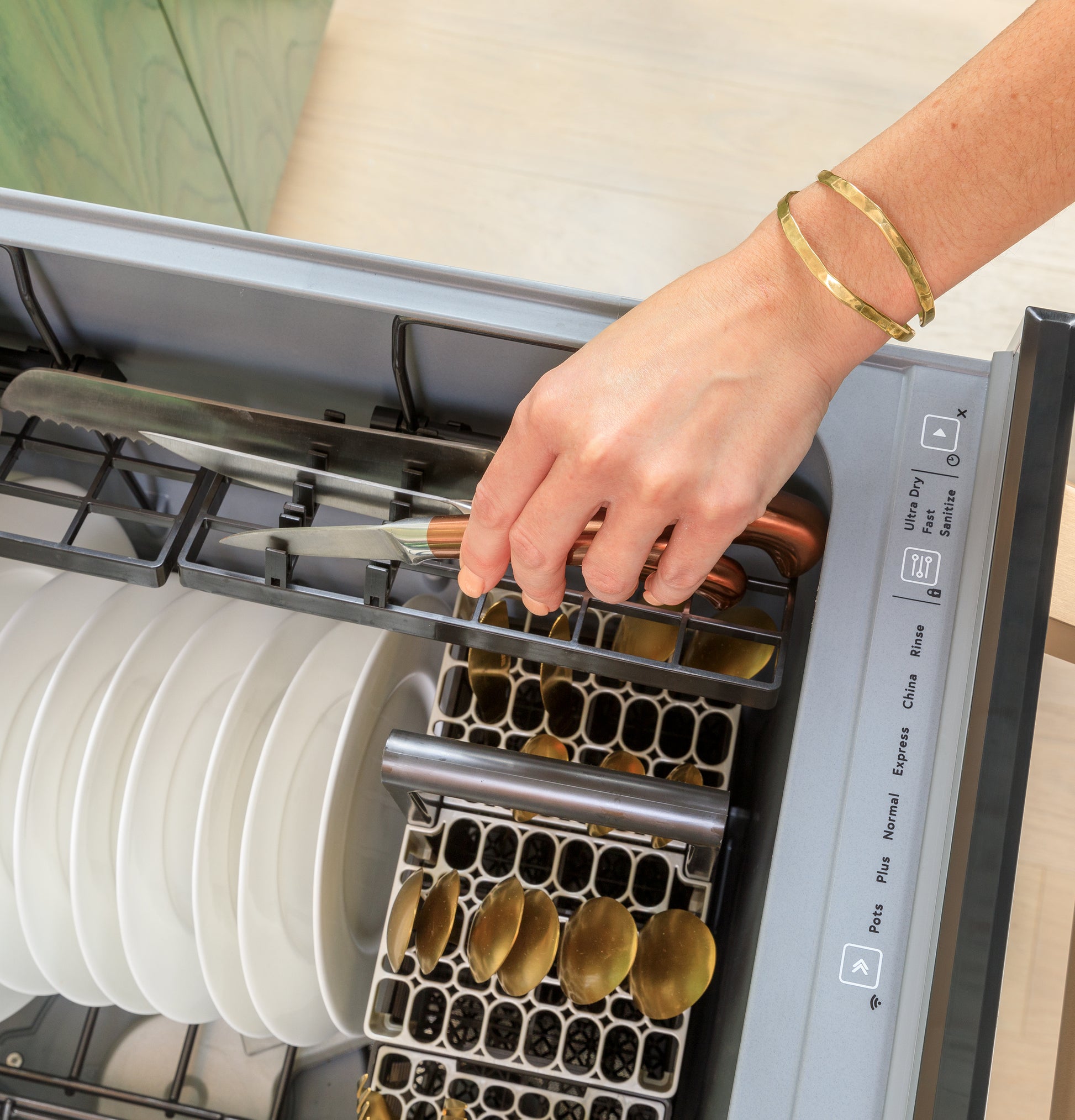

Control Type
- 3 Touchpads, Cap Touch Controls, Top Controls
-
Dishwasher Control Features
- Delay and Lock Capabilities, Audible End-Of-Cycle Signal, Last Cycle Memory, Non Sanitization Temp Error
-

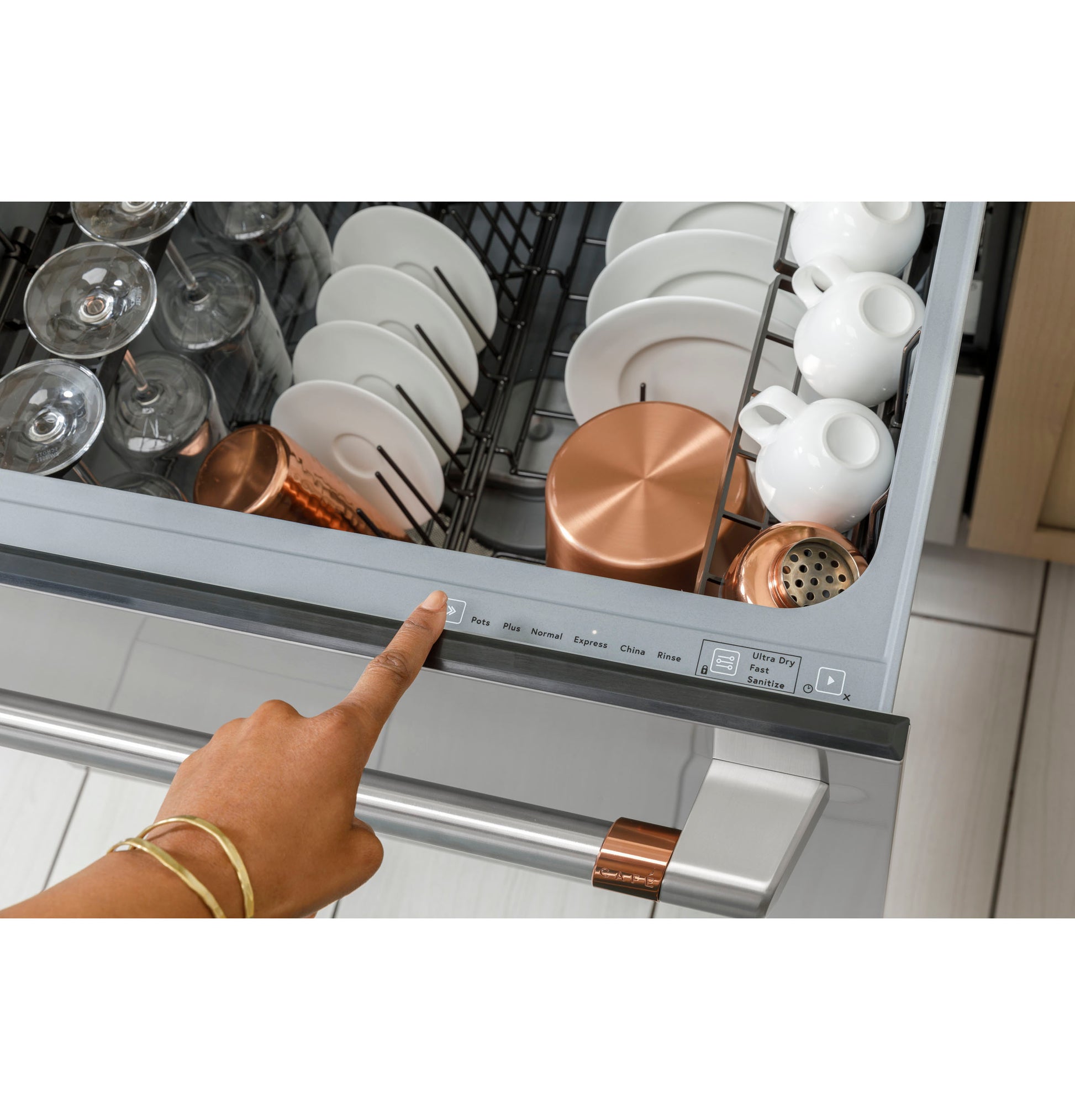

Dishwasher Cycles
- China, Express, Normal, Plus, Pots, Rinse
-
Dishwasher Drying Features
- Fan Assist Dry
-
Dishwasher Options
- Ultra Dry, Fast, Sanitize, Lock Controls, Delay
-
Dispenser
- Rinse Aid
-
Exterior Style
- Traditional
-
Latch
- Pull with Handle, Interior Lid Closes During Cycle
-
Number of Cycles
- 6
-
Number of Options
- 3
-

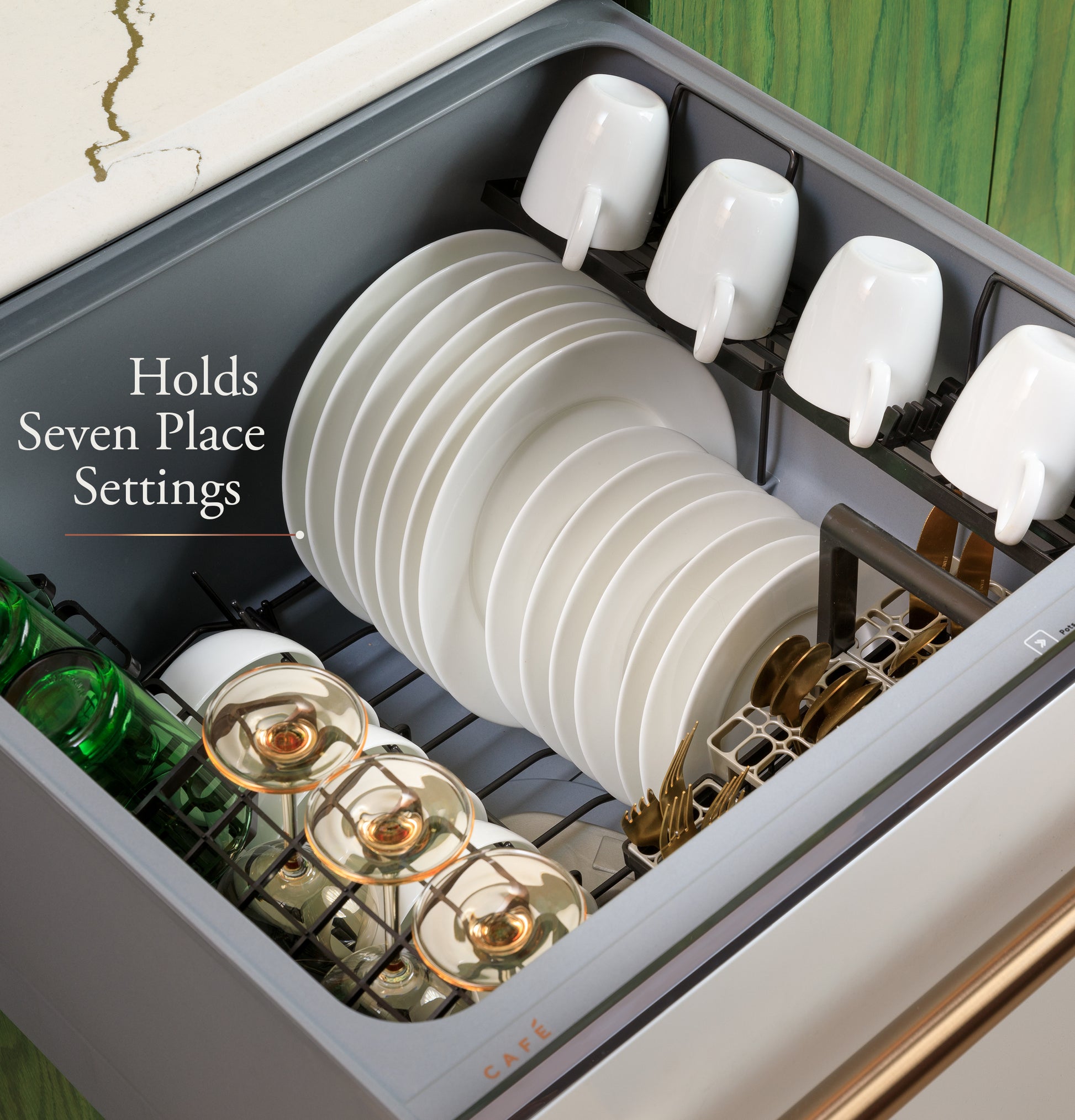

Number of Place Settings
- 7
-
Product Type
- Built-In
-
Rack Color
- Grigio
-

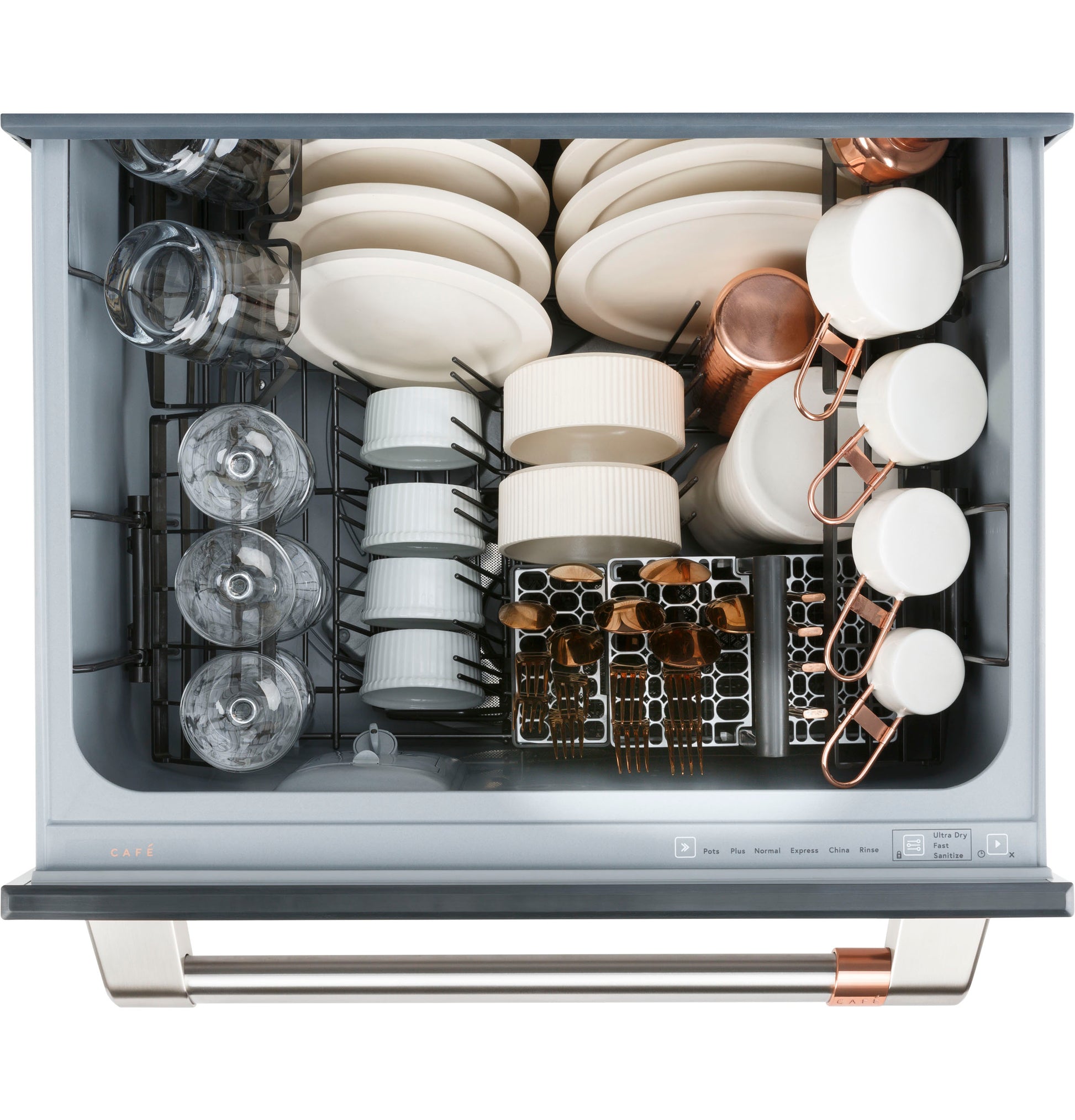

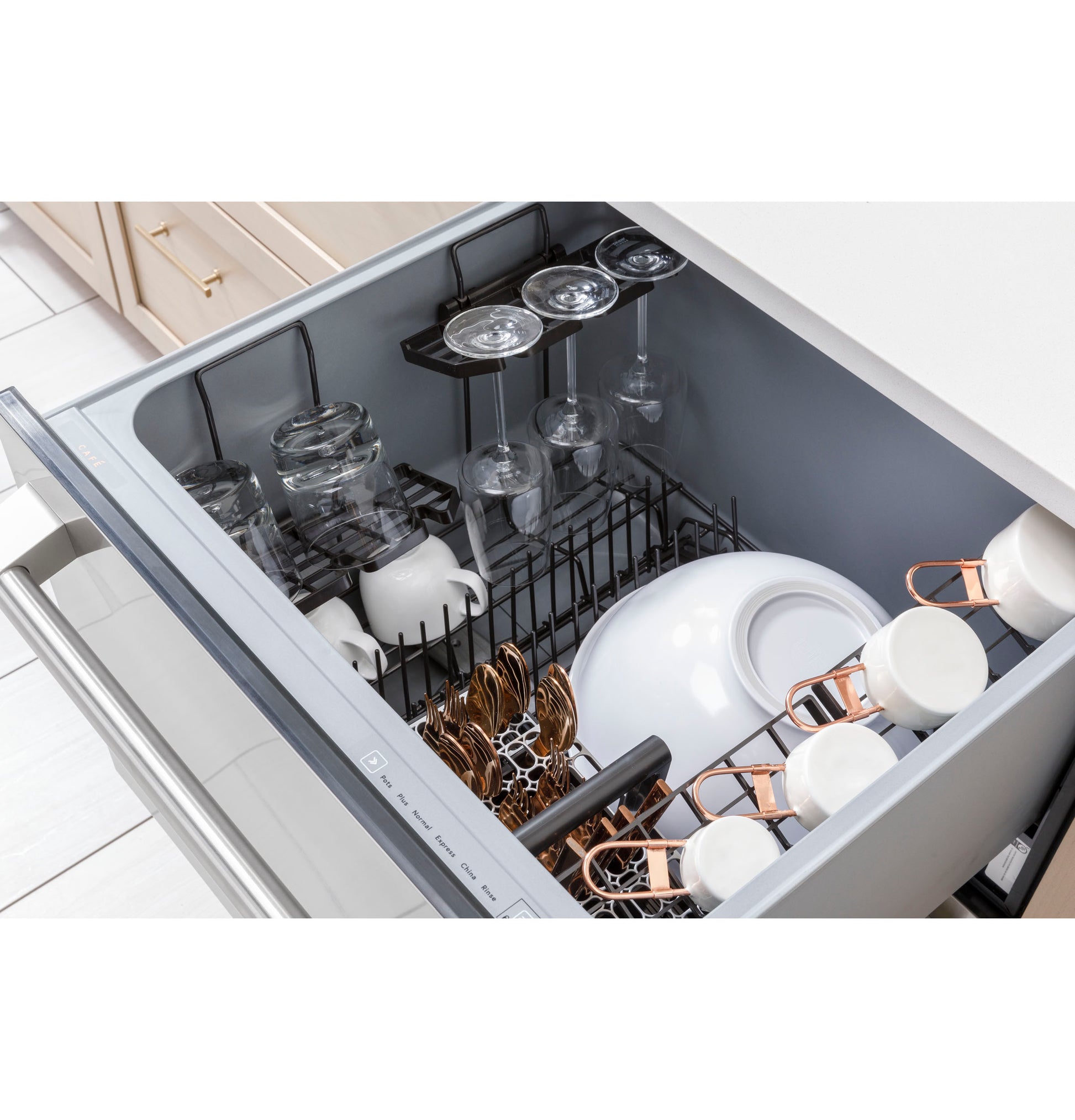

Rack Features
- 2 Long and 2 Short Articulating Plastic Utility Shelves with StemSafe, Fold Down and Adjustable Tines, 2 Piece Silverware Basket, Ball-Tipped Tines, Full Extension Slides
-
Racking Material
- Nylon
-
Racking System
- 1 Rack with 4 Cup Shelves
-
Showroom Power Mode
- Yes
-
Style
- Dishwasher Drawer
-
Tub and Door Liner
- Gray Plastic
-
Tub Type
- Single Drawer
-

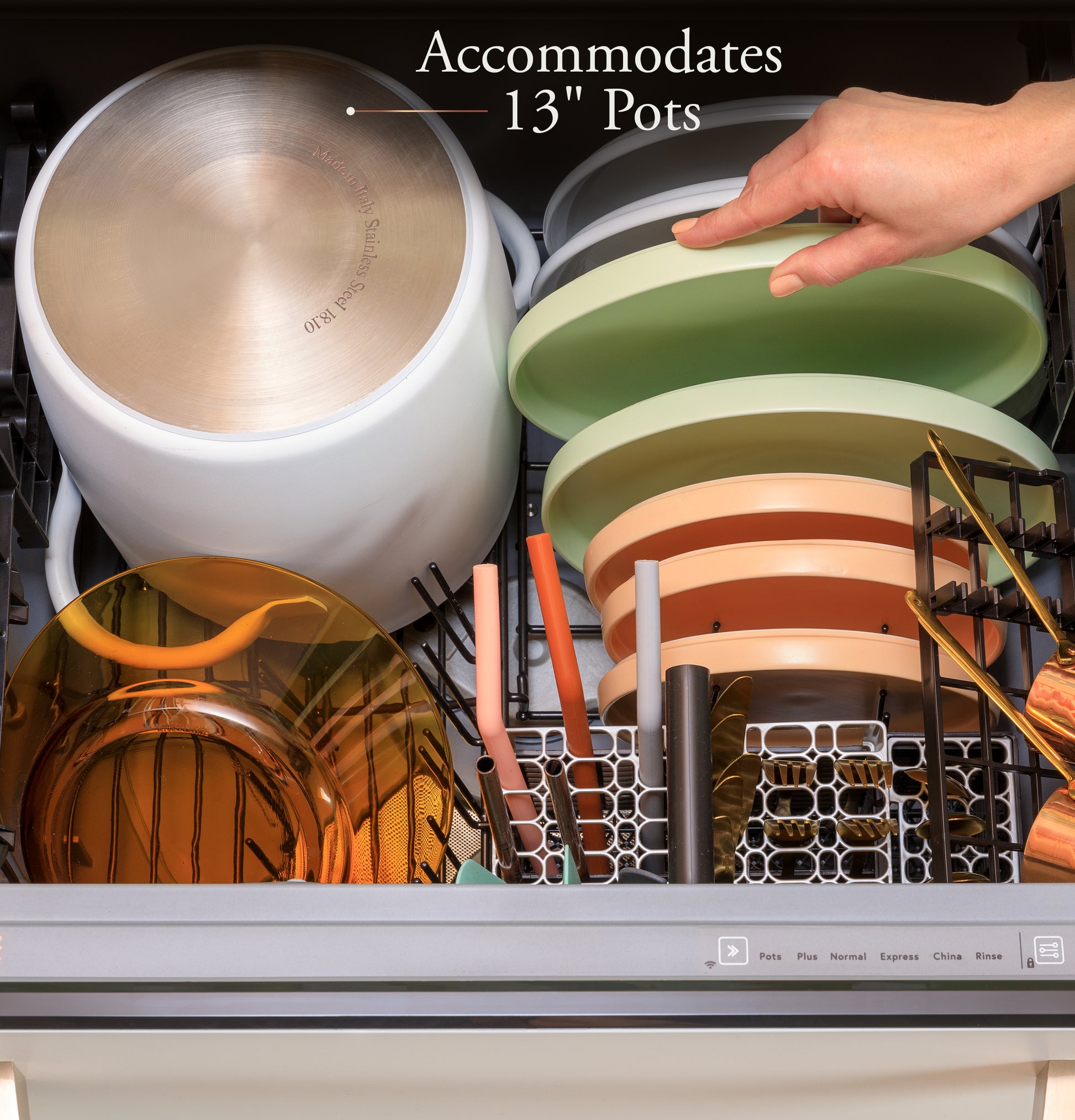

Upper Drawer
- 2 Utility Shelves with StemSafe, Fold Down Tines, Large, Silverware Basket with Cell Covers, Upper Drawer Fits 13 Inch Plates
-
Wash Arms
- 1
-
Wash System
- 1 Independent Wash System
-
Wash System Features
- Automatic HotStart, Automatic Temperature Control, Single Pump, Water and Prime Regulator for Efficiency
-
Water Filtration System
- 100% Filtration
-

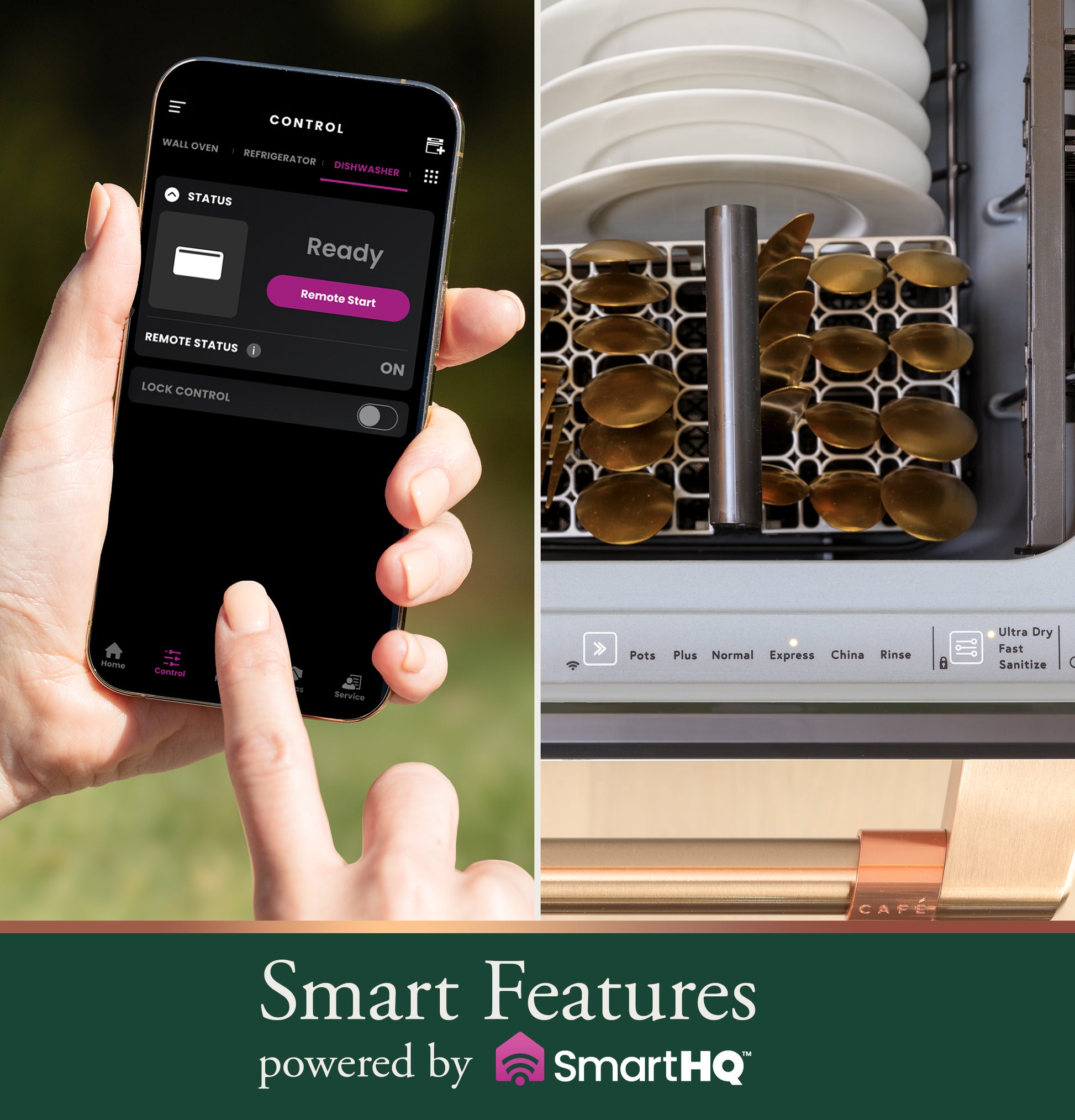

WiFi Connect
- Built-In
-
Calrod Heater Watts
- 503
-
Electrical Requirements
- 120 V, 60 Hz, 4.7 A
-
Energy Consumption (kWh/year)
- 155
-
Hertz
- 60
-
Power Connection
- Power Cord Included
-
Volts/Hertz/Amps
- 120 V, 60 Hz, 4.7 Amp
-
Watts
- 564
-
Labor Warranty
- Limited 1 Year Entire Appliance
-
Parts Warranty
- Limited 1 Year Entire Appliance
-
Warranty Notes
- See Written Warranty for Full Details
-
Approximate Shipping Weight
- 50 lb
-
Cabinet Depth
- 23 in
-
Cabinet Width
- 24 in
-
Cutout Depth (in)
- 22.8125
-
Cutout Height (in)
- 17.9375
-
Cutout Width (in)
- 23.625
-
Depth with Door Open
- 21.5625 in
-
Depth Without Handle
- 22.5625 in
-
Height with Legs Retracted - Minimum Height
- 17.9375 in
-
Height with Legs Extended - Maximum Height
- 17.9375 in
-
Net Weight
- 50 lb
-
Overall Depth
- 25.1875 in
-
Overall Depth with Handle
- 25.1875 in
-
Overall Height
- 17.8125 in
-
Overall Width
- 23.5625 in
-
Finish Color
- Stainless Steel
-
Appliance Type
- Dishwasher
-
Portable or Stationary
- Stationary
-
Manufacturer Part Number
- C D D 220 P 2 W S 1
