Technical Specs
Overview
Measurements & Specs
-
Width
- {"value":35.875,"unit":"in"}
-
Height
- {"value":5.5,"unit":"in"}
Other Tech Specs
-

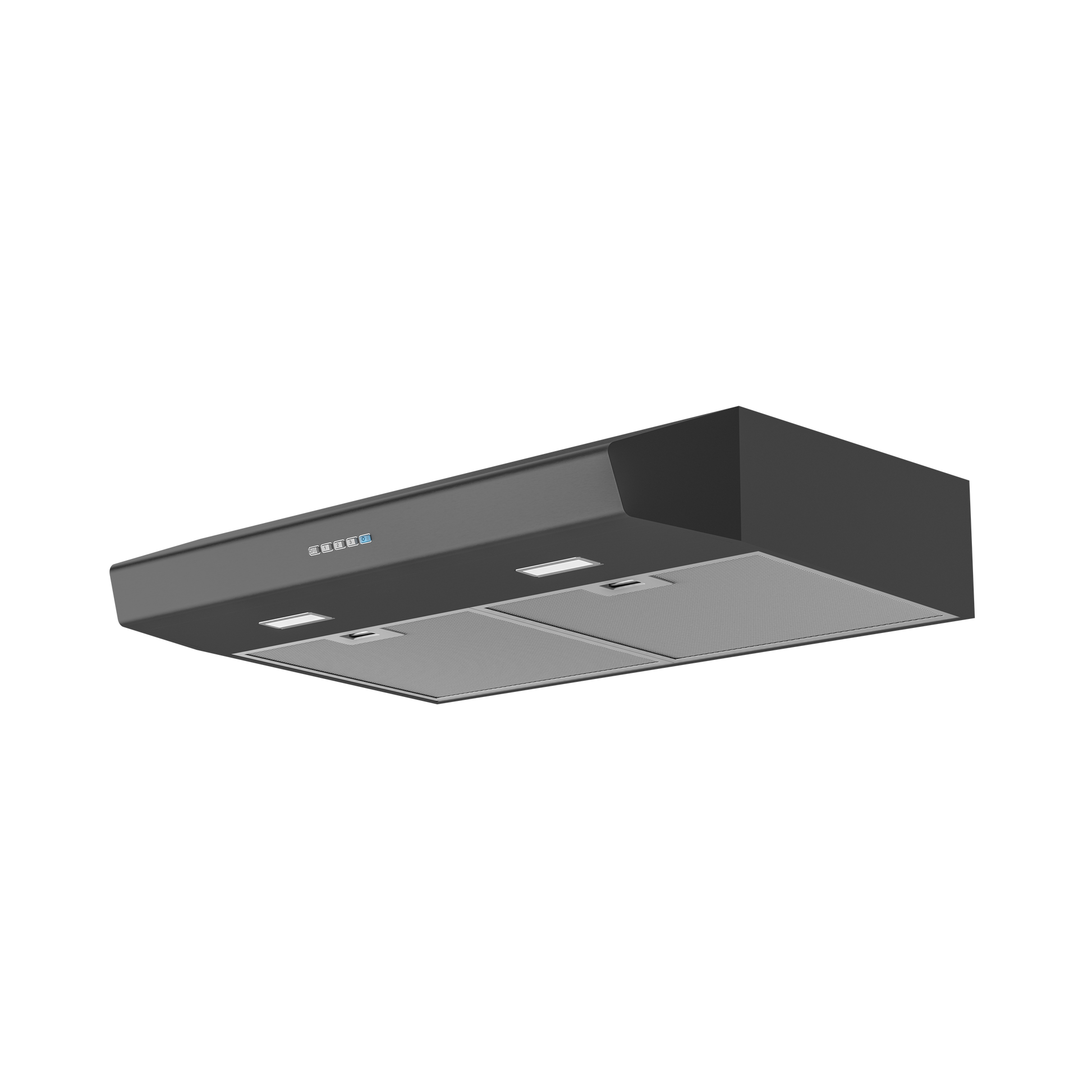

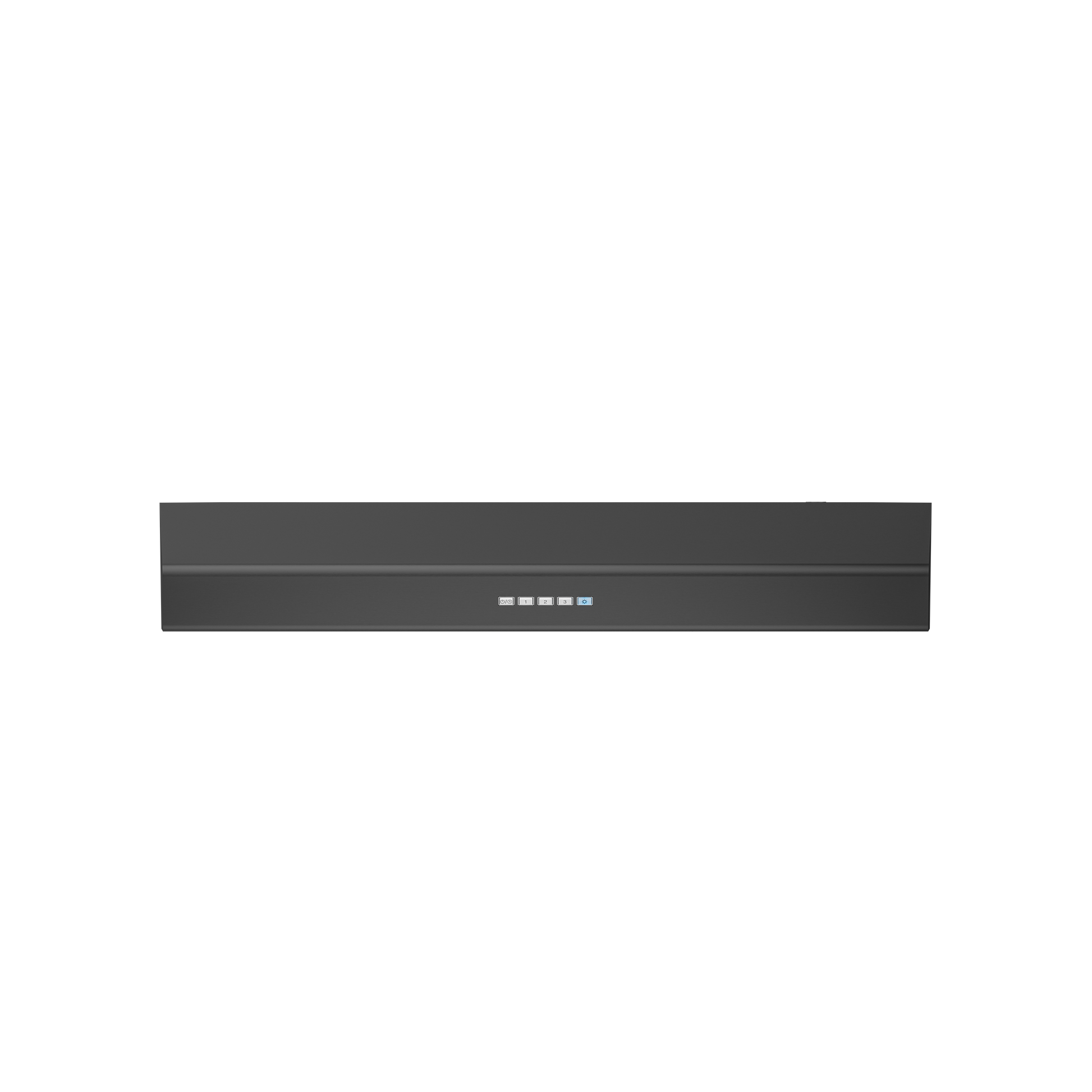

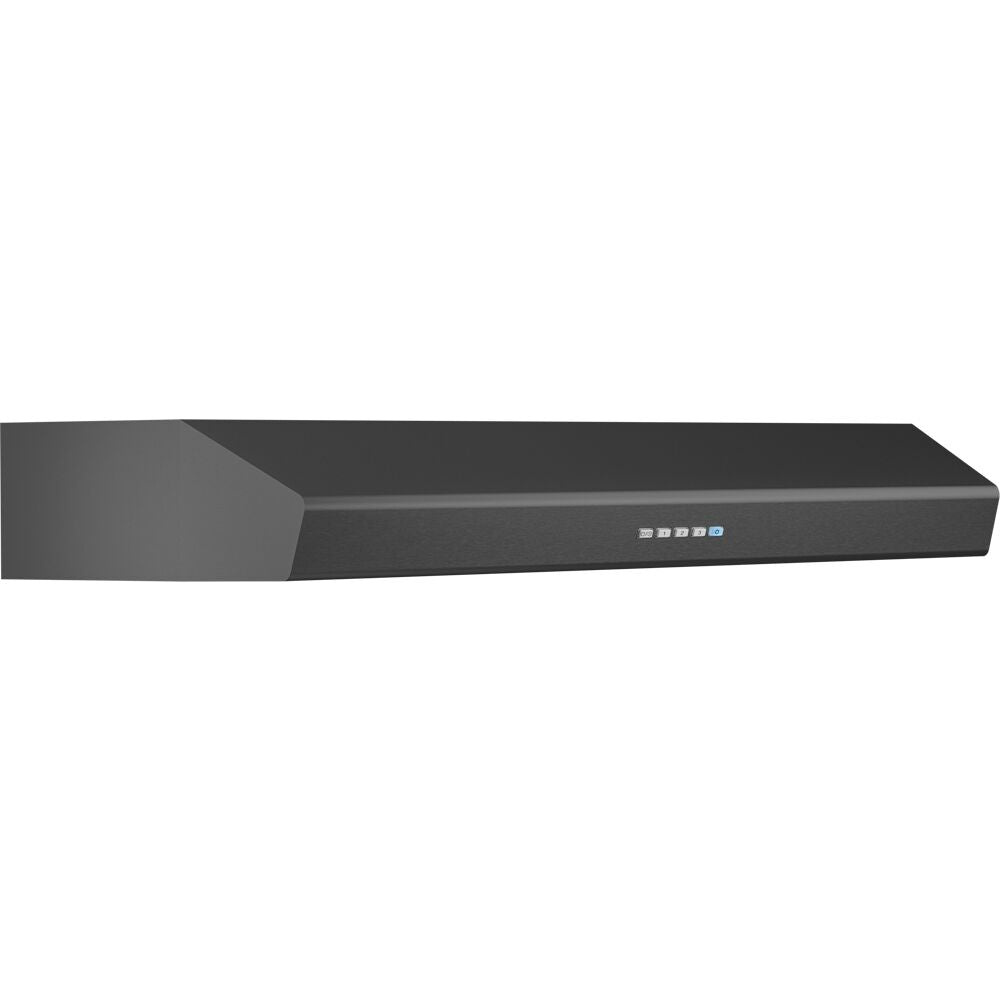

Appliance Type
- Range Hood
-
Finish Color
- Black Stainless Steel
-
Automatic Delay Off
- Yes
-
Blower Included
- Yes
-
Blower Speeds
- 3
-
CEC Title 20 Compliant
- Yes
-
CEC Title 24 Compliant
- Yes
-
Ceiling Height Maximum
- 12 Ft
-
Ceiling Height Minimum
- 8 Ft
-
Certification
- Ul
-
Clean Filter Alert
- Yes
-
Compatible Appliances
- Zrc 0012, 0ak11 20001, Ak1716
-
Controls Type
- Electronic
-
Duct Discharge
- Vertical Or Horizontal
-
Duct Size Horizontal In
- 3.25 X 10
-
Duct Size Vertical In
- 7, 3.25 X 10
-
Duct Type
- Vertical
-
Duct Type 2
- Horizontal
-
For Outdoor Use
- No
-
Grease Filter Type
- Mesh
-

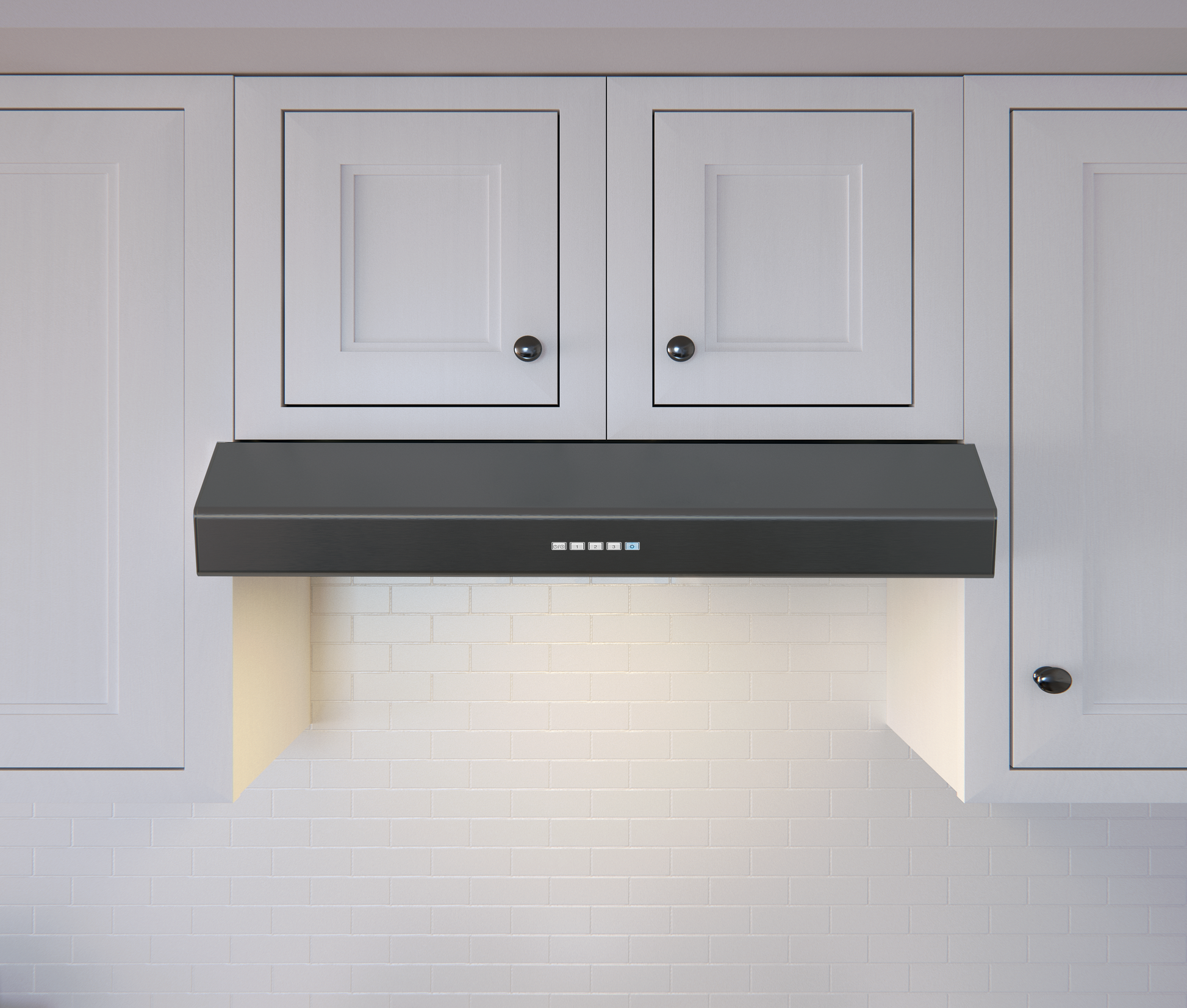

Installation Type
- Under Cabinet
-
Internal Blower 1 Cfm
- 400
-
Internal Blower 1 Max Sones
- 5
-
Internal Blower 1 Min Sones
- 2
-
Lighting Type
- Led
-
Lights Levels
- 2
-
Lights Quantity
- 2
-
Maximum Amperage
- 2
-
Minimum Cfm
- 210
-
Mounting Height Above Cooktop In
- 24 - 34
-
Net Depth In
- 20
-
Net Height In
- 5.5
-
Net Width In
- 35.875
-
Nominal Width In
- 36
-
Primary Material
- Steel
-
Voltage
- 120
-
Warranty Parts / Labor
- 3 / 1
-
Wattage
- 240
-
Watts Per Bulb
- 6
-
Weight Lbs
- 24.3
