Technical Specs
Overview

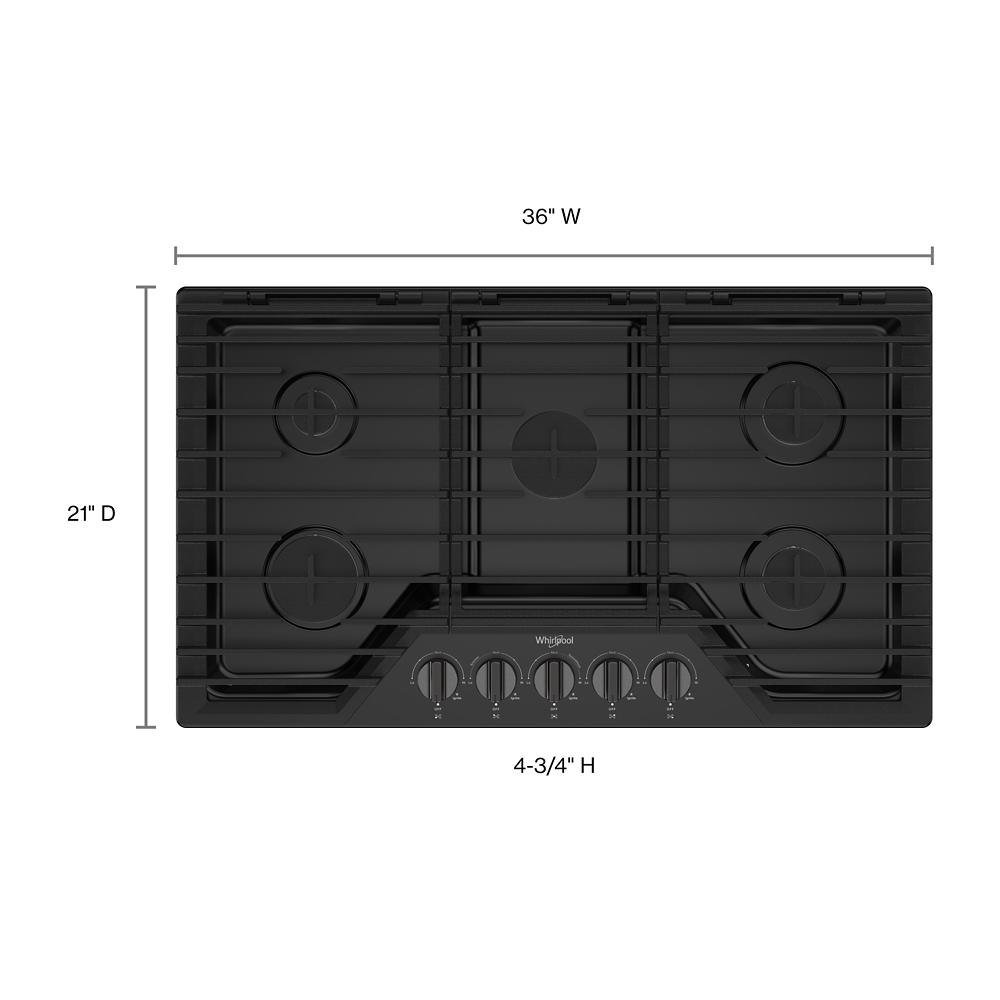

Measurements & Specs
-
Width
- {"value":36.0,"unit":"in"}
-
Height
- {"value":5.5625,"unit":"in"}
Other Tech Specs
-
Appliance Type
- Cooktop
-
Finish Color
- Black Stainless Steel
-
Power Source
- Gas
-
Features
- Combination Match With Oven WOES3027L WOES3030L WOES5027L WOES5030L WOES5930L WOES7027P WOES7030P WOS31ES0 WOS31ES7 WOS51EC0 WOS51EC0A WOS51EC7 WOS51EC7A WOS52EM4 WOS52ES4M WOS72EC0 WOS72EC7 WOS92EC7
-
ADA Compliant
- ADA Height and Side Reach Compliant
-
Prop65
- CA
-
UL
- Yes
-

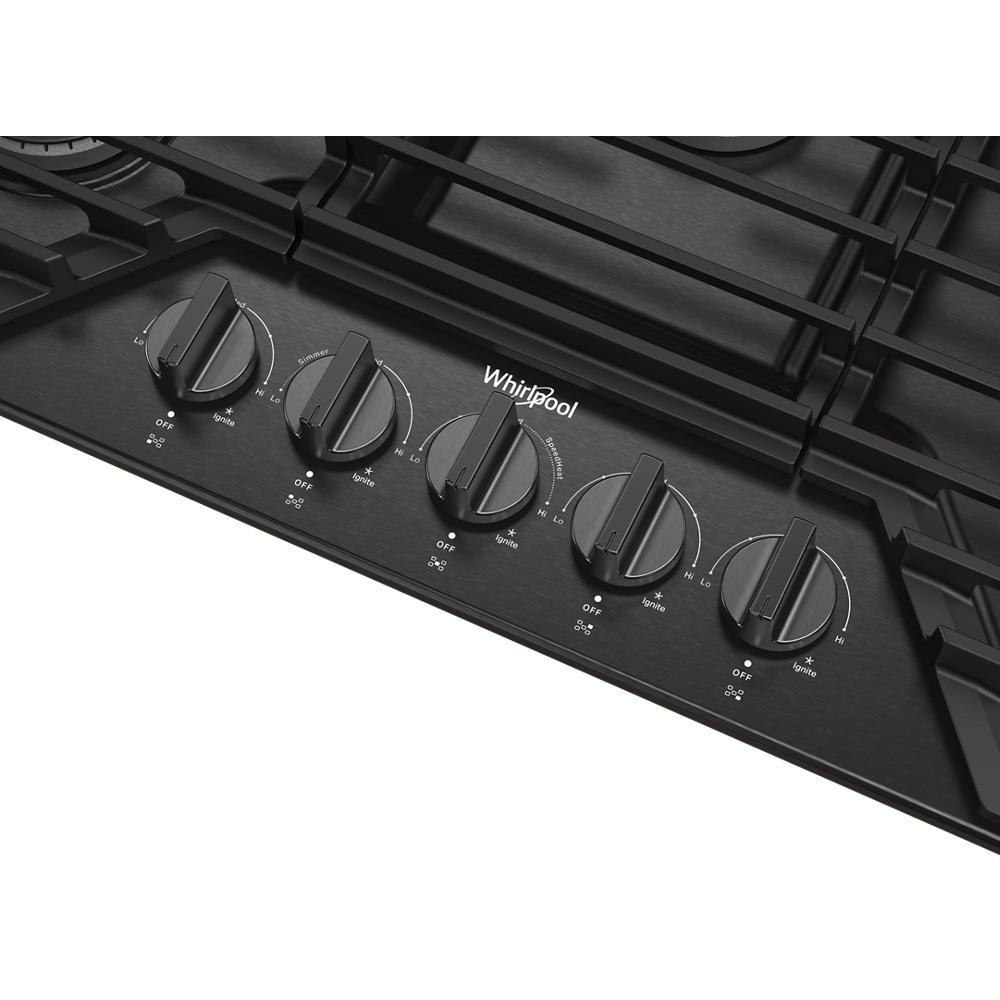

Control Location
- Front
-
Control Type
- Knobs
-
Cooktop Surface Color
- Black on Stainless
-
Ignition Type
- Direct Spark Ignition
-
Cooktop Configuration
- All Burners
-
Installs Over Built-In Oven
- Yes
-
LP Convertible
- Yes Kit Included
-
Power Outage Compatible
- Yes
-
Carton Depth
- 24.96 Inches
-
Carton Height
- 12.99 Inches
-
Carton Width
- 40.65 Inches
-
Cutout Depth Max
- 20
-
Cutout Depth Min
- 19
-
Cutout Depth
- 20
-
Cutout Width Max
- 35.25
-
Cutout Width Min
- 33.875
-
Cutout Width
- 35.25
-
Gross Weight
- 73.36 Pounds
-
Net Weight
- 66.7 Pounds
-

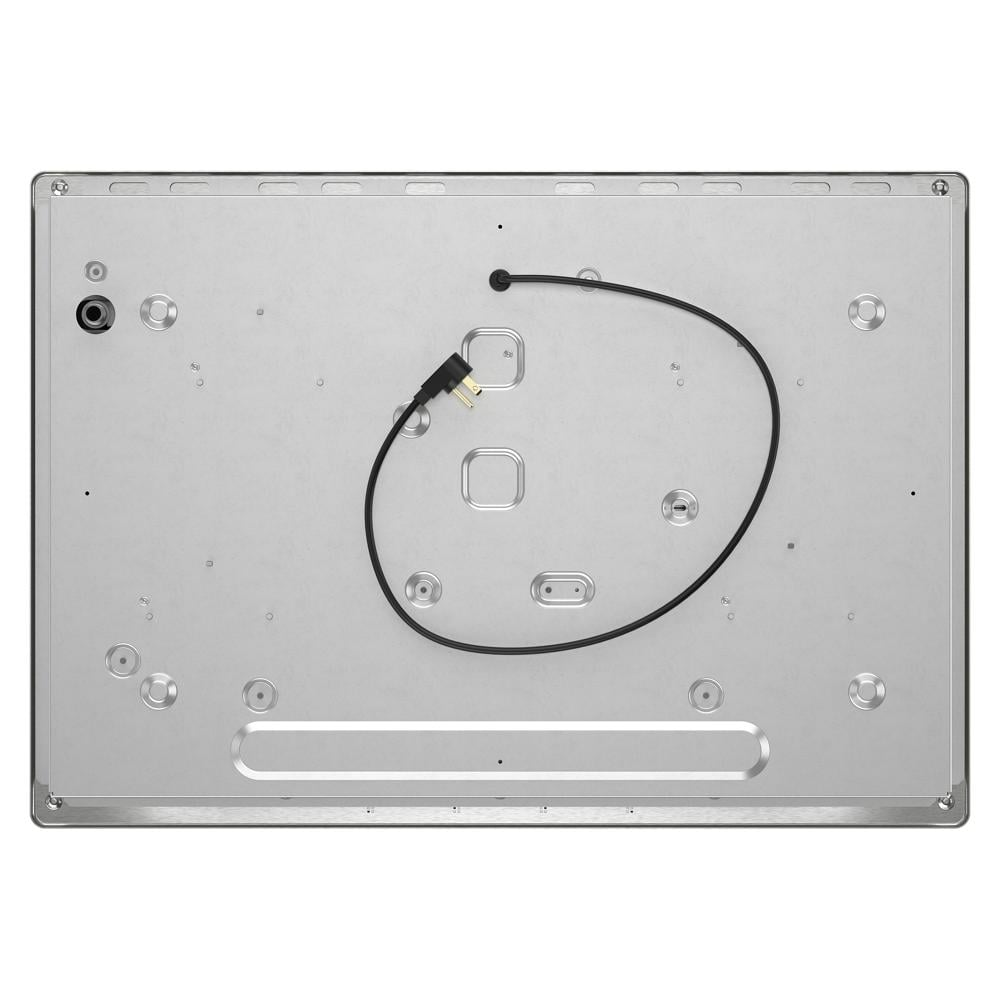

Power Cord Included
- Yes
-

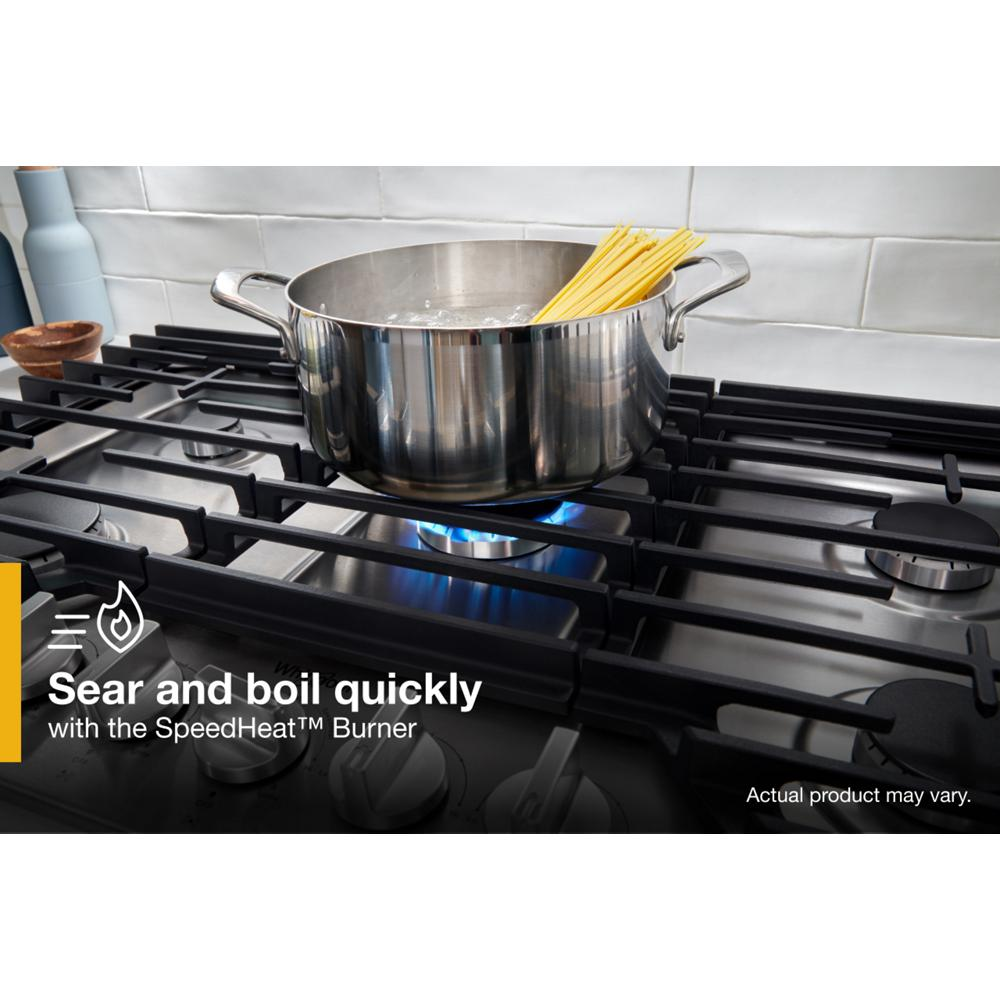

Center Element Burner Power
- 18,000 BTU
-
Center Element Burner Type
- Power
-
Cooktop Element Style
- Sealed Burner
-
Left Front Element Burner Power
- 12,000 BTU
-
Left Front Element Burner Type
- Standard
-
Left Rear Element Burner Power
- 5,000 BTU
-
Left Rear Element Burner Type
- Simmer
-
Number Of Cooking Element Burners
- 5
-
Right Front Element Burner Power
- 9,100 BTU
-
Right Front Element Burner Type
- Standard
-
Right Rear Element Burner Power
- 9,100 BTU
-
Right Rear Element Burner Type
- Standard
-
Knob Color
- Black Stainless
-
Knob Type
- Plastic
-

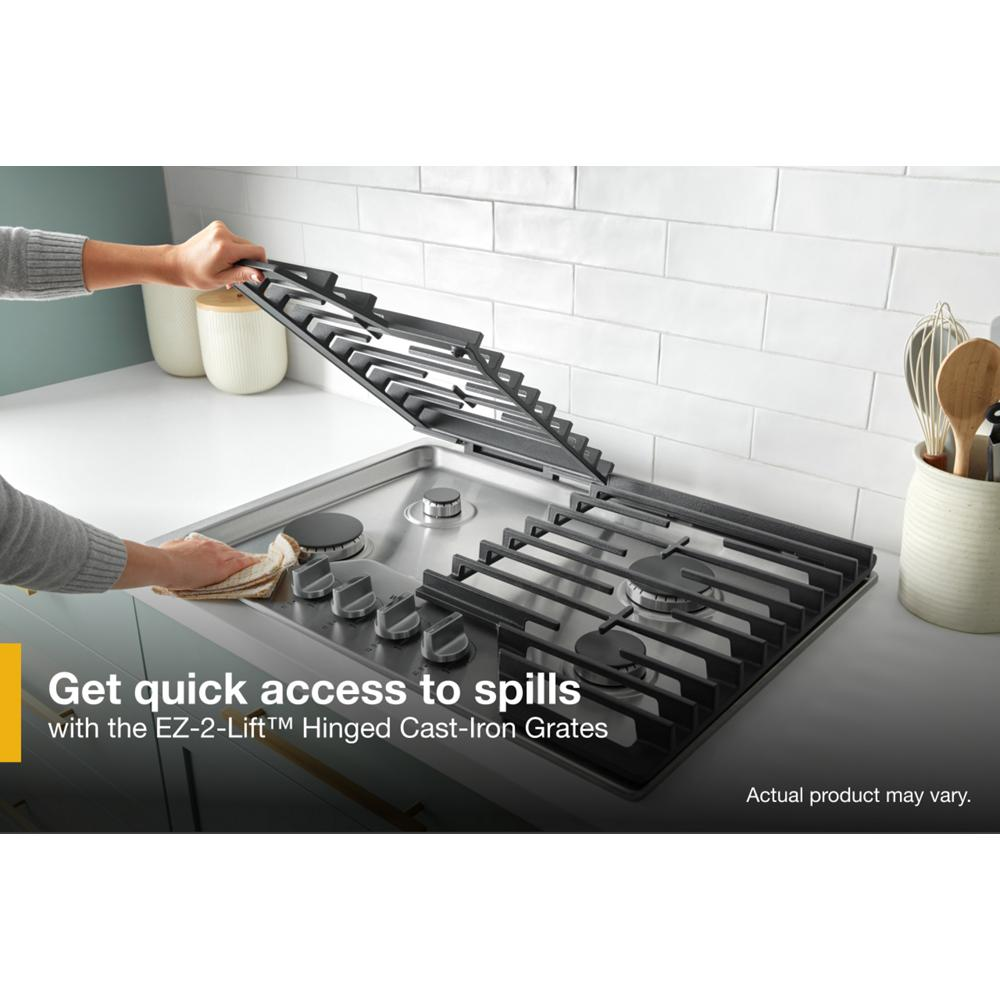

Grate Details
- Cast Iron Grates Continuous With Hinge Dishwasher Safe Matte Finish
-
Number Of Grates
- 3
