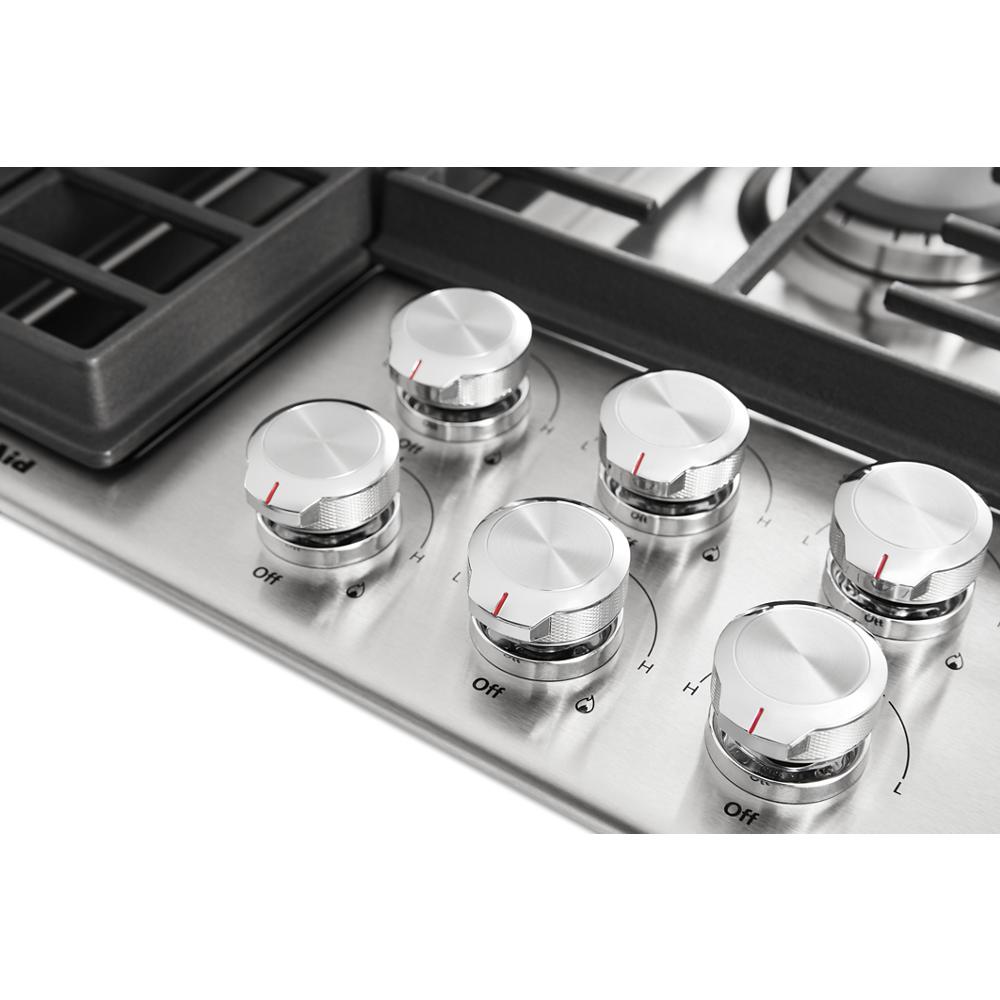

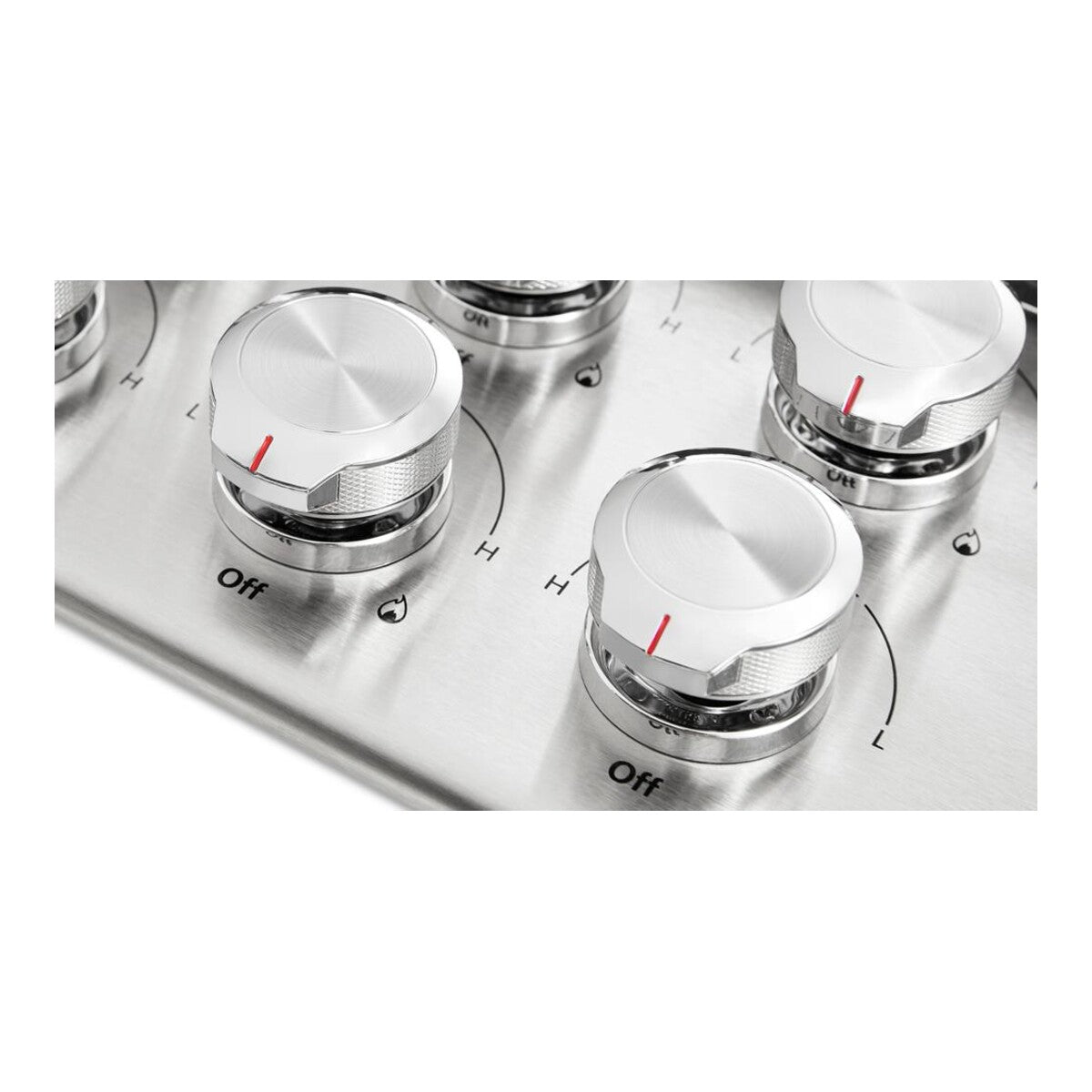

• Stainless steel cooktop control panel with six round knobs and continuous cast iron grates from KitchenAid appliances collection
1 21
KitchenAid
Sale In Store Only IN-STORE ONLY

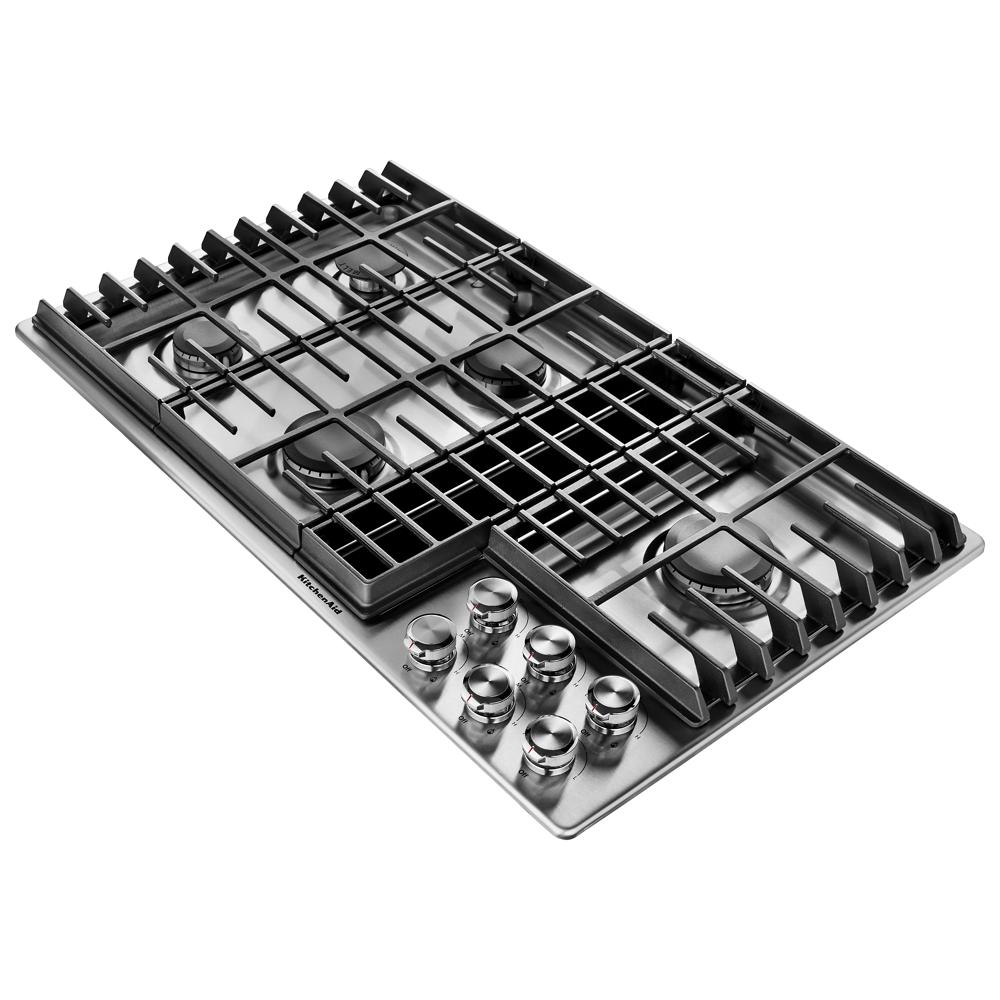

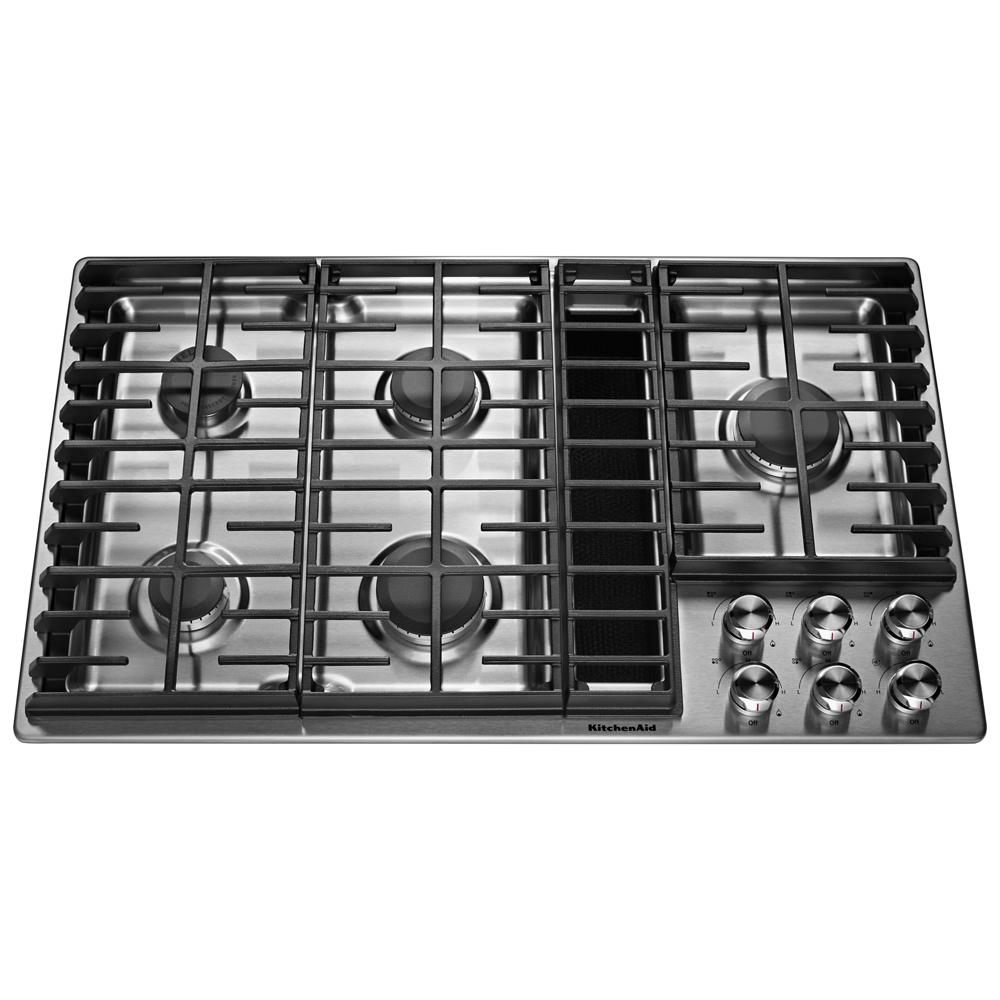

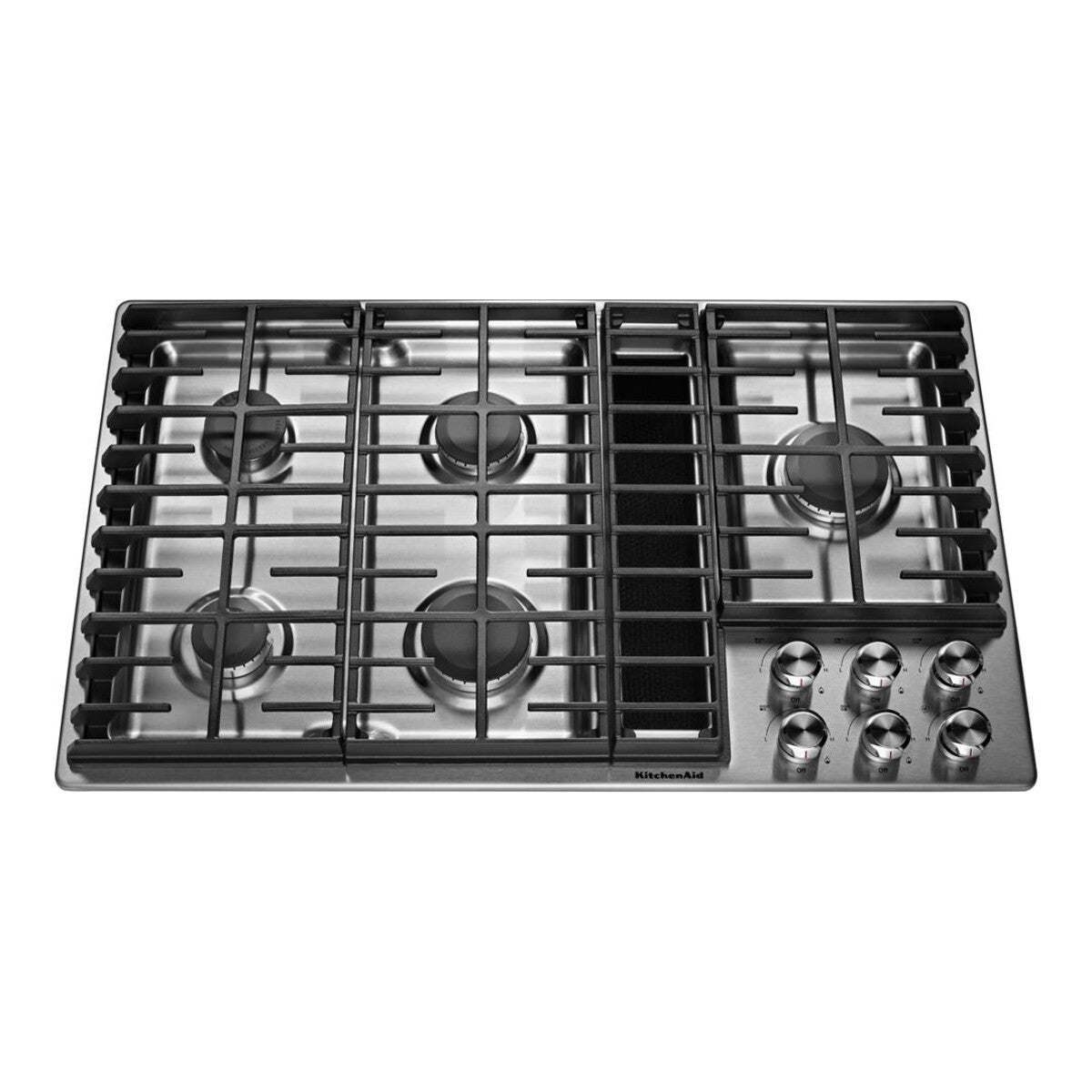

36" 5 Burner Gas Downdraft Cooktop

36" 5 Burner Gas Downdraft Cooktop

SKU: KCGD506GSS

Shop All Kitchenaid
Add to Favorites
now $2,399 .00 $2,666.00
36" 5-burner gas cooktop with powerful 17K BTU burner and integrated downdraft vent.
only 1 left in stock

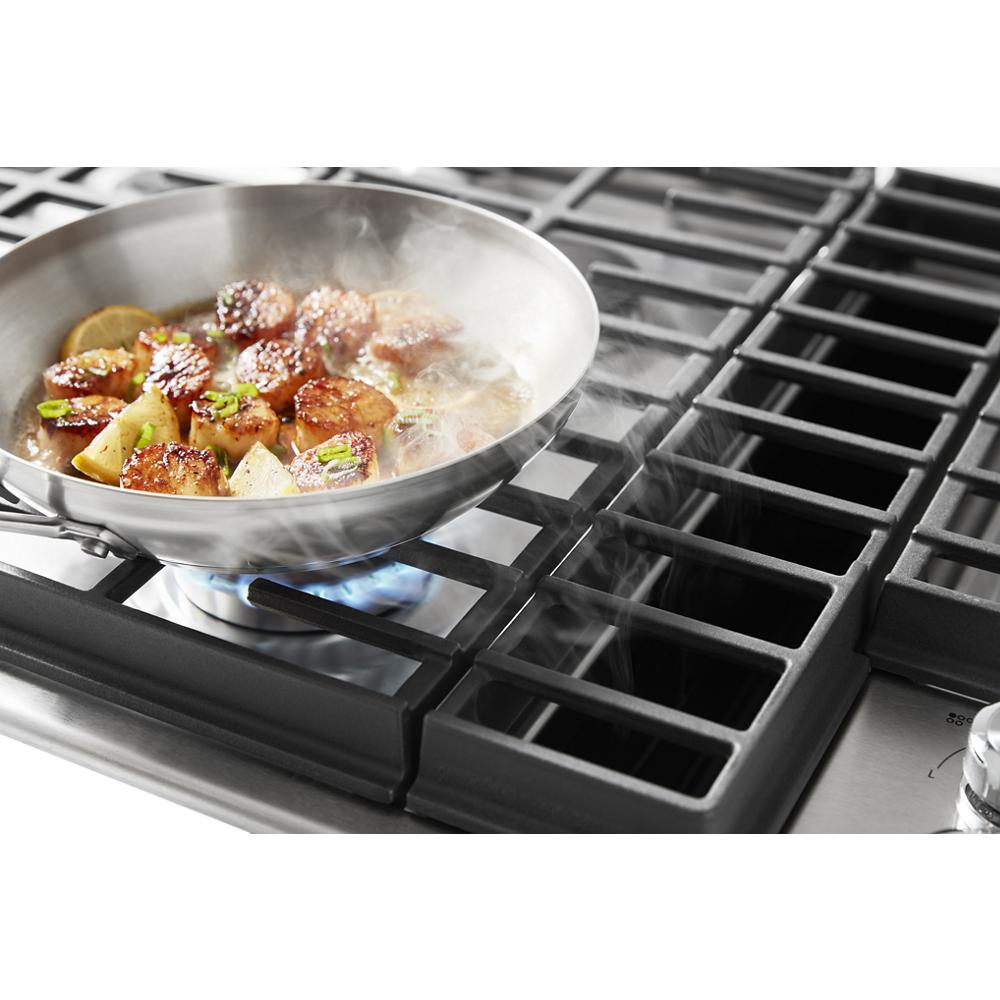

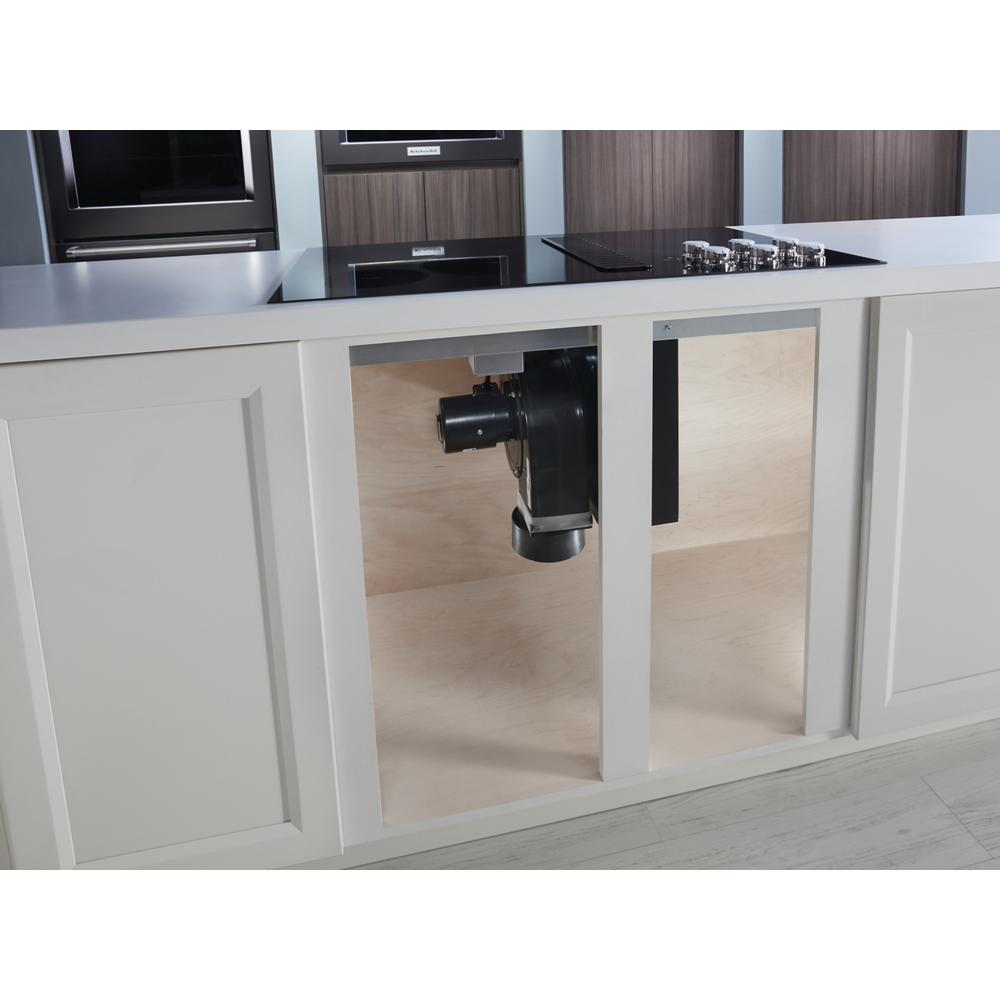

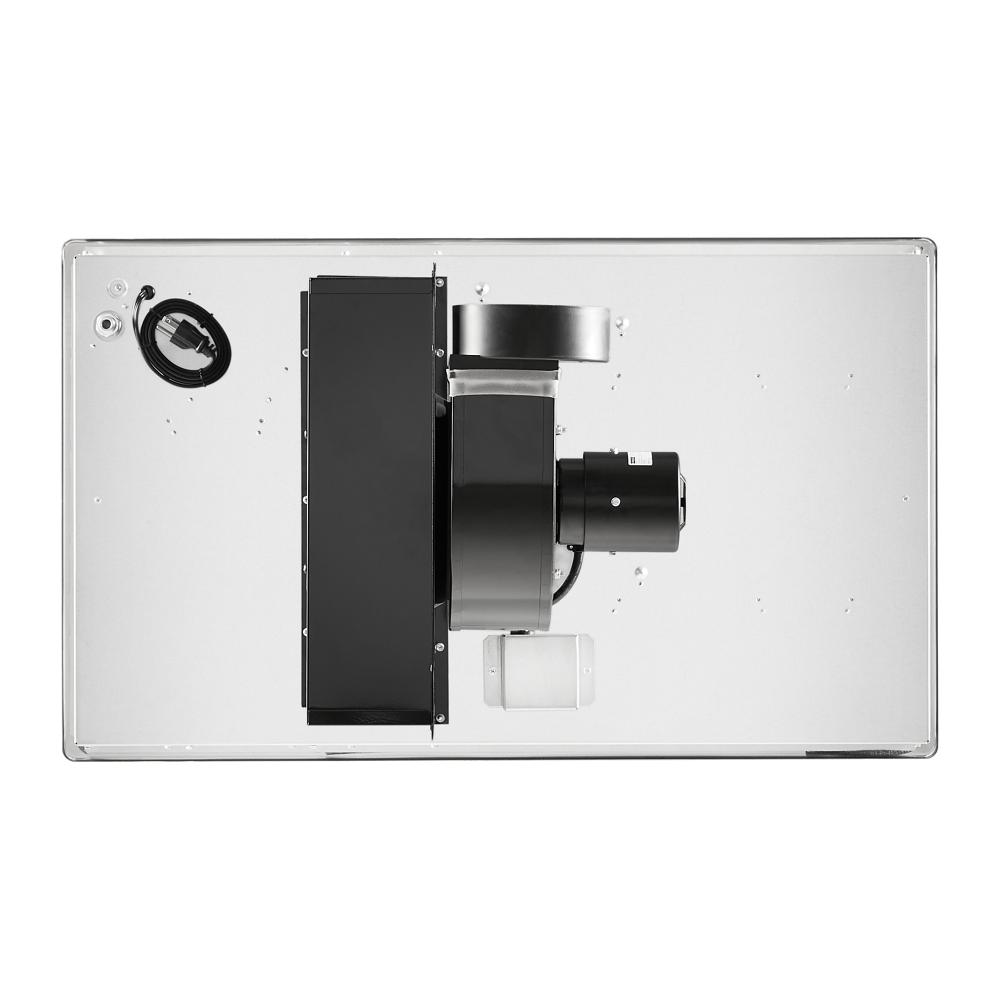

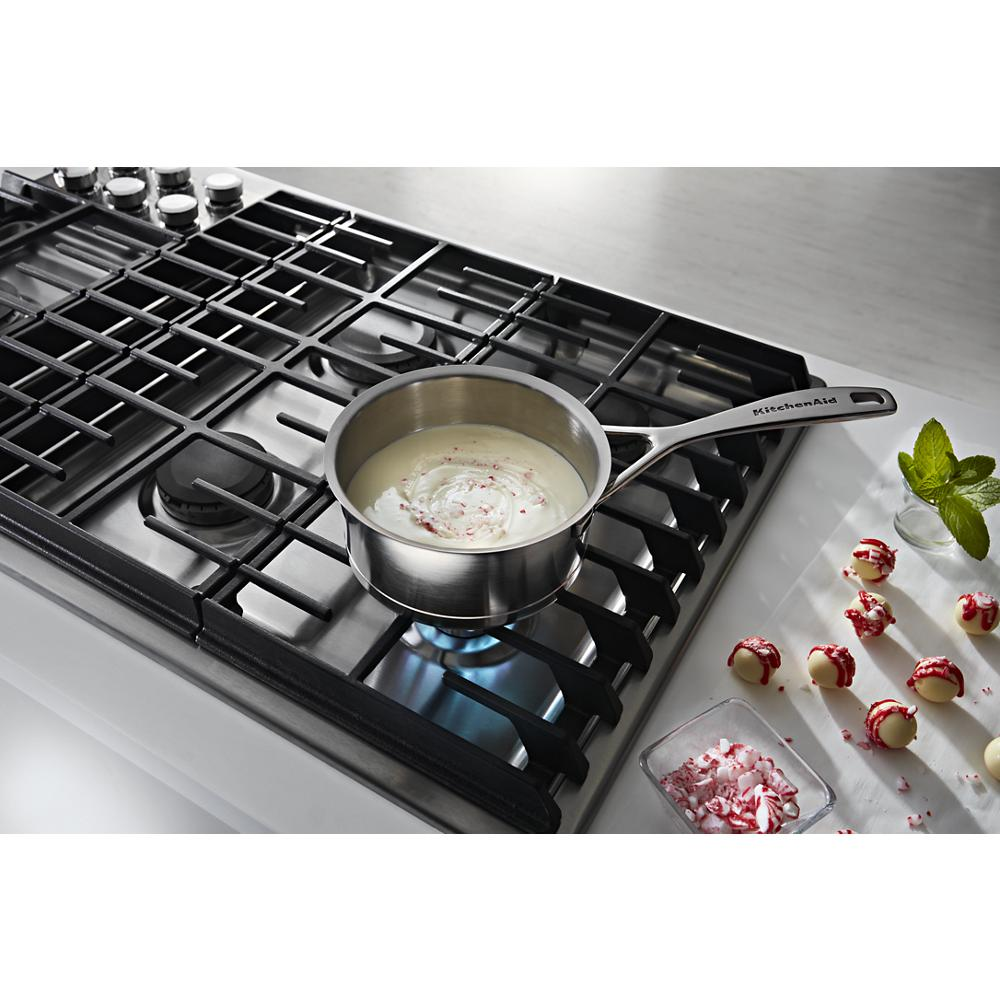

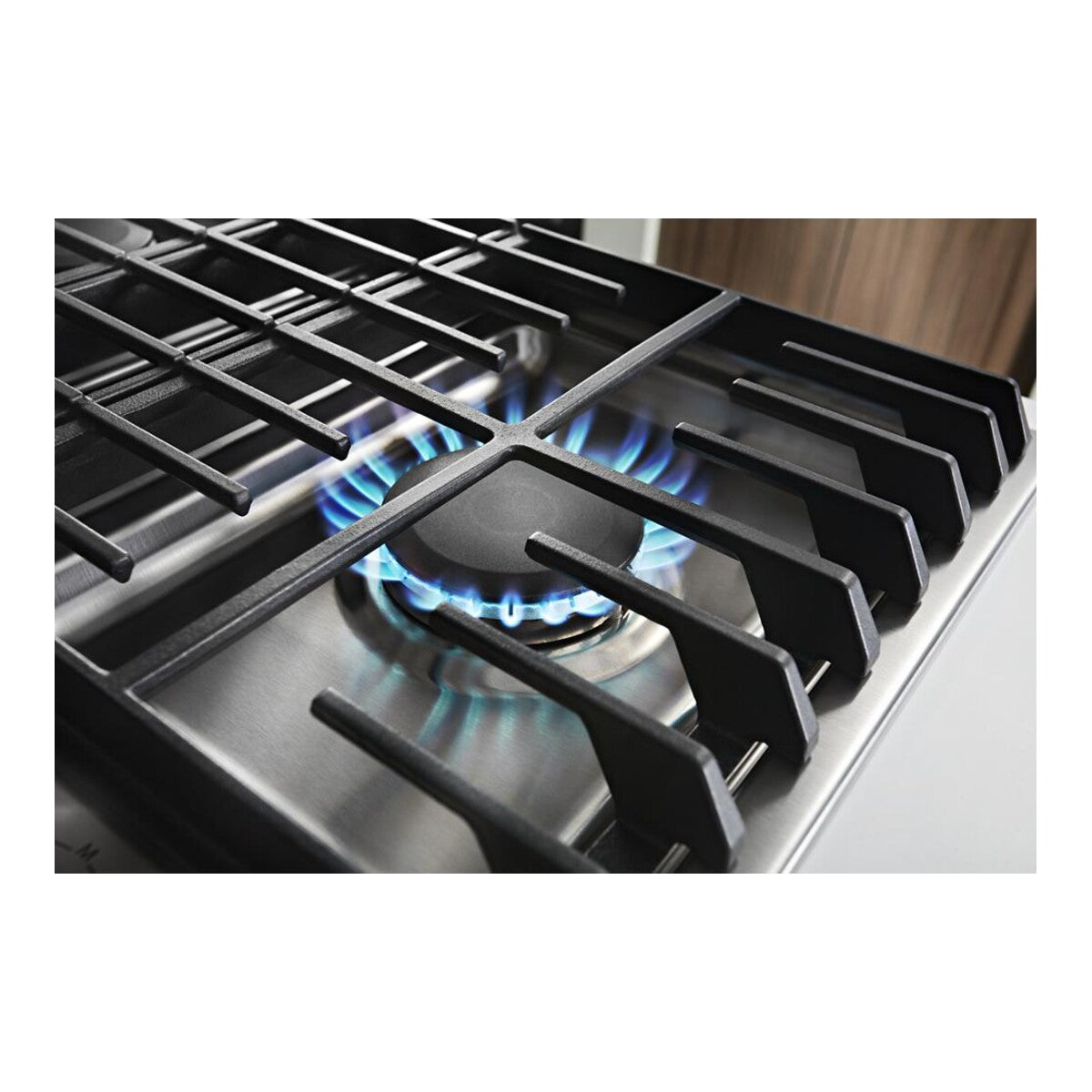

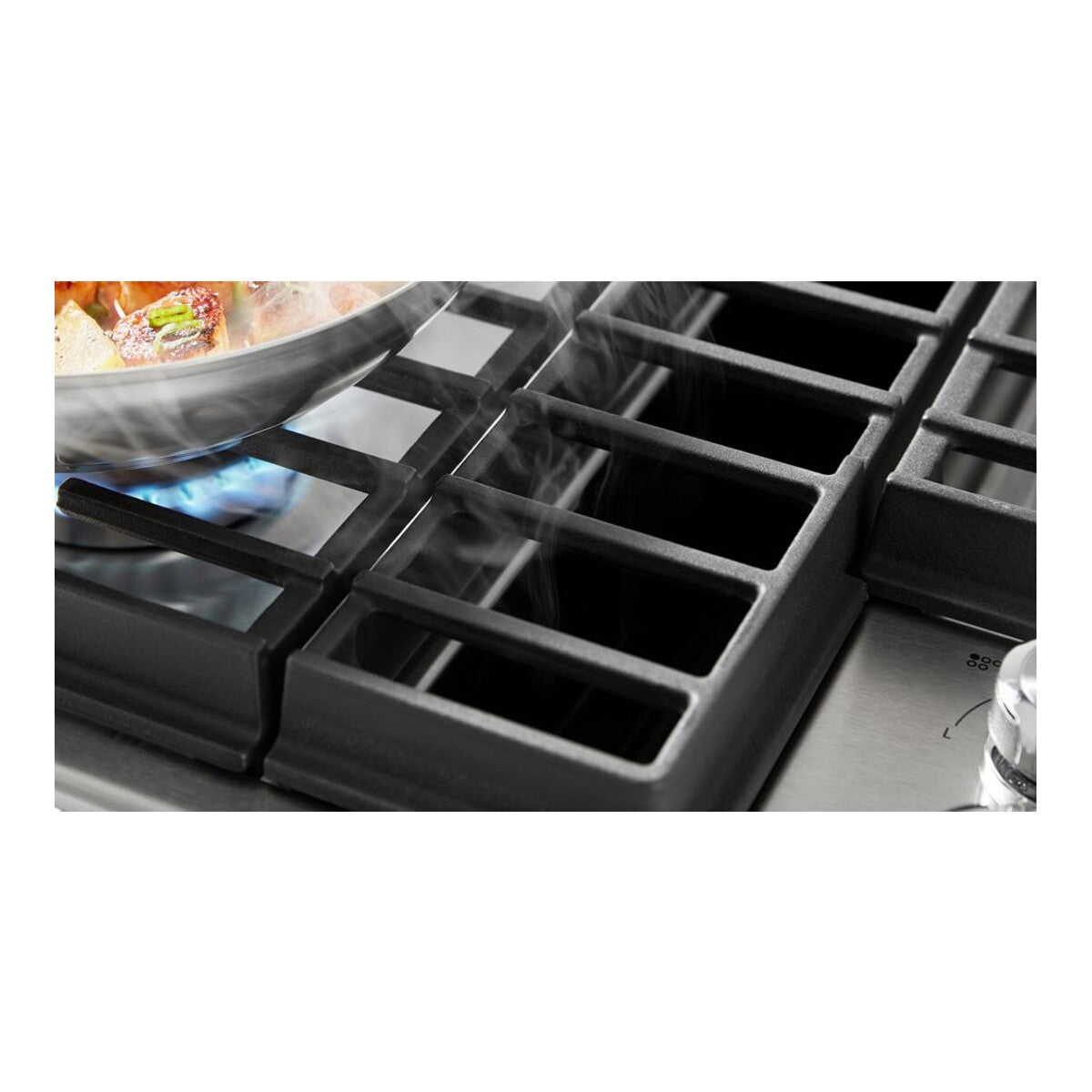

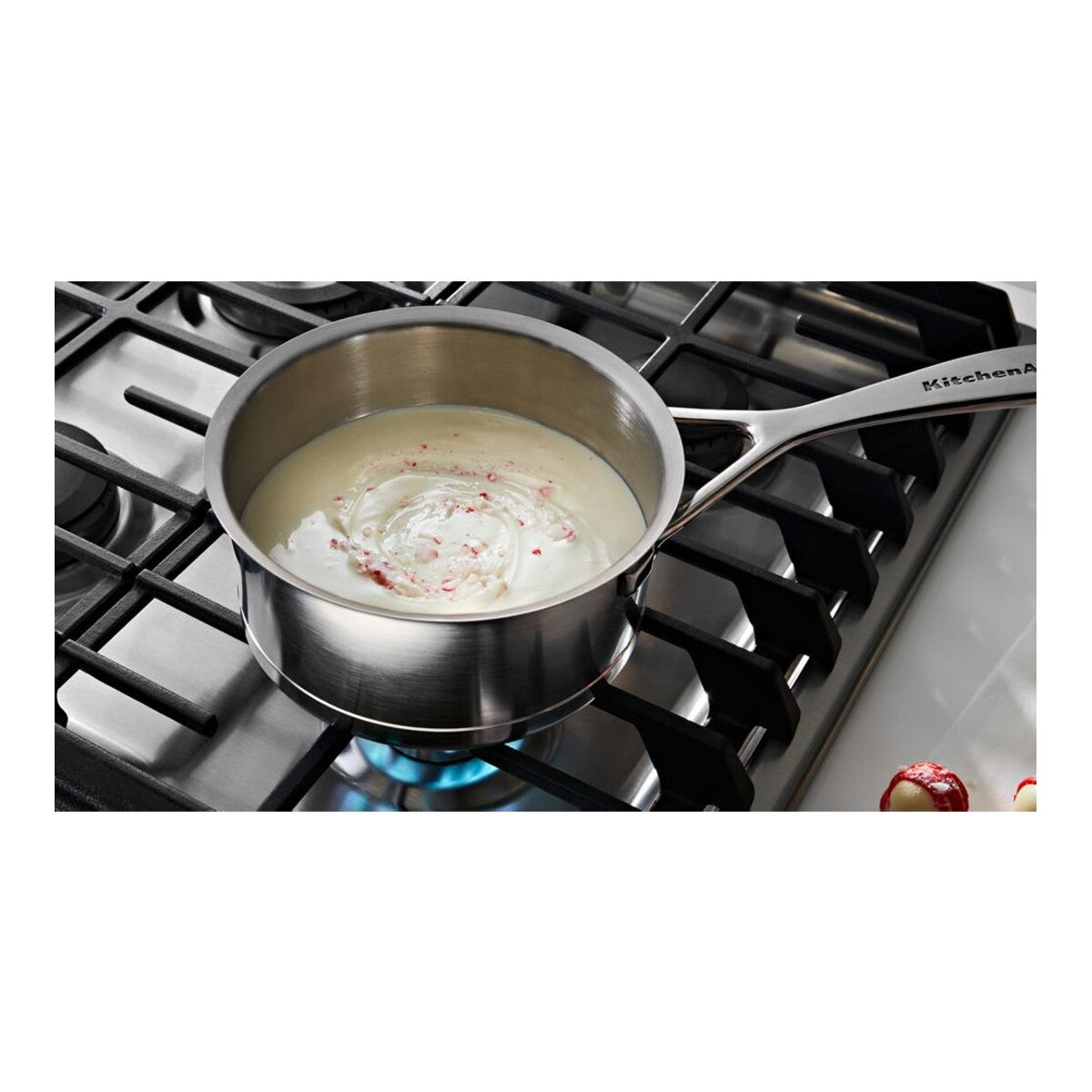

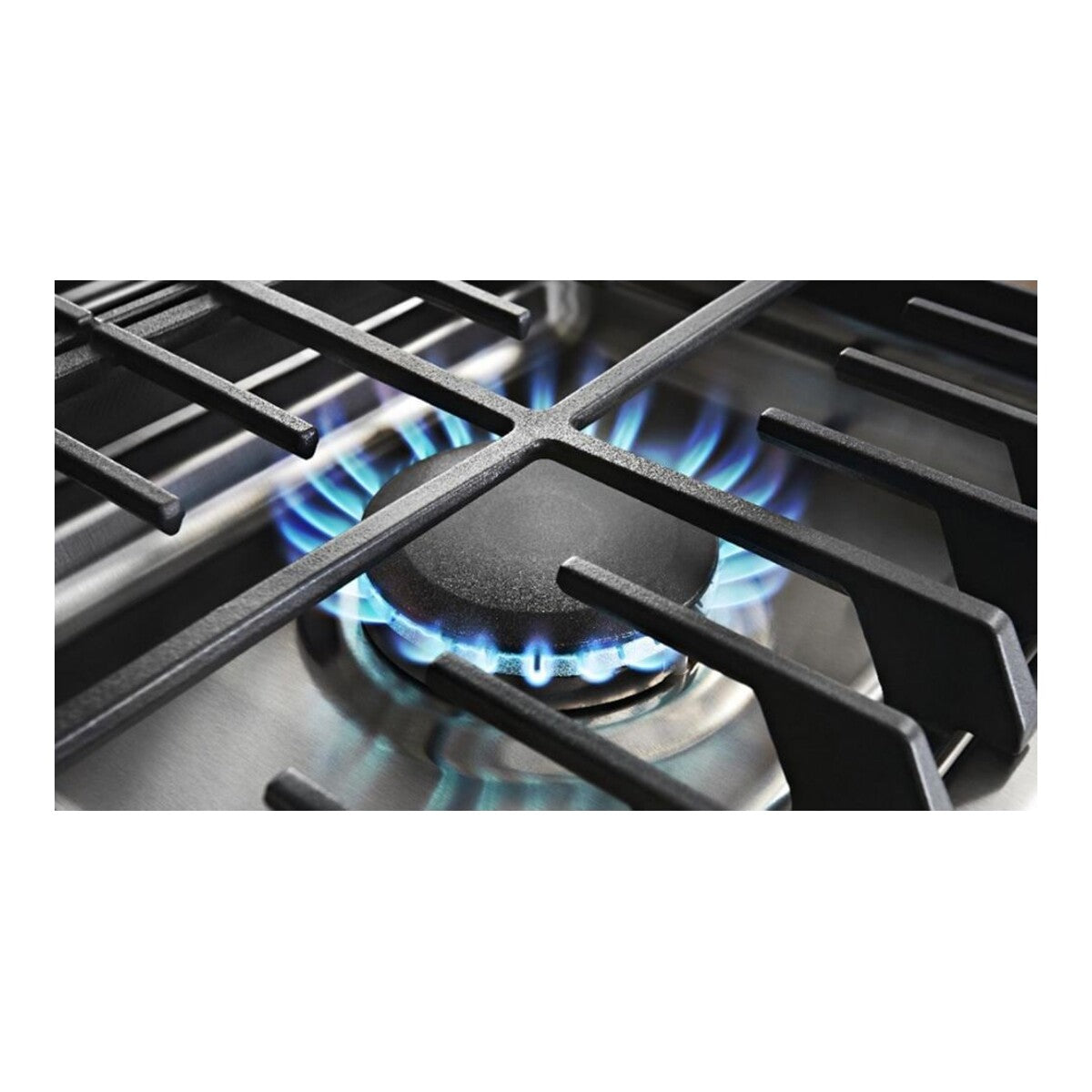

This 36” gas cooktop includes Downdraft, an integrated ventilation system that doesn’t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.
View full details

Technical Specs Technical Specs

Overview
This 36” gas cooktop includes Downdraft, an integrated ventilation system that doesn’t require a separate hood. The cooktop features a 17K BTU professional burner to achieve both high heat needed for searing and low simmer settings. The 5K BTU Even-Heat™ Simmer Burner enables precise simmering and melting while the 300 CFM exhaust rating means the venting can handle it all.

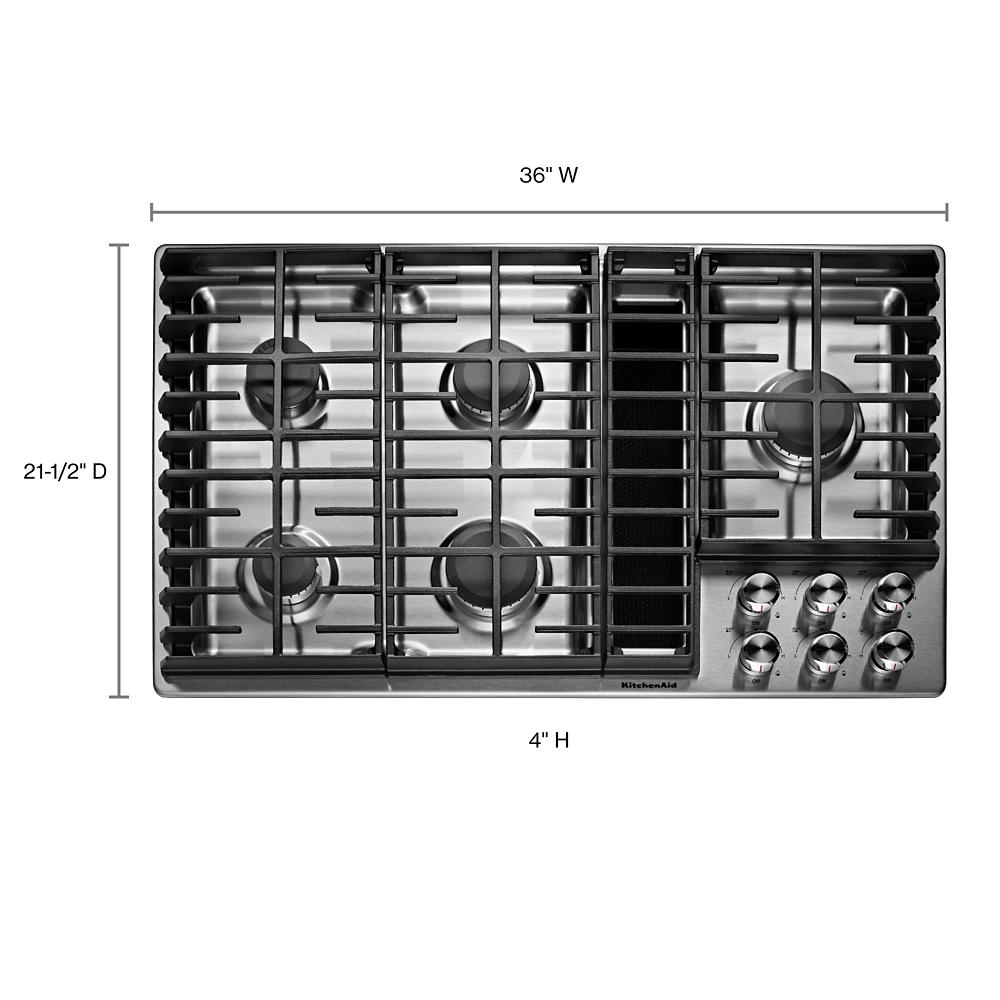

Measurements & Specs
Width Info
36.0 in
Height Info
18.4375 in
Other Tech Specs
Appliance Type Info
Cooktop
Finish Color Info
Stainless Steel
Power Source Info
Gas
Manufacturer Part Number Info
KCGD506GSS
Features Info
Downdraft Ventilation Even Heat Melt Burner ADA Compliant No Prop65 CA UL Yes Control Location Right Side Control Type Knobs Infinite Heat Controls Yes Cooktop Surface Color Color Coordinated Cooktop Surface Material Stainless Steel Digital Display No Heating Element On Indicator Light No Hot Surface Indicator Light No Ignition Type Flame Sensing Re ignition Number Of Open Bays N A Automatic Pan Detection No Fuel Type Gas Installs Over Built In Oven No LP Convertible Yes Number Of Vent Speeds 3 Power Outage Compatible Yes Carton Depth 26.38 Inches Carton Height 23.78 Inches Carton Width 41.5 Inches Cutout Depth 19.938 Cutout Width 34.75 Gross Weight 97 Pounds Net Weight 92 Pounds Power Cord Included Yes Center Front Element Burner Power 15,000 BTU Center Front Element Burner Type Sealed Burner Center Rear Element Burner Power 12,500 BTU Center Rear Element Burner Type Sealed Burner Cooktop Element Style Sealed Burner Cooktop Type Downdraft Left Front Element Burner Power 10,000 BTU Left Front Element Burner Type Burner Left Rear Element Burner Power 5,000 BTU Left Rear Element Burner Type Even Heat Number Of Cooking Element Burners 5 Right Rear Element Burner Power 17,000 BTU Right Rear Element Burner Type Burner Knob Color Stainless Steel Knob Type Metal Grate Details Cast Iron Grates Continuous Matte Finish Number Of Grates 3 CFM Motor Class 300 Downdraft Vent Yes
