Technical Specs
Overview

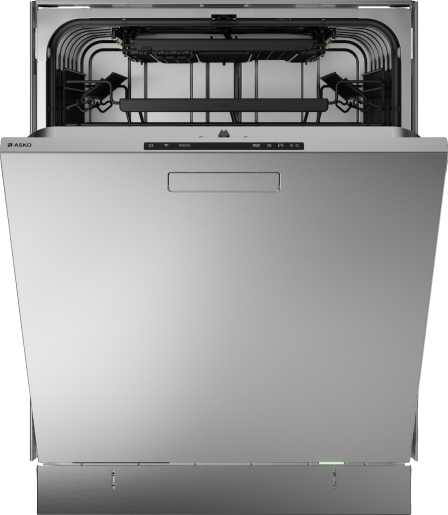

A small light placed in the bottom right corner indicates the current status of a program with three colours: Blue tells you when you can still open the door to load more items, red tells you when it’s too late to do so and green tells you when the dishes are ready. The Status Light™ can be either face-on or as a spot on the floor. Rinse the dishes. Clean the interior, including the filter. Choose the best program. How many steps is that? One – and we call it the Super Cleaning System – or our best invention.
Product Specifications
-
Features
- 8 Steel™ Vital Parts Of The Dishwasher Made In Stainless Steel Yes
-
Adjustable Base
- Vertical
-
Aqua Safe™
- Anti Block™ Self Cleaning Drain Pump
-
Asko DW Series US
- 40 Series
-
Basket Colour
- Dark Grey
-
Brand For EL
- ASKO
-
Child Safety
- Kid Safe™ Lockable Controls
-
Cleaning Systems
- Adjustable Power Zones That Can Be Set For Cleaning Pots & Pans Or Bottles & Vases Can Also Be Turned Off
-
Color Of The Product
- Stainless Steel
-
Connected Load
- 1300 W
-
Control
- Touch Control
-
Create Own Program
- Memory Programme
-
Delayed Start
- Continuous
-
Delayed Start
- Possible To Delay Up To 24 Hours
-
Drying System
- Turbo Combi Drying™ Ensures Dry Dishes With Fan Assisted Evacuation Of Moisture In Combination With Auto Door Opening
-
Duration Of Standard Programme
- 125 Min
-
Energy Consumption Normal Program
- 1 Kwh
-
Estimated Annual Water Consumption
- 647.5 Gal
-
Estimated Yearly Energy Consumption
- 220 Kwh
-
Exterior Handle
- Integrated Handle With Soft Closing
-
Frequency
- 60 Hz
-
From Front Adjustable Rear Foot
- Yes
-
Fuse
- 15 A
-
Gross Weight
- 95.9 Lb
-
Heater Circulation Pump
- 1240 W
-
Heater Power
- 1200 W
-
Hidden Heating Element
- Yes
-
Indication Of Low Level Of Rinse Aid
- Notification In Display
-
Installation
- Built In
-
Installation
- Steam Protection Strip
-
Language Settings
- Chinese Simplified
-
Length Inlet Hose
- 64 3/16 ''
-
Length Of Electrical Cord
- 71 7/16 ''
-
Length Outlet Hose
- 90 9/16 ''
-
Lower Rack Type
- Premium Basket Wiring In Steel Fixed Pin Rows And Removable Cutlery Basket
-
Lower Rack
- Small Distance Between The Basket Threads Makes Loading Easy And Prevents Small Items To Fall Through
-
Max Temperature Of Inflow Water
- 140 °F
-
Middle Basket
- Without Middle Basket
-
Net Weight
- 89.3 Lb
-
No Need To Rinse The Dishes Thanks To Super Cleaning System™
- Yes
-
Noise Level Max
- 42 DBA
-
Number Of Different Wash Temperatures
- 4
-
Number Of Phases
- 1
-
Number Of Place Settings
- 16 PC
-
Number Of Program
- 9
-
Number Of Racks
- 3
-
Number Of Spray Arms
- 3 PC
-
Number Of Spray Zones
- 9
-
Number Of Water Jet Levels
- 3
-
Options And Modes
- Enable Disable Automatic Door Opening
-
Packaging Depth
- 26 3/4 ''
-
Packaging Height
- 35 1/16 ''
-
Packaging Width
- 25 3/16 ''
-
Plug Type
- USA
-
Possible To Install Elevated
- Yes
-
Power Consumption In Standby Mode
- 0.5 W
-
Product Code
- 740109
-
Programs
- Anti Odour
-
Reference Programme
- 1
-
Remaining Time Indication
- Yes
-
Required Inlet Water Pressure Psi
- 0.03-1
-
Single Basket Washing
- Not Possible
-
Size
- XL
-
Status Light™ Visual Indication Of Dishwashing Progress
- Yes Spot On Floor
-
SW Variant
- 148
-
Top Tray
- Easy Height Adjustment
-
Tub
- Stainless Steel
-
Type Of Display
- LCD Display
-
Upper Basket System
- Switch Wheels
-
Upper Basket
- Standard Knife Stand
-
Upper Rack Type
- Premium Fixed Tines And Foldable Wine Shelves
-
Voltage V
- 120 V
-
Wash End Indication
- Displayed With Sound And Light
-
Water Connection
- Hot Or Cold
-
Water Consumption
- 3 Gal
-
Weight Of Packaging
- 6.6 Lb
-
Wifi
- No
-
Finish Color
- Stainless Steel
-
Appliance Type
- Dishwasher
-
Portable Or Stationary
- Stationary
-
Manufacturer Part Number
- DBI564IS
