Technical Specs
Overview
Measurements & Specs
-
Width
- {"value":23.75,"unit":"in"}
-
Height
- {"value":34.0,"unit":"in"}
Other Tech Specs
-
Features
- Optional 12' Drain Hose Optional Hose Kit WD24X10065
-

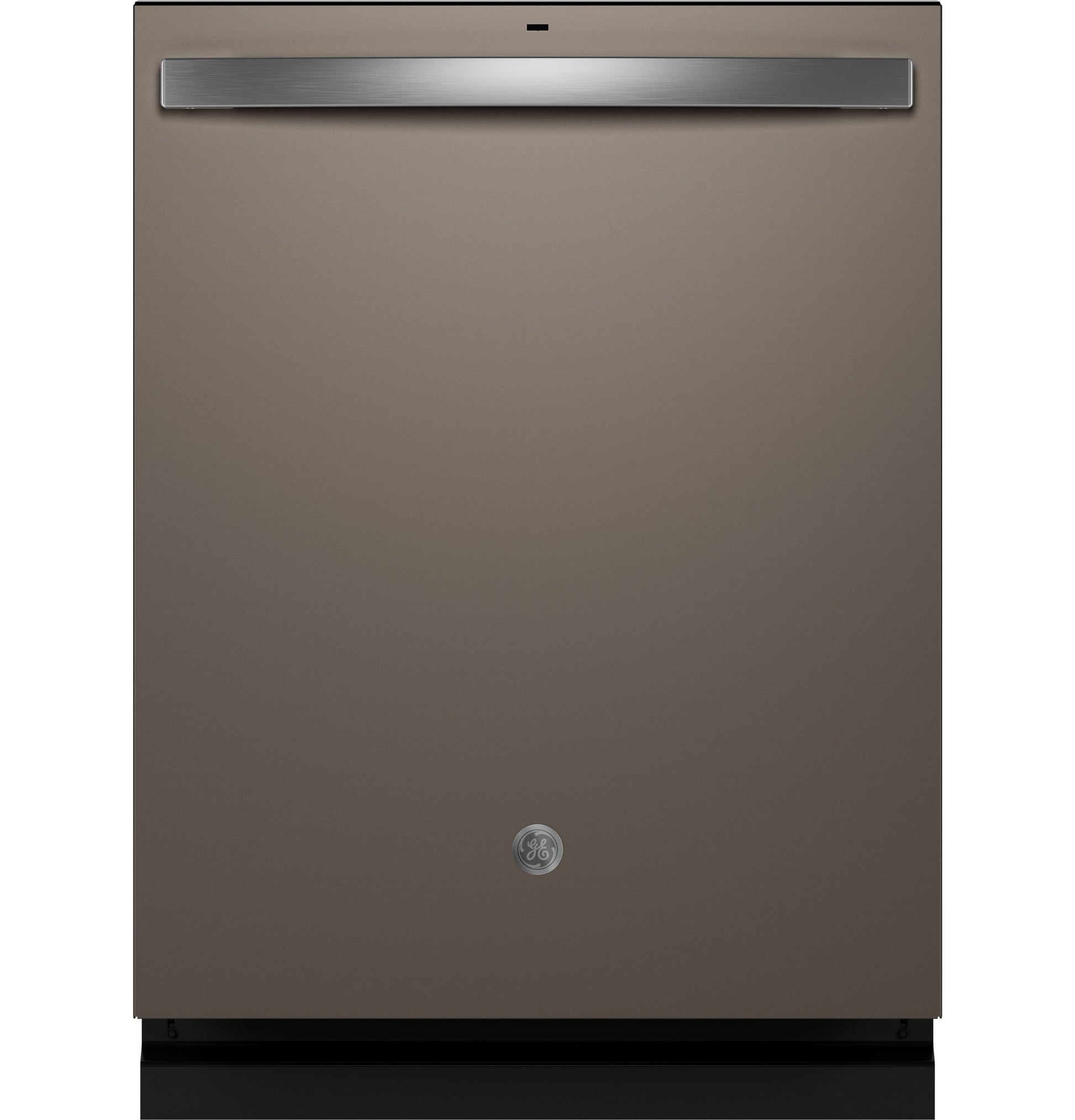

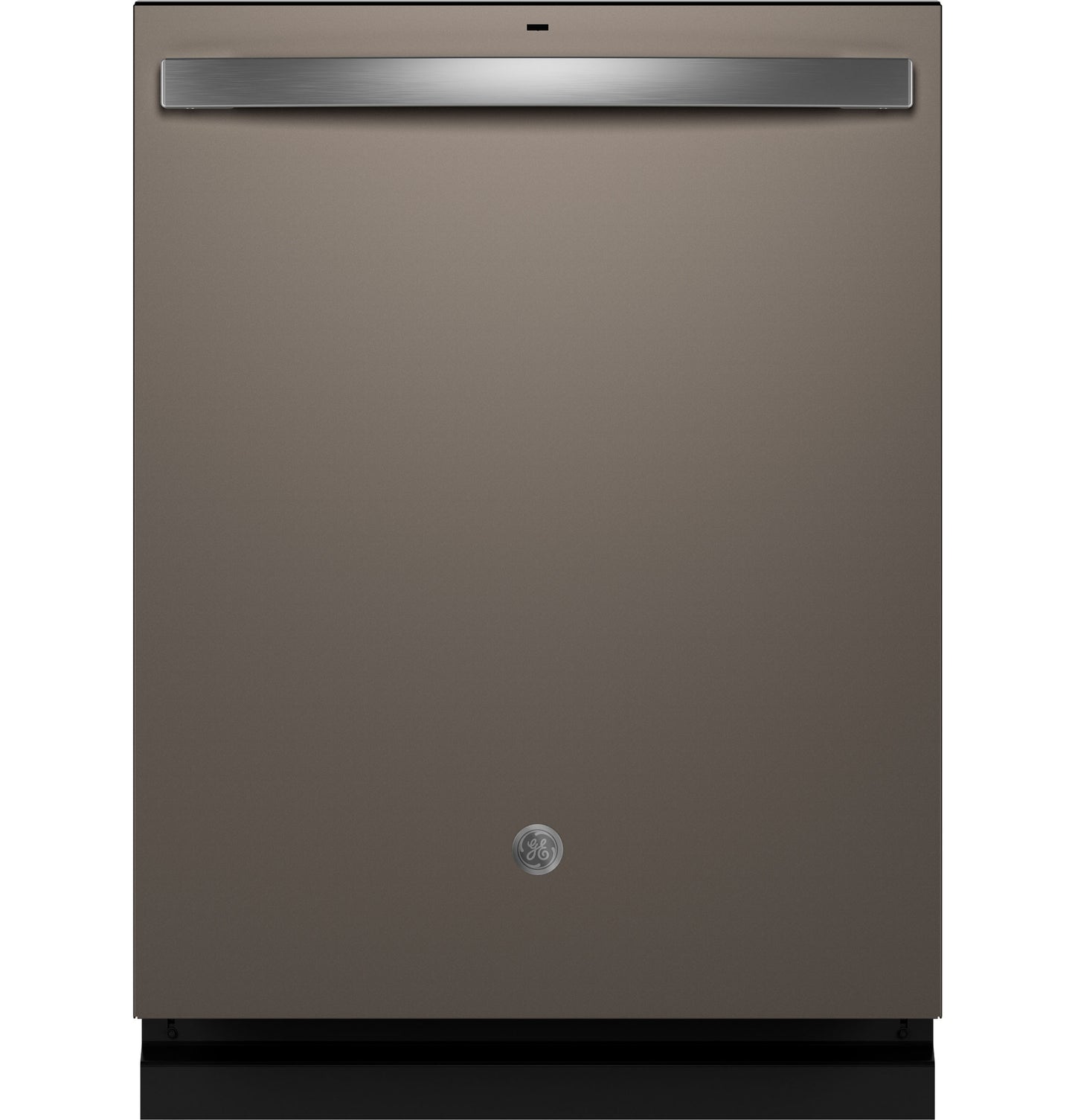

Color Appearance
- Fingerprint Resistant Slate
-
Control Panel Color
- Storm Gray
-
Door Appearance
- Full Length Door
-
Door Style
- Long Door With Top Controls
-
Handle
- Rounded Handle
-
Handle Color
- Stainless Steel
-

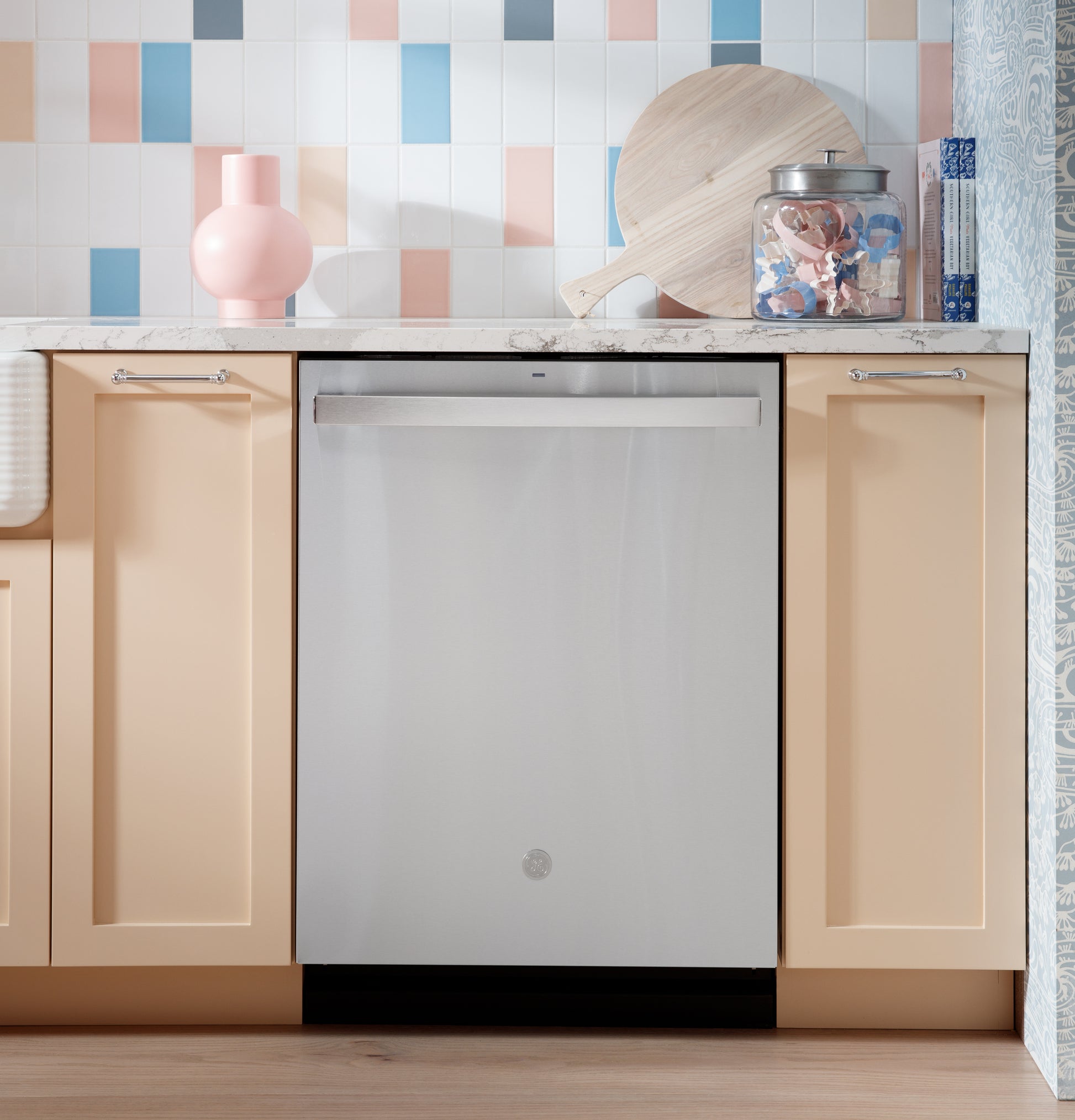

Installation
- Built Up Floor Capable Flush Cabinet Installation Side Or Top Mount Install Brackets Included
-
Door Insulation
- Insulation Mastic
-
Motor Type
- Variable Speed
-
Outer Wrap
- Bitumen
-
Quiet Features
- Quiet Water Valve Sealed Toe Kick Tub Collar Trim
-
Quiet Package
- 47 dBA
-
Additional Protection
- Active Flood Protect
-

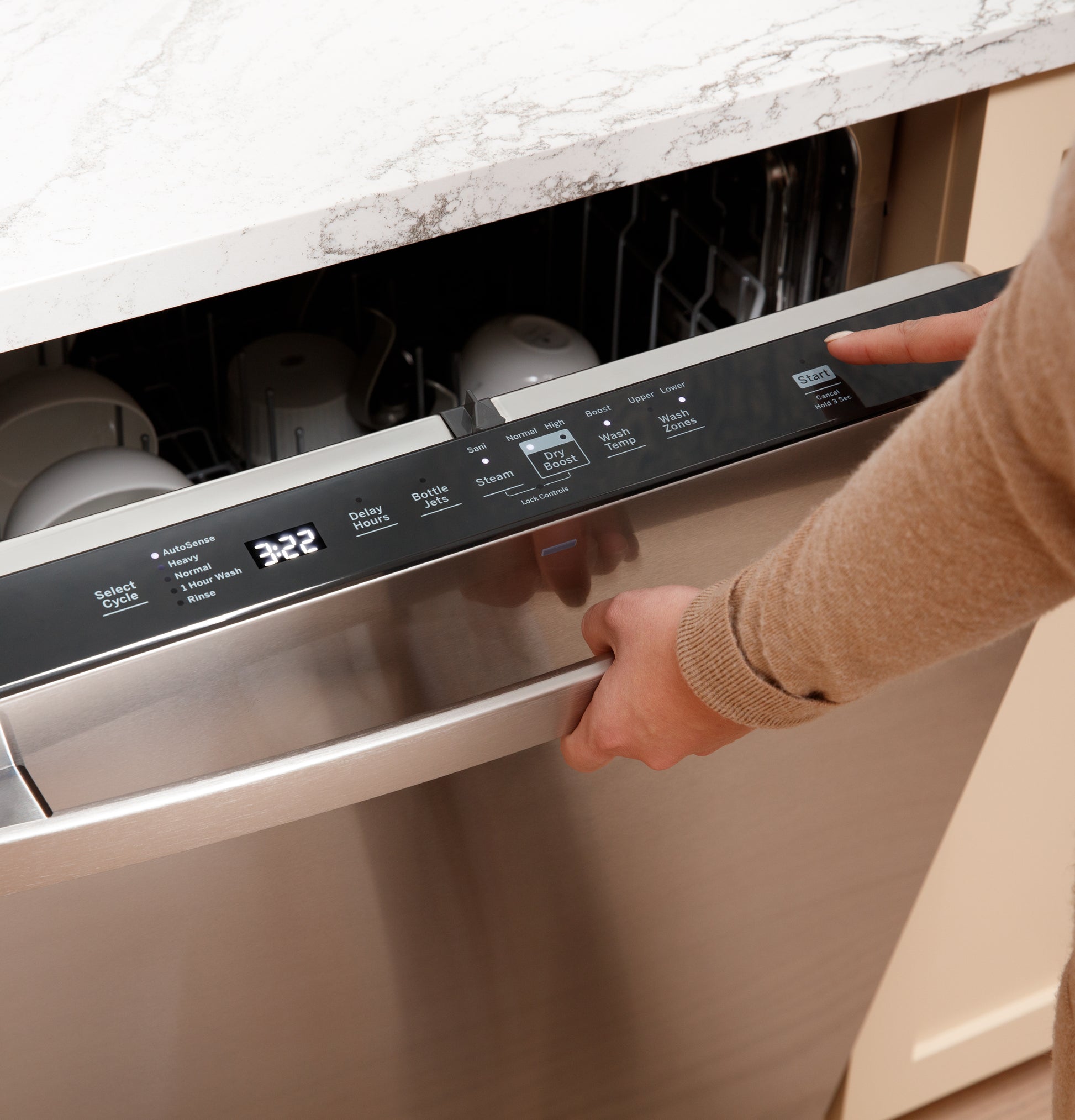

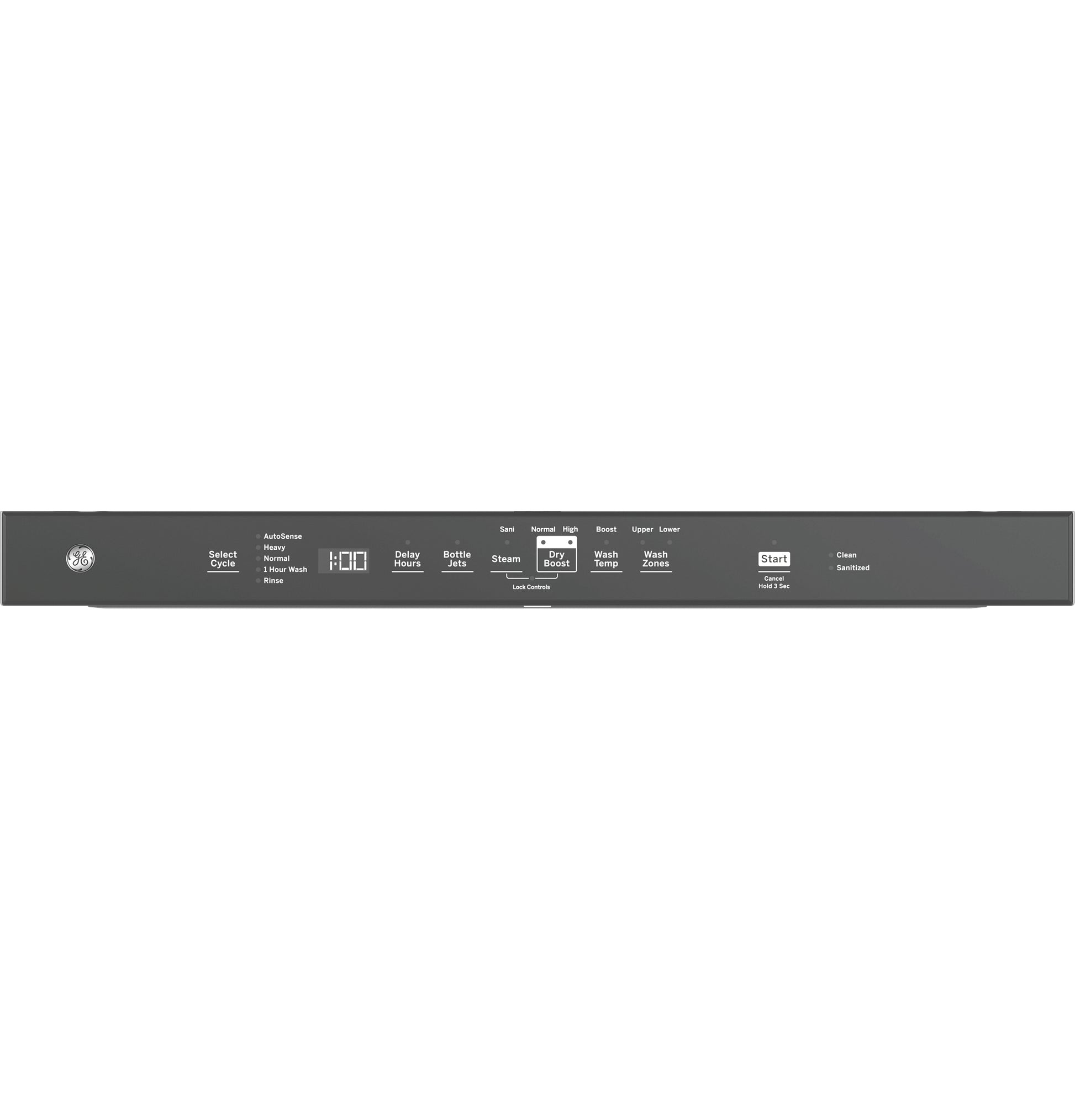

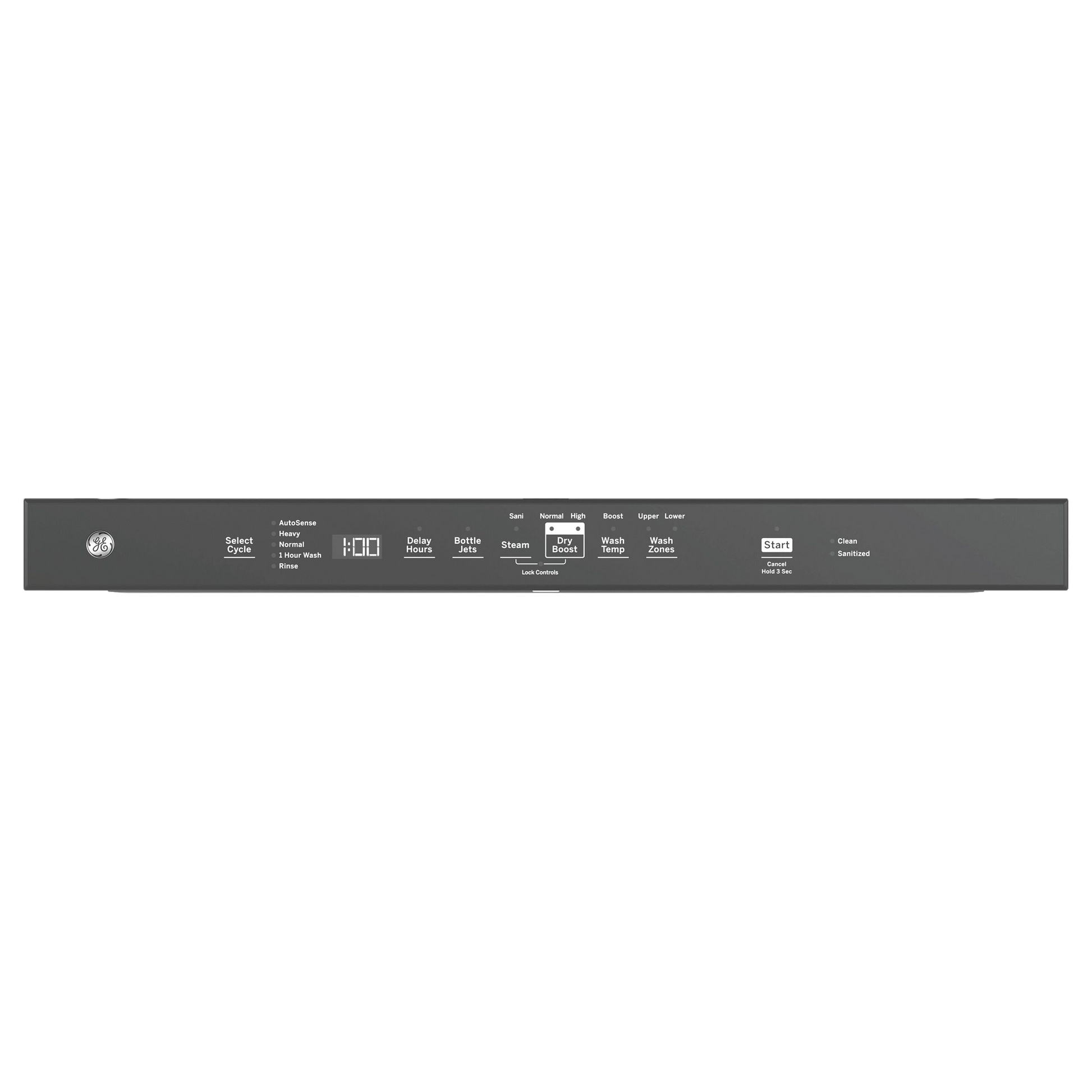

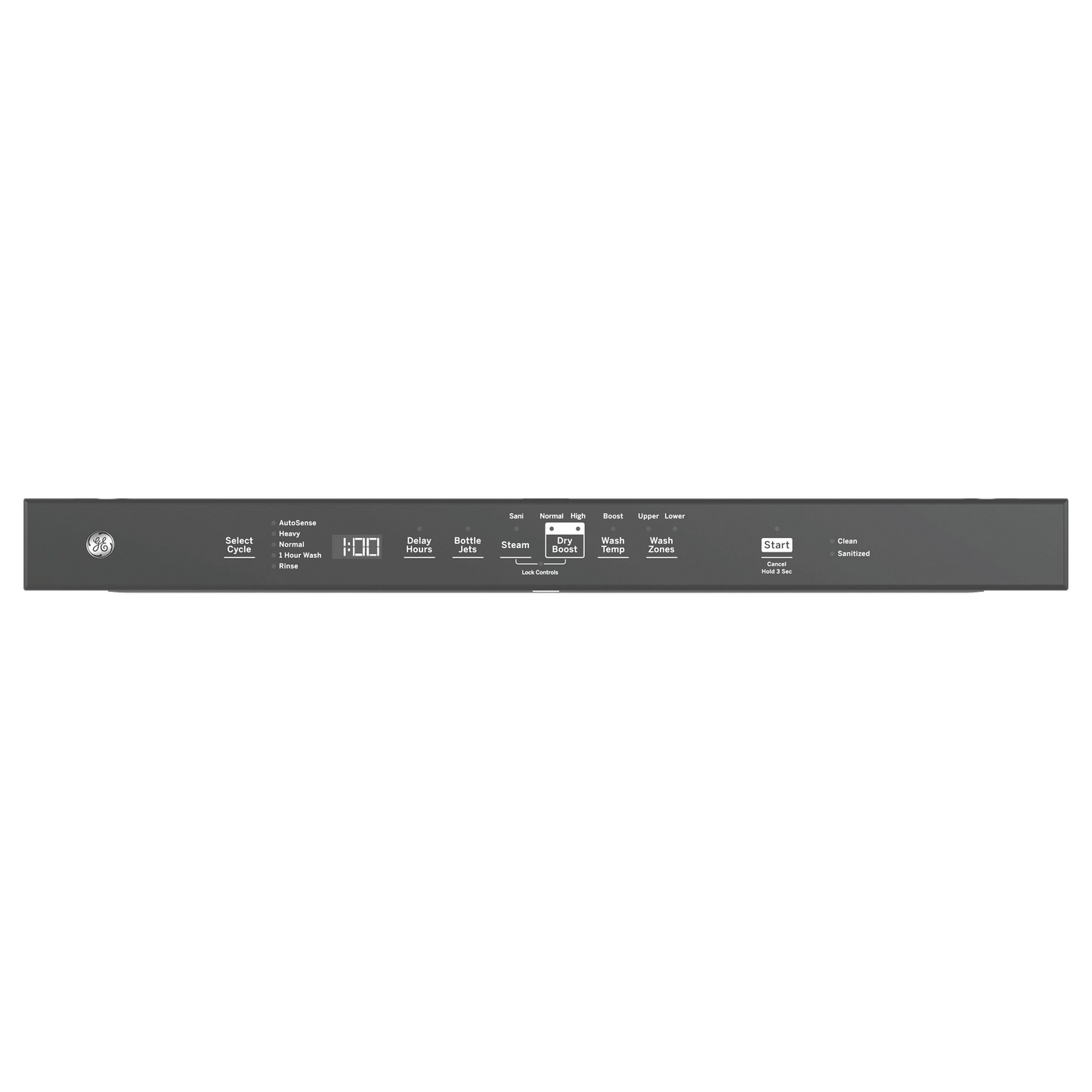

Control Type
- 8 Touchpads Cap Touch Controls Top Controls
-

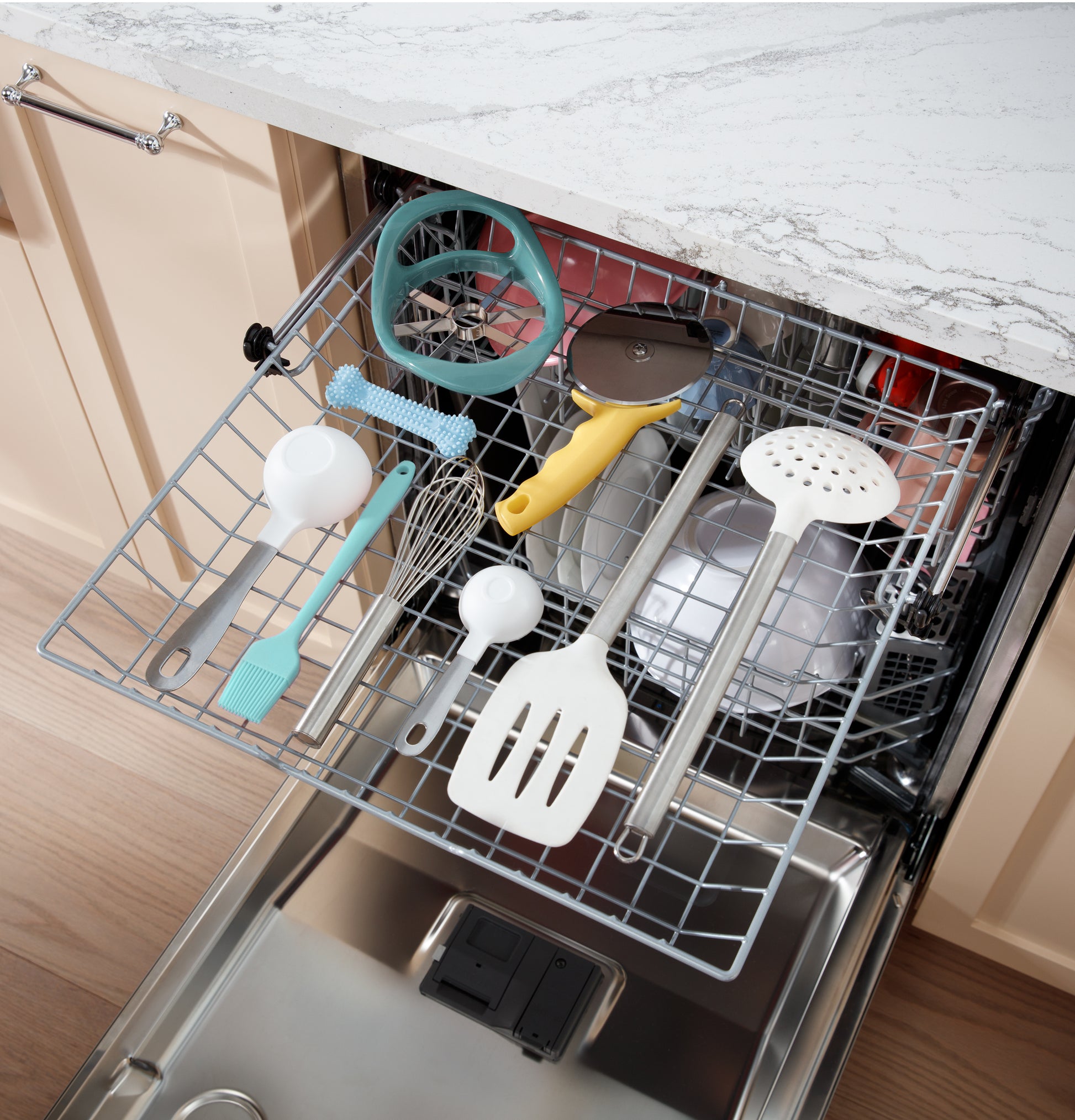

Cutlery Tray
- One Piece Removable 3rd Rack
-
Dishwasher Control Features
- 1 Clean Light 1 Sanitized Light Cycle Progress Indicators 3 Digit Display Cycle Countdown With Bi Color LED Status Light On Door Audible End Of Cycle Signal Control Lock With 1 Light Last Cycle Memory
-
Dishwasher Cycles
- 1 Hour Wash Auto Sense Heavy Wash Normal Wash Rinse
-
Dishwasher Drying Features
- Dry Boost™ Normal High Off
-
Dishwasher Options
- Bottle Jets Child Lock Delay Start 1 12 Hr Dry Boost™ High Dry Boost™ Normal Sabbath Mode Start Cancel Steam + Sani Certified To NSF Standard 184 Wash Temp Boost Wash Zone Lower Only Wash Zone Upper Only
-
Dispenser
- Rinse Aid With Indicator And Adjustment
-
Exterior Style
- Traditional
-
Latch
- Pull With Handle
-
Leveling System
- 4 Leveling Legs
-
Lower Rack
- Ball Tip Tines
-
Number Of Cycles
- 5
-
Number Of Options
- 11
-

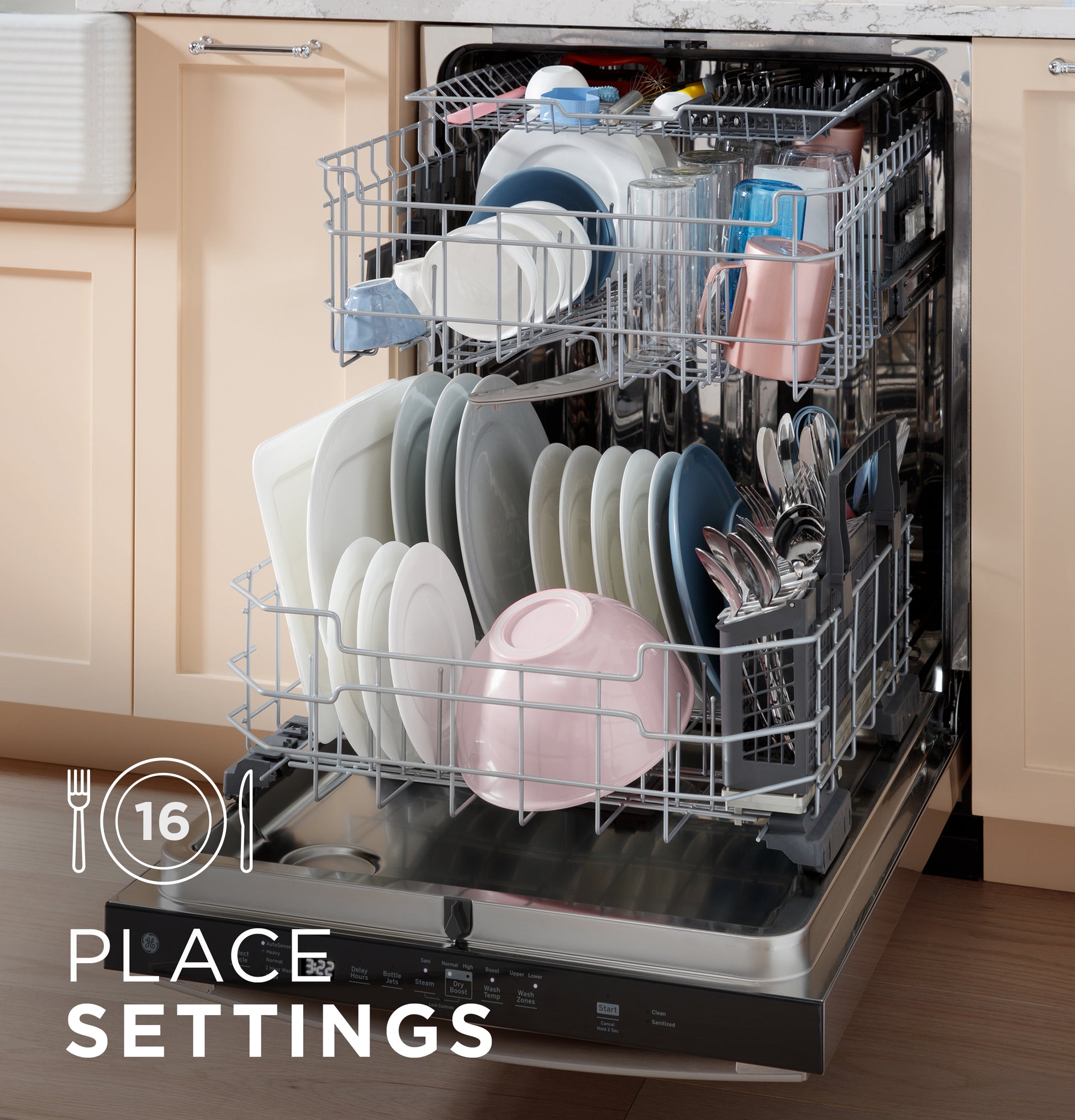

Number Of Place Settings
- 16
-
Product Type
- Built In
-
Rack Color
- Silver
-
Rack Features
- 1 Piece Silverware Basket With 3 Cell Covers Adjustable Upper Rack Ball Tipped Tines
-
Racking Material
- Nylon
-

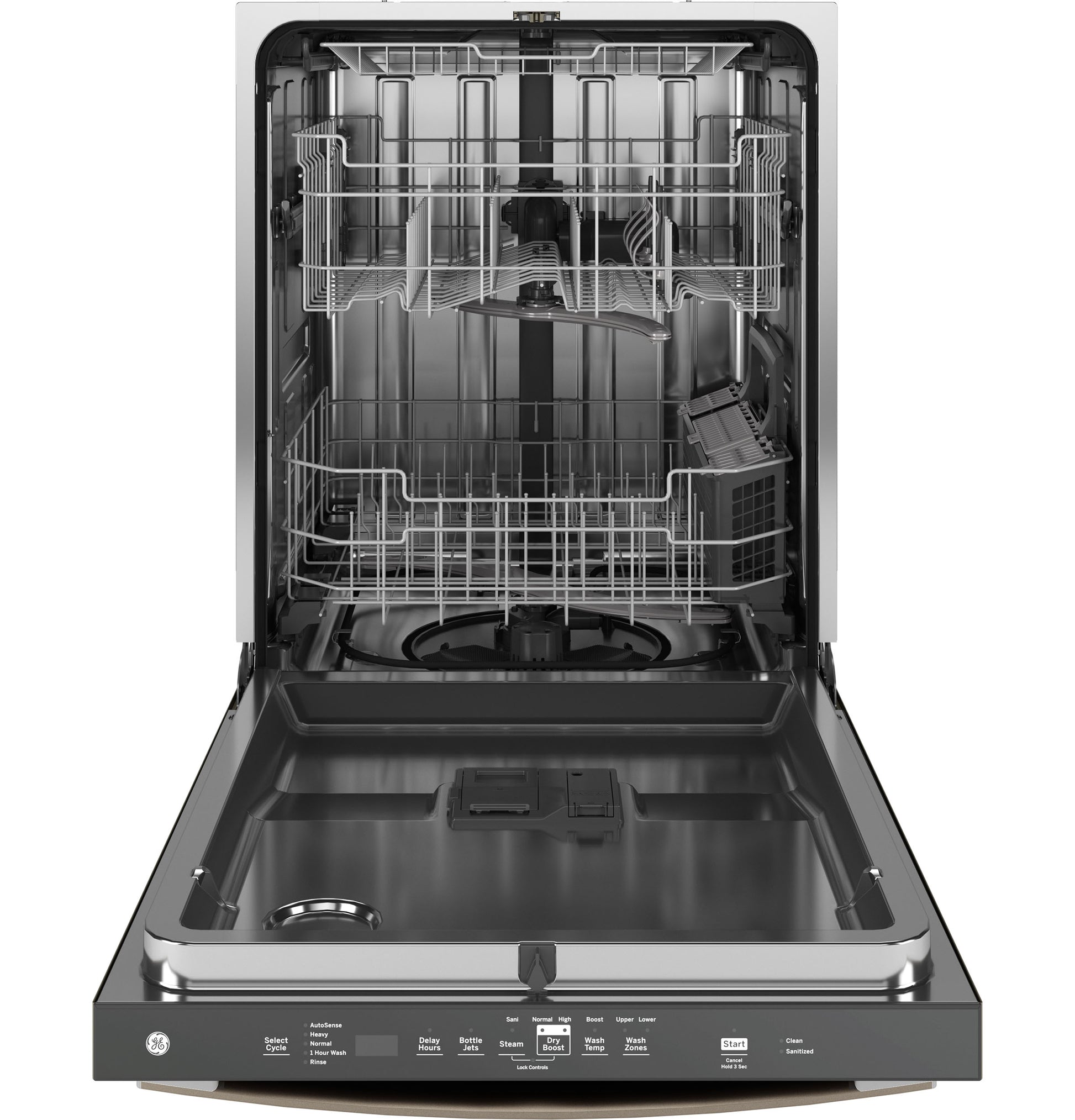

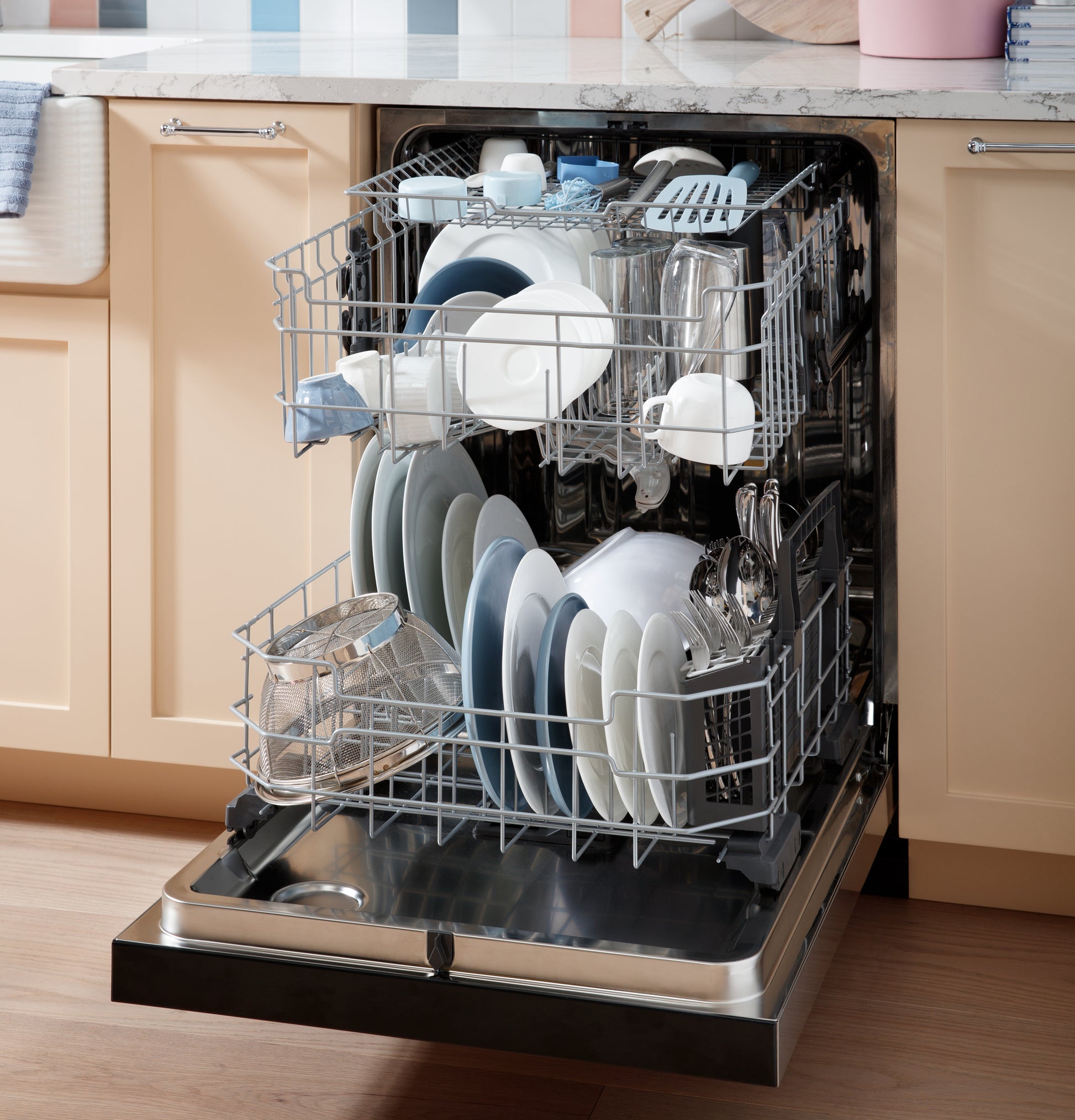

Racking System
- Full 3rd Rack
-
Sabbath Mode
- Yes
-
Sensor
- Clean Sensor
-
Showroom Power Mode
- Yes
-
Style
- Built In Top Control
-
Top Rack 3rd Rack
- Yes
-
Tub And Door Liner
- Stainless Steel
-
Tub Type
- Tall Tub
-

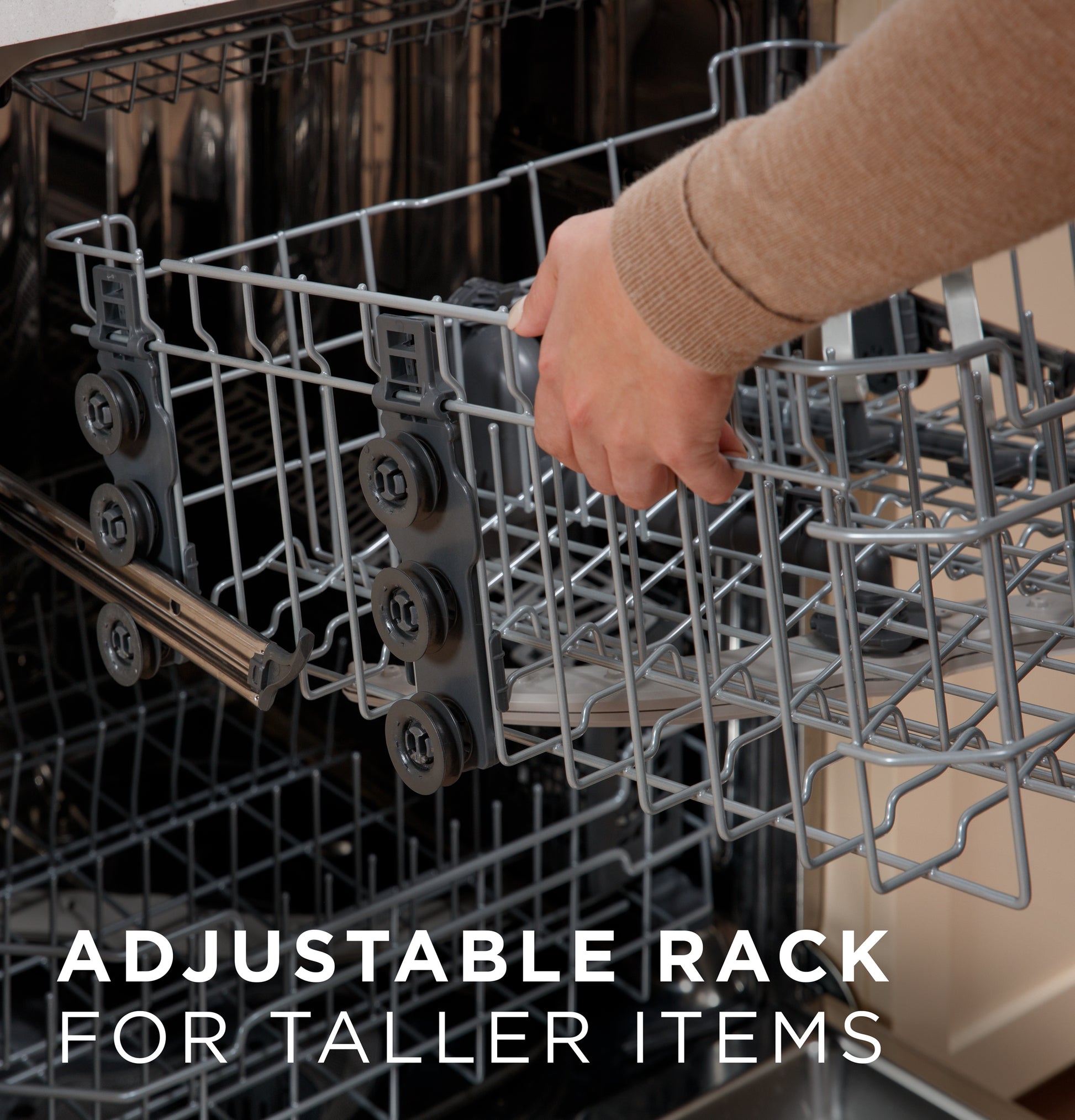

Upper Rack
- Ball Tip Tines Height Adjustable Removable
-
Wash Arms

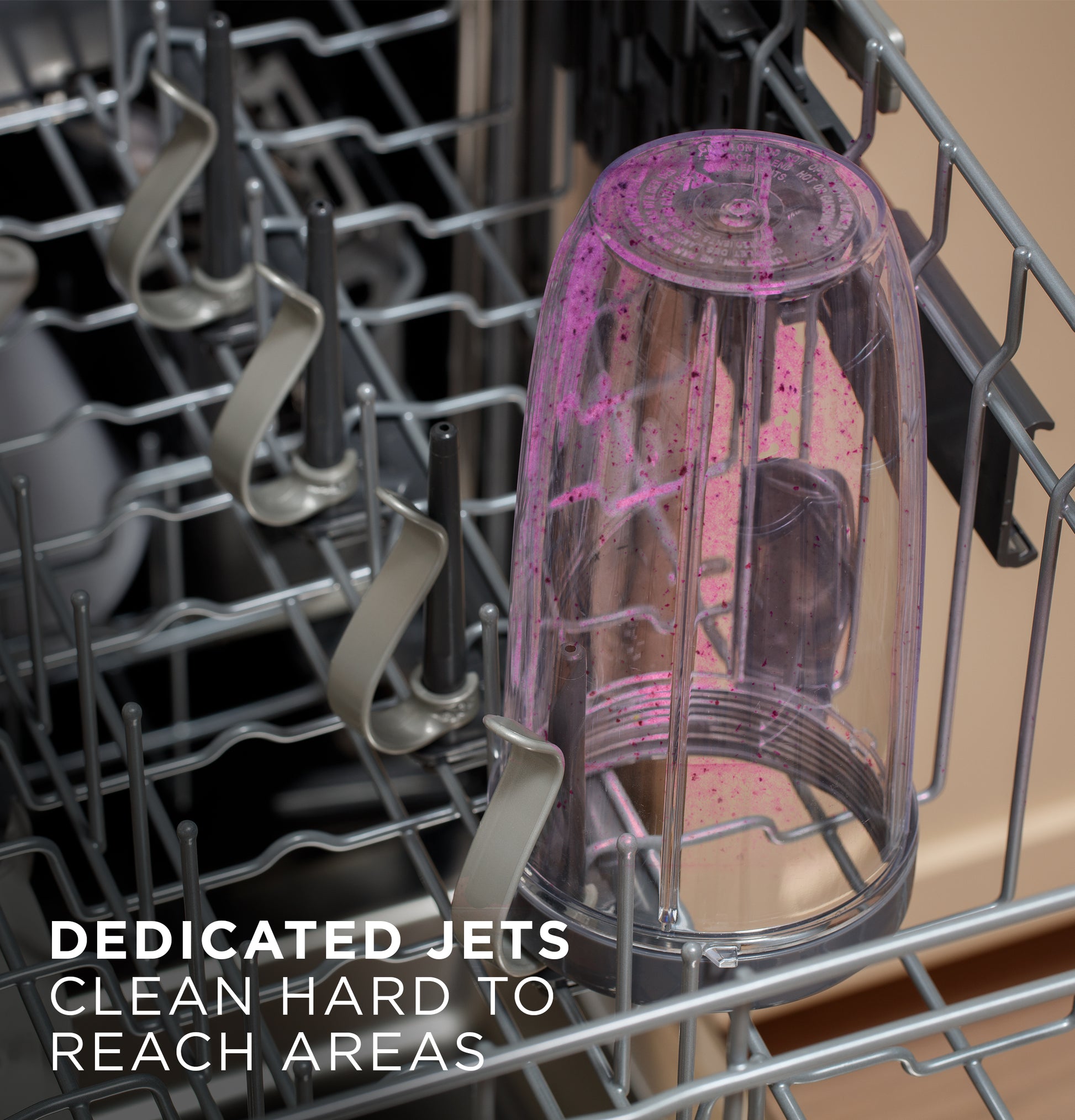

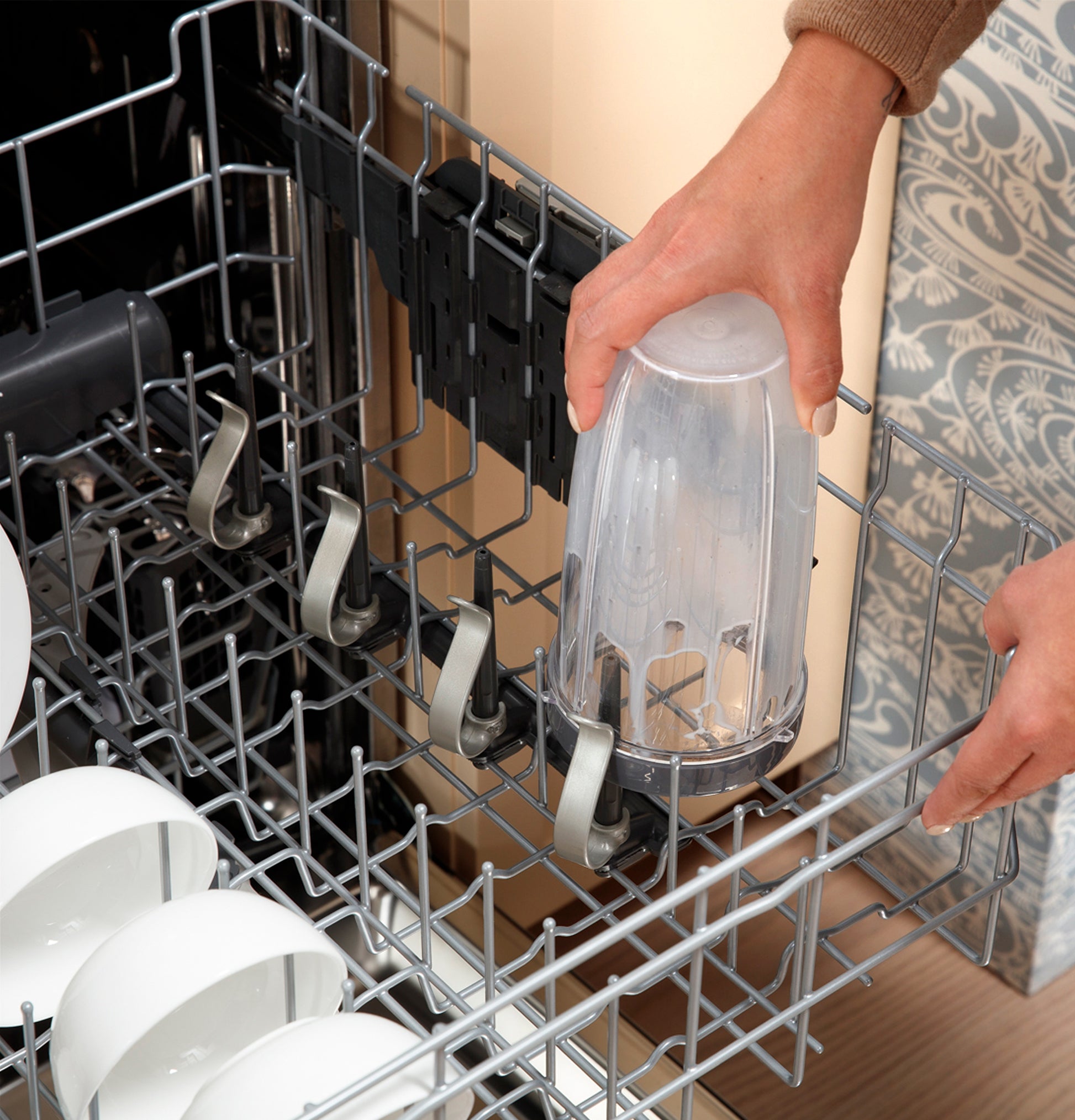

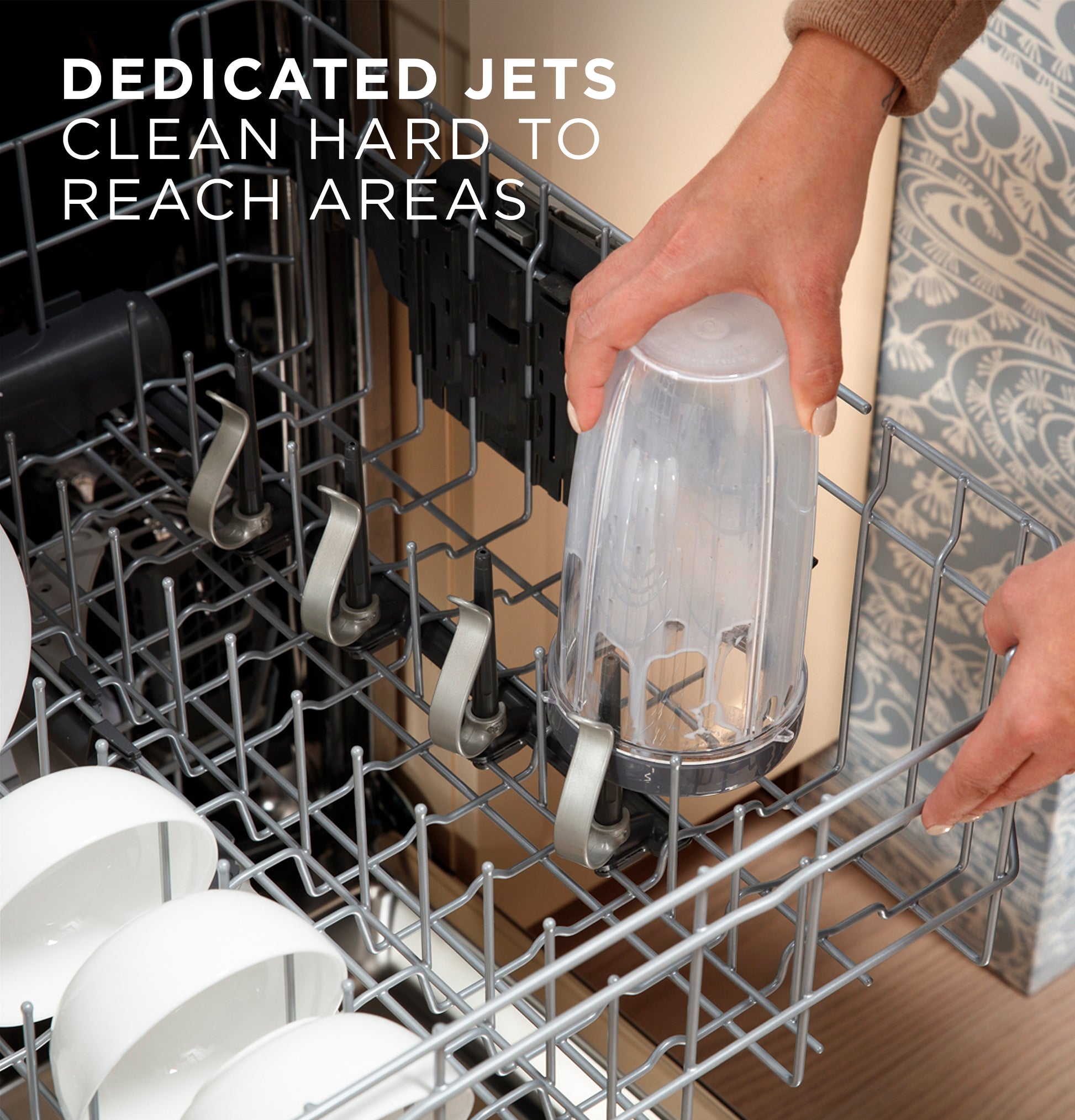

- 3 Wash Levels Bottle Jets Lower Middle Upper
-

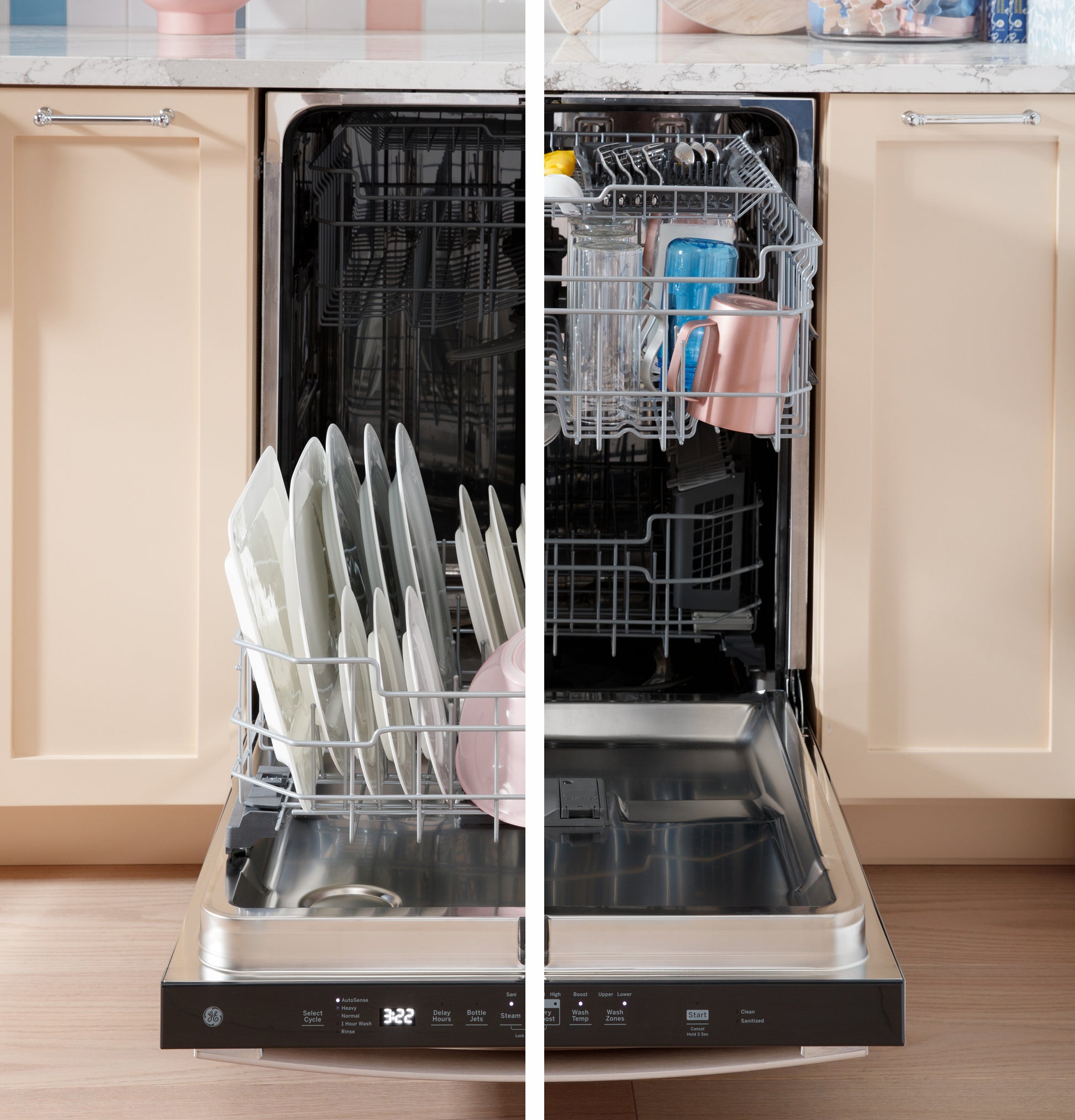

Wash System
- 3 Level 600 Series
-
Wash System Features
- Automatic Hot Start Automatic Temperature Control Bottle Jets 4 Drain Pump Piranha™ Hard Food Disposer With Removable Filter Variable Speed Dual Pumps And Motors
-
Water Filtration System
- 100% Filtration With Piranha Hard Food Disposer And Removable Filter
-
WiFi Connect
- Optional Requires Part No PBX23W00Y1
-
Calrod Heater Watts
- 800 500
-
Electrical Requirements
- 120V 60Hz 6.6A
-
Energy Consumption
- 240 kWh Year
-
Hertz
- 60
-
Power Connection
- Optional Cord Kit GPFCORD WX09X70910 WX09X70911
-
Volts Hertz Amps
- 120V 60Hz 6.6A
-
Watts
- 936
-
Labor Warranty
- Limited 1 Year Entire Appliance
-
Parts Warranty
- Limited 1 Year Entire Appliance
-
Warranty Notes
- See Written Warranty For Full Details
-
Approximate Shipping Weight
- 112 lb
-
Cabinet Depth
- 24 in
-
Cabinet Width
- 24 in
-
Cutout Depth
- 24 in
-
Cutout Height
- 33.5 in
-
Cutout Width
- 24 in
-
Depth With Door Open
- 27.5 in
-
Depth Without Handle
- 24 in
-
Height With Legs Retracted Minimum Height
- 33.375 in
-
Height With Legs Extended Maximum Height
- 34.625 in
-
Net Weight
- 99 lb
-
Overall Depth
- 24 in
-
Overall Depth With Handle
- 25.6 in
-
Overall Height
- 34 in
-
Overall Width
- 23.75 in
-
Finish Color
- Slate
-
Appliance Type
- Dishwasher
-
Portable Or Stationary
- Stationary
