Product Description

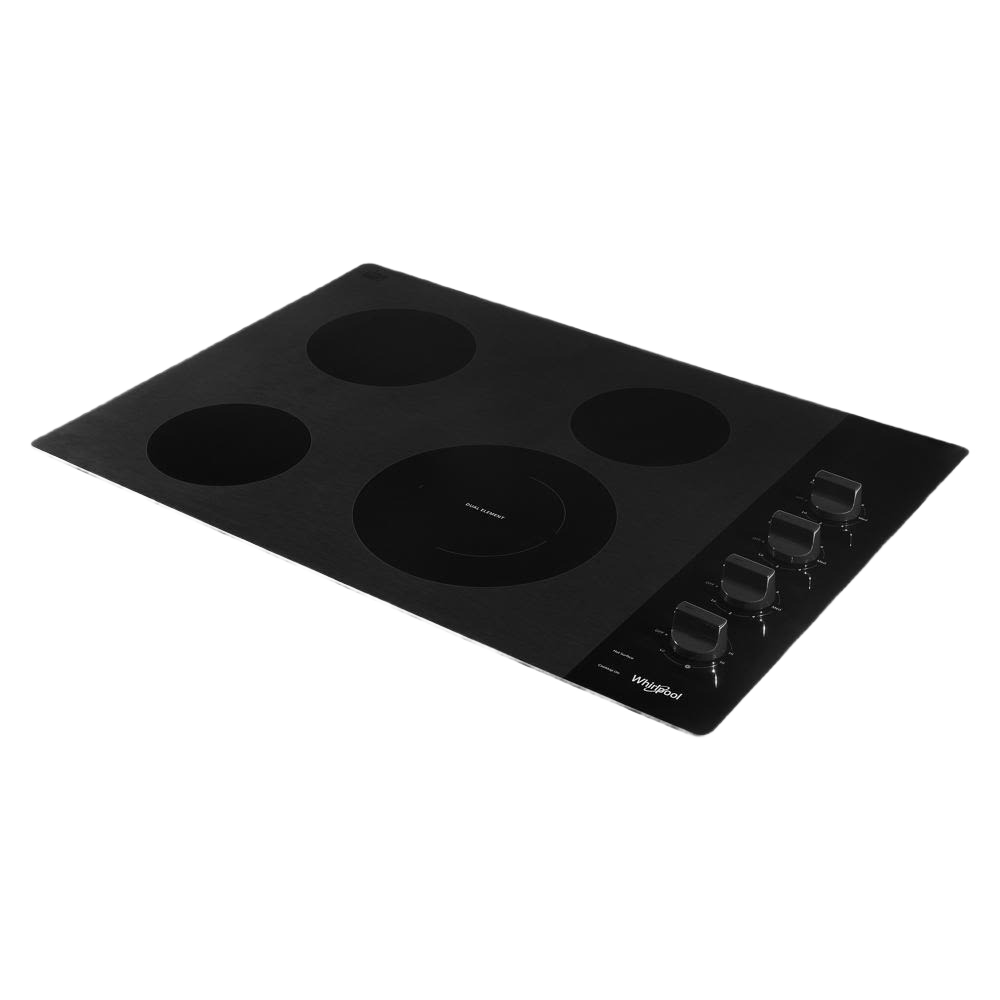

Cook all your family's favorites with an easy-to-clean cooktop designed to make the most of your mealtime routine. Get added flexibility when installing with 30 & 40 amp compatibility, or while cooking with the FlexHeat™ Dual Radiant Element. When dinner's done, a ceramic glass cooktop makes it easy to wipe away messes.
Features
- FlexHeat™ Dual Radiant Element : Get two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
- Easy-Wipe Ceramic Glass Cooktop : Wiping up spills is simple with the easy-to-clean cooktop.
- 30 & 40 Amp Installation : Properly install with either a 30 or 40 amp hookup, so there's no need to rewire.
- Hot Surface Indicator Light : See when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
- Wall Oven Compatible : Install this cooktop to work with a wall oven or on its own for more flexibility.
- 8" Extra Element : Cook small dishes like sides and sauces on the 8" Extra Element.
- 6" Extra Element : Cook small dishes like sides and sauces on the 6" Extra Element.
- ADA compliant : This cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Specifications
| Combinations with Oven | WOS11EM4,WOS31ES0,WOS31ES7,WOS51EC0,WOS51EC7,WOS51ES4,WOS52EM4,WOS72EC0,WOS72EC7,WOS92EC0,WOS92EC7,WOS97EC0,WOS97ES0,WOSA2EC0 |
|---|
| Carton Width | 35 in |
|---|
| Cutout Depth(IN,inches) | 20.3750 |
|---|
| Carton Height(IN,inches) | 9.2500 |
|---|
| Knob Color | Black |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Infinite Heat Controls | Yes |
|---|
| Left Rear Element-Burner Power | 1,800W |
|---|
| Size (in.) | 30 |
|---|
| Power Cord Included | No |
|---|
| Net Weight | 37.0 in |
|---|
| Maximum Height(IN,inches) | 5.2500 |
|---|
| Width(IN,inches) | 30.8125 |
|---|
| Right Rear Element-Burner Type | Standard |
|---|
| Hz | 60 |
|---|
| Volts | 240 |
|---|
| Height(IN,inches) | 5.2500 |
|---|
| Accessory Relationships | Yes |
|---|
| Automatic Pan Detection | No |
|---|
| Left Rear Element-Burner Size | 8in. |
|---|
| Griddle | N/A |
|---|
| Amps | 30 |
|---|
| Right Rear Element-Burner Power | 1,200W |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Depth(IN,inches) | 21.7500 |
|---|
| Cutout Depth Max(IN,inches) | 20.5625 |
|---|
| Cooktop Surface Color | Black |
|---|
| Cutout Width(IN,inches) | 29.0625 |
|---|
| LP Convertible | No |
|---|
| Carton Depth | 25 in |
|---|
| Power Outage Compatible | No |
|---|
| Right Front Element-Burner Size | 10in./6in. |
|---|
| Fuel Type | Electric |
|---|
| Control Location | Right |
|---|
| Cooktop Element Style | Radiant |
|---|
| Cooktop Configuration | All Burners |
|---|
| Carton Height | 9 1/4 in |
|---|
| Downdraft Vent | No |
|---|
| Knob Type | Dishwasher-Safe Plastic |
|---|
| Cooktop Surface Material | Glass |
|---|
| Gross Weight | 42 in |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| 208V Compatible | Yes |
|---|
| Cutout Width Min(IN,inches) | 29.0625 |
|---|
| Maximum Height | 5 1/4 in |
|---|
| Control Type | Knobs |
|---|
| Carton Depth(IN,inches) | 25.0000 |
|---|
| Energy Rating (kWh/year) | 258 |
|---|
| Left Front Element-Burner Size | 6in. |
|---|
| Right Front Element-Burner Type | Dual |
|---|
| Cutout Width (in) | 29 1/16 in |
|---|
| Depth | 21 3/4 in |
|---|
| Prop 65 | Standard |
|---|
| Width | 30 13/16 in |
|---|
| Number of Open Bays | N/A |
|---|
| Left Front Element-Burner Power | 1,200W |
|---|
| Height | 5 1/4 in |
|---|
| Carton Width(IN,inches) | 35.0000 |
|---|
| Cooktop Type | Standard |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Right Front Element-Burner Power | 2500W/1800W |
|---|
| Cutout Depth Min(IN,inches) | 20.3750 |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| Net Weight(LB,pounds) | 41 |
|---|
| Gross Weight(LB,pounds) | 46 |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Cutout Width Max(IN,inches) | 29.5625 |
|---|
| Digital Display | No |
|---|
| Power Boost | No |
|---|
| Cutout Depth (in) | 20 3/8 in |
|---|
