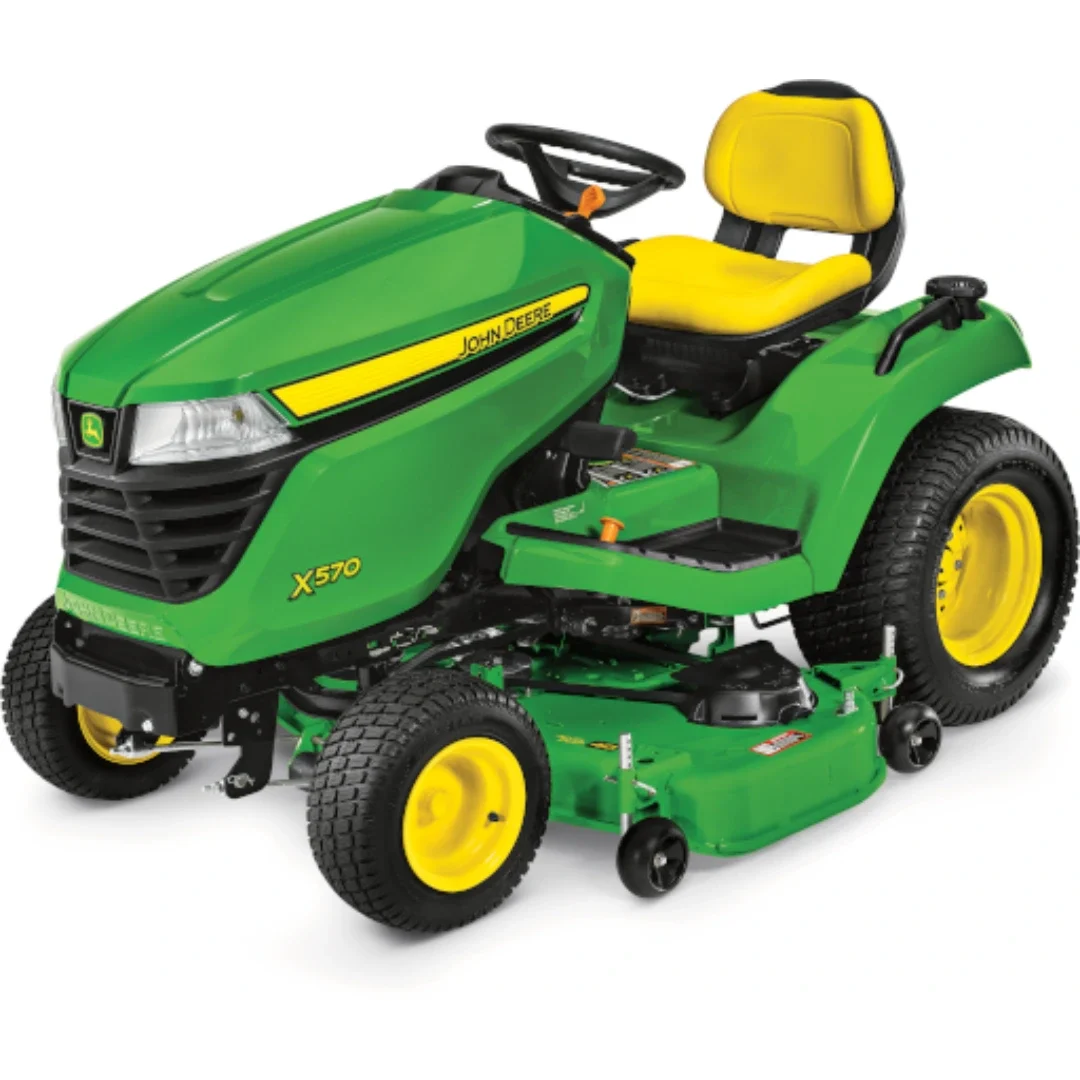

John Deere X570 Lawn Tractor with 48-in. Deck

  • SKU JDX57048
IN STORE ONLY
Check In-Store Availability

Need help? Click here to contact our Outdoor Power Sales Team.

Add to Cart

Product Description

John Deere X570 Lawn Tractor with 48-Inch Deck is designed to offer outstanding performance, durability, and operator comfort. Equipped with a powerful 24 hp (17.9 kW) iTorque™ Power System, this lawn tractor ensures smooth, reliable operation with its V-twin air-cooled engine. The 48-inch Accel Deep™ mower deck delivers a superior cut and is compatible with the optional MulchControl™ kit for exceptional mulching performance. The Twin Touch™ forward and reverse foot pedals provide easy and precise control, while the hydrostatic transaxle with traction assist ensures optimal traction and stability on various terrains. Built with a robust welded heavy-duty frame and cast-iron front axle, the X570 is designed to withstand the rigors of regular use. The fully enclosed, molded-in color hood reduces noise and resists rust and dents, ensuring long-lasting good looks. Operator comfort is enhanced with a high-back seat featuring multiple adjustment positions, an intuitive control layout, and a cup holder for added convenience.

Features:

  • 24 hp (17.9 kW) iTorque™ Power System
  • 48-in. (122 cm) Accel Deep™ Mower Deck, compatible with optional MulchControl™ kit with one-touch technology
  • Twin Touch™ forward and reverse foot pedals
  • 4 year/500 hour bumper-to-bumper warranty
  • Engine is smooth running and reliable V-twin air-cooled design
  • Hydrostatic transaxle with traction assist
  • Durable welded heavy-duty frame and cast-iron front axle
  • Comfortable seat with multiple adjustment positions

View Brochure

Model Number: 5348M



This model is the tractor only. Model may be pictured with optional features. Additional options may be available to add for an additional price.
Looking for John Deere equipment? We are a certified John Deere dealer with all the equipment, accessories, and parts you need to maintain your perfect lawn. Does your mower or tractor need service or repair? Schedule a service appointment, and one of our trained experts will get it running like new. Near downtown Hartville, our location is perfect for Stark, Summit, and Portage County residents in Hartville, Uniontown, Alliance, Mogadore, Jackson Township, and the Canton area, including North Canton.

Specifications

Engine:

  • Power: 24 hp / 17.9 kW
  • Oil change: No-tools oil drain with replaceable filter
  • Manufacturer/model: FR730V
  • Type: Overhead valve, full-pressure lube, oil filter
  • Cylinders: V-twin, cast-iron liners
  • Governor: Mechanical
  • Choke/speed control: Separate levers, automatic choke return
  • Cooling method: Air
  • Air cleaner: Dry, replaceable

Fuel System:

  • Type: Gasoline
  • Fuel delivery: Pulse pump and carburetor
  • Fuel gauge: Gauge on dash
  • Fuel tank location: Rear
  • Fuel fill opening: On left fender, 3 in. / 7.6 cm
  • Fuel tank capacity: 4.4 U.S. gal. / 16.7 L

Electrical System:

  • Battery: 12 V / 340 CCA
  • Charging system: Flywheel alternator, regulated, 12 amp
  • Engine starter: Bendix
  • Hour meter: Yes
  • Headlights: Two standard, incandescent, 27 W
  • Taillights or reflector: Reflectors
  • Backup lights: No
  • Rear work lights: No
  • 12-V outlet: Yes

Transaxle:

  • Type: K72 hydrostatic integrated with transaxle
  • Control: Twin Touch™ pedals
  • Cruise control: Yes, button on dash
  • Oil cooler: Fins and fan on transaxle
  • Oil filter: Yes
  • Differential lock: Standard
  • Forward speed: 0-7.2 mph / 0-11.6 km/h
  • Reverse speed: 0-5.2 mph / 0-8.4 km/h
  • Brakes: Internal wet disc

Chassis:

  • Frame: Welded heavy-duty
  • Primer/paint: E-coat/powder
  • Weight bracket: Standard rear, optional front - each holds up to four Quik-Tatch weights, 42 lb / 19 kg
  • Receiver hitch: No
  • Front axle: Cast iron front axle, front wheel ball bearings
  • Spindle bushings: Metal, replaceable
  • Front tires: 15x6.5-8
  • Rear tires: 24x12-12 turf
  • Hood material: Fully enclosed, molded-in color material reduces sound, will not rust or dent
  • Fender deck material: Stamped steel
  • Floor mats: Sure-grip rubber
  • Storage: Yes, under seat and covered toolbox
  • Service interval decal: Yes
  • Fender handles/grips: Handles
  • Cup holder: Yes
  • Equipment mounting: Yes, heavy duty
  • Maximum towing capacity: 800 lb / 363 kg

Steering:

  • Type: Manual, sector and pinion
  • Four-wheel steer: Not available on this model
  • Steering wheel: 14 in. / 35.6 cm
  • Tilt steering wheel: No
  • Turning radius: 16 in. / 40.6 cm
  • Uncut circle radius: 23 in. / 58 cm

Seat:

  • Type: Open-back design with grasp
  • Seat back height: 15 in. / 38 cm
  • Armrests: No
  • Fore-aft adjustment: While seated, ball bearing slide rail, 15-position, 6.6 in. / 17 cm
  • Seat suspension: Tilt, two coil springs, three-position no-tools adjustment for operator weight

Lift System:

  • Type: Foot pedal with adjustable spring assist
  • Hydraulic outlets: No
  • Mower cut height: 13 positions, 1-4 in. / 2.5-10.2 cm
  • Cut height increments: 0.25 in. / 0.64 cm
  • Preset cut height: Yes

Mower Deck:

  • Type: Side discharge
  • Cutting width: Accel Deep™ mower deck, 48 in. / 122 cm
  • Construction: Forged steel deck shell
  • Mower deck material: 10 gauge / 0.135 in. / 3.4 mm
  • Mower wash port: Yes
  • Mower drive system: Electric power take-off (PTO) clutch, in-line belt
  • Mower wheels: Four
  • Mower wheel adjustment: Seven-position, spring-loaded pin
  • Mower level adjustment: Exact Adjust ports and onboard deck-leveling gauge

Mower Attachability:

  • Type: Roll under tractor
  • Front draft arms: Attached with spring pins at two points
  • Rear draft arms: Quick-pull pins
  • Mower wheels rotate: Yes, 90 degrees for easy mower removal
  • Drive system: Dual belts

Safety:

  • Meets ANSI standard: Yes
  • Meets OPEI standard: Yes
  • Backup protection: Reverse Implement Option (RIO)
  • Safety video: Yes

Buyer's Notes:

  • Heavy-duty garden tractor transaxle
  • Steering spindle bushings for long life
  • Built-in rear weight bracket

Warranty:

  • 4 year/500 hour bumper-to-bumper (**Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)

Optional Equipment:

  • Mowers: 48A (standard)
  • Rear bagger: 7, 14, 19 bu / 247, 493, 670 L
  • Powered material collection: Power Flow™ blower
  • Mulching system: Yes, MulchControl™
  • Front thatcher: 38, 46, 54 in. / 96.5, 116.8, 137.2 cm
  • Front blade: 48 in. / 121.9 cm
  • Snow blower: Two-stage, 44 in. / 111.8 cm
  • Rotary tiller: Mechanical, 30 in. / 76.2 cm
  • Sleeve hitch: Yes, implements include box scraper, rear blade, plow, disk, and cultivator
  • Plow, moldboard: Yes
  • Box scraper: Yes
  • Cultivator: Yes
  • Rear blade: Yes
  • Sprayer: Tow-behind, 15, 25, 45 U.S. gal. / 56.8, 94.6, 170.3 L; Mounted, 25 U.S. gal. / 94.6 L
  • Spreader: 125, 175 lb / 57.7, 79.4 kg; Mounted, 125 lb / 57.7 kg
  • Front bumper: Styled bumper option
  • Brush guard: Yes
  • Weather protection: Weather enclosure
  • Sun canopy: Yes
  • Bucket holder: Yes, double bucket
  • Grass striping: Lawn striping kit
  • Tractor shovel: 40 in. / 101.6 cm
  • Tow-behind tools: 19

Dimensions:

  • Height: 46.1 in. / 1171 mm
  • Overall length: 74.6 in. / 1894 mm
  • Wheelbase: 51.2 in. / 1300 mm
  • Width with mower: 62.6 in. / 1590 mm
  • Width with mower (deflector raised for storage): 52.6 in. / 1335 mm
  • Width without mower: 40.7 in. / 1034 mm
  • Weight: Mower, no fuel: 737 lb / 334 kg

Manuals

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the John Deere X570 Lawn Tractor. Read it before you buy it, or come back and download it if you have any questions after getting your product home.

John Deere X570 Lawn Tractor Manual



Warranty & Certifications

John Deere offers a warranty for all Turf and Utility Equipment that they manufacture.

Each piece of equipment carries a specific warranty including a specific warranty period. Please contact your Hartville Hardware Outdoor Power Sales Team Member for more details.
