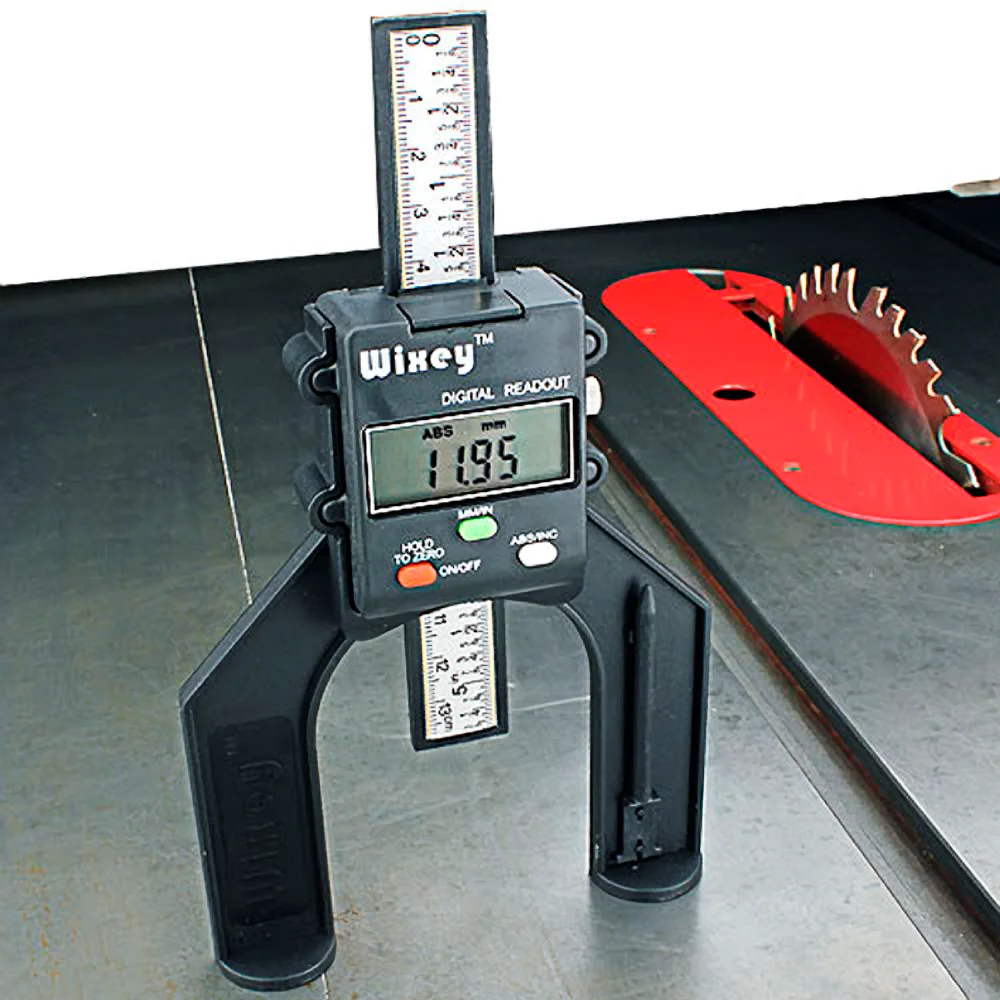

This mini version of Wixey's famed digital height gauge is conveniently sized to handle many of your needs for precise height and depth measurements. Use it to set saw blade and router bit heights; set router table and bandsaw fence distances; or use the special plunger attachment to check bore and slot depths.
The large easy to read display will read in decimal inches, fractional inches, or millimeters. The fractions are displayed using "Precise Fraction Technology" which gives you 4 times the accuracy of other fraction readouts. The decimal inches are displayed in .002" increments and the millimeters in .1mm increments.
Magnets in the feet give help improve stability when used on iron surfaces for height or depth measurements. Unit lays flat for fence measurements. Built in rule locks for repeat measurements. Includes Type CR2032 battery. Imported
Specifications
Measuring Height: 3 in. (76mm )
Measuring Depth: 2 in. (51mm )
Resolution:
Decimal Inches = .002 in.
Fractional Inches = 1/32 in.
Metric = .05 mm
Accuracy:
Decimal = +/- .004 in.
Fraction = +/- 1/250 in.
Metric = +/- .1 mm
Functions:
- IN /MM
- On/Off/Zero
- ABS/INC
- Auto shut off
- Maintains calibration when off
