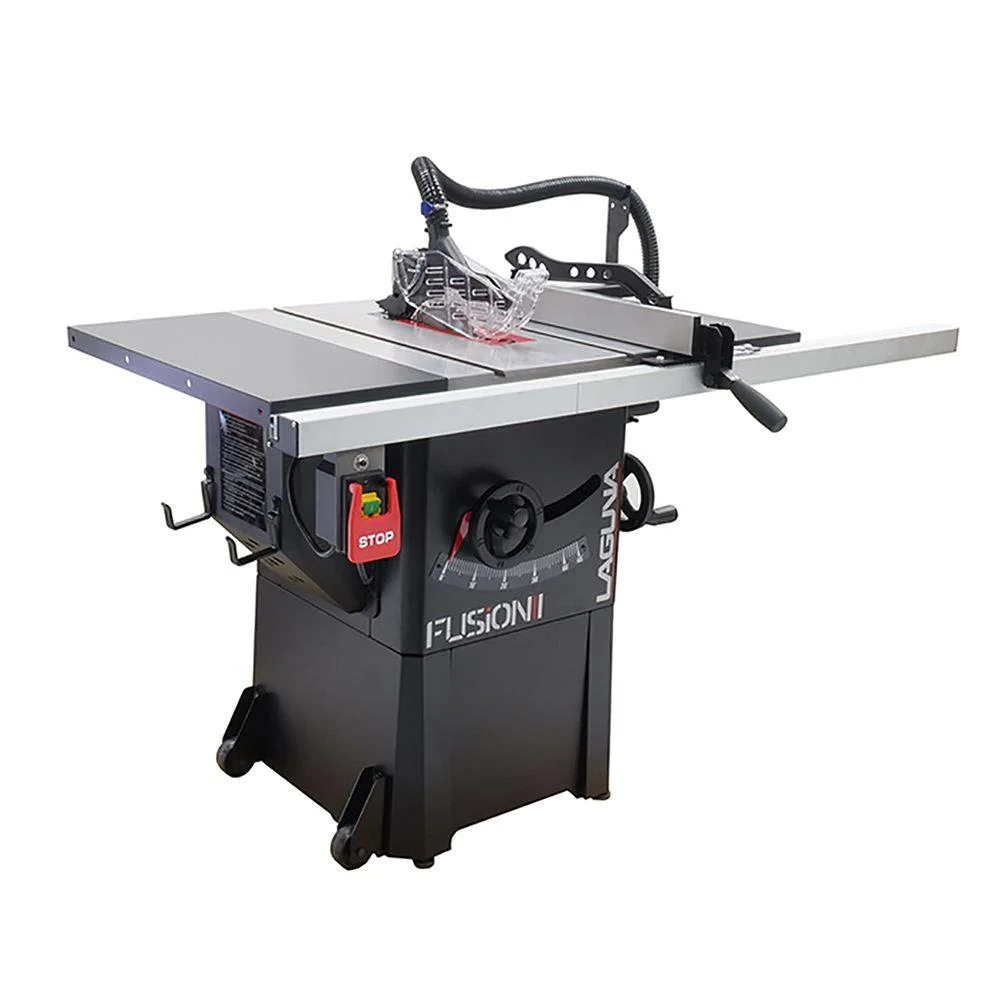

Laguna F1 Fusion Table Saw

| SKU 1548395

IN STORE ONLY

Check In-Store Availability

Add to Cart

Product Description

Unlike anything else on the market, the Laguna F1 Fusion Tablesaw has a completely redesigned trunnion and arbor controls that focus on buttery smooth controls and saw longevity. This saw delivers the perfect rip cut time after time.

Features:

1.5HP TEFC Motor
110V, Single-Phase, 60Hz Power Requirement
Fusion Dust Collection System
Sealed Bottom for Improved Dust Collection
30” Rip Fence with Detachable Push Stick
Polished Cast Iron Table
Included 10” x 60T Carbide-Tipped Blade
On-Board Tool Storage

*Machine shown with Optional Wheel System

Style Number: MTSF132110150

Specifications

Dust Port Size: 4″
Blade Guard Dust Port Size: 1-1/2″ in.
Table Saw Type: Hybrid Cabinet
Arbor Size: 5/8″
Arbor Speed: 4000 RPM
Maximum Width of Dado: 3/4″
Blade Tilt Direction: Left
Max Blade Tilt: 45°
Maximum Depth of Cut at 90°: 3-1/8″
Maximum Depth of Cut at 45°: 2-1/8″
Included Blade Information: 10″ x 60T
Riving Knife/Spreader Thickness: 3/32″
Max. Blade Diameter: 10″
Required Blade Body Thickness: > 1/8″
Required Blade Kerf Thickness: < 5/64″
Max Rip Right of Blade with Included Fence & Rails: 31″*
*This fence is NOT designed to be used on the LEFT side of the blade. Rail or tube on LEFT side is provided only to make the ON/OFF switch position adjustable.
Fence Type: Camlock T-Shape with Aluminum Face
Fence Size: (L) 33-7/16″ x (W) 9-13/16″ x (H) 2-7/16″
Fence Rail Type: Aluminum Extrusion/Angle Steel
Fence Rail Size: (L) 59-3/8″ x (W) 2-15/16″ x (H) 1-15/16”
Floor to Table Height: 34-3/8″
Table Size with Extension Wing Width: 44″
Table Size with Extension Wings Depth: 27″
Distance – Front of Table to Center of Blade: 13-7/16″
Distance – Front of Table to Blade at Maximum Cut: 8-5/8″
Main Table Size Thickness: 1-1/2″
Overall Dimensions: (W) 58” x (D) 37-7/32” x (H) 20-1/2”
Weight (Net): 195 lbs

Manuals

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Laguna F1 Fusion Tablesaw. Read it before you buy it, or come back and download it if you have any questions later.

Laguna F1 Fusion Tablesaw User Guide
