Festool 577383 Cordless Table Saw CSC SYS 50 EBI-Set

Festool 577383 Cordless Table Saw CSC SYS 50 EBI-Set

  • | SKU T577383
In Stock & Ready to Ship
Check In-Store Availability

FREE Shipping on all Festool items!  Click here for details>

Product Description

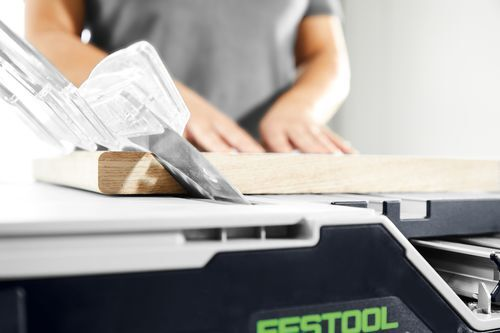

Festool 577383 Cordless Table Saw CSC SYS 50 EBI-Set. The CSC SYS 50 cordless table saw is so compact that it fits into a Systainer. It's just as versatile in use, as it is tremendously convenient in size. Make rip cuts of up to 11" (280 mm), cross-cut widths of up to 17-3/4" (450 mm) and bevel cuts of -10° to 47°. The unique digital operation produces results with maximum precision - accuracy within a tenth of a millimeter (1/256").

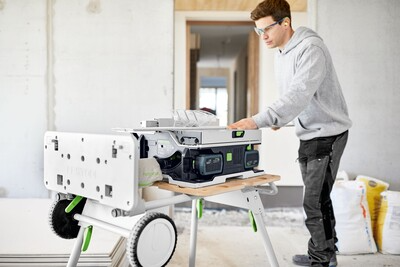

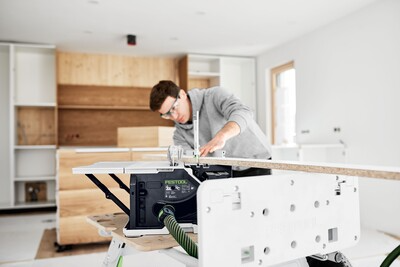

The 2 x 18 V dual-battery system, in combination with the brushless EC-TEC motor, will impress you with its power and torque - you won't notice any difference compared to a corded table saw. Together with the UG-CSC-SYS Underframe (sold separately), you have the perfect work table with built-in support for ripping and cross-cutting, and it collapses for easy transport from the vehicle to the site. The CSC SYS 50 is the ultimate in portable precision! Germany

Features:
Versatile: Parallel cuts up to 11" (280 mm); cross cut width of up to 17-3/4" (450 mm). Bevel cuts from -10° to 47°

Practical: Has a cutting height of up to 1-3/8" (35 mm), through to bevel cuts down to -10°; ideal for back-beveling filler strips

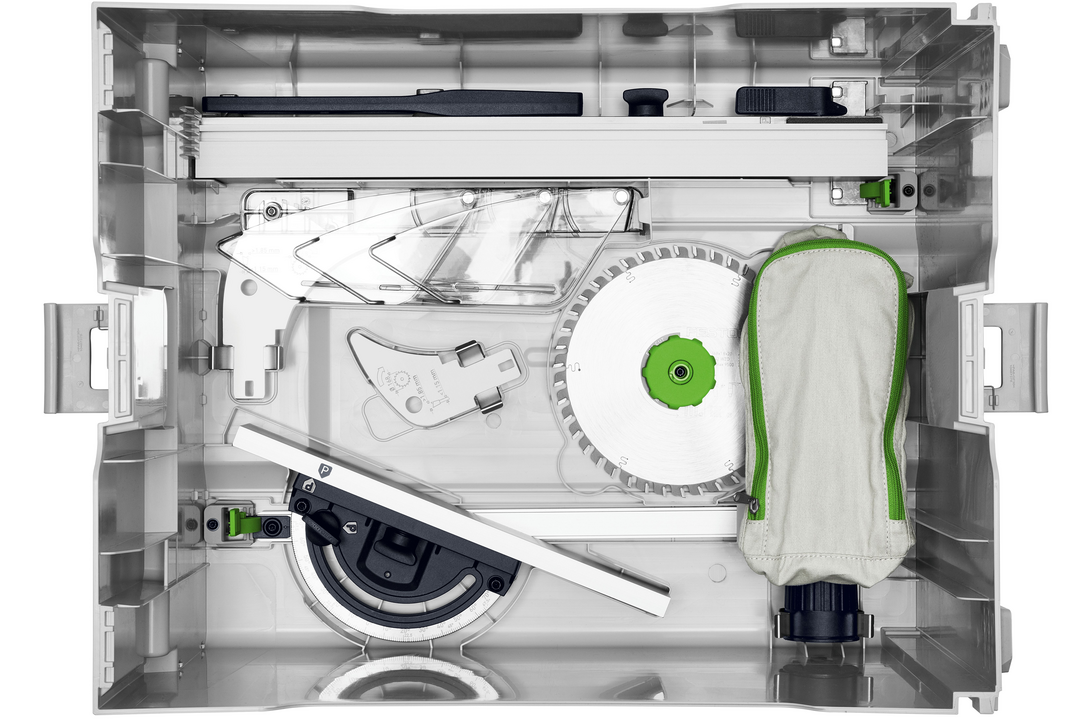

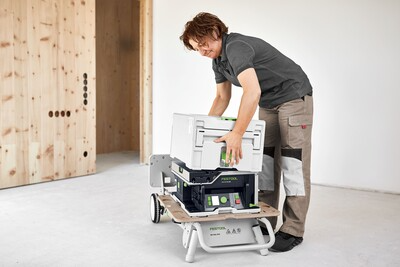

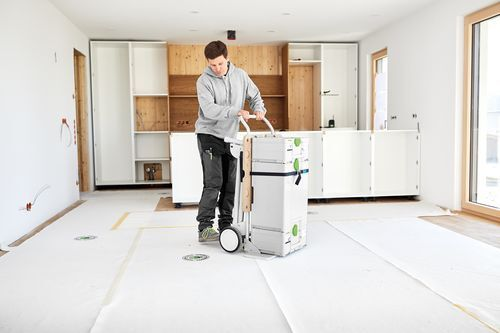

Compact & Mobile: The saw can be easily carried with one hand and neatly stored in a Systainer format (open bottom, connects to underframe). It is even easier to transport with the wheeled UG-CSC-SYS underframe

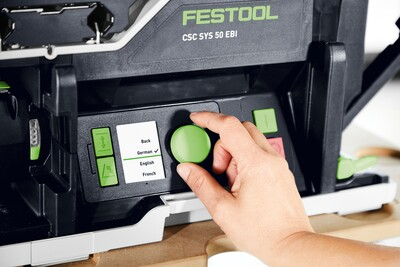

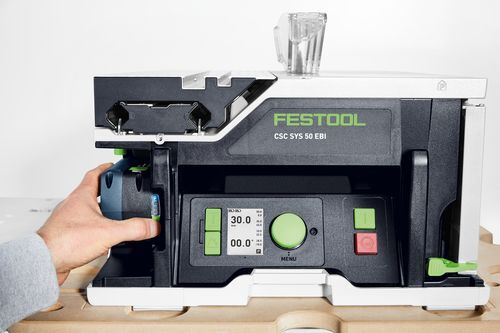

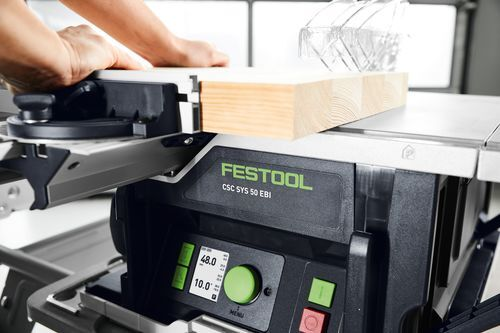

Extreme Precision: The height and bevel angle are electrically adjusted at the press of a button via the digital display – accurate to within a tenth of a millimeter (1/256")

Repeatable Cuts are Easy: The height and angle (mm and inches) are set parallax-free via the digital display, i.e., more accurately than any visual judgement. Repeatable cuts are a sure thing

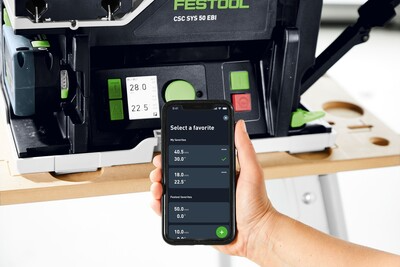

Convenient: Four saw blade positions can be saved and selected via the digital display

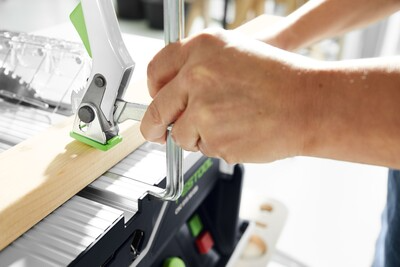

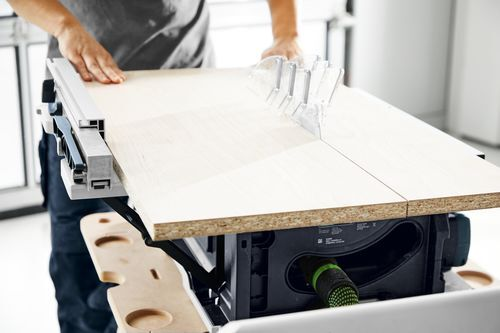

Highly Precise Rip Fence: Robust rip fence with double clamp (via just one clamp lever) for exact alignment and perfect cutting results

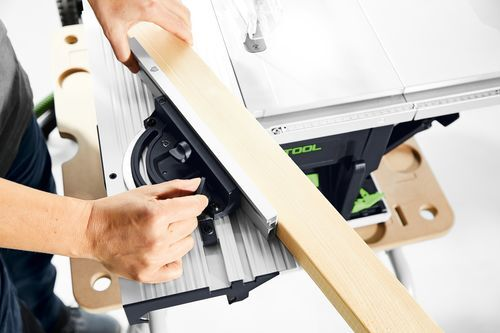

Highly Precise Angles: The miter gauge is optimally aligned and centrally clamped via a groove on the sliding table. For miter angles between -70° and +70°

CSC 50 EBI-Set Table Saw Includes: Table Saw; HW Fine-tooth Saw Blade W42; Rip Fence; Push Stick; Miter Gauge; Dust Collection Bag; Riving Knife; Blade Guard and Splitter; Hex Key WAF 6; SYS 18 V 2 x 5.0/TCL 6 DUO Energy Set (includes 2 batteries, charger, and systainer); and UG-CSC-SYS Underframe.

Specifications

Battery Voltage: 2 x 18 V
Idle Engine Speed: 4,500 to 6,800 RPM
Arbor Diameter: 3/4" (20 mm)
Bevel Angle: -10 to +47°
Cutting Height at 0°: 0 to 1-7/8" (0 to 48 mm)
Cutting Depth at 45°: 0 to 1-11/32" (0 to 34 mm)
Cutting Height at -10°: 13-16" to 1-1/4" (21 to 32 mm)
Miter Angle: 0 to 70°
Parallel (rip) Cut Width: 11" (280 mm)
Tabletop Height: 11" (280 mm)
Dimensions (L x W x H): 20-5/32" x 15-19/32" x 11-21/32" (512 x 396 x 296 mm)
Dust Extraction Connection Diameter: 1-1/16" (27 mm)
Battery Capacity: 5 Ah
Weight (excluding batteries): 45 lbs. (20.2 kg)

Manuals

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Festool 577383 Cordless Table Saw CSC SYS 50 EBI-Set. Read it before you buy it, or come back and download it if you have any questions after getting your Festool 577383 Cordless Table Saw CSC SYS 50 EBI-Set home.

Festool 577383 Cordless Table Saw CSC SYS 50 EBI-Set User Guide

Warranty & Certifications

Festool offers and all-inclusive warranty on all their tools.

3-Year Comprehensive Warranty Coverage - including wear and tear!
3-Year free shipping to and from Festool service department.
10-Year spare parts availability guarantees long-term support.
1-Month money back guarantee.
