Festool 576868 CXS 12 2.5-Plus Cordless Drill

Festool 576868 CXS 12 2.5-Plus Cordless Drill

  • | SKU T576868
In Stock & Ready to Ship
Check In-Store Availability

FREE Shipping on all Festool items!  Click here for details>

Product Description

Festool 576868 CXS 12 2.5-Plus Cordless Drill. Light, compact and impressively powerful with more torque than the previous generation. The CXS 12 compact drill/driver is your go-to everyday driver for common tasks, providing plenty of power in the most compact format. With a length of 6-5/32" (15.6 cm) and a height of 7" (17.7 cm), the CXS 12 is extremely compact.

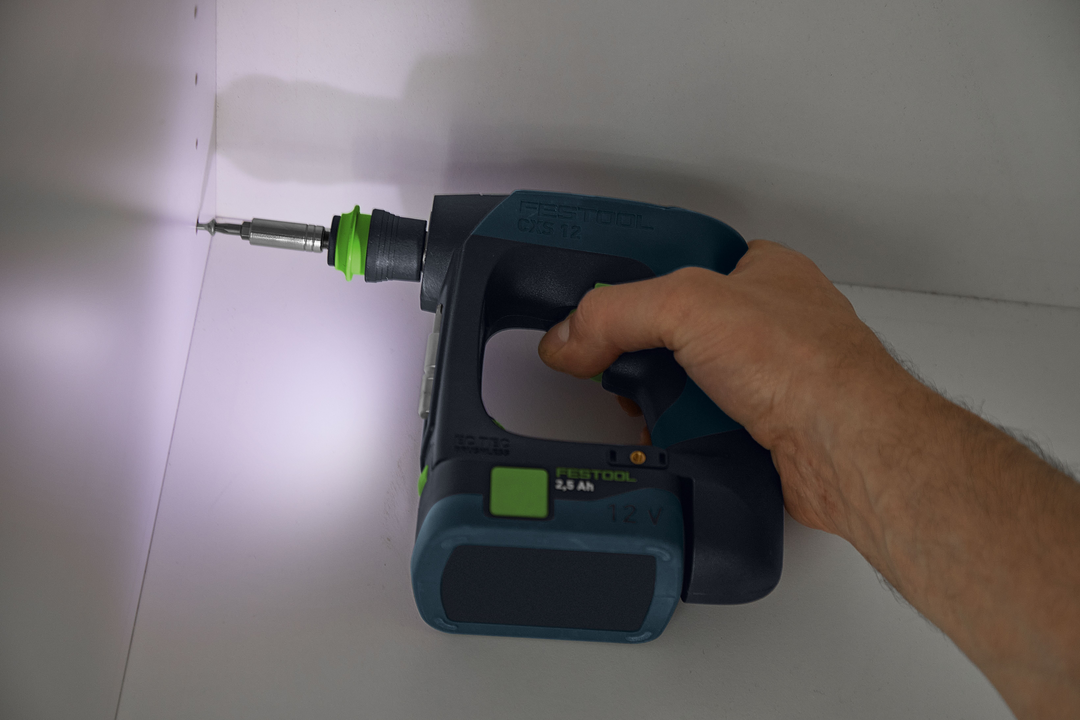

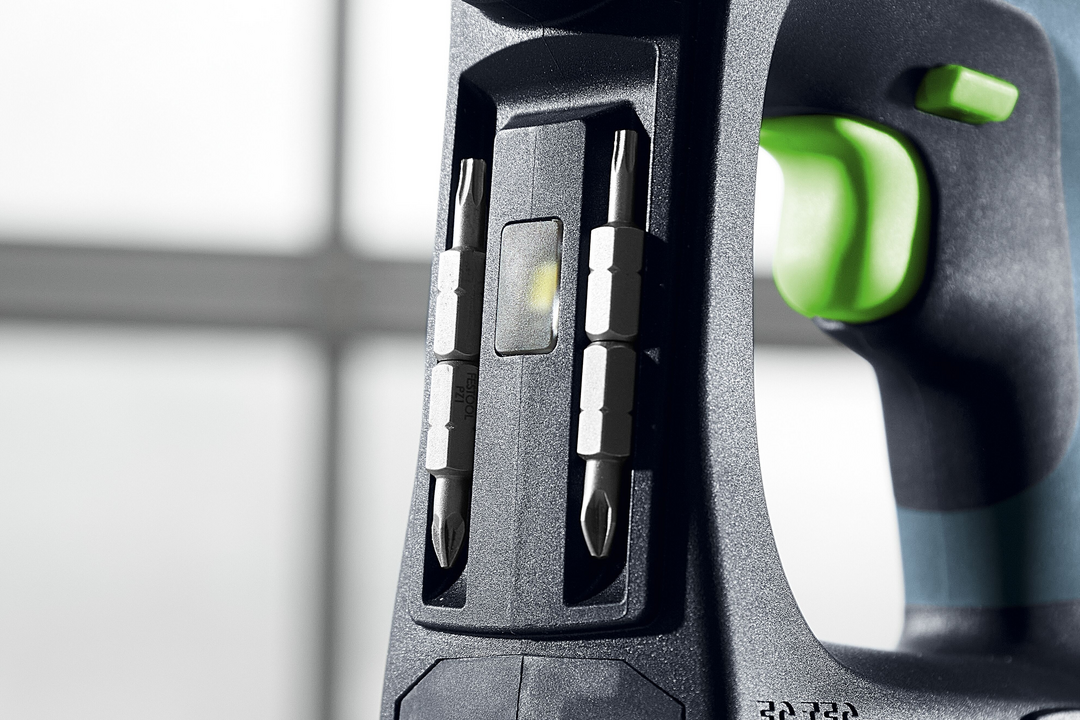

The ergonomic C shape facilitates precise working through the grip position in the drilling and driving axis. A number of available chuck attachments easily tackle the most difficult applications - even in narrow spaces or corners. The FastFix interface and the CENTROTEC system ensure fast bit changes. The compact battery pack is compatible with all chargers in the 18-volt cordless range. Clever details, like the bit holder, the LED light control and the Systainer³ make the CXS 12 a compact, multitalented device for every shop or site. Germany

Features
- Impressive ergonomics and low weight for easy drilling and fastening

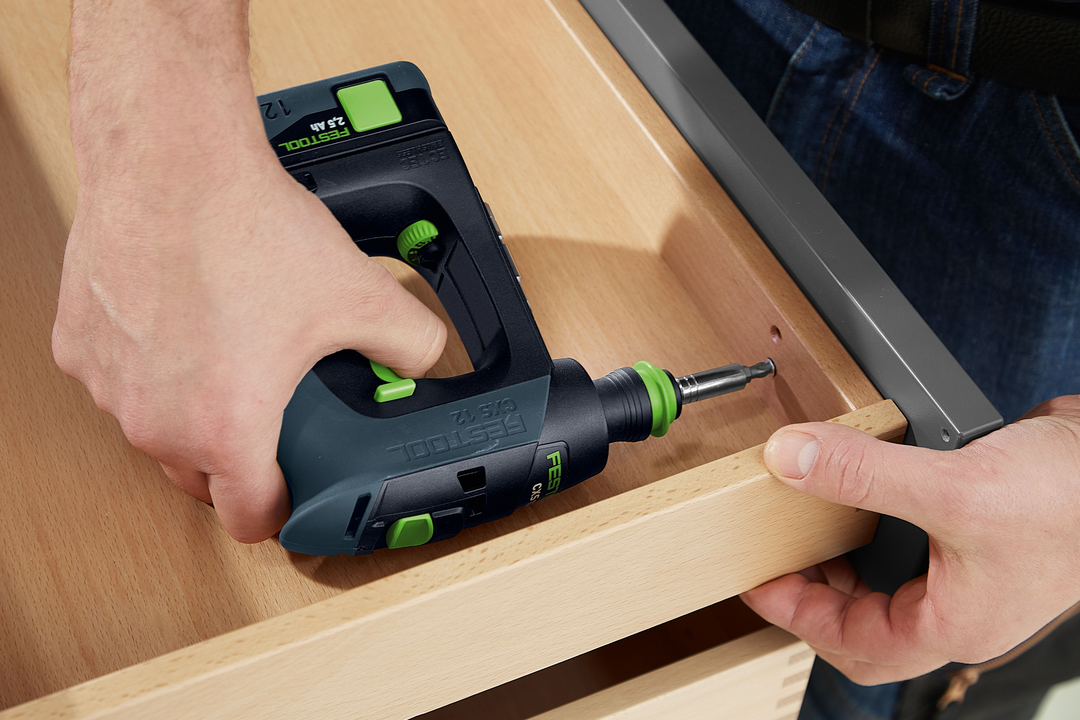

- The compact, ergonomic shape makes work easier, even in tight spaces

- Impressive performance, thanks to the extremely powerful, brushless and long-lasting EC-TEC motor

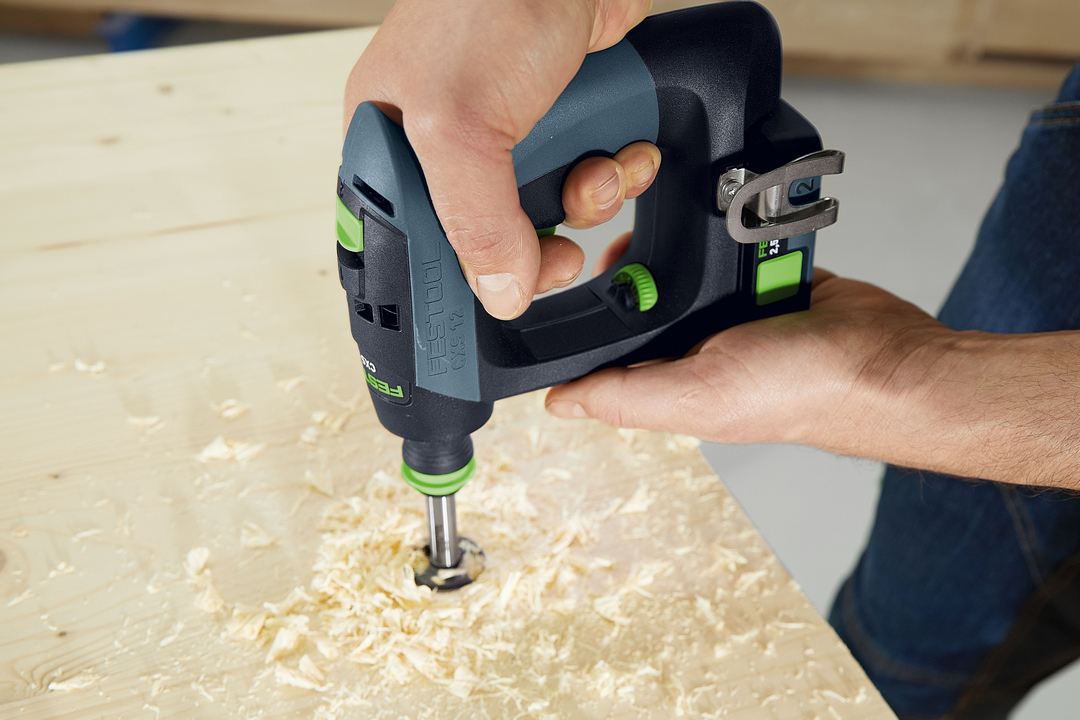

- Impressive power lets it work with Forstner drill bits up to 1-3/8" (35 mm) and screws up to 1/4" x 7-7/8" (6x200 mm) in softwood (reference value for countersunk screws with partial thread in softwood. The maximum screw size that can be used varies depending on the screw type and wood type)

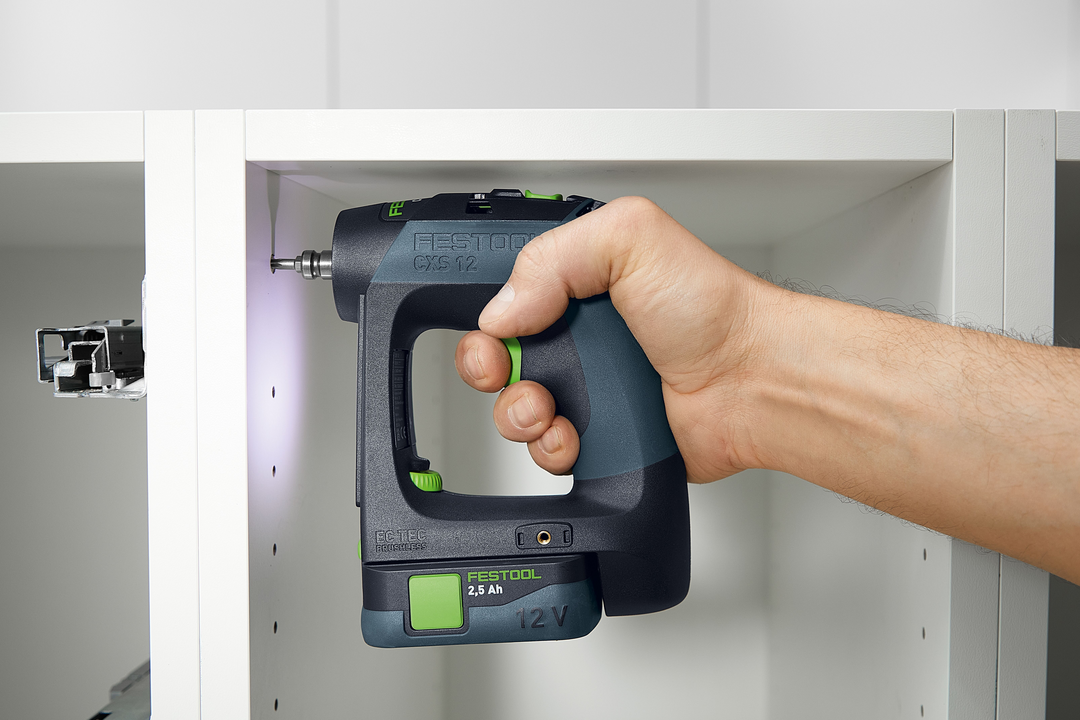

- The ergonomically shaped C-handle puts the user more in line with the bit for more precise work and less fatigue

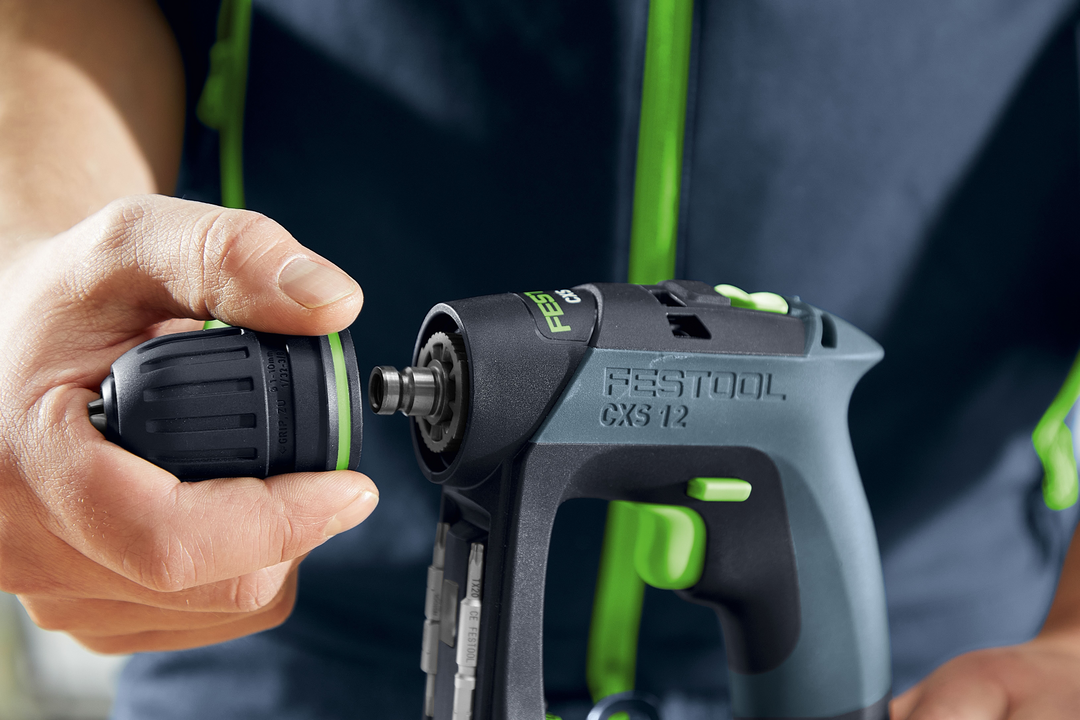

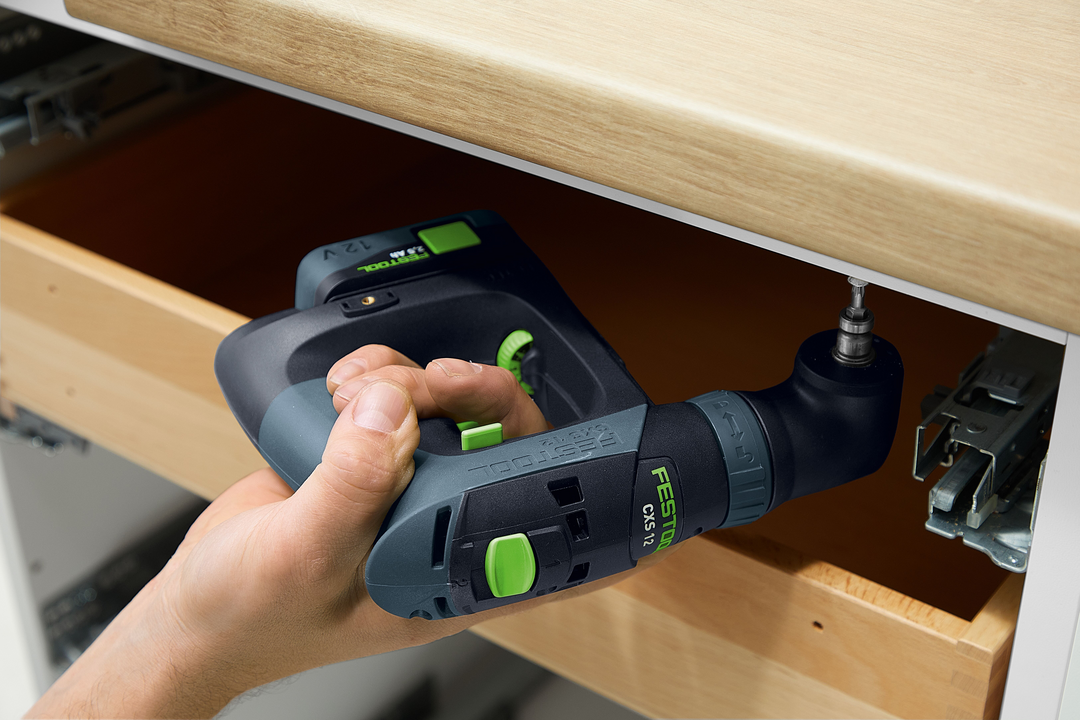

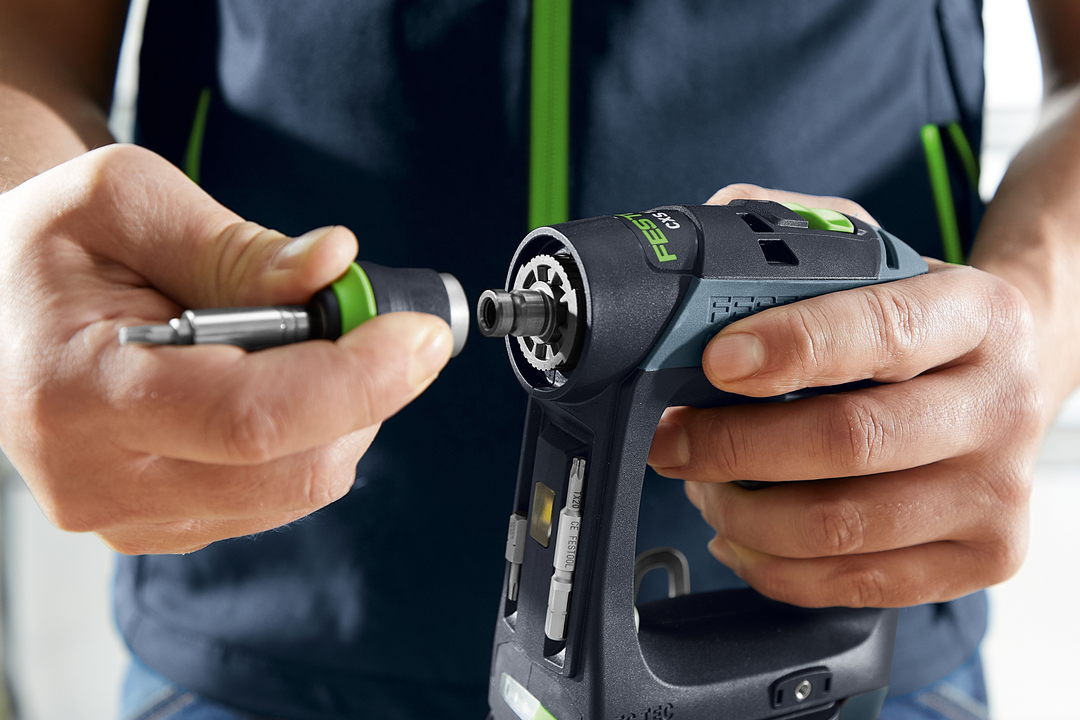

- Quick, tool-free conversion to drilling, driving, angular drilling and angular driving, thanks to the FastFix interface

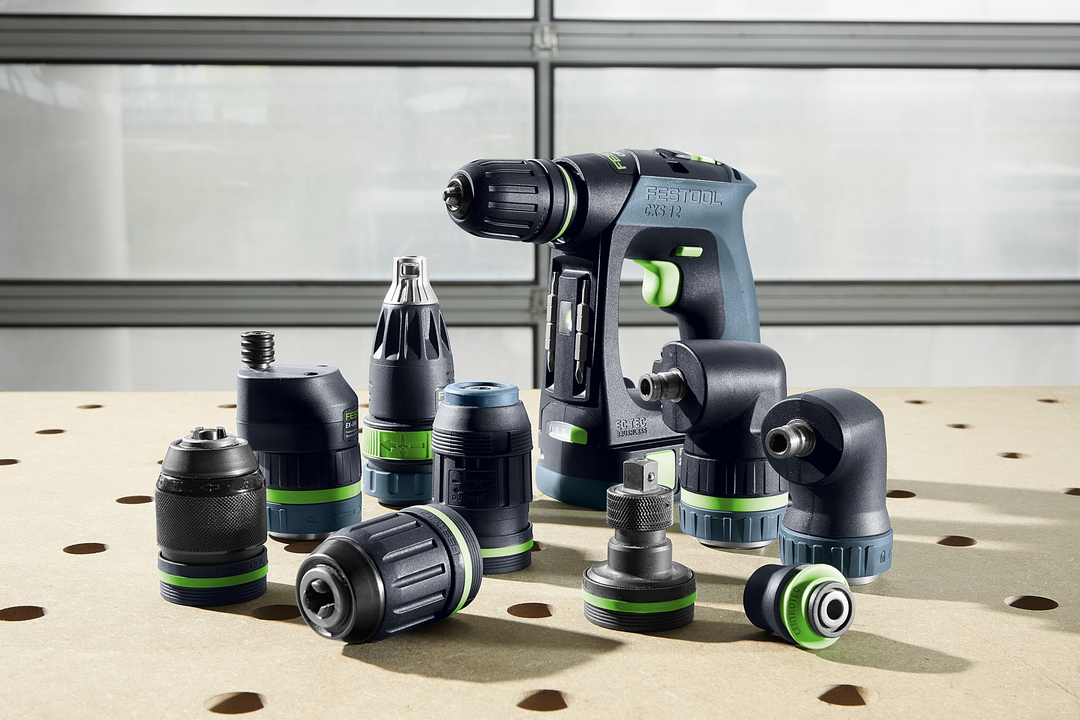

- Numerous attachments for a variety of applications. All attachments for the current 18 V line are compatible with the CXS 12

- The depth stops and eccentric adapter enable depth-limited screw driving close to edges

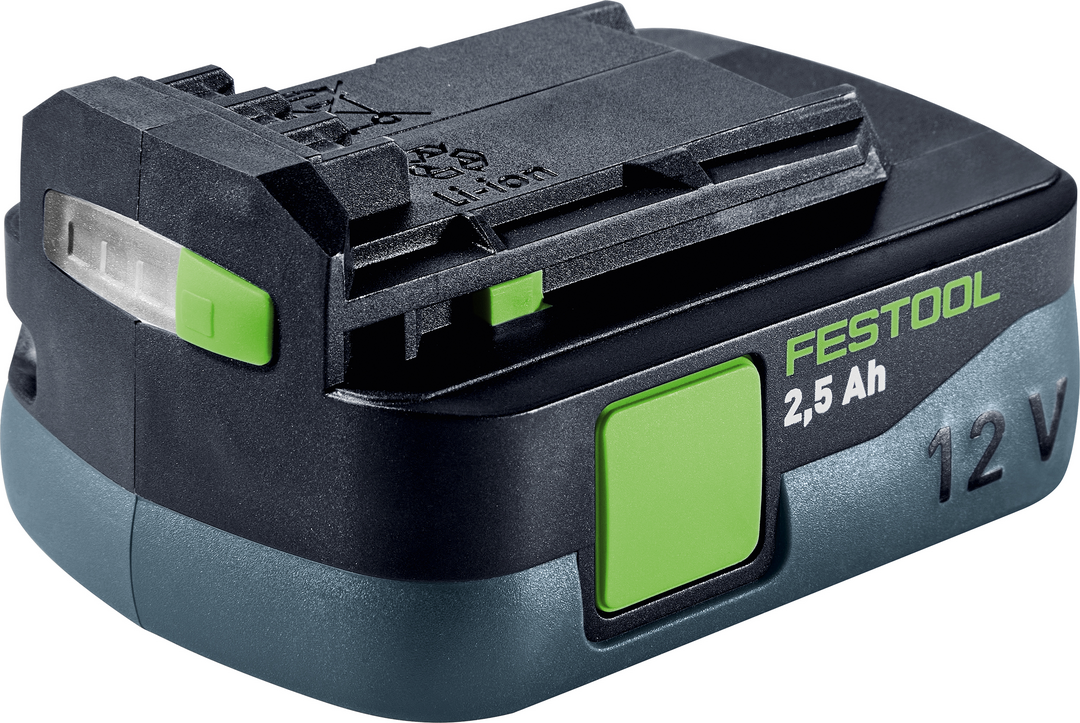

- High-quality lithium-ion battery. Has a work friendly rubber coating, charge indicator and a 2.5 Ah capacity for a long life. Compatible with all chargers in the Festool 18-volt cordless line

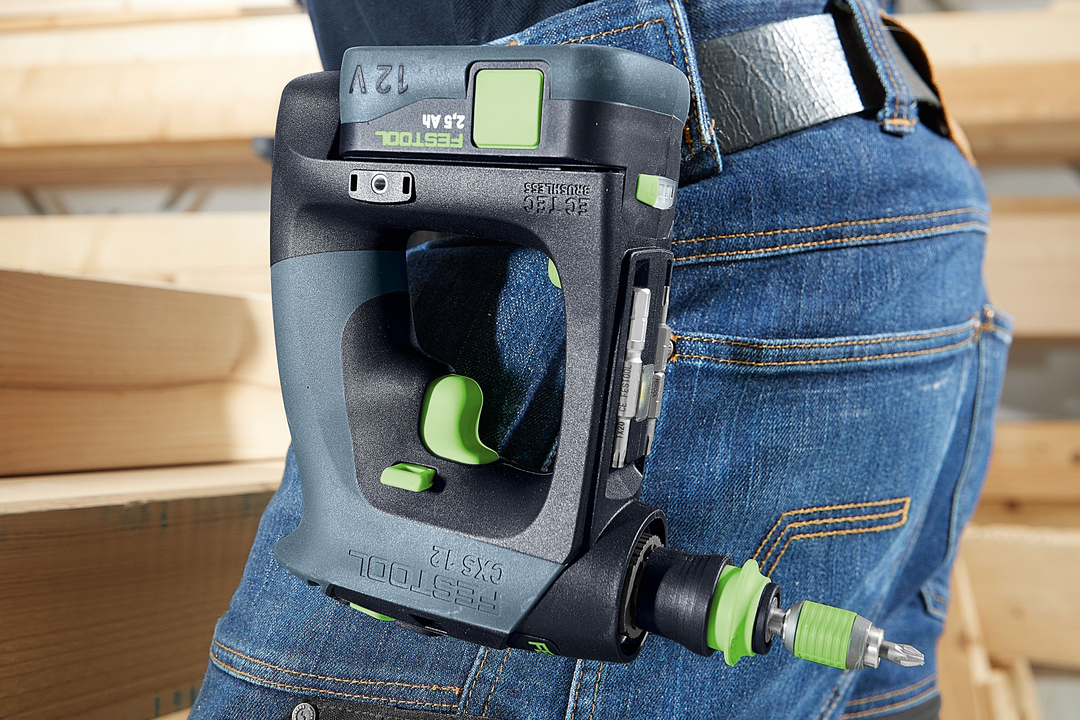

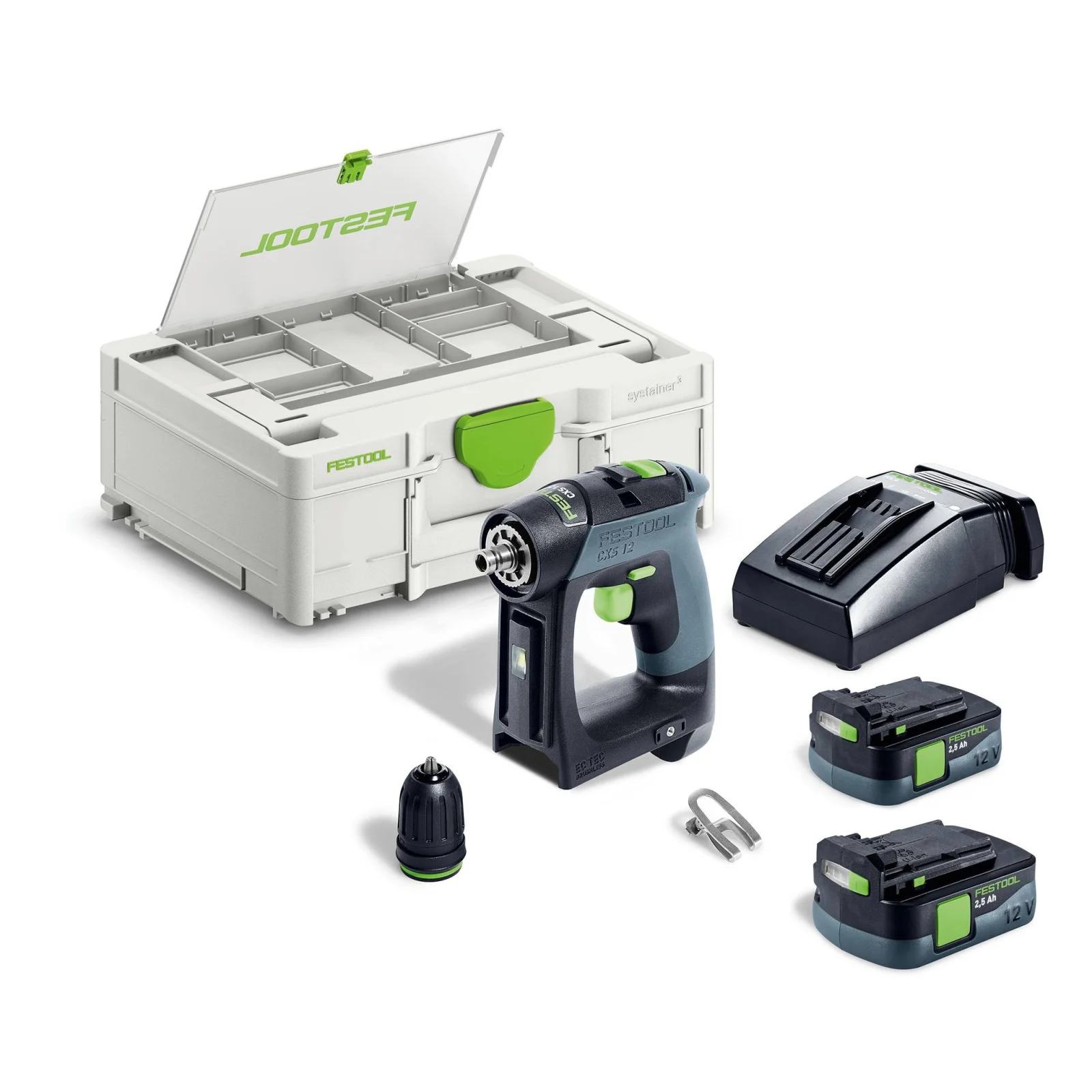

CXS 12 Plus Includes: Drill; 2 x BP 12 Li 2.5 C Battery Pack; Rapid Charger TCL 6; FastFix Keyless Chuck 3/8" (10 mm); Belt Clip; and a Systainer SYS3 M 187.

Specifications

Battery Voltage: 12 V
Gears: 2
Idling Speed, 1st Gear/2nd Gear: 0 to 470/0 to 1600 RPM
Drilling Diameter, Wood/Steel: 1-3/8" (35 mm)/3/8" (10 mm)
Torque Setting 1st Gear: 9.7 in-lb (1.1 Nm) to 70.8 in-lb (8 Nm)
Torque Setting 2nd Gear: 3.5 in-lb (0.4 Nm) to 20.4 in-lb (2.3 Nm)
Max. Torque, Wood/Steel: 150.5 in-lb (17 Nm)/265.5 in-lb (30 Nm)
Chuck Range: 1/32" to 3/8" (1 to 10 mm)
Battery Capacity 2.5 Ah
Weight: 1.54 lbs. (0.7 kg)

Manuals

Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Festool 576868 CXS 12 Cordless Drill Plus. Read it before you buy it, or come back and download it if you have any questions after getting your Festool 576868 CXS 12 Cordless Drill Plus home.

Festool 576868 CXS 12 Cordless Drill Plus User Guide

Warranty & Certifications

Festool offers and all-inclusive warranty on all their tools.

3-Year Comprehensive Warranty Coverage - including wear and tear!
3-Year free shipping to and from Festool service department.
10-Year spare parts availability guarantees long-term support.
1-Month money back guarantee.
