Product Description

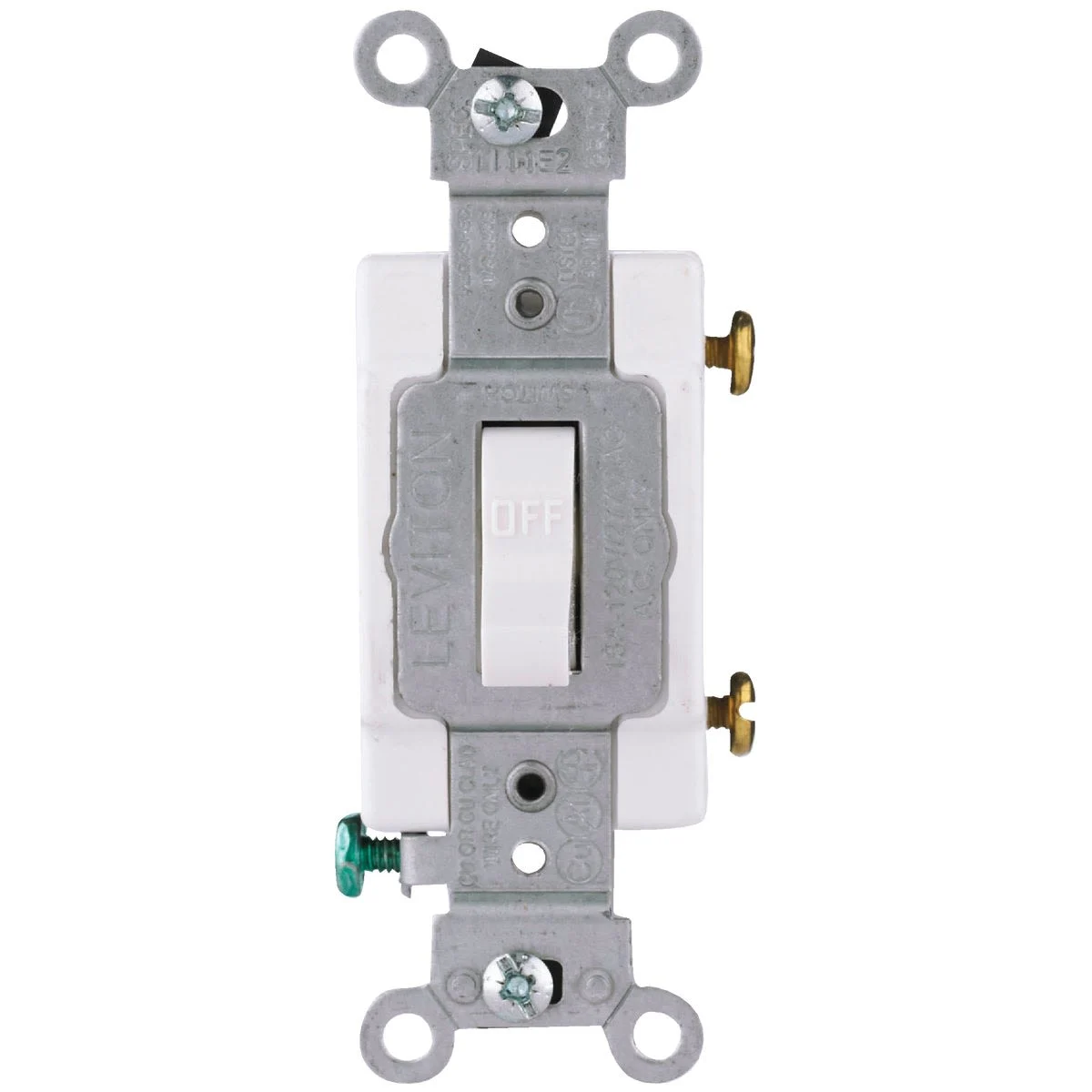

Leviton White Commercial Grade 20 Amp Toggle Single Pole Switch is a commercial switch that controls one fixture from a single location, making it ideal for hospitals, offices, schools, and other commercial buildings. It is made from polycarbonate, thermoplastic, and steel with silver-cadmium oxide contacts to withstand damage and allow longer life. It is quick and easy to install with its long-life toggle switch with captive mounting screws. Align this switch easily with a heavy-gauge rust-resistant steel mounting strap and break-off plaster ears. It also features large-head terminal screws that are backed out and staked for side wiring of up to No. 10 copper wire.
Specifications
- Brand: Leviton
- Grade: Commercial
- Amperage: 20A
- Color: White
- Type: Grounded Toggle
- Voltage: 120V/277V
- Horsepower: 1 HP-120V, 2 HP-240V
- Termination: Side
- Material: Polycarbonate, Thermoplastic, & Steel
- UL Listed: Yes
- CSA Listed: CSA/UL Listed
- Mfg #: S08-CS120-2WS
