Product Description

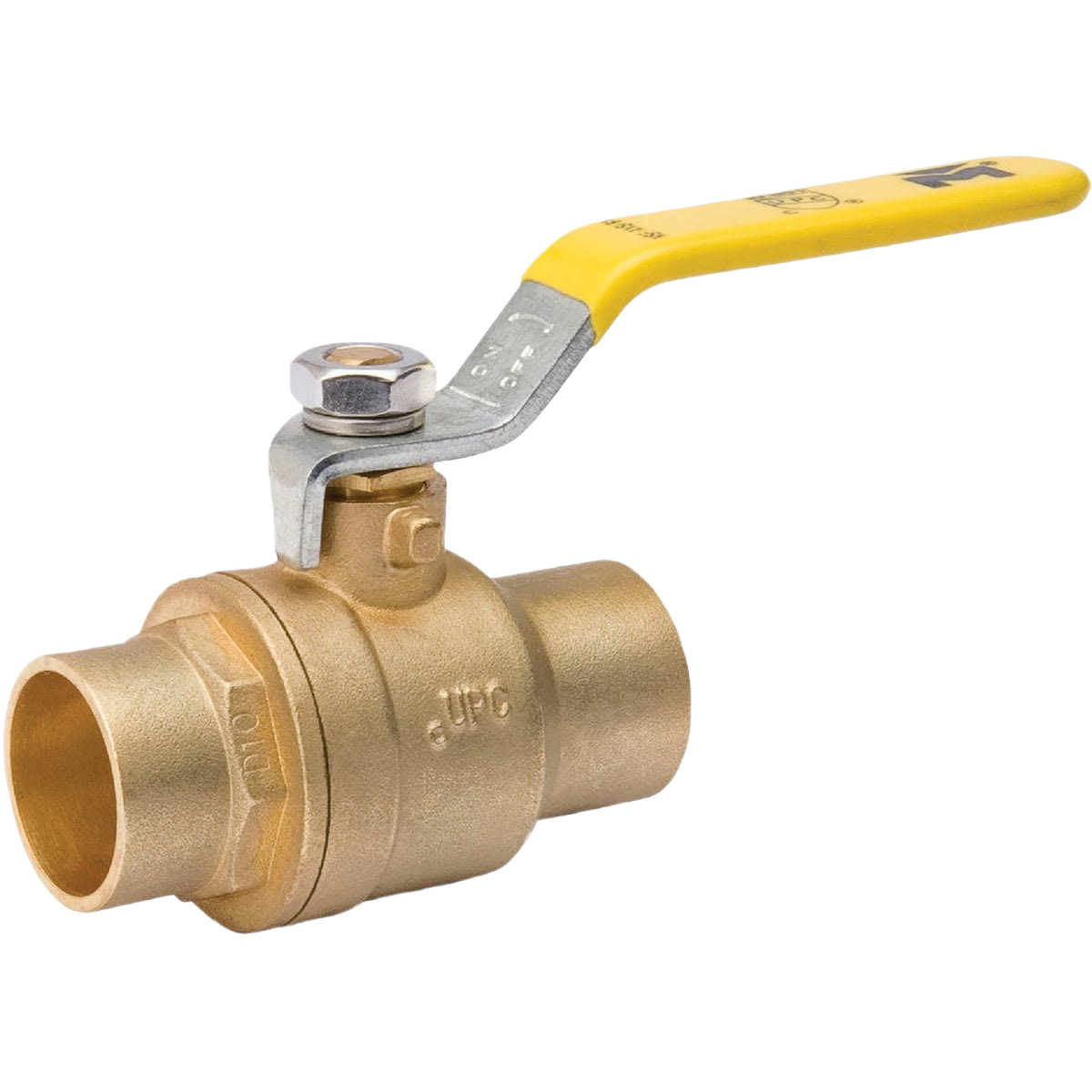

ProLine 3/4 In. S Brass Full Port Ball Valve is a high-quality valve designed for various plumbing applications. It features a durable brass construction and offers a full port design, ensuring optimal flow and performance. With a maximum pressure rating of 600 psi, this ball valve is suitable for a wide range of water, oil, and gas applications. The valve is CSA, CR91-002, and CR88 certified, ensuring compliance with industry standards. It also complies with ANSI B1.20.1 for pipe ends and ANSI B16.18 for solder ends, guaranteeing reliable and standardized connections. The packing gland of the ball valve provides a means of replacing or adjusting the seal on the valve stem in the event of a leak. This feature enhances the longevity and maintenance of the valve, allowing for easy seal replacement if needed.
Model Number: 107-844NL
Specifications
- Size: 3/4 In. S
- Material: Brass
- Type: Full Port
- Pressure Rating: 600 psi (1/2 In. thru 2 In.)
- Temperature Rating: -20 F to 300 F
- Brand: ProLine
- Package Quantity: 1
- Unit of Measurement: Each
- Country of Origin: China
