Product Description

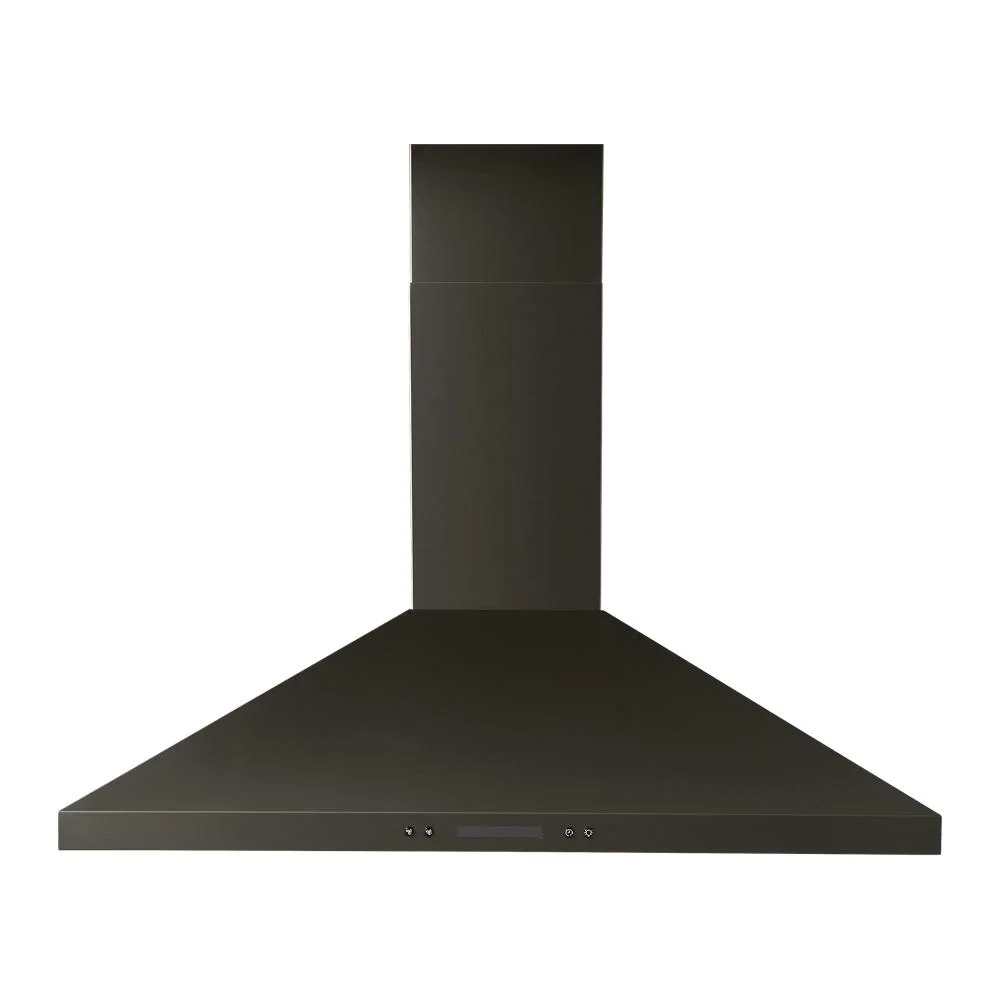

This 36" 400 CFM Motor Class* range hood delivers three speeds of powerful ventilation. This wall mount range hood also comes with a detachable grease filter that is dishwasher-safe for easy cleaning, LED range hood lights and a 65K BTU cooktop threshold. *Performance varies based on installation. Resources available at aham.org.
Features
- 3-Speed, 400 CFM Motor Class : Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- 6" Round Damper Included : Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- Optional Recirculation Kit (non-vented/duct-free) : This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.
- Dishwasher-Safe Grease Filter : Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.
- LED Task Lighting : Bright, long-lasting LED Task Lighting makes it easy to see what you're cooking.
- Vent Timer : The Vent Timer automatically turns off the fan according to the timer so you can set it and forget it.
- Filter Replacement Reminder : Get reminded when its time to clean your grease filter and replace your charcoal filter to keep your hood running smoothly.
- 65K BTU Cooktop Threshold : Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.) : Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
Specifications
| Height | 28.4 inch |
|---|
| Prop 65 | Standard |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Carton Depth | 14 in |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Size (in.) | 36 |
|---|
| Duct Length | 42.056 |
|---|
| Auto Function | No |
|---|
| Cutout Width (in) | 36 in |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Task Lighting | Yes |
|---|
| Carton Depth | 14 inch |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Duct Type | Round |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Control Location | Front |
|---|
| Accessory Relationships | Yes |
|---|
| Size (in.) | 36 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Lighting Control Type | Push Button |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Night Light | No |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Maximum Height | 42.1 in |
|---|
| Task Lighting | Yes |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Cutout Width (in) | 36 in |
|---|
| Accessory Relationships | Yes |
|---|
| Exhaust Vent Location | Top |
|---|
| Control Type | Push Button |
|---|
| Carton Width | 40 in |
|---|
| Control Location | Front |
|---|
| Night Light Type | N/A |
|---|
| Carton Depth | 14 in |
|---|
| Watts | 260 |
|---|
| Height | 28.4 in |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Power Cord Included | No |
|---|
| Energy Star® Certified | No |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Prop 65 | Standard |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Control Type | Push Button |
|---|
| Duct Length | 42.056 |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| UL | Yes |
|---|
| Damper Included | No |
|---|
| Lighting Control Type | Push Button |
|---|
| Minimum Height | 28.4 in |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Control Location | Front |
|---|
| Blower Type | Centrifugal |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Height | 28.4 in |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Night Light | No |
|---|
| UL | Yes |
|---|
| Number of Vent Speeds | 3 |
|---|
| Width | 36 inch |
|---|
| Auto Function | No |
|---|
| Venting | Exterior or Recirculating |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Blower Type | Centrifugal |
|---|
| Watts | 260 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Blower Type | Centrifugal |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Cutout Width(IN,inches) | 36.0000 |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| Carton Width | 40 in |
|---|
| Kosher Consumer Friendly | No |
|---|
| Duct Direction | Vertical |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Depth | 19.7 inch |
|---|
| Hz | 60 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Maximum Height | 42.1 in |
|---|
| Vent Material | Metal |
|---|
| Control Type | Push Button |
|---|
| Depth | 19.7 in |
|---|
| Width | 36 in |
|---|
| Energy Star® Certified | No |
|---|
| Volts | 120 |
|---|
| Exhaust Vent Location | Top |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Net Weight | 27.0 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Width | 40 inch |
|---|
| Cutout Width (in) | 36 inch |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Blower Type | Centrifugal |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Energy Star® Qualified | No |
|---|
| Vent Material | Metal |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Watts | 260 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Duct Length | 42.056 |
|---|
| Cutout Height (in) | 11.6 inch |
|---|
| UL | Yes |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Depth | 19.7 in |
|---|
| Minimum Height | 28.4 in |
|---|
| Duct Type | Round |
|---|
| Vent Material | Metal |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Amps | 2.5 |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| Width | 36 in |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Maximum Height | 42.1 in |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Watts | 260 |
|---|
| Damper Included | No |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Amps | 2.5 |
|---|
| Night Light | No |
|---|
| Task Light Type | LED |
|---|
| Carton Width | 40 in |
|---|
| Duct Direction | Vertical |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Exhaust Vent Location | Top |
|---|
| Venting | Exterior or Recirculating |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Minimum Height | 28.4 in |
|---|
| BTU Threshold | 65 K |
|---|
| Width | 36 in |
|---|
| Night Light Type | N/A |
|---|
| Control Location | Front |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Volts | 120 |
|---|
| Vent Material | Metal |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Accessory Relationships | Yes |
|---|
| Duct Length | 42.056 |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Number of Vent Speeds | 3 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| BTU Threshold | 65 K |
|---|
| Task Light Type | LED |
|---|
| Carton Height | 25 1/2 in |
|---|
| Cutout Width(IN,inches) | 36.0000 |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Net Weight | 27.0 inch |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Power Cord Included | No |
|---|
| Damper Included | No |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Gross Weight | 40 inch |
|---|
| Night Light Type | N/A |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Exhaust Vent Location | Top |
|---|
| Hz | 60 |
|---|
| Lighting Control Type | Push Button |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Height | 28.4 in |
|---|
| Auto Function | No |
|---|
| Size (in.) | 36 |
|---|
| Size (in.) | 36 |
|---|
| Duct Direction | Vertical |
|---|
| Gross Weight | 40 in |
|---|
| Night Light Type | N/A |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Duct Direction | Vertical |
|---|
| Power Cord Included | No |
|---|
| Duct Type | Round |
|---|
| Venting | Exterior or Recirculating |
|---|
| Task Lighting | Yes |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| Hz | 60 |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Volts | 120 |
|---|
| Depth | 19.7 in |
|---|
| Duct Type | Round |
|---|
| Amps | 2.5 |
|---|
| Gross Weight | 40 in |
|---|
| Damper Included | No |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Carton Height | 25 1/2 in |
|---|
| Hz | 60 |
|---|
| Gross Weight | 40 in |
|---|
| Lighting Control Type | Push Button |
|---|
| Cutout Width (in) | 36 in |
|---|
| Task Lighting | Yes |
|---|
| Power Cord Included | No |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Net Weight | 27.0 in |
|---|
| Energy Star® Certified | No |
|---|
| Number of Task Light Settings | 1 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| BTU Threshold | 65 K |
|---|
| Carton Height | 25 1/2 in |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Maximum Height | 42.1 inch |
|---|
| Number of Task Light Settings | 1 |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Amps | 2.5 |
|---|
| Control Type | Push Button |
|---|
| Cutout Width(IN,inches) | 36.0000 |
|---|
| BTU Threshold | 65 K |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Task Light Type | LED |
|---|
| Carton Height | 25 1/2 inch |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Minimum Height | 28.4 inch |
|---|
| Night Light | No |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Net Weight | 27.0 in |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Volts | 120 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Task Light Type | LED |
|---|
| Auto Function | No |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Cutout Width(IN,inches) | 36.0000 |
|---|
| Carton Depth | 14 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Prop 65 | Standard |
|---|
