Product Description

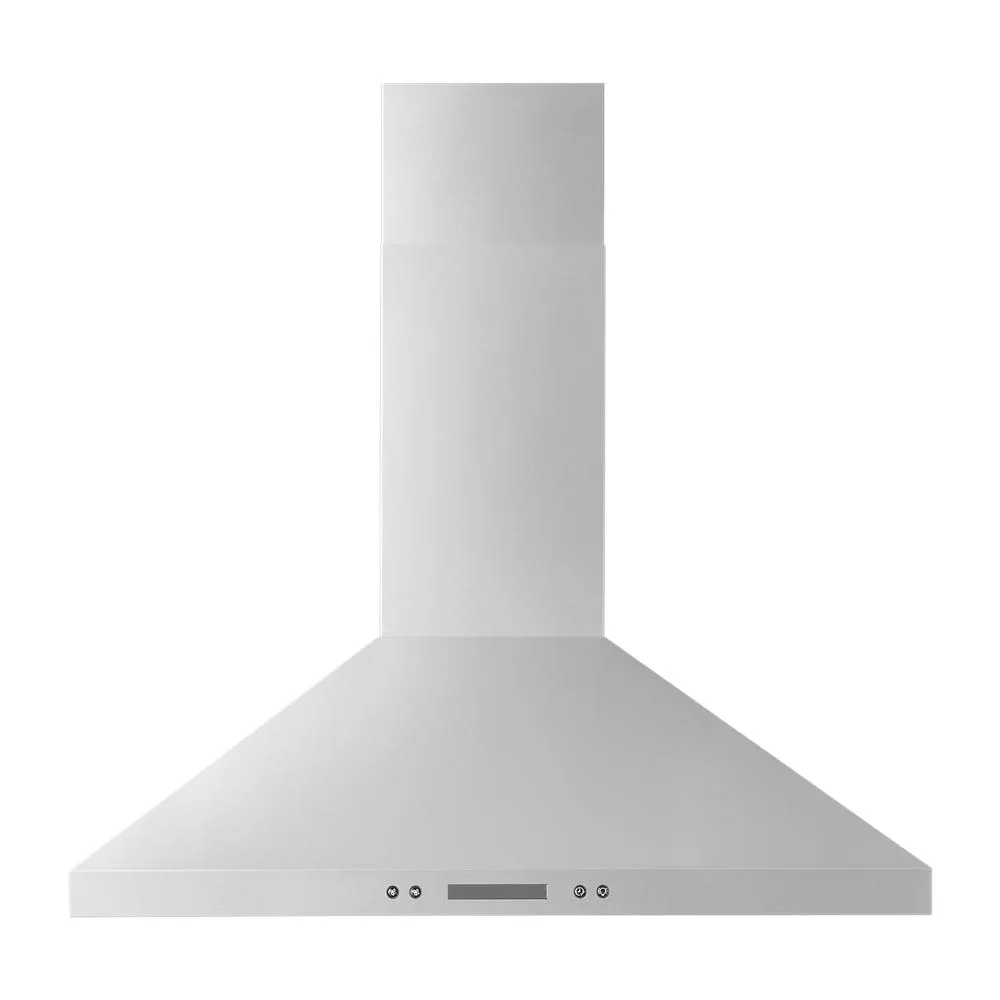

This 30" 400 CFM Motor Class* range hood delivers three speeds of powerful ventilation. This wall mount range hood also comes with a detachable grease filter that is dishwasher-safe for easy cleaning, LED range hood lights and a 65K BTU cooktop threshold. *Performance varies based on installation. Resources available at aham.org.
Features
- 3-Speed, 400 CFM Motor Class : Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- 6" Round Damper Included : Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- Optional Chimney Extension Kit : Extend chimney height for ceilings over 9 feet with the optional chimney extension kit. See installation instructions for details.
- Dishwasher-Safe Grease Filter : Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.
- LED Task Lighting : Bright, long-lasting LED Task Lighting makes it easy to see what you're cooking.
- Vent Timer : The Vent Timer automatically turns off the fan according to the timer so you can set it and forget it.
- Filter Replacement Reminder : Get reminded when its time to clean your grease filter and replace your charcoal filter to keep your hood running smoothly.
- 65K BTU Cooktop Threshold : Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.) : Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
Specifications
| Size (in.) | 30 |
|---|
| Control Type | Push Button |
|---|
| Number of Vent Speeds | 3 |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| BTU Threshold | 65 K |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Night Light Type | N/A |
|---|
| Depth | 19.7 in |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Amps | 2.5 |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Prop 65 | Standard |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Night Light | No |
|---|
| Duct Direction | Vertical |
|---|
| Minimum Height | 28.4 in |
|---|
| Damper Included | No |
|---|
| Carton Depth | 14 in |
|---|
| Duct Type | Round |
|---|
| Exhaust Vent Location | Top |
|---|
| Net Weight | 25.0 in |
|---|
| Hz | 60 |
|---|
| Carton Width | 34 inch |
|---|
| Accessory Relationships | Yes |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Prop 65 | Standard |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Volts | 120 |
|---|
| Cutout Height (in) | 11.6 inch |
|---|
| Amps | 2.5 |
|---|
| Damper Included | No |
|---|
| Carton Height | 25 1/2 in |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Exhaust Vent Location | Top |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Night Light | No |
|---|
| Prop 65 | Standard |
|---|
| Control Location | Front |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Duct Type | Round |
|---|
| Minimum Height | 28.4 in |
|---|
| Task Light Type | LED |
|---|
| Accessory Relationships | Yes |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Cutout Width (in) | 30 in |
|---|
| Depth | 19.7 in |
|---|
| Kosher Consumer Friendly | No |
|---|
| Power Cord Included | No |
|---|
| Task Lighting | Yes |
|---|
| Vent Material | Metal |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Carton Width | 34 in |
|---|
| Size (in.) | 30 |
|---|
| Gross Weight | 37 in |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Gross Weight | 37 in |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Width | 30 in |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Carton Depth | 14 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Prop 65 | Standard |
|---|
| Vent Material | Metal |
|---|
| BTU Threshold | 65 K |
|---|
| Carton Depth | 14 in |
|---|
| Task Lighting | Yes |
|---|
| Lighting Control Type | Push Button |
|---|
| Net Weight | 25.0 in |
|---|
| Duct Direction | Vertical |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Blower Type | Centrifugal |
|---|
| BTU Threshold | 65 K |
|---|
| Carton Height | 25 1/2 in |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Number of Vent Speeds | 3 |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Venting | Exterior or Recirculating |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Vent Material | Metal |
|---|
| Damper Included | No |
|---|
| Kosher Consumer Friendly | No |
|---|
| Power Cord Included | No |
|---|
| Control Location | Front |
|---|
| Venting | Exterior or Recirculating |
|---|
| Maximum Height | 42.1 inch |
|---|
| Depth | 19.7 in |
|---|
| UL | Yes |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Duct Type | Round |
|---|
| Control Location | Front |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Maximum Height | 42.1 in |
|---|
| Number of Task Light Settings | 1 |
|---|
| Duct Length | 42.056 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Duct Direction | Vertical |
|---|
| Auto Function | No |
|---|
| BTU Threshold | 65 K |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Task Lighting | Yes |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| UL | Yes |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Watts | 260 |
|---|
| Duct Direction | Vertical |
|---|
| Carton Height | 25 1/2 inch |
|---|
| Lighting Control Type | Push Button |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Hz | 60 |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Watts | 260 |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Minimum Height | 28.4 inch |
|---|
| Vent Material | Metal |
|---|
| Carton Width | 34 in |
|---|
| Task Light Type | LED |
|---|
| Power Cord Included | No |
|---|
| Number of Task Light Settings | 1 |
|---|
| Volts | 120 |
|---|
| Energy Star® Qualified | No |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| UL | Yes |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Amps | 2.5 |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Task Light Type | LED |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Power Cord Included | No |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Maximum Height | 42.1 in |
|---|
| Control Type | Push Button |
|---|
| Minimum Height | 28.4 in |
|---|
| Duct Length | 42.056 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Control Location | Front |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Energy Star® Certified | No |
|---|
| Control Type | Push Button |
|---|
| Lighting Control Type | Push Button |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Depth | 19.7 inch |
|---|
| Duct Length | 42.056 |
|---|
| Night Light Type | N/A |
|---|
| Exhaust Vent Location | Top |
|---|
| Exhaust Vent Location | Top |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Kosher Consumer Friendly | No |
|---|
| Carton Width | 34 in |
|---|
| Night Light Type | N/A |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Blower Type | Centrifugal |
|---|
| Night Light Type | N/A |
|---|
| Control Type | Push Button |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Task Lighting | Yes |
|---|
| Volts | 120 |
|---|
| Net Weight | 25.0 in |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Damper Included | No |
|---|
| Auto Function | No |
|---|
| Auto Function | No |
|---|
| Cutout Width (in) | 30 in |
|---|
| Width | 30 in |
|---|
| Watts | 260 |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Accessory Relationships | Yes |
|---|
| Lighting Control Type | Push Button |
|---|
| UL | Yes |
|---|
| Hz | 60 |
|---|
| Maximum Height | 42.1 in |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Cutout Width (in) | 30 inch |
|---|
| Carton Depth | 14 inch |
|---|
| Size (in.) | 30 |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Gross Weight | 37 inch |
|---|
| Energy Star® Certified | No |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Cutout Width (in) | 30 in |
|---|
| Hz | 60 |
|---|
| Amps | 2.5 |
|---|
| Width | 30 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Night Light | No |
|---|
| Energy Star® Certified | No |
|---|
| Blower Type | Centrifugal |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Duct Length | 42.056 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Duct Type | Round |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Blower Type | Centrifugal |
|---|
| Night Light | No |
|---|
| Width | 30 inch |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Task Light Type | LED |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Auto Function | No |
|---|
| Net Weight | 25.0 inch |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| Size (in.) | 30 |
|---|
| Watts | 260 |
|---|
| Volts | 120 |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Gross Weight | 37 in |
|---|
| Carton Height | 25 1/2 in |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
