Product Description

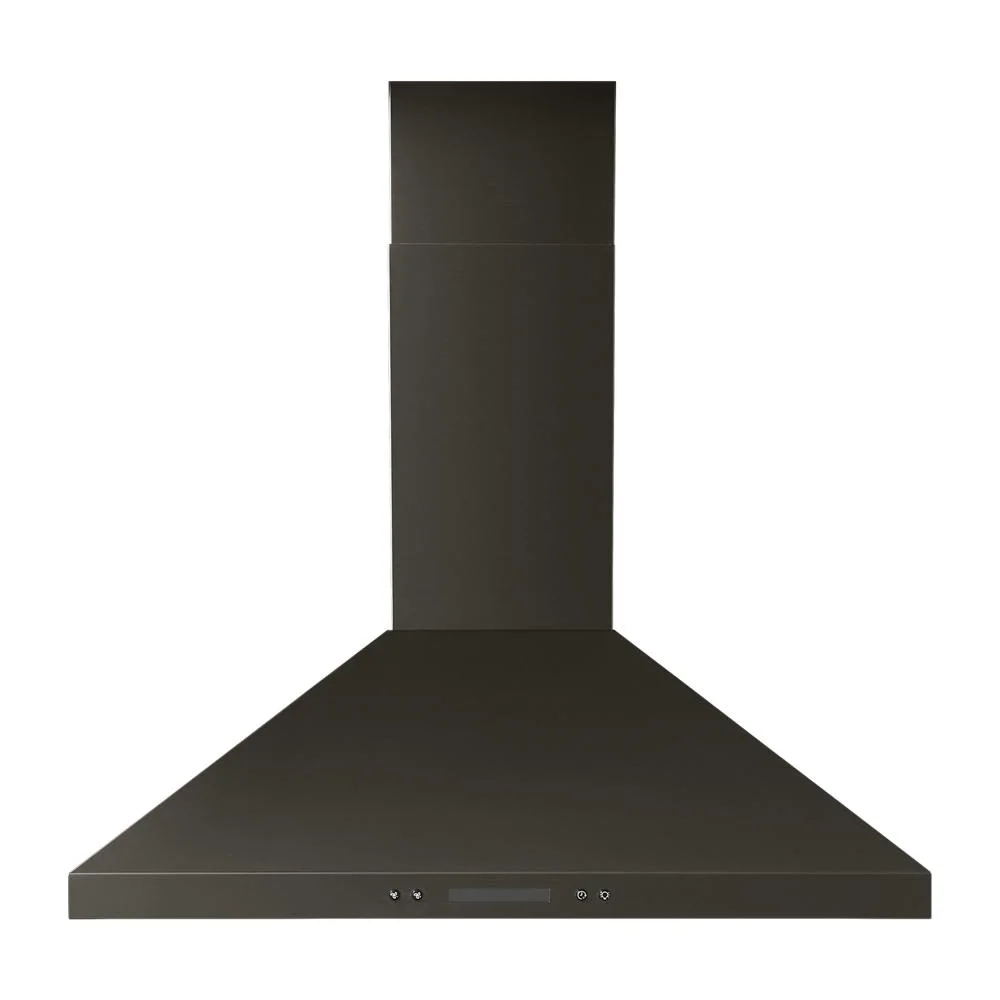

This 30" 400 CFM Motor Class* range hood delivers three speeds of powerful ventilation. This wall mount range hood also comes with a detachable grease filter that is dishwasher-safe for easy cleaning, LED range hood lights and a 65K BTU cooktop threshold. *Performance varies based on installation. Resources available at aham.org.
Features
- 3-Speed, 400 CFM Motor Class : Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- Optional Recirculation Kit (non-vented/duct-free) : This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548459.
- 6" Round Damper Included : Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- Dishwasher-Safe Grease Filter : Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.
- LED Task Lighting : Bright, long-lasting LED Task Lighting makes it easy to see what you're cooking.
- Vent Timer : The Vent Timer automatically turns off the fan according to the timer so you can set it and forget it.
- Filter Replacement Reminder : Get reminded when its time to clean your grease filter and replace your charcoal filter to keep your hood running smoothly.
- 65K BTU Cooktop Threshold : Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.) : Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
Specifications
| HVI (CFM HS Vertical) | 270 |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Size (in.) | 30 |
|---|
| Control Location | Front |
|---|
| Control Type | Push Button |
|---|
| Lighting Control Type | Push Button |
|---|
| Night Light | No |
|---|
| Night Light Type | N/A |
|---|
| Number of Task Light Settings | 1 |
|---|
| Task Light Type | LED |
|---|
| Task Lighting | Yes |
|---|
| BTU Threshold | 65 K |
|---|
| Damper Included | No |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Auto Function | No |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Blower Type | Centrifugal |
|---|
| Duct Direction | Vertical |
|---|
| Duct Length | 42.056 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Duct Type | Round |
|---|
| Exhaust Vent Location | Top |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Number of Vent Speeds | 3 |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Vent Material | Metal |
|---|
| Venting | Exterior or Recirculating |
|---|
| Energy Star® Qualified | No |
|---|
| Kosher Consumer Friendly | No |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Amps | 2.5 |
|---|
| Hz | 60 |
|---|
| Power Cord Included | No |
|---|
| Volts | 120 |
|---|
| Watts | 260 |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Depth | 14 inch |
|---|
| Carton Height | 25 1/2 inch |
|---|
| Carton Width | 34 inch |
|---|
| Cutout Height (in) | 11.6 inch |
|---|
| Cutout Width (in) | 30 inch |
|---|
| Depth | 19.7 inch |
|---|
| Height | 28.4 inch |
|---|
| Width | 30 inch |
|---|
| Gross Weight | 37 inch |
|---|
| Maximum Height | 42.1 inch |
|---|
| Minimum Height | 28.4 inch |
|---|
| Net Weight | 25.0 inch |
|---|
| Carton Width | 34 in |
|---|
| BTU Threshold | 65 K |
|---|
| Minimum Height | 28.4 in |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Duct Length | 42.056 |
|---|
| Lighting Control Type | Push Button |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Night Light | No |
|---|
| Width | 30 in |
|---|
| Venting | Exterior or Recirculating |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Lighting Control Type | Push Button |
|---|
| Power Cord Included | No |
|---|
| Number of Vent Speeds | 3 |
|---|
| Control Type | Push Button |
|---|
| Maximum Height | 42.1 in |
|---|
| Accessory Relationships | Yes |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Net Weight | 25.0 in |
|---|
| Night Light Type | N/A |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Hz | 60 |
|---|
| Watts | 260 |
|---|
| UL | Yes |
|---|
| Prop 65 | Standard |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Height | 28.4 in |
|---|
| BTU Threshold | 65 K |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Auto Function | No |
|---|
| Amps | 2.5 |
|---|
| Duct Type | Round |
|---|
| Control Location | Front |
|---|
| Gross Weight | 37 in |
|---|
| Exhaust Vent Location | Top |
|---|
| Auto Function | No |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| Amps | 2.5 |
|---|
| Carton Width | 34 in |
|---|
| Vent Material | Metal |
|---|
| Vent Material | Metal |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Height | 28.4 in |
|---|
| Night Light Type | N/A |
|---|
| Exhaust Vent Location | Top |
|---|
| Duct Length | 42.056 |
|---|
| Duct Type | Round |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Minimum Height | 28.4 in |
|---|
| Blower Type | Centrifugal |
|---|
| Damper Included | No |
|---|
| Task Light Type | LED |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Volts | 120 |
|---|
| Size (in.) | 30 |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Carton Depth | 14 in |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Carton Height | 25 1/2 in |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Cutout Width (in) | 30 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| Power Cord Included | No |
|---|
| Minimum Height(IN,inches) | 28.4000 |
|---|
| Volts | 120 |
|---|
| Damper Included | No |
|---|
| Depth | 19.7 in |
|---|
| Size (in.) | 30 |
|---|
| Duct Direction | Vertical |
|---|
| Carton Height | 25 1/2 in |
|---|
| Carton Depth | 14 in |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Night Light | No |
|---|
| Duct Direction | Vertical |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Number of Task Light Settings | 1 |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Width | 30 in |
|---|
| Height | 28.4 in |
|---|
| Kosher Consumer Friendly | No |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Night Light Type | N/A |
|---|
| Amps | 2.5 |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Sound Min Speed (Sones) | 0.70 |
|---|
| BTU Threshold | 65 K |
|---|
| Control Location | Front |
|---|
| Auto Function | No |
|---|
| Cutout Width (in) | 30 in |
|---|
| Task Light Type | LED |
|---|
| Carton Height | 25 1/2 in |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Energy Star® Certified | No |
|---|
| Filters | Dishwasher Safe Grease Filter |
|---|
| Number of Vent Speeds | 3 |
|---|
| Task Lighting | Yes |
|---|
| Accessory Relationships | Yes |
|---|
| Lighting Control Type | Push Button |
|---|
| Venting | Exterior or Recirculating |
|---|
| Minimum Height | 28.4 in |
|---|
| Width | 30 in |
|---|
| HVI (CFM HS Vertical) | 270 |
|---|
| Canopy Height (IN,inches) | 11.60000 |
|---|
| Watts | 260 |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Depth | 19.7 in |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| Carton Width | 34 in |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Duct Length | 42.056 |
|---|
| Watts | 260 |
|---|
| Night Light | No |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Maximum Height(IN,inches) | 42.1000 |
|---|
| Control Location | Front |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Prop 65 | Standard |
|---|
| Task Light Type | LED |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Blower Type | Centrifugal |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Kosher Consumer Friendly | No |
|---|
| Size (in.) | 30 |
|---|
| Volts | 120 |
|---|
| Maximum Height | 42.1 in |
|---|
| Accessory Relationships | Yes |
|---|
| Venting | Exterior or Recirculating |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Height(IN,inches) | 28.4000 |
|---|
| Control Type | Push Button |
|---|
| Hz | 60 |
|---|
| Exhaust Vent Location | Top |
|---|
| Gross Weight | 37 in |
|---|
| UL | Yes |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Hood and Vent Selections | Fan Off/Decrease Speed,Fan On/Decrease Speed,Lamp On/Off,Timer |
|---|
| Maximum Height | 42.1 in |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Cutout Height (in) | 11.6 in |
|---|
| Kosher Consumer Friendly | No |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Energy Star® Certified | No |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| UL | Yes |
|---|
| Task Lighting | Yes |
|---|
| Blower Type | Centrifugal |
|---|
| Net Weight | 25.0 in |
|---|
| Depth(IN,inches) | 19.7000 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Cutout Width (in) | 30 in |
|---|
| Carton Depth | 14 in |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Power Cord Included | No |
|---|
| Sound Max Speed (Sones) | 5.0 |
|---|
| Cutout Height Min(IN,inches) | 11.6000 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
|---|
| Hz | 60 |
|---|
| Cutout Height(IN,inches) | 11.6000 |
|---|
| Duct Direction | Vertical |
|---|
| Gross Weight | 37 in |
|---|
| Task Lighting | Yes |
|---|
| Energy Star® Certified | No |
|---|
| HVI (Sones HS Vertical) | 5 |
|---|
| Net Weight | 25.0 in |
|---|
| Vent Material | Metal |
|---|
| Damper Included | No |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Control Type | Push Button |
|---|
| Duct Type | Round |
|---|
| Depth | 19.7 in |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Prop 65 | Standard |
|---|
