Product Description

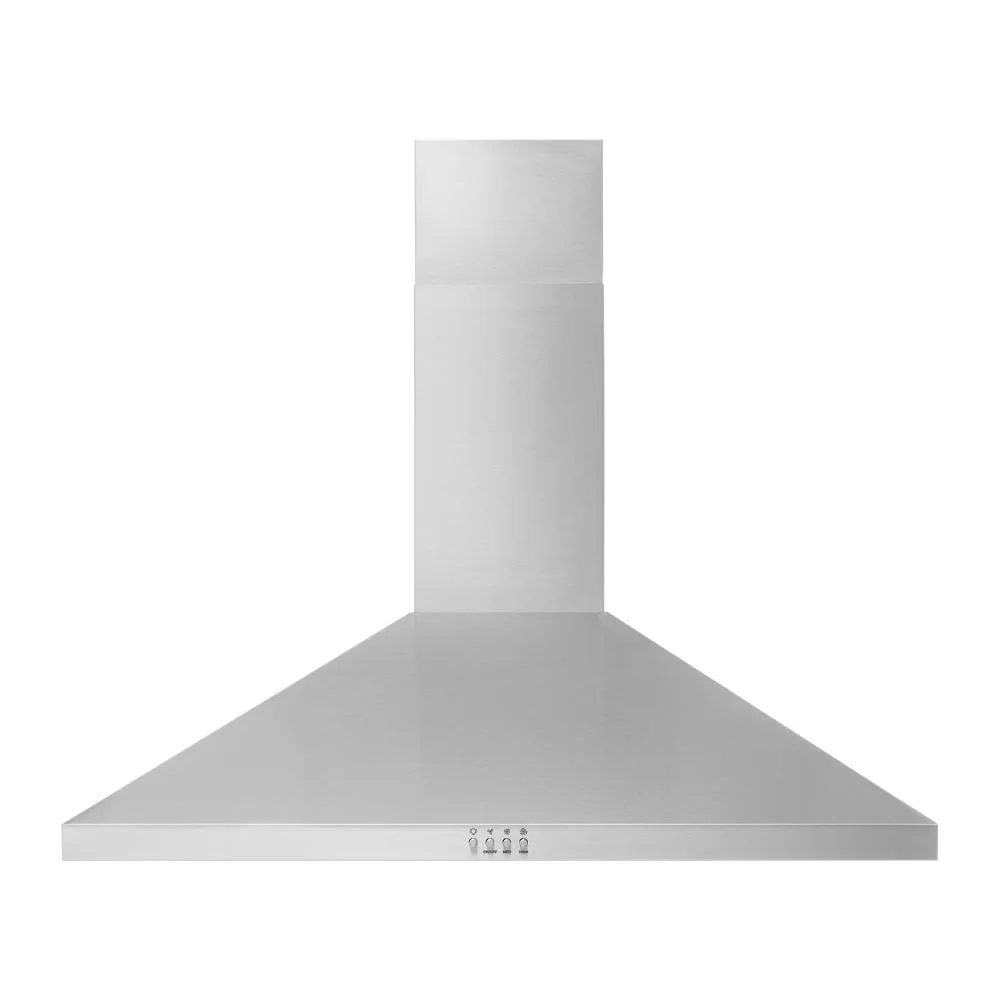

This 36" energy star hood can help you save money while delivering three speeds of powerful ventilation. Vent smoke and odors in your kitchen with this 300 CFM Motor Class range hood that comes equipped with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold.
Features
- 3-Speed, 300 CFM Motor Class : Helps remove smoke, odor and moisture with 300 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- Optional Recirculation Kit (non-vented/duct-free) : This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548459.
- 6" Round Damper Included : Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- Optional Chimney Extension Kit : Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT18FS.
- Grease Filter : Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
- ENERGY STAR® Certified : ENERGY STAR® Certified hoods exceed government standards to help conserve natural resources and save money on your utility bills.
- LED Task Lighting : Bright, long-lasting LED task lighting makes it easy to see what you're cooking.
- 65K BTU Cooktop Threshold : Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 6.5 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org) : Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 6.5 Sones.
- Push Button Controls :
Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
- ADA Compliant : When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
- Convertible Ventilation (recirculating or vented) : A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
Specifications
| HVI (Sones HS Horizontal) | N/A |
|---|
| Minimum Height(IN,inches) | 28.6000 |
|---|
| Power Cord Included | No |
|---|
| Hz | 60 |
|---|
| UL | Yes |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Net Weight | 26.0 in |
|---|
| Sound Min Speed (Sones) | 1.50 |
|---|
| Number of Night Light Settings | 0 |
|---|
| Amps | 1.5 |
|---|
| Blower Type | Centrifugal |
|---|
| Control Location | Front |
|---|
| Duct Type | Round |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Canopy Height (IN,inches) | 11.80000 |
|---|
| Sound Max Speed (Sones) | 6.5 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Duct Type | Round |
|---|
| Minimum Height | 28.6 in |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 130 |
|---|
| Night Light Type | N/A |
|---|
| Sound Min Speed (Sones) | 1.50 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 300 |
|---|
| Volts | 120 |
|---|
| Power Cord Included | No |
|---|
| Control Location | Front |
|---|
| Control Type | Push Button |
|---|
| HVI (Sones HS Horizontal) | N/A |
|---|
| Number of Night Light Settings | 0 |
|---|
| Vent Material | Metal |
|---|
| BTU Threshold | 65 K |
|---|
| Exhaust Vent Location | Top |
|---|
| Volts | 120 |
|---|
| Kosher Consumer Friendly | No |
|---|
| HVI (Sones HS Vertical) | 6.5 |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Power Cord Included | No |
|---|
| Minimum Height | 28.6 in |
|---|
| Vent Material | Metal |
|---|
| Duct Type | Round |
|---|
| Auto Function | No |
|---|
| Carton Depth | 14 in |
|---|
| Size (in.) | 36 |
|---|
| Gross Weight | 37 in |
|---|
| Prop 65 | Standard |
|---|
| Lighting Control Type | Push Button |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Control Type | Push Button |
|---|
| Task Lighting | Yes |
|---|
| Size (in.) | 36 |
|---|
| Height(IN,inches) | 28.6000 |
|---|
| Carton Depth | 14 inch |
|---|
| Damper Included | Yes |
|---|
| Prop 65 | Standard |
|---|
| BTU Threshold | 65 K |
|---|
| Carton Width | 40 inch |
|---|
| Accessory Relationships | Yes |
|---|
| Venting | Exterior or Recirculating |
|---|
| Carton Depth | 14 in |
|---|
| Auto Function | No |
|---|
| Gross Weight | 37 in |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| HVI (CFM HS Vertical) | 300 |
|---|
| HVI (Sones HS Horizontal) | N/A |
|---|
| Gross Weight | 37 in |
|---|
| Number of Task Light Settings | 1 |
|---|
| HVI (CFM HS Vertical) | 300 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Carton Width | 40 in |
|---|
| Night Light | No |
|---|
| UL | Yes |
|---|
| Venting | Exterior or Recirculating |
|---|
| Control Location | Front |
|---|
| Hz | 60 |
|---|
| Height(IN,inches) | 28.6000 |
|---|
| Sound Max Speed (Sones) | 6.5 |
|---|
| Night Light | No |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Carton Width | 40 in |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 300 |
|---|
| Task Light Type | LED |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 130 |
|---|
| Hz | 60 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 300 |
|---|
| Accessory Relationships | Yes |
|---|
| Energy Star® Qualified | ENERGY STAR® Qualified |
|---|
| Maximum Height(IN,inches) | 42.3000 |
|---|
| Number of Vent Speeds | 3 |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 130 |
|---|
| Carton Height | 25 1/2 in |
|---|
| Damper Included | Yes |
|---|
| Number of Night Light Settings | 0 |
|---|
| CFM Motor Class | 377 |
|---|
| Maximum Height | 42.3 in |
|---|
| Carton Width | 40 in |
|---|
| Sound Max Speed (Sones) | 6.5 |
|---|
| Depth(IN,inches) | 17.9000 |
|---|
| Height | 28.6 in |
|---|
| Night Light | No |
|---|
| Lighting Control Type | Push Button |
|---|
| Blower Type | Centrifugal |
|---|
| Carton Depth | 14 in |
|---|
| Task Lighting | Yes |
|---|
| Power Cord Included | No |
|---|
| Depth(IN,inches) | 17.9000 |
|---|
| Sound Min Speed (Sones) | 1.50 |
|---|
| CFM Motor Class | 377 |
|---|
| Height(IN,inches) | 28.6000 |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Exhaust Vent Location | Top |
|---|
| Blower Type | Centrifugal |
|---|
| UL | Yes |
|---|
| Net Weight | 26.0 in |
|---|
| Night Light Type | N/A |
|---|
| Volts | 120 |
|---|
| Energy Star® Certified | ENERGY STAR® Qualified |
|---|
| Number of Task Light Settings | 1 |
|---|
| Duct Direction | Vertical |
|---|
| Accessory Relationships | Yes |
|---|
| Damper Included | Yes |
|---|
| Venting | Exterior or Recirculating |
|---|
| Canopy Height (IN,inches) | 11.80000 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Gross Weight | 37 inch |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| HVI (Sones HS Vertical) | 6.5 |
|---|
| Depth | 17.9 in |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Amps | 1.5 |
|---|
| Height(IN,inches) | 28.6000 |
|---|
| Carton Height | 25 1/2 in |
|---|
| Maximum Height(IN,inches) | 42.3000 |
|---|
| Task Light Type | LED |
|---|
| Minimum Height(IN,inches) | 28.6000 |
|---|
| Depth | 17.9 in |
|---|
| Maximum Height(IN,inches) | 42.3000 |
|---|
| Number of Vent Speeds | 3 |
|---|
| Task Light Type | LED |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 130 |
|---|
| Night Light Type | N/A |
|---|
| Depth | 17.9 in |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Control Type | Push Button |
|---|
| Width | 36 in |
|---|
| Duct Type | Round |
|---|
| Night Light Type | N/A |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Sound Max Speed (Sones) | 6.5 |
|---|
| Exhaust Vent Location | Top |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Lighting Control Type | Push Button |
|---|
| HVI (CFM HS Vertical) | 300 |
|---|
| HVI (Sones HS Vertical) | 6.5 |
|---|
| HVI (Sones HS Vertical) | 6.5 |
|---|
| Auto Function | No |
|---|
| Control Location | Front |
|---|
| BTU Threshold | 65 K |
|---|
| Accessory Relationships | Yes |
|---|
| BTU Threshold | 65 K |
|---|
| Size (in.) | 36 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Hz | 60 |
|---|
| Maximum Height(IN,inches) | 42.3000 |
|---|
| Vent Material | Metal |
|---|
| Prop 65 | Standard |
|---|
| Task Light Type | LED |
|---|
| Depth(IN,inches) | 17.9000 |
|---|
| Task Lighting | Yes |
|---|
| CFM Motor Class | 377 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Canopy Height (IN,inches) | 11.80000 |
|---|
| HVI (CFM HS Vertical) | 300 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 300 |
|---|
| Minimum Height(IN,inches) | 28.6000 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Width | 36 inch |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Auto Function | No |
|---|
| Number of Task Light Settings | 1 |
|---|
| Blower Type | Centrifugal |
|---|
| Height | 28.6 inch |
|---|
| Canopy Height (IN,inches) | 11.80000 |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Task Lighting | Yes |
|---|
| Number of Vent Speeds | 3 |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Carton Depth(IN,inches) | 14.0000 |
|---|
| Amps | 1.5 |
|---|
| Damper Included | Yes |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Exhaust Vent Location | Top |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Width | 36 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Duct Direction | Vertical |
|---|
| Minimum Height | 28.6 in |
|---|
| Minimum Height(IN,inches) | 28.6000 |
|---|
| HVI (Sones HS Horizontal) | N/A |
|---|
| Height | 28.6 in |
|---|
| Maximum Height | 42.3 in |
|---|
| Duct Direction | Vertical |
|---|
| Kosher Consumer Friendly | No |
|---|
| Depth | 17.9 inch |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| UL | Yes |
|---|
| Number of Night Light Settings | 0 |
|---|
| Vent Material | Metal |
|---|
| Sound Min Speed (Sones) | 1.50 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Energy Star® Certified | ENERGY STAR® Qualified |
|---|
| Size (in.) | 36 |
|---|
| Height | 28.6 in |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Energy Star® Certified | ENERGY STAR® Qualified |
|---|
| Control Type | Push Button |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Duct Direction | Vertical |
|---|
| Maximum Height | 42.3 inch |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Lighting Control Type | Push Button |
|---|
| Carton Height | 25 1/2 in |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| CFM Motor Class | 377 |
|---|
| Volts | 120 |
|---|
| Depth(IN,inches) | 17.9000 |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Net Weight | 26.0 inch |
|---|
| Night Light | No |
|---|
| Minimum Height | 28.6 inch |
|---|
| Amps | 1.5 |
|---|
| Carton Height | 25 1/2 inch |
|---|
| Width | 36 in |
|---|
| Carton Width(IN,inches) | 40.0000 |
|---|
| Maximum Height | 42.3 in |
|---|
| Prop 65 | Standard |
|---|
| Net Weight | 26.0 in |
|---|
