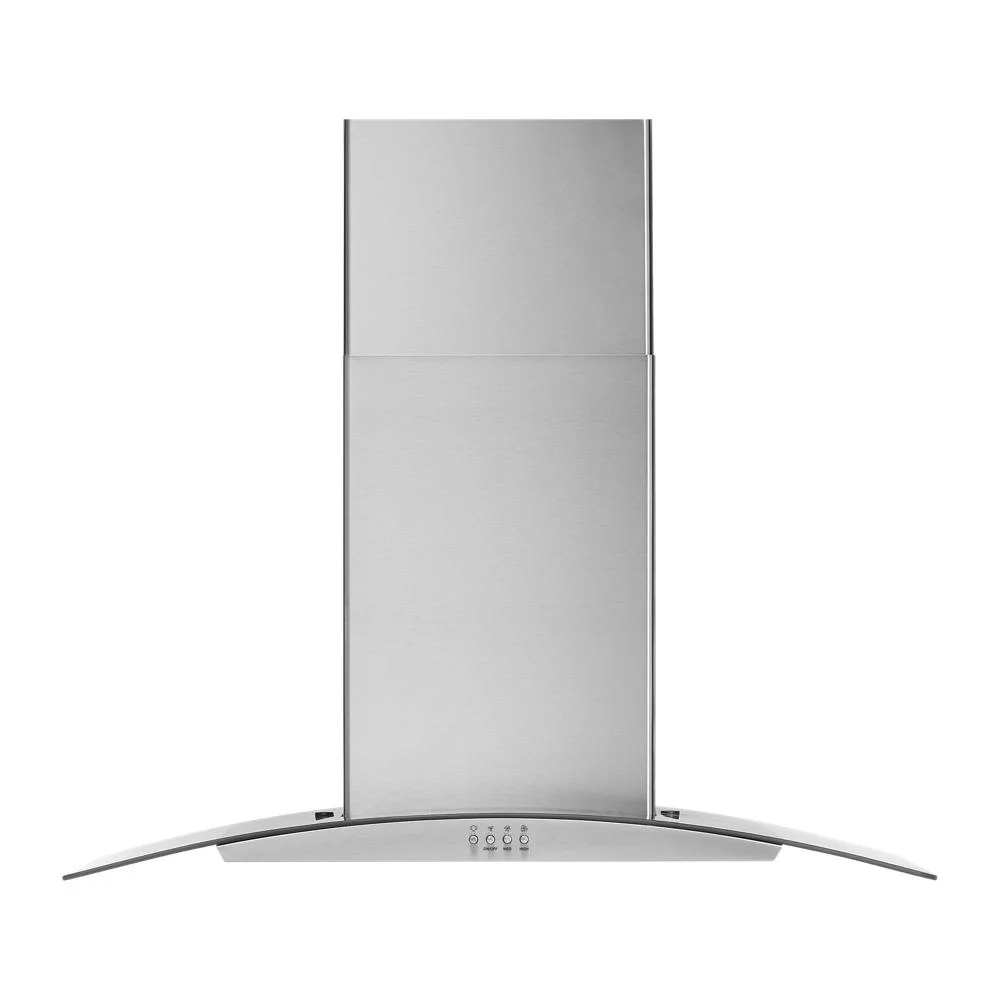

Product Description
Easily vent smoke and odors with this 400 CFM Motor Class range hood that comes equipped with a 3-speed kitchen exhaust fan for powerful ventilation. This 36" wall mount range hood also comes with a detachable grease filter for convenient cleaning, LED range hood lights and a 65K BTU cooktop threshold. (Performance varies based on installation. Resources available at aham.org.)
Features
- 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.) : Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- 6" Round Damper Included : Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- Optional Chimney Extension Kit : Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT10ES.
- Grease Filter : Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
- LED Task Lighting : Bright, long-lasting LED Task Lighting makes it easy to see what you're cooking.
- 65K BTU Cooktop Threshold : Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.) : Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
- Push Button Controls :
Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
- ADA Compliant : When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
- Convertible Ventilation (Recirculating or Vented) : A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
- Optional Recirculation Kit (non-vented/duct-free) : This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548457.
Specifications
| Damper Included | Yes |
|---|
| UL | Yes |
|---|
| Task Lighting | Yes |
|---|
| Energy Star® Qualified | No |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Height | 27 1/8 in |
|---|
| Task Lighting | Yes |
|---|
| Control Type | Push Button |
|---|
| Sound Max Speed (dB(A) | 66.0 |
|---|
| Control Type | Push Button |
|---|
| Duct Length | 45.500 |
|---|
| Width | 36 in |
|---|
| Height(IN,inches) | 27.1250 |
|---|
| Minimum Height | 27 1/8 in |
|---|
| Cutout Height (in) | 10 13/16 in |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Accessory Relationships | Yes |
|---|
| Task Lighting | Yes |
|---|
| Lighting Control Type | Push Button |
|---|
| Night Light | No |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Depth | 17 11/16 inch |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Cutout Height(IN,inches) | 10.8125 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Volts | 120 |
|---|
| Gross Weight | 51 inch |
|---|
| Night Light Type | N/A |
|---|
| Height | 27 1/8 inch |
|---|
| Carton Depth | 17 1/2 inch |
|---|
| Duct Direction | Vertical |
|---|
| Power Cord Included | No |
|---|
| Exhaust Vent Location | Top |
|---|
| Damper Included | Yes |
|---|
| Height | 27 1/8 in |
|---|
| Task Light Type | LED |
|---|
| BTU Threshold | 65 K |
|---|
| Sound Max Speed (dB(A) | 66.0 |
|---|
| Cutout Height(IN,inches) | 10.8125 |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| Cutout Height Min(IN,inches) | 10.8125 |
|---|
| Night Light | No |
|---|
| CFM Motor Class | 400 |
|---|
| Minimum Height | 27 1/8 in |
|---|
| Net Weight | 40.0 in |
|---|
| Blower Motor | N/A |
|---|
| Number of Vent Speeds | 3 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Sound Max Speed (dB(A) | 66.0 |
|---|
| Depth(IN,inches) | 17.6875 |
|---|
| Energy Star® Certified | No |
|---|
| Cutout Height(IN,inches) | 10.8125 |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Carton Depth | 17 1/2 in |
|---|
| Carton Depth(IN,inches) | 17.5000 |
|---|
| Carton Width | 34 in |
|---|
| Carton Height | 25 1/2 in |
|---|
| Task Light Type | LED |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| Depth | 17 11/16 in |
|---|
| Net Weight | 40.0 in |
|---|
| Control Location | Front |
|---|
| Exhaust Vent Location | Top |
|---|
| Vent Material | Metal |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| CFM Motor Class | 400 |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| Volts | 120 |
|---|
| Blower Type | Centrifugal |
|---|
| Duct Direction | Vertical |
|---|
| Hz | 60 |
|---|
| Duct Type | Round |
|---|
| Task Lighting | Yes |
|---|
| Height(IN,inches) | 27.1250 |
|---|
| Carton Height | 25 1/2 in |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Amps | 2 |
|---|
| UL | Yes |
|---|
| Depth | 17 11/16 in |
|---|
| Sound Max Speed (dB(A) | 66.0 |
|---|
| Night Light Type | N/A |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| CFM Motor Class | 400 |
|---|
| Night Light | No |
|---|
| Maximum Height | 45 1/8 inch |
|---|
| Task Light Type | LED |
|---|
| Auto Function | No |
|---|
| Depth(IN,inches) | 17.6875 |
|---|
| Carton Height | 25 1/2 inch |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| Duct Length | 45.500 |
|---|
| Minimum Height | 27 1/8 in |
|---|
| BTU Threshold | 65 K |
|---|
| UL | Yes |
|---|
| Exhaust Vent Location | Top |
|---|
| Lighting Control Type | Push Button |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Power Cord Included | No |
|---|
| BTU Threshold | 65 K |
|---|
| Hz | 60 |
|---|
| Damper Included | Yes |
|---|
| Auto Function | No |
|---|
| Cutout Height (in) | 10 13/16 in |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| Energy Star® Certified | No |
|---|
| Number of Vent Speeds | 3 |
|---|
| Blower Type | Centrifugal |
|---|
| Prop 65 | Standard |
|---|
| Gross Weight | 51 in |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Vent Material | Metal |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Duct Type | Round |
|---|
| Exhaust Vent Location | Top |
|---|
| Canopy Height (IN,inches) | 10.81250 |
|---|
| Cutout Height(IN,inches) | 10.8125 |
|---|
| Night Light Type | N/A |
|---|
| Auto Function | No |
|---|
| Width | 36 in |
|---|
| Lighting Control Type | Push Button |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Prop 65 | Standard |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| Accessory Relationships | Yes |
|---|
| Maximum Height(IN,inches) | 45.1250 |
|---|
| Blower Motor | N/A |
|---|
| Width | 36 in |
|---|
| Carton Depth(IN,inches) | 17.5000 |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Canopy Height (IN,inches) | 10.81250 |
|---|
| Power Cord Included | No |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Duct Length | 45.500 |
|---|
| UL | Yes |
|---|
| Gross Weight | 51 in |
|---|
| Amps | 2 |
|---|
| Carton Depth(IN,inches) | 17.5000 |
|---|
| Cutout Height (in) | 10 13/16 in |
|---|
| Canopy Height (IN,inches) | 10.81250 |
|---|
| Volts | 120 |
|---|
| Depth(IN,inches) | 17.6875 |
|---|
| Carton Depth | 17 1/2 in |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Height | 25 1/2 in |
|---|
| Maximum Height | 45 1/8 in |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| Amps | 2 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| Volts | 120 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Control Location | Front |
|---|
| Blower Motor | N/A |
|---|
| Venting | Exterior or Recirculating |
|---|
| Auto Function | No |
|---|
| Amps | 2 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Canopy Height (IN,inches) | 10.81250 |
|---|
| CFM Motor Class | 400 |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Cutout Height (in) | 10 13/16 inch |
|---|
| Size (in.) | 36 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Cutout Height Min(IN,inches) | 10.8125 |
|---|
| Task Light Type | LED |
|---|
| Damper Included | Yes |
|---|
| Duct Type | Round |
|---|
| Carton Width | 34 in |
|---|
| Minimum Height(IN,inches) | 27.1250 |
|---|
| Energy Star® Certified | No |
|---|
| Depth(IN,inches) | 17.6875 |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Vent Material | Metal |
|---|
| Maximum Height | 45 1/8 in |
|---|
| Size (in.) | 36 |
|---|
| Duct Direction | Vertical |
|---|
| Height | 27 1/8 in |
|---|
| Maximum Height(IN,inches) | 45.1250 |
|---|
| Number of Vent Speeds | 3 |
|---|
| Power Cord Included | No |
|---|
| Carton Width | 34 inch |
|---|
| BTU Threshold | 65 K |
|---|
| Vent Material | Metal |
|---|
| Number of Vent Speeds | 3 |
|---|
| Cutout Height Min(IN,inches) | 10.8125 |
|---|
| Net Weight | 40.0 inch |
|---|
| Size (in.) | 36 |
|---|
| Minimum Height(IN,inches) | 27.1250 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Control Type | Push Button |
|---|
| Duct Type | Round |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Blower Type | Centrifugal |
|---|
| Width | 36 inch |
|---|
| Maximum Height(IN,inches) | 45.1250 |
|---|
| Hz | 60 |
|---|
| Prop 65 | Standard |
|---|
| Carton Depth(IN,inches) | 17.5000 |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Carton Depth | 17 1/2 in |
|---|
| Gross Weight | 51 in |
|---|
| Height(IN,inches) | 27.1250 |
|---|
| Size (in.) | 36 |
|---|
| Prop 65 | Standard |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Maximum Height(IN,inches) | 45.1250 |
|---|
| Night Light Type | N/A |
|---|
| Night Light | No |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Blower Type | Centrifugal |
|---|
| Duct Direction | Vertical |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Minimum Height(IN,inches) | 27.1250 |
|---|
| Hz | 60 |
|---|
| Hood Type | Wall-Mount Canopy |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| Control Location | Front |
|---|
| Minimum Height(IN,inches) | 27.1250 |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| Cutout Height Min(IN,inches) | 10.8125 |
|---|
| Net Weight | 40.0 in |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| Height(IN,inches) | 27.1250 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Minimum Height | 27 1/8 inch |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Duct Length | 45.500 |
|---|
| Blower Motor | N/A |
|---|
| Accessory Relationships | Yes |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Lighting Control Type | Push Button |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Control Type | Push Button |
|---|
| Carton Height(IN,inches) | 25.5000 |
|---|
| Depth | 17 11/16 in |
|---|
| Control Location | Front |
|---|
| Maximum Height | 45 1/8 in |
|---|
| Carton Width | 34 in |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Accessory Relationships | Yes |
|---|
