Product Description

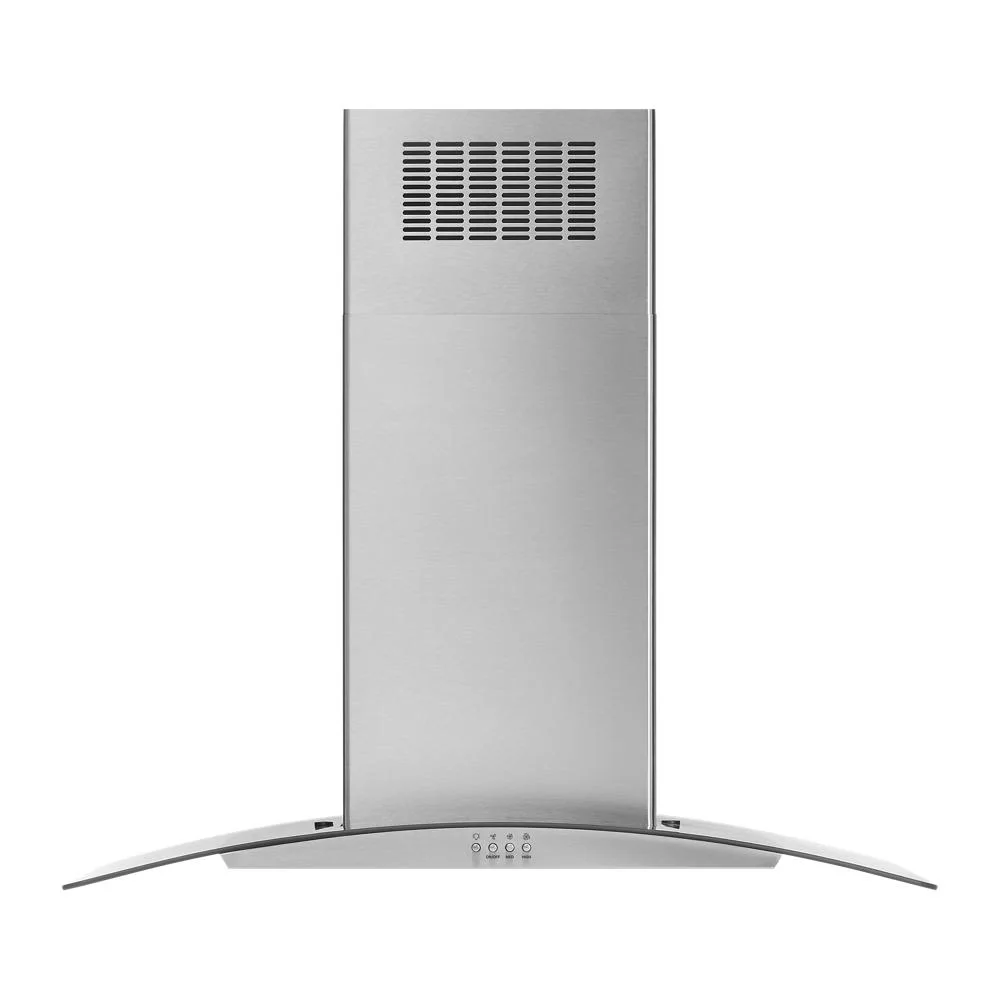

Vent smoke and odors with a powerful 400 CFM Motor Class range hood. This 36" kitchen island vent hood will also act as a stylish centerpiece for your cooking space. With a 3-speed range hood you'll get conveniences like a detachable grease filter, LED range hood lights and a 65K BTU cooktop threshold.
Features
- 3-Speed, 400 CFM Motor Class (Performance varies based on installation. Resources available at aham.org.) : Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- 6" Round Damper Included : Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- Optional Chimney Extension Kit : Extend chimney height for ceilings from 8'4" to 12'4" with the Optional Chimney Extension Kit. See installation instructions for details. Optional Chimney Extension Kit sold separately. Part number EXTKIT26FS.
- Grease Filter : Help trap unwanted grease and remove odors with a filter that unlatches from the hood so you can wash it with soap and water at the sink.
- LED Task Lighting : Bright, long-lasting LED task lighting makes it easy to see what you're cooking.
- 65K BTU Cooktop Threshold : Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.) : Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
- Push Button Controls :
Use Push Button Controls to easily control fan speed and cooktop lighting at the push of a button.
- ADA Compliant : When the range hood is wired to operate from a dedicated standard electrical wall switch, this hood meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all. See install instructions for ADA compliance for more details.
- Convertible Ventilation (recirculating or vented) : A convertible design allows for installation that can be vented externally or internally. When internal venting, recirculation passes the air through charcoal filters (sold separately) to trap grease and odors before pushing the air back into the home.
- Optional Recirculation Kit (non-vented/duct-free) : This hood can be installed without needing to vent outside. Recirculation passes the air through filters to trap grease and odors before pushing the air back into the home. Recirculation kit sold separately. Part number W11548459.
Specifications
| Maximum Height(IN,inches) | 49.3750 |
|---|
| Task Light Type | LED |
|---|
| Hz | 60 |
|---|
| Control Location | Front |
|---|
| Kosher Consumer Friendly | No |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Damper Included | Yes |
|---|
| Control Type | Push Button |
|---|
| Number of Night Light Settings | 0 |
|---|
| Blower Type | Centrifugal |
|---|
| Task Light Type | LED |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| Lighting Control Type | Push Button |
|---|
| Net Weight | 57.0 in |
|---|
| Width | 36 in |
|---|
| Maximum Height(IN,inches) | 49.3750 |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Carton Width | 40 1/2 in |
|---|
| Height | 28 1/16 in |
|---|
| Volts | 120 |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Carton Height | 22 1/2 in |
|---|
| Vent Material | Metal |
|---|
| Duct Length | 49.380 |
|---|
| Lighting Control Type | Push Button |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Night Light Type | N/A |
|---|
| HVI (Sones HS Horizontal) | N/A |
|---|
| Width | 36 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Vent Material | Metal |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Size (in.) | 36 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Carton Height | 22 1/2 in |
|---|
| Duct Length | 49.380 |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Number of Night Light Settings | 0 |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Number of Task Light Settings | 1 |
|---|
| BTU Threshold | 65 K |
|---|
| Carton Width | 40 1/2 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Prop 65 | Standard |
|---|
| Depth | 25 11/16 in |
|---|
| Accessory Relationships | Yes |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Gross Weight | 88 in |
|---|
| Venting | Exterior or Recirculating |
|---|
| Minimum Height(IN,inches) | 28.0625 |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Carton Height(IN,inches) | 22.5000 |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| HVI (Sones HS Horizontal) | N/A |
|---|
| Size (in.) | 36 |
|---|
| Task Lighting | Yes |
|---|
| Depth(IN,inches) | 25.6875 |
|---|
| UL | Yes |
|---|
| Gross Weight | 88 inch |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Carton Depth(IN,inches) | 33.0000 |
|---|
| Minimum Height | 28 1/16 in |
|---|
| Maximum Height | 49 3/8 in |
|---|
| Control Type | Push Button |
|---|
| Carton Height(IN,inches) | 22.5000 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Maximum Height(IN,inches) | 49.3750 |
|---|
| Damper Included | Yes |
|---|
| Height(IN,inches) | 28.0625 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Exhaust Vent Location | Top |
|---|
| Task Light Type | LED |
|---|
| Exhaust Vent Location | Top |
|---|
| Hood Type | Island Canopy |
|---|
| Depth | 25 11/16 in |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Depth(IN,inches) | 25.6875 |
|---|
| Auto Function | No |
|---|
| HVI (Sones HS Horizontal) | N/A |
|---|
| Venting | Exterior or Recirculating |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Hood Type | Island Canopy |
|---|
| Carton Depth(IN,inches) | 33.0000 |
|---|
| Carton Width | 40 1/2 inch |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Duct Direction | Vertical |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Blower Type | Centrifugal |
|---|
| UL | Yes |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Duct Type | Round |
|---|
| Depth | 25 11/16 in |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Gross Weight | 88 in |
|---|
| Carton Depth | 33 in |
|---|
| BTU Threshold | 65 K |
|---|
| Exhaust Vent Location | Top |
|---|
| Canopy Height (IN,inches) | 28.62500 |
|---|
| Vent Material | Metal |
|---|
| Height(IN,inches) | 28.0625 |
|---|
| Damper Included | Yes |
|---|
| Auto Function | No |
|---|
| Exhaust Vent Location | Top |
|---|
| Control Location | Front |
|---|
| Carton Width(IN,inches) | 40.5000 |
|---|
| Width | 36 inch |
|---|
| Depth | 25 11/16 inch |
|---|
| Carton Height | 22 1/2 inch |
|---|
| Kosher Consumer Friendly | No |
|---|
| Control Type | Push Button |
|---|
| Volts | 120 |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Minimum Height(IN,inches) | 28.0625 |
|---|
| Night Light | No |
|---|
| Net Weight | 57.0 inch |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| Power Cord Included | No |
|---|
| Duct Type | Round |
|---|
| Carton Width | 40 1/2 in |
|---|
| Night Light Type | N/A |
|---|
| Task Light Type | LED |
|---|
| HVI (Sones HS Vertical) | 7 |
|---|
| Height | 28 1/16 in |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Carton Height | 22 1/2 in |
|---|
| Gross Weight | 88 in |
|---|
| Accessory Relationships | Yes |
|---|
| Maximum Height | 49 3/8 in |
|---|
| Vent Material | Metal |
|---|
| UL | Yes |
|---|
| Maximum Height | 49 3/8 in |
|---|
| Number of Task Light Settings | 1 |
|---|
| Power Cord Included | No |
|---|
| Hz | 60 |
|---|
| Duct Type | Round |
|---|
| Minimum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 80 |
|---|
| Height(IN,inches) | 28.0625 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Prop 65 | Standard |
|---|
| Maximum Height(IN,inches) | 49.3750 |
|---|
| Number of Vent Speeds | 3 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Blower Type | Centrifugal |
|---|
| Task Lighting | Yes |
|---|
| Control Type | Push Button |
|---|
| Minimum Height | 28 1/16 in |
|---|
| Minimum Height(IN,inches) | 28.0625 |
|---|
| UL | Yes |
|---|
| Hz | 60 |
|---|
| BTU Threshold | 65 K |
|---|
| Number of Vent Speeds | 3 |
|---|
| Hood Type | Island Canopy |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Canopy Height (IN,inches) | 28.62500 |
|---|
| Carton Depth | 33 in |
|---|
| Minimum Height | 28 1/16 inch |
|---|
| Lighting Control Type | Push Button |
|---|
| Carton Width(IN,inches) | 40.5000 |
|---|
| Auto Function | No |
|---|
| Volts | 120 |
|---|
| Night Light | No |
|---|
| Net Weight | 57.0 in |
|---|
| Power Cord Included | No |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| HVI (CFM HS Vertical) | 340 |
|---|
| Canopy Height (IN,inches) | 28.62500 |
|---|
| Volts | 120 |
|---|
| Size (in.) | 36 |
|---|
| Control Location | Front |
|---|
| Carton Width(IN,inches) | 40.5000 |
|---|
| Duct Direction | Vertical |
|---|
| Prop 65 | Standard |
|---|
| Minimum Height | 28 1/16 in |
|---|
| Task Lighting | Yes |
|---|
| Height | 28 1/16 in |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| Carton Depth | 33 inch |
|---|
| BTU Threshold | 65 K |
|---|
| Duct Direction | Vertical |
|---|
| Accessory Relationships | Yes |
|---|
| Maximum Height | 49 3/8 inch |
|---|
| Control Location | Front |
|---|
| Duct Type | Round |
|---|
| Power Cord Included | No |
|---|
| Height | 28 1/16 inch |
|---|
| Number of Night Light Settings | 0 |
|---|
| Blower Type | Centrifugal |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 340 |
|---|
| Energy Star® Qualified | No |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| Sound Max Speed (Sones) | 7.0 |
|---|
| Duct Direction | Vertical |
|---|
| Lighting Control Type | Push Button |
|---|
| Net Weight | 57.0 in |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Energy Star® Certified | No |
|---|
| Filters | Aluminum Mesh Filter |
|---|
| Prop 65 | Standard |
|---|
| Sound Min Speed (Sones) | 0.60 |
|---|
| Night Light Type | N/A |
|---|
| Depth(IN,inches) | 25.6875 |
|---|
| Number of Night Light Settings | 0 |
|---|
| Hz | 60 |
|---|
| Duct Length | 49.380 |
|---|
| Task Lighting | Yes |
|---|
| Minimum Height(IN,inches) | 28.0625 |
|---|
| Depth(IN,inches) | 25.6875 |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Carton Depth | 33 in |
|---|
| Accessory Relationships | Yes |
|---|
| Size (in.) | 36 |
|---|
| Carton Depth(IN,inches) | 33.0000 |
|---|
| Night Light Type | N/A |
|---|
| Carton Width(IN,inches) | 40.5000 |
|---|
| Night Light | No |
|---|
| Energy Star® Certified | No |
|---|
| Duct Length | 49.380 |
|---|
| Height(IN,inches) | 28.0625 |
|---|
| Carton Height(IN,inches) | 22.5000 |
|---|
| Number of Task Light Settings | 1 |
|---|
| HVI (CFM HS Horizontal) | N/A |
|---|
| Canopy Height (IN,inches) | 28.62500 |
|---|
| Hood and Vent Selections | Fan High,Fan Med,Fan On/Off,Lamp |
|---|
| Energy Star® Certified | No |
|---|
| Width | 36 in |
|---|
| Carton Depth(IN,inches) | 33.0000 |
|---|
| Damper Included | Yes |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| HVI (Sones HS Horizontal) | N/A |
|---|
| Night Light | No |
|---|
| Carton Height(IN,inches) | 22.5000 |
|---|
| Auto Function | No |
|---|
| Hood Type | Island Canopy |
|---|
