Product Description

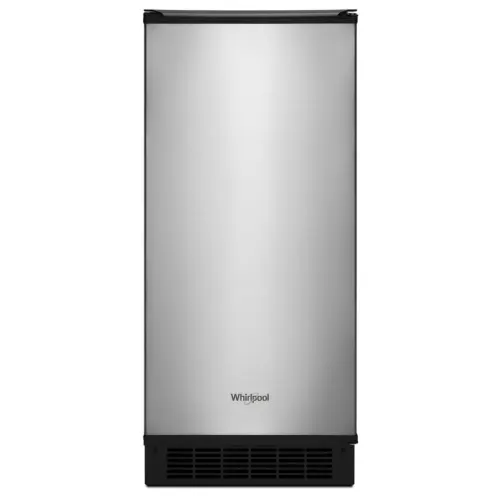

Keep plenty of fresh ice on hand, wherever you need it most, with icemakers that store up to 25 pounds of ice and can be installed under a counter or on their own. Clear Ice Technology removes the gases and impurities in ice that cause cloudiness and foaming in carbonated drinks, while the Fast Ice Option speeds up ice production. Also, an easy-to-use Ice Scoop lets you quickly serve up cold beverages or fill coolers.
Features
- Reversible Door : Access fresh ice from either direction with a door that can hinge on the right or left.
- Electronic Touch Controls : Navigate through modes and options with controls that are as easy to use as they are to clean.
- LED Interior Lighting : Keep ice looking as good as it tastes with LED Interior Lighting that illuminates the inside.
- Flexible Installation : Install this icemaker over a drain or use the drain pump accessory (Part #1901A, sold separately) to install almost anywhere within 100 feet of a drain on a flat surface, so you always have ice on hand when you need it.
-
25-lb Capacity : Keep up to 25 pounds of fresh ice on hand with a large capacity bin.
-
Self-Cleaning Cycle : Make maintaining your icemaker easy with an indicator that lets you know when to run this cycle with affresh® ice machine cleaner to reduce mineral scale buildup.
- Clear Ice Technology : Keep beverages fresh and reduce foam in carbonated drinks with Clear Ice Technology. The freezing process removes the air bubbles and impurities that cloud your drink.
- Ice Scoop : Quickly serve up cold beverages or fill coolers with an easy-to-use Ice Scoop.
- Easy Access Filter Install : Easily install a water filter in an accessible area right by the controls. Water filter sold separately.
Specifications
| Amps | 15 or 20 |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Drain Pump | No, Gravity Drain |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Interior Light | LED |
|---|
| Interior Liner Finish | Plastic |
|---|
| Liner Color | White |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| ADA Compliant | No |
|---|
| Carton Depth(IN,inches) | 28.3750 |
|---|
| Carton Height(IN,inches) | 36.1250 |
|---|
| Carton Width(IN,inches) | 17.2500 |
|---|
| Cutout Height Min(IN,inches) | 34.5000 |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
| Amps | 15 or 20 |
|---|
| Volts | 115/120 |
|---|
| CEE Tier | Not Rated |
|---|
| Energy Star® Qualified | No |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Accessory Relationships | Yes |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| Style | Ice Makers |
|---|
| Cabinet Width (in) | 14 7/8 inch |
|---|
| Carton Depth | 28 3/8 inch |
|---|
| Carton Height | 36 1/8 inch |
|---|
| Carton Width | 17 1/4 inch |
|---|
| Cutout Depth (in) | 25 inch |
|---|
| Cutout Height (in) | 34 1/2 inch |
|---|
| Cutout Width (in) | 15 inch |
|---|
| Depth | 25 3/8 inch |
|---|
| Height | 34 1/16 inch |
|---|
| Width | 14 7/8 inch |
|---|
| Depth Closed Excluding Handles | 23 1/8 inch |
|---|
| Depth Closed Including Handles | 25 3/8 inch |
|---|
| Depth Excluding Doors | 21 1/2 inch |
|---|
| Depth With Door Open 90 Degree | 36 7/8 inch |
|---|
| Gross Weight | 107 inch |
|---|
| Height To Top Of Cabinet | 33 5/8 inch |
|---|
| Height To Top Of Door Hinge | 34 1/16 inch |
|---|
| Net Weight | 96.5 inch |
|---|
| Liner Color | White |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Carton Width(IN,inches) | 17.2500 |
|---|
| Cutout Width (in) | 15 in |
|---|
| Depth Closed Including Handles(IN,inches) | 25.3750 |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Depth | 25 3/8 in |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Reversible Door | Yes |
|---|
| Height | 34 1/16 in |
|---|
| Volts | 115/120 |
|---|
| Cabinet Width (IN,inches) | 14.8750 |
|---|
| Cutout Depth(IN,inches) | 25.0000 |
|---|
| Cutout Height(IN,inches) | 34.5000 |
|---|
| Cutout Width(IN,inches) | 15.0000 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 23.1250 |
|---|
| Depth Closed Including Handles(IN,inches) | 25.3750 |
|---|
| Depth Excluding Doors(IN,inches) | 21.5000 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 36.8750 |
|---|
| Depth(IN,inches) | 25.3750 |
|---|
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Width(IN,inches) | 14.8750 |
|---|
| Cabinet Finish | Textured |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Door Opening | Right |
|---|
| Handle Color | Stainless Steel |
|---|
| Handle Location | Horizontal |
|---|
| Handle Material | Plastic |
|---|
| Handle Type | Pocket-Handle and Foot Pedal |
|---|
| Reversible Door | Yes |
|---|
| Control Location | Interior Up Front |
|---|
| Control Type | Electronic Touch |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Ice Maker On/Off | Yes |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Selections | Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice |
|---|
| Width Doors Open 90 Degrees | 36.875 |
|---|
| Water Filter Location | Interior |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 36.8750 |
|---|
| Cutout Height(IN,inches) | 34.5000 |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| ADA Compliant | No |
|---|
| Carton Height | 36 1/8 in |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Width | 14 7/8 in |
|---|
| Cutout Depth(IN,inches) | 25.0000 |
|---|
| UL | Yes |
|---|
| Height To Top Of Cabinet | 33 5/8 in |
|---|
| Drain Pump | No, Gravity Drain |
|---|
| Style | Ice Makers |
|---|
| Net Weight | 96.5 in |
|---|
| Depth With Door Open 90 Degree | 36 7/8 in |
|---|
| Handle Location | Horizontal |
|---|
| Width Doors Open 90 Degrees | 36.875 |
|---|
| Cutout Width(IN,inches) | 15.0000 |
|---|
| Gross Weight | 107 in |
|---|
| Carton Width | 17 1/4 in |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Interior Liner Finish | Plastic |
|---|
| CEE Tier | Not Rated |
|---|
| Cabinet Width (IN,inches) | 14.8750 |
|---|
| Prop 65 | Standard |
|---|
| Depth | 25 3/8 in |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| Depth Closed Excluding Handles(IN,inches) | 23.1250 |
|---|
| Cutout Width (in) | 15 in |
|---|
| Net Weight | 96.5 in |
|---|
| Depth Excluding Doors(IN,inches) | 21.5000 |
|---|
| Cutout Depth (in) | 25 in |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
|---|
| Depth Closed Excluding Handles | 23 1/8 in |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Water Filter Location | Interior |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
|---|
| Style | Ice Makers |
|---|
| Cutout Height (in) | 34 1/2 in |
|---|
| Carton Depth | 28 3/8 in |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Amps | 15 or 20 |
|---|
| Height To Top Of Door Hinge | 34 1/16 in |
|---|
| Door Opening | Right |
|---|
| Handle Location | Horizontal |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| Prop 65 | Standard |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Accessory Relationships | Yes |
|---|
| Handle Type | Pocket-Handle and Foot Pedal |
|---|
| Water Filter Location | Interior |
|---|
| Interior Light | LED |
|---|
| Depth(IN,inches) | 25.3750 |
|---|
| Control Type | Electronic Touch |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Cutout Height Min(IN,inches) | 34.5000 |
|---|
| Control Type | Electronic Touch |
|---|
| Energy Star® Certified | No |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 36.8750 |
|---|
| Carton Depth(IN,inches) | 28.3750 |
|---|
| Accessory Relationships | Yes |
|---|
| Height To Top Of Door Hinge | 34 1/16 in |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Carton Height | 36 1/8 in |
|---|
| Cabinet Width (in) | 14 7/8 in |
|---|
| Handle Location | Horizontal |
|---|
| Depth | 25 3/8 in |
|---|
| Drain Pump | No, Gravity Drain |
|---|
| Cutout Height(IN,inches) | 34.5000 |
|---|
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
|---|
| Carton Depth(IN,inches) | 28.3750 |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Amps | 15 or 20 |
|---|
| Energy Star® Certified | No |
|---|
| Cabinet Finish | Textured |
|---|
| Style | Ice Makers |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| Width(IN,inches) | 14.8750 |
|---|
| Interior Light | LED |
|---|
| Depth With Door Open 90 Degree | 36 7/8 in |
|---|
| Door Opening | Right |
|---|
| Cutout Height(IN,inches) | 34.5000 |
|---|
| Interior Liner Finish | Plastic |
|---|
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
|---|
| Width Doors Open 90 Degrees | 36.875 |
|---|
| Liner Color | White |
|---|
| Depth(IN,inches) | 25.3750 |
|---|
| Carton Height(IN,inches) | 36.1250 |
|---|
| Cutout Width(IN,inches) | 15.0000 |
|---|
| Cutout Depth(IN,inches) | 25.0000 |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Depth Excluding Doors | 21 1/2 in |
|---|
| Handle Type | Pocket-Handle and Foot Pedal |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Door Opening | Right |
|---|
| Depth Closed Excluding Handles(IN,inches) | 23.1250 |
|---|
| Control Type | Electronic Touch |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| Cutout Depth (in) | 25 in |
|---|
| Cutout Height Min(IN,inches) | 34.5000 |
|---|
| Depth Closed Excluding Handles | 23 1/8 in |
|---|
| Interior Liner Finish | Plastic |
|---|
| CEE Tier | Not Rated |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
| Depth Closed Including Handles(IN,inches) | 25.3750 |
|---|
| Gross Weight | 107 in |
|---|
| Carton Width(IN,inches) | 17.2500 |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Height | 34 1/16 in |
|---|
| Height To Top Of Cabinet | 33 5/8 in |
|---|
| Control Location | Interior Up Front |
|---|
| Cutout Height (in) | 34 1/2 in |
|---|
| Handle Color | Stainless Steel |
|---|
| Depth Closed Including Handles | 25 3/8 in |
|---|
| Drain Pump | No, Gravity Drain |
|---|
| Cutout Height Min(IN,inches) | 34.5000 |
|---|
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
|---|
| Cutout Width(IN,inches) | 15.0000 |
|---|
| Handle Material | Plastic |
|---|
| Width Doors Open 90 Degrees | 36.875 |
|---|
| Depth Closed Including Handles(IN,inches) | 25.3750 |
|---|
| Net Weight | 96.5 in |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Depth Closed Excluding Handles(IN,inches) | 23.1250 |
|---|
| Gross Weight | 107 in |
|---|
| Ice Maker On/Off | Yes |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Width | 14 7/8 in |
|---|
| Cabinet Width (IN,inches) | 14.8750 |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| ADA Compliant | No |
|---|
| Depth Closed Excluding Handles | 23 1/8 in |
|---|
| Cutout Width (in) | 15 in |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Reversible Door | Yes |
|---|
| Carton Width(IN,inches) | 17.2500 |
|---|
| Selections | Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Control Location | Interior Up Front |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| CEE Tier | Not Rated |
|---|
| Depth Excluding Doors(IN,inches) | 21.5000 |
|---|
| Volts | 115/120 |
|---|
| Depth Closed Including Handles | 25 3/8 in |
|---|
| Cabinet Width (in) | 14 7/8 in |
|---|
| Ice Maker On/Off | Yes |
|---|
| Carton Height | 36 1/8 in |
|---|
| Liner Color | White |
|---|
| UL | Yes |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Cabinet Finish | Textured |
|---|
| Width | 14 7/8 in |
|---|
| Depth Excluding Doors(IN,inches) | 21.5000 |
|---|
| Carton Depth | 28 3/8 in |
|---|
| Cutout Height (in) | 34 1/2 in |
|---|
| Carton Height(IN,inches) | 36.1250 |
|---|
| Carton Depth | 28 3/8 in |
|---|
| Handle Material | Plastic |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Handle Type | Pocket-Handle and Foot Pedal |
|---|
| Carton Height(IN,inches) | 36.1250 |
|---|
| Cabinet Finish | Textured |
|---|
| Selections | Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice |
|---|
| Depth With Door Open 90 Degree | 36 7/8 in |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| UL | Yes |
|---|
| Width(IN,inches) | 14.8750 |
|---|
| Depth(IN,inches) | 25.3750 |
|---|
| Carton Width | 17 1/4 in |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| ADA Compliant | No |
|---|
| Height To Top Of Door Hinge | 34 1/16 in |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Prop 65 | Standard |
|---|
| Reversible Door | Yes |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| Height To Top Of Cabinet | 33 5/8 in |
|---|
| Selections | Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice |
|---|
| Handle Color | Stainless Steel |
|---|
| Cutout Depth(IN,inches) | 25.0000 |
|---|
| Depth Excluding Doors | 21 1/2 in |
|---|
| Width(IN,inches) | 14.8750 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 36.8750 |
|---|
| Control Location | Interior Up Front |
|---|
| Cabinet Width (IN,inches) | 14.8750 |
|---|
| Handle Material | Plastic |
|---|
| Carton Width | 17 1/4 in |
|---|
| Accessory Relationships | Yes |
|---|
| Depth Closed Including Handles | 25 3/8 in |
|---|
| Ice Maker On/Off | Yes |
|---|
| Carton Depth(IN,inches) | 28.3750 |
|---|
| Water Filter Location | Interior |
|---|
| Interior Light | LED |
|---|
| Energy Star® Certified | No |
|---|
| Cabinet Width (in) | 14 7/8 in |
|---|
| Handle Color | Stainless Steel |
|---|
| Cutout Depth (in) | 25 in |
|---|
| Height | 34 1/16 in |
|---|
| Depth Excluding Doors | 21 1/2 in |
|---|
| Volts | 115/120 |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
