Product Description

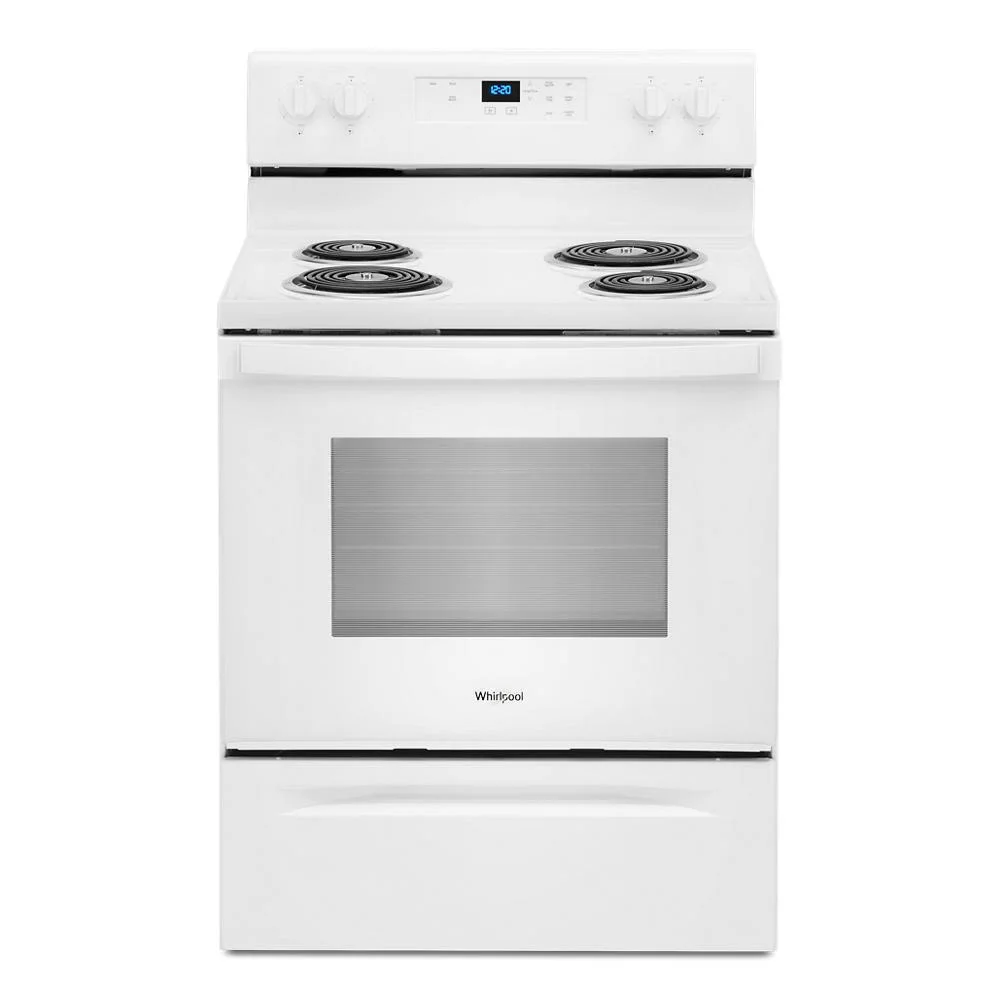

This Whirlpool® Electric Range helps you get dinner to the table, even on a hectic schedule. The Keep Warm setting prevents dinner from getting cold. Closed door broiling helps keep the kitchen comfortable. You can also avoid unintended use with an oven control lock.
Features
- Keep Warm setting : Keep dishes from getting cold with a setting that delivers low heat to the oven, so your meal is ready when you are.
- Large Oven Window : Keep an eye on your meal and track cooking progress through the Large Oven Window.
- Closed Door Broiling : Maintain the optimal broiling temperature for food while still keeping the kitchen comfortable using this broiling temperature management system.
- Control Lock Mode : Disable the control panel to avoid unintended use and easily clean the controls.
- 4.8 Cu. Ft. Capacity : Easily cook large meals with 4.8 cu. ft. capacity.
- Upswept SpillGuard™ Cooktop : Clean up faster with a cooktop that has raised edges to help contain spills.
- An American company for over 100 years : Whirlpool Corporation started in 1911 as a small company in Benton Harbor, Michigan. Today we are a global home appliance business selling products around the world. We are proud of our American heritage and ingenuity that have driven innovation for over 100 years.
Specifications
| Cooktop Control Type | Knobs |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Cutout Depth(IN,inches) | 24 |
|---|
| Cutout Height(IN,inches) | 36 |
|---|
| Cutout Width(IN,inches) | 30 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25 5/16 |
|---|
| Depth Closed Including Handles(IN,inches) | 28 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46 11/16 |
|---|
| Depth(IN,inches) | 28 |
|---|
| Height(IN,inches) | 47 7/8 |
|---|
| Maximum Height(IN,inches) | 47 7/8 |
|---|
| Minimum Height(IN,inches) | 46 7/8 |
|---|
| Net Weight(LB,pounds) | 142 |
|---|
| Width(IN,inches) | 29 7/8 |
|---|
| Fuel Type | Electric |
|---|
| Range Type | Freestanding |
|---|
| Size (in.) | 30 |
|---|
| Door Removable | Yes |
|---|
| Door Type | Glass Window |
|---|
| Drawer Type | Storage Drawer |
|---|
| Handle Color | White |
|---|
| Handle Material | Metal |
|---|
| Handle Type | Reach Through Handle |
|---|
| Oven Window Size | Extra Large |
|---|
| Display Color | Blue |
|---|
| Electronic Display Type | LED |
|---|
| Automatic Convection Conversion Temperature Adjust | No |
|---|
| Griddle | NA |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Power On Indicator Light | Yes |
|---|
| Power Outage Compatible | No |
|---|
| Selection | Audible Signal,Bake,Broil,Cancel/Off,Clock,Control Lock,Cook Time Indicator,Delay Start,Keep Warm Setting,Sabbath Mode,Start Time,Stop Time,Timer,Warm Hold |
|---|
| Automatic Shut-Off | No |
|---|
| Interior Color | Black |
|---|
| Oven Control Knob Color | White |
|---|
| Oven Control Knob Type | Plastic |
|---|
| Oven Control Location | Backguard |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Oven Cooking System | Thermal |
|---|
| Bake Element Power | 2,400 W |
|---|
| Hidden Bake Element | No |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Broiler Location | Top Center |
|---|
| Number of Oven Lights | 1 |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Oven Light Type | Incandescent |
|---|
| Oven Interior Depth(IN,inches) | 18 1/2 |
|---|
| Oven Interior Height(IN,inches) | 18 1/8 |
|---|
| Oven Interior Width(IN,inches) | 24 1/2 |
|---|
| Number of Oven Racks | 2 |
|---|
| Number of Rack Guides | 5 |
|---|
| Oven Rack Type | Standard (Both) |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Cooktop Configuration | All Burners |
|---|
| Cooktop Control Knob Color | White |
|---|
| Cooktop Control Knob Type | Plastic |
|---|
| Cooktop Control Location | Backguard |
|---|
| Cooktop Control Type | Knobs |
|---|
| Cooktop Element Style | Coil |
|---|
| Cooktop Surface Color | Black |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Left Front Element-Burner Power | 2,400W |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Left Rear Element-Burner Power | 1,500W |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Right Front Element-Burner Power | 1,500W |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Right Rear Element-Burner Power | 2,400W |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Right Rear Element-Burner Type | Standard |
|---|
| ADA Compliant | No |
|---|
| CUL | No |
|---|
| Kosher Consumer Friendly | No |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 30 |
|---|
| Carton Height(IN,inches) | 49 |
|---|
| Carton Width(IN,inches) | 32 |
|---|
| Gross Weight(LB,pounds) | 147 |
|---|
| Amps | 40 |
|---|
| Power Cord Included | No |
|---|
| Volts | 120/240 |
|---|
| Watts | 6900 |
|---|
| Accessory Relationships | Yes |
|---|
| Oven Configuration | Single Oven |
|---|
| Range Configuration | Freestanding |
|---|
| Carton Depth | 30 inch |
|---|
| Carton Height | 49 inch |
|---|
| Carton Width | 32 inch |
|---|
| Depth | 28 inch |
|---|
| Height | 47 7/8 inch |
|---|
| Width | 29 7/8 inch |
|---|
| Gross Weight | 147 inch |
|---|
| Net Weight | 142.0 inch |
|---|
| Oven Control Location | Backguard |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Left Rear Element-Burner Power | 1,500W |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Electronic Display Type | LED |
|---|
| Kosher Consumer Friendly | No |
|---|
| Net Weight | 142.0 in |
|---|
| Oven Window Size | Extra Large |
|---|
| Number of Rack Guides | 5 |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Right Front Element-Burner Power | 1,500W |
|---|
| Door Removable | Yes |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Oven Window Size | Extra Large |
|---|
| Hidden Bake Element | No |
|---|
| Cooktop Element Style | Coil |
|---|
| Left Rear Element-Burner Power | 1,500W |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Cooktop Control Knob Color | White |
|---|
| Watts | 6900 |
|---|
| Automatic Convection Conversion Temperature Adjust | No |
|---|
| Depth | 28 in |
|---|
| Oven Automatic Shut-Off | No |
|---|
| Net Weight(LB,pounds) | 142 |
|---|
| Cooktop Configuration | All Burners |
|---|
| Height(IN,inches) | 47.8750 |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Hidden Bake Element | No |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Prop 65 | Standard |
|---|
| Right Rear Element-Burner Type | Standard |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Carton Height(IN,inches) | 49.0000 |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Cooktop Surface Color | Black |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Number of Oven Racks | 2 |
|---|
| ADA Compliant | No |
|---|
| Oven Configuration | Single Oven |
|---|
| Handle Type | Reach Through Handle |
|---|
| Oven Automatic Shut-Off | No |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Gross Weight | 147 in |
|---|
| Number of Oven Lights | 1 |
|---|
| Handle Material | Metal |
|---|
| Watts | 6900 |
|---|
| Oven Light Type | Incandescent |
|---|
| Cooktop Control Location | Backguard |
|---|
| Cooktop Control Knob Type | Plastic |
|---|
| Left Front Element-Burner Power | 2,400W |
|---|
| Net Weight(LB,pounds) | 142 |
|---|
| Height(IN,inches) | 47.8750 |
|---|
| Interior Color | Black |
|---|
| Door Removable | Yes |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Gross Weight(LB,pounds) | 147 |
|---|
| Broiler Location | Top Center |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Handle Type | Reach Through Handle |
|---|
| Number of Oven Racks | 2 |
|---|
| Carton Height | 48 3/4 in |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Depth(IN,inches) | 28.0000 |
|---|
| ADA Compliant | No |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Cooktop Control Location | Backguard |
|---|
| Oven Rack Type | Standard (Both) |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| UL | Yes |
|---|
| Width | 29 7/8 in |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Oven Control Knob Color | White |
|---|
| Accessory Relationships | Yes |
|---|
| Right Rear Element-Burner Power | 2,400W |
|---|
| Selection | Audible Signal,Bake,Broil,Cancel/Off,Clock,Control Lock,Cook Time Indicator,Delay Start,Keep Warm Setting,Sabbath Mode,Start Time,Stop Time,Timer,Warm Hold |
|---|
| Display Color | Blue |
|---|
| Depth | 28 in |
|---|
| Size (in.) | 30 |
|---|
| Power On Indicator Light | Yes |
|---|
| Cooktop Control Knob Color | White |
|---|
| Carton Depth(IN,inches) | 30.0000 |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| UL | Yes |
|---|
| Width | 29 7/8 in |
|---|
| Oven Cooking System | Thermal |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Carton Depth | 29 in |
|---|
| Broiler Location | Top Center |
|---|
| Electronic Display Type | LED |
|---|
| Carton Width | 32 in |
|---|
| Door Type | Glass Window |
|---|
| Volts | 120/240 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Power Outage Compatible | No |
|---|
| Oven Window Size | Extra Large |
|---|
| Power On Indicator Light | Yes |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Width | 29 7/8 in |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Right Rear Element-Burner Power | 2,400W |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Cooktop Configuration | All Burners |
|---|
| Depth Closed Including Handles(IN,inches) | 28.0000 |
|---|
| Bake Element Power | 2,400 W |
|---|
| Hidden Bake Element | No |
|---|
| Door Removable | Yes |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Cooktop Control Knob Type | Plastic |
|---|
| Kosher Consumer Friendly | No |
|---|
| Depth | 28 in |
|---|
| Selection | Audible Signal,Bake,Broil,Cancel/Off,Clock,Control Lock,Cook Time Indicator,Delay Start,Keep Warm Setting,Sabbath Mode,Start Time,Stop Time,Timer,Warm Hold |
|---|
| Cooktop Control Location | Backguard |
|---|
| Oven Rack Type | Standard (Both) |
|---|
| Door Type | Glass Window |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Power Outage Compatible | No |
|---|
| Number of Oven Lights | 1 |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Interior Color | Black |
|---|
| Fuel Type | Electric |
|---|
| Oven Control Location | Backguard |
|---|
| Oven Cooking System | Thermal |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Carton Depth | 29 in |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Net Weight | 142.0 in |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Left Rear Element-Burner Power | 1,500W |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Oven Light Type | Incandescent |
|---|
| Power On Indicator Light | Yes |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Power Cord Included | No |
|---|
| Carton Height(IN,inches) | 49.0000 |
|---|
| Handle Material | Metal |
|---|
| Size (in.) | 30 |
|---|
| Handle Color | White |
|---|
| Cooktop Control Knob Type | Plastic |
|---|
| Height | 47 7/8 in |
|---|
| Bake Element Power | 2,400 W |
|---|
| Range Configuration | Freestanding |
|---|
| Oven Rack Type | Standard (Both) |
|---|
| Handle Color | White |
|---|
| Volts | 120/240 |
|---|
| Net Weight(LB,pounds) | 142 |
|---|
| Carton Depth(IN,inches) | 30.0000 |
|---|
| Automatic Convection Conversion Temperature Adjust | No |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Number of Oven Racks | 2 |
|---|
| ADA Compliant | No |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Carton Width | 32 in |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Handle Color | White |
|---|
| Cooktop Control Knob Color | White |
|---|
| Accessory Relationships | Yes |
|---|
| Depth(IN,inches) | 28.0000 |
|---|
| CUL | No |
|---|
| Griddle | N/A |
|---|
| Prop 65 | Standard |
|---|
| Height | 47 7/8 in |
|---|
| Carton Height(IN,inches) | 49.0000 |
|---|
| Range Configuration | Freestanding |
|---|
| Carton Height | 48 3/4 in |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Griddle | N/A |
|---|
| Cooktop Surface Color | Black |
|---|
| Power Cord Included | No |
|---|
| Number of Rack Guides | 5 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Right Front Element-Burner Power | 1,500W |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Gross Weight | 147 in |
|---|
| Cooktop Control Type | Knobs |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Oven Control Location | Backguard |
|---|
| Handle Material | Metal |
|---|
| Cooktop Configuration | All Burners |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Handle Type | Reach Through Handle |
|---|
| UL | Yes |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Fuel Type | Electric |
|---|
| Cooktop Element Style | Coil |
|---|
| CUL | No |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Carton Depth | 29 in |
|---|
| Oven Control Knob Type | Plastic |
|---|
| Depth(IN,inches) | 28.0000 |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Right Rear Element-Burner Type | Standard |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Power Cord Included | No |
|---|
| Broiler Location | Top Center |
|---|
| Oven Automatic Shut-Off | No |
|---|
| Oven Control Knob Type | Plastic |
|---|
| Selection | Audible Signal,Bake,Broil,Cancel/Off,Clock,Control Lock,Cook Time Indicator,Delay Start,Keep Warm Setting,Sabbath Mode,Start Time,Stop Time,Timer,Warm Hold |
|---|
| Gross Weight(LB,pounds) | 147 |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| CUL | No |
|---|
| Size (in.) | 30 |
|---|
| Amps | 40 |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Amps | 40 |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Depth Closed Including Handles(IN,inches) | 28.0000 |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Carton Width | 32 in |
|---|
| Oven Cooking System | Thermal |
|---|
| Cooktop Control Type | Knobs |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Carton Height | 48 3/4 in |
|---|
| Height(IN,inches) | 47.8750 |
|---|
| Griddle | N/A |
|---|
| Door Type | Glass Window |
|---|
| Amps | 40 |
|---|
| Bake Element Power | 2,400 W |
|---|
| Net Weight | 142.0 in |
|---|
| Oven Control Knob Color | White |
|---|
| Display Color | Blue |
|---|
| Cooktop Element Style | Coil |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Left Front Element-Burner Power | 2,400W |
|---|
| Accessory Relationships | Yes |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Number of Oven Lights | 1 |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Number of Rack Guides | 5 |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Electronic Display Type | LED |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Oven Control Knob Color | White |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Range Type | Freestanding |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Gross Weight(LB,pounds) | 147 |
|---|
| Interior Color | Black |
|---|
| Prop 65 | Standard |
|---|
| Power Outage Compatible | No |
|---|
| Range Configuration | Freestanding |
|---|
| Automatic Convection Conversion Temperature Adjust | No |
|---|
| Height | 47 7/8 in |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Left Front Element-Burner Power | 2,400W |
|---|
| Range Type | Freestanding |
|---|
| Display Color | Blue |
|---|
| Cooktop Surface Color | Black |
|---|
| Fuel Type | Electric |
|---|
| Oven Configuration | Single Oven |
|---|
| Right Front Element-Burner Power | 1,500W |
|---|
| Watts | 6900 |
|---|
| Oven Control Knob Type | Plastic |
|---|
| Right Rear Element-Burner Power | 2,400W |
|---|
| Volts | 120/240 |
|---|
| Depth Closed Including Handles(IN,inches) | 28.0000 |
|---|
| Right Rear Element-Burner Type | Standard |
|---|
| Oven Light Type | Incandescent |
|---|
| Range Type | Freestanding |
|---|
| Left Front Element-Burner Type | Standard |
|---|
| Gross Weight | 147 in |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Oven Configuration | Single Oven |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Carton Depth(IN,inches) | 30.0000 |
|---|
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
