Product Description

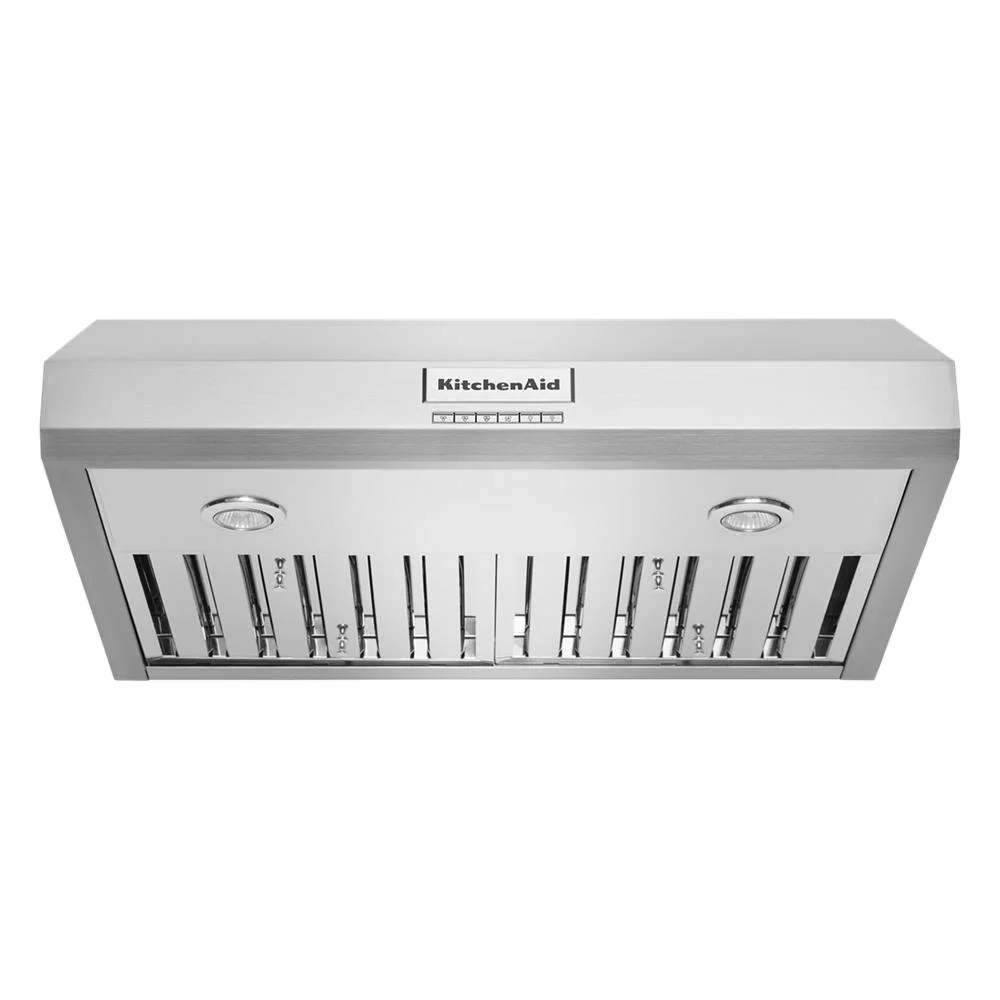

Equip your kitchen with a powerful 30-inch 585 CFM motor class under-cabinet range hood system designed to pair with 30-inch KitchenAid® Commercial-Style Ranges and Rangetops. A 75,000 BTU rating allows this vent hood to keep up with high-heat cooking on multiple burners. Four fan speeds let you choose the right setting for cooking adventures from simmering to searing.
Features
- 585 CFM Motor Class Ventilation System : Helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.
- Requires 585 or 1170 CFM Motor Class Blower :
Allowing you to customize a powerful ventilation system with your choice of commercial-style blowers.
-
Four-Speed Fan :
Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
- Power Boost Function :
Assists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
- 75,000 BTU Rating : Pairs with 30" KitchenAid® Commercial-Style Ranges and Rangetops oand other models with total burner outputs up to 75,000 BTU.
- Automatic Turn On : Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
- Two LED Lights with Night Light Setting : Provide two levels of brightness, allowing you to illuminate the entire cooking surface below with natural-looking light or subtly accent the kitchen with a soft, inviting glow.
- Removable Stainless Steel Baffle Filters :
Help capture the grease, steam and odors for all your cooking needs. The stainless steel design adds to the hood's bold commercial-style look and the filters are removable for easy cleaning with soap and water.
- KitchenAid® Commercial-Style Ventilation :
KitchenAid® Commercial-Style Ventilation Hoods equip your kitchen with powerful ventilation designed to match the performance and styling of KitchenAid® Commercial-Style Ranges and Rangetops.
- KitchenAid® Commercial-Style Under-Cabinet Hoods :
KitchenAid® Commercial-Style Under-Cabinet Hoods integrate seamlessly with existing cabinetry, combining high performance with a built-in look that hides ductwork.
Specifications
| Canopy Height (IN,inches) | 10 |
|---|
| Cutout Height(IN,inches) | 10 |
|---|
| Cutout Width(IN,inches) | 30 |
|---|
| Depth(IN,inches) | 23 |
|---|
| Maximum Height(IN,inches) | 36 |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Width(IN,inches) | 30 |
|---|
| Hood Type | Under Cabinet |
|---|
| Size (in.) | 30 |
|---|
| Control Location | Front |
|---|
| Control Type | Push Button |
|---|
| Lighting Control Type | Push Button |
|---|
| Night Light | Yes |
|---|
| Night Light Type | LED |
|---|
| Number of Night Light Settings | 1 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Task Light Type | LED |
|---|
| Task Lighting | Yes |
|---|
| Auto On | Yes |
|---|
| BTU Threshold | 75 K |
|---|
| Damper Included | Yes |
|---|
| HVI (CFM HS Horizontal) | 380 |
|---|
| HVI (CFM HS Vertical) | 380 |
|---|
| HVI (Sones HS Horizontal) | 8 |
|---|
| HVI (Sones HS Vertical) | 8 |
|---|
| Auto Function | Auto On |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Blower Type | Centrifugal |
|---|
| Duct Direction | Vertical or Horizontal |
|---|
| Duct Outlet Size (in.) | 3.25 W x 10 H |
|---|
| Duct Type | Rectangular |
|---|
| Exhaust Vent Location | Top |
|---|
| Filters | Removable Stainless Steel Baffle Filters |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 585 |
|---|
| Number of Speeds | 4 |
|---|
| Sound Max Speed (dB(A) | 66.4 |
|---|
| Sound Max Speed (Sones) | 8.0 |
|---|
| Sound Min Speed (dB(A) | 50.5 |
|---|
| Sound Min Speed (Sones) | 2.00 |
|---|
| Vent Fan Location | Side |
|---|
| Vent Material | Aluminum |
|---|
| Venting | Exterior |
|---|
| Energy Star® Qualified | No |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Height | 27 in |
|---|
| BTU Threshold | 75 K |
|---|
| Depth | 23 in |
|---|
| Task Light Type | LED |
|---|
| Gross Weight | 49 in |
|---|
| Gross Weight(LB,pounds) | 49 |
|---|
| Depth(IN,inches) | 23.0000 |
|---|
| Carton Height | 27 in |
|---|
| Sound Min Speed (dB(A) | 50.5 |
|---|
| Auto On | Yes |
|---|
| Width | 30 in |
|---|
| Duct Type | Rectangular |
|---|
| Net Weight | 46.0 in |
|---|
| Control Location | Front |
|---|
| Night Light Type | LED |
|---|
| Height | 36 in |
|---|
| Power Cord Included | No |
|---|
| Duct Outlet Size (in.) | 3.25 W x 10 H |
|---|
| Carton Height(IN,inches) | 27.0000 |
|---|
| Gross Weight | 49 in |
|---|
| Blower Type | Centrifugal |
|---|
| Auto On | Yes |
|---|
| UL | Yes |
|---|
| Sound Min Speed (dB(A) | 50.5 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Kosher Consumer Friendly | No |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 15 |
|---|
| Carton Height(IN,inches) | 27 |
|---|
| Carton Width(IN,inches) | 34 |
|---|
| Cutout Height Min(IN,inches) | 10 |
|---|
| Gross Weight(LB,pounds) | 49 |
|---|
| Amps | 3.8 |
|---|
| Hz | 60 |
|---|
| Power Cord Included | No |
|---|
| Volts | 120 |
|---|
| Watts | 463 |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Depth | 15 inch |
|---|
| Carton Height | 27 inch |
|---|
| Carton Width | 34 inch |
|---|
| Cutout Height (in) | 10 inch |
|---|
| Cutout Width (in) | 30 inch |
|---|
| Depth | 23 inch |
|---|
| Height | 36 inch |
|---|
| Width | 30 inch |
|---|
| Gross Weight | 49 inch |
|---|
| Net Weight | 46.0 inch |
|---|
| Cutout Height(IN,inches) | 10.0000 |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Kosher Consumer Friendly | No |
|---|
| Hz | 60 |
|---|
| Number of Night Light Settings | 1 |
|---|
| Exhaust Vent Location | Top |
|---|
| Cutout Height (in) | 10 in |
|---|
| UL | Yes |
|---|
| Filters | Removable Stainless Steel Baffle Filters |
|---|
| Task Lighting | Yes |
|---|
| Sound Max Speed (dB(A) | 66.4 |
|---|
| Canopy Height (IN,inches) | 10.00000 |
|---|
| Duct Outlet Size (in.) | 3.25 W x 10 H |
|---|
| Cutout Width (in) | 30 in |
|---|
| Vent Fan Location | Side |
|---|
| Depth | 23 in |
|---|
| Depth | 23 in |
|---|
| Width | 30 in |
|---|
| HVI (CFM HS Vertical) | 380 |
|---|
| Number of Vent Speeds | 4 |
|---|
| Night Light Type | LED |
|---|
| Sound Min Speed (Sones) | 2.00 |
|---|
| HVI (CFM HS Horizontal) | 380 |
|---|
| Carton Depth(IN,inches) | 15.0000 |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Sound Min Speed (Sones) | 2.00 |
|---|
| Sound Max Speed (Sones) | 8.0 |
|---|
| Size (in.) | 30 |
|---|
| HVI (CFM HS Vertical) | 380 |
|---|
| HVI (CFM HS Horizontal) | 380 |
|---|
| Vent Material | Aluminum |
|---|
| Amps | 3.8 |
|---|
| Cutout Height(IN,inches) | 10.0000 |
|---|
| HVI (Sones HS Horizontal) | 8 |
|---|
| Carton Height | 27 in |
|---|
| Cutout Width (in) | 30 in |
|---|
| Control Type | Push Button |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Night Light | Yes |
|---|
| Prop 65 | Standard |
|---|
| Lighting Control Type | Push Button |
|---|
| Kosher Consumer Friendly | No |
|---|
| Energy Star® Certified | No |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Control Location | Front |
|---|
| Cutout Height Min(IN,inches) | 10.0000 |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Vent Material | Aluminum |
|---|
| Watts | 463 |
|---|
| HVI (Sones HS Vertical) | 8 |
|---|
| Cutout Height Min(IN,inches) | 10.0000 |
|---|
| Task Lighting | Yes |
|---|
| HVI (CFM HS Horizontal) | 380 |
|---|
| Cutout Height (in) | 10 in |
|---|
| Height | 36 in |
|---|
| HVI (Sones HS Vertical) | 8 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Height(IN,inches) | 27.0000 |
|---|
| Amps | 3.8 |
|---|
| Damper Included | Yes |
|---|
| Cutout Height Min(IN,inches) | 10.0000 |
|---|
| Duct Direction | Vertical or Horizontal |
|---|
| Maximum Height(IN,inches) | 36.0000 |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 585 |
|---|
| Lighting Control Type | Push Button |
|---|
| Duct Direction | Vertical or Horizontal |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 585 |
|---|
| Watts | 463 |
|---|
| Venting | Exterior |
|---|
| Hz | 60 |
|---|
| Night Light | Yes |
|---|
| Carton Width(IN,inches) | 34.0000 |
|---|
| Canopy Height (IN,inches) | 10.00000 |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| HVI (Sones HS Horizontal) | 8 |
|---|
| Carton Depth | 15 in |
|---|
| Carton Height(IN,inches) | 27.0000 |
|---|
| Number of Night Light Settings | 1 |
|---|
| Exhaust Vent Location | Top |
|---|
| Accessory Relationships | Yes |
|---|
| Night Light | Yes |
|---|
| Cutout Height(IN,inches) | 10.0000 |
|---|
| Volts | 120 |
|---|
| Cutout Height (in) | 10 in |
|---|
| Auto Function | Auto On |
|---|
| Sound Max Speed (Sones) | 8.0 |
|---|
| Night Light Type | LED |
|---|
| Exhaust Vent Location | Top |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Depth(IN,inches) | 15.0000 |
|---|
| Vent Fan Location | Side |
|---|
| Venting | Exterior |
|---|
| Volts | 120 |
|---|
| Carton Depth(IN,inches) | 15.0000 |
|---|
| Control Type | Push Button |
|---|
| Energy Star® Certified | No |
|---|
| Carton Depth | 15 in |
|---|
| Accessory Relationships | Yes |
|---|
| Venting | Exterior |
|---|
| Energy Star® Certified | No |
|---|
| Prop 65 | Standard |
|---|
| Power Cord Included | No |
|---|
| Prop 65 | Standard |
|---|
| Volts | 120 |
|---|
| Maximum Height(IN,inches) | 36.0000 |
|---|
| Blower Motor | Blower Motor Included |
|---|
| Damper Included | Yes |
|---|
| Carton Width | 34 in |
|---|
| Duct Type | Rectangular |
|---|
| Duct Outlet Size (in.) | 3.25 W x 10 H |
|---|
| Hood Type | Under Cabinet |
|---|
| Sound Min Speed (dB(A) | 50.5 |
|---|
| Vent Fan Location | Side |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| Vent Material | Aluminum |
|---|
| BTU Threshold | 75 K |
|---|
| Auto Function | Auto On |
|---|
| Maximum Height(IN,inches) | 36.0000 |
|---|
| Hz | 60 |
|---|
| Gross Weight | 49 in |
|---|
| Depth(IN,inches) | 23.0000 |
|---|
| Damper Included | Yes |
|---|
| Sound Max Speed (dB(A) | 66.4 |
|---|
| Carton Width | 34 in |
|---|
| HVI (Sones HS Vertical) | 8 |
|---|
| Accessory Relationships | Yes |
|---|
| Depth(IN,inches) | 23.0000 |
|---|
| Carton Depth | 15 in |
|---|
| Task Light Type | LED |
|---|
| Blower Type | Centrifugal |
|---|
| Net Weight | 46.0 in |
|---|
| Height | 36 in |
|---|
| Number of Night Light Settings | 1 |
|---|
| Filters | Removable Stainless Steel Baffle Filters |
|---|
| Width | 30 in |
|---|
| Size (in.) | 30 |
|---|
| Sound Min Speed (Sones) | 2.00 |
|---|
| Number of Vent Speeds | 4 |
|---|
| Carton Width | 34 in |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Auto Function | Auto On |
|---|
| Hood Type | Under Cabinet |
|---|
| BTU Threshold | 75 K |
|---|
| Lighting Control Type | Push Button |
|---|
| Hood Type | Under Cabinet |
|---|
| Filters | Removable Stainless Steel Baffle Filters |
|---|
| Net Weight | 46.0 in |
|---|
| Task Lighting | Yes |
|---|
| Control Type | Push Button |
|---|
| Canopy Height (IN,inches) | 10.00000 |
|---|
| Amps | 3.8 |
|---|
| Cutout Width (in) | 30 in |
|---|
| Gross Weight(LB,pounds) | 49 |
|---|
| HVI (CFM HS Vertical) | 380 |
|---|
| Sound Max Speed (dB(A) | 66.4 |
|---|
| Number of Vent Speeds | 4 |
|---|
| UL | Yes |
|---|
| Auto On | Yes |
|---|
| Power Cord Included | No |
|---|
| Width(IN,inches) | 30.0000 |
|---|
| HVI (Sones HS Horizontal) | 8 |
|---|
| Blower Type | Centrifugal |
|---|
| Sound Max Speed (Sones) | 8.0 |
|---|
| Watts | 463 |
|---|
| Duct Direction | Vertical or Horizontal |
|---|
| Control Location | Front |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Duct Type | Rectangular |
|---|
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 585 |
|---|
| Task Light Type | LED |
|---|
| Gross Weight(LB,pounds) | 49 |
|---|
| Size (in.) | 30 |
|---|
