Product Description

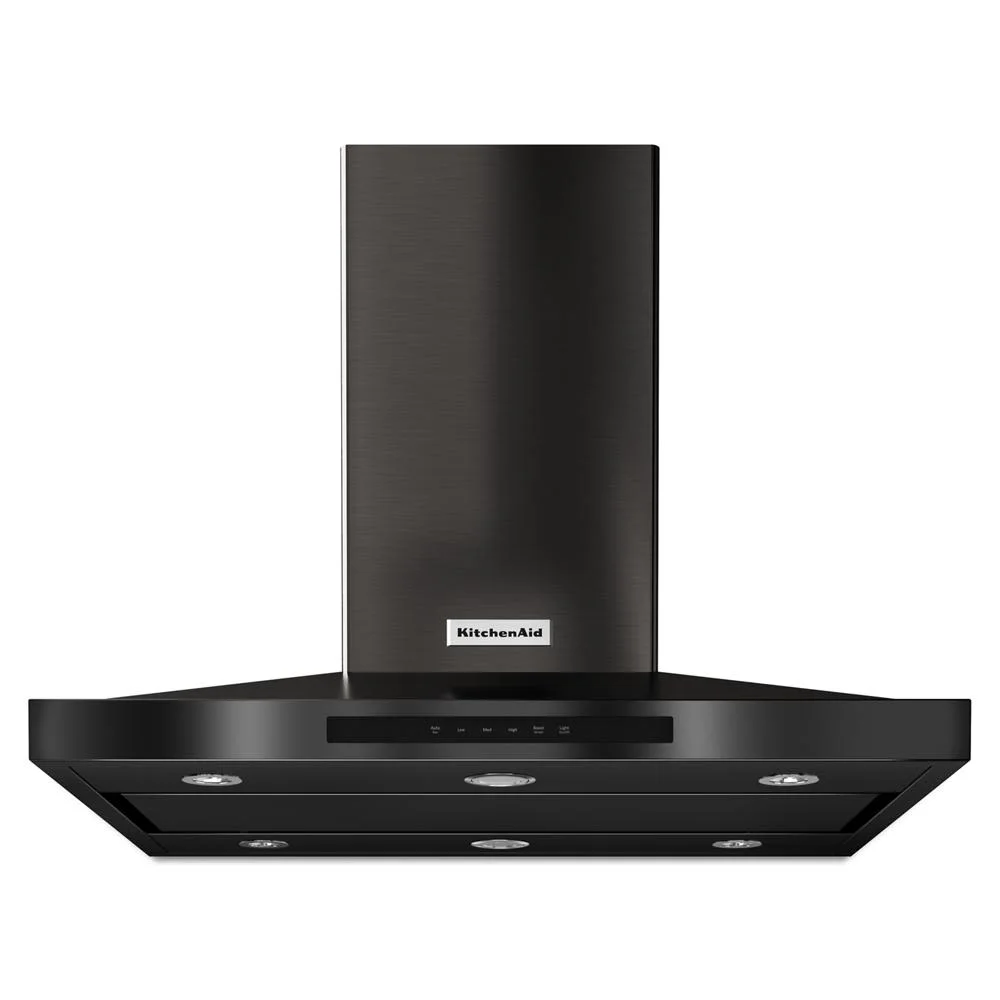

This 36-inch canopy hood provides the coverage necessary over a 30- or 36-inch cooking surface. Features like Auto Speed Setting ensure that the ventilation system is working efficiently by automatically changing the speed of the fan to best match the dish you are preparing. Four LED task lights provide ample light when cooking and two halogen night lights provide ambient light for the kitchen.
Features
- 4-Speed Electronic Glass Touch Control :
Provides electronic operation with visual feedback on settings and selections. Features low, medium, high and power boost settings, so you can choose the right fan speed for every cooking adventure, from gentle simmering to high-heat searing.
- 65,000 BTU Rating : Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU.
- 585 CFM Motor Class Ventilation System : Helps capture smoke, grease and odors from the cooking surface below for everything from simmering to high temperature cooking techniques like pan searing and stir-frying so you can experiment with confidence.
- Power Boost Function :
Assists high-heat cooking by activating maximum fan speed for five minutes to help quickly clear smoke and steam. This function turns on automatically if the hood's sensor detects high-heat cooking on multiple burners and can also be activated manually.
- Auto Speed Setting : takes the guesswork out of choosing the proper ventilation setting to match your cooking by automatically adjusting the fan's speed depending on the heat being produced.
- Automatic Turn On : Provides intuitive assistance to help keep smoke and steam from building up in the kitchen. If the hood's sensor detects high-heat cooking on multiple burners while the controls are off, it will automatically turn on the fan and set it to Power Boost.
- Removable Filters : help capture the grease, steam and odors of high-heat cooking. Filters are removable for easy cleaning with soap and water.
- Two Halogen Night Lights : subtly accent the kitchen with a soft, inviting glow.
- Four LED Task Lights :
illuminate the entire cooking surface below with natural-looking light.
- Perimeter Ventilation : Pairs with any 30-inch and 36-inch range or cooktop with a total burner output up to 65,000 BTU
- Easy In-line Conversion : Converts from a traditional installation to an in-line blower installation.
Specifications
| Duct Direction | Vertical |
|---|
| Depth(IN,inches) | 27 |
|---|
| Height(IN,inches) | 32 1/2 |
|---|
| Width(IN,inches) | 36 |
|---|
| Hood Type | Island Mount |
|---|
| Size (in.) | 36 |
|---|
| Material | Stainless Steel |
|---|
| Control Type | Electronic Touch |
|---|
| Night Light | Yes |
|---|
| Night Light Type | Halogen |
|---|
| Number of Night Light Settings | 1 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Task Light Type | LED |
|---|
| Task Lighting | Yes |
|---|
| HVI (Sones HS Vertical) | 5.5 |
|---|
| Auto Function | Auto On and Speed Adjust |
|---|
| Blower Type | Centrifugal |
|---|
| CFM Motor Class | 585 |
|---|
| Duct Direction | Vertical |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Duct Type | Round |
|---|
| Filters | Grease Filters |
|---|
| Number of Speeds | 3 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 34 |
|---|
| Carton Height(IN,inches) | 23 1/2 |
|---|
| Carton Width(IN,inches) | 41 |
|---|
| Gross Weight(LB,pounds) | 102 |
|---|
| Amps | 15 |
|---|
| Volts | 120 |
|---|
| Accessory Relationships | Yes |
|---|
| Style | Hoods |
|---|
| Flooring Program Codes | USKADBL |
|---|
| Auto Turn On | Auto Turn On |
|---|
| Perimeter Ventilation | Perimeter Ventilation |
|---|
| Carton Depth | 34 inch |
|---|
| Carton Height | 23 1/2 inch |
|---|
| Carton Width | 41 inch |
|---|
| Depth | 27 inch |
|---|
| Height | 32 1/2 inch |
|---|
| Width | 36 inch |
|---|
| Gross Weight | 102 inch |
|---|
| Net Weight | 0.0 inch |
|---|
| Night Light Type | Halogen |
|---|
| Amps | 15 |
|---|
| Depth(IN,inches) | 27.0000 |
|---|
| Carton Depth(IN,inches) | 34.0000 |
|---|
| Style | Hoods |
|---|
| Auto Turn On | Auto Turn On |
|---|
| Gross Weight | 102 in |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Venting | Exterior or Recirculating |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Blower Type | Centrifugal |
|---|
| Task Light Type | LED |
|---|
| Duct Type | Round |
|---|
| Gross Weight(LB,pounds) | 102 |
|---|
| Carton Depth(IN,inches) | 34.0000 |
|---|
| Height | 32 1/2 in |
|---|
| Number of Task Light Settings | 1 |
|---|
| Auto Turn On | Auto Turn On |
|---|
| Height(IN,inches) | 32.5000 |
|---|
| Filters | Grease Filters |
|---|
| Control Type | Electronic Touch |
|---|
| CFM Motor Class | 585 |
|---|
| Task Lighting | Yes |
|---|
| Carton Width(IN,inches) | 41.0000 |
|---|
| Night Light | Yes |
|---|
| Net Weight | 0.0 in |
|---|
| Perimeter Ventilation | Perimeter Ventilation |
|---|
| Material | Stainless Steel |
|---|
| Control Type | Electronic Touch |
|---|
| Accessory Relationships | Yes |
|---|
| Volts | 120 |
|---|
| Number of Task Light Settings | 1 |
|---|
| Carton Depth | 34 in |
|---|
| Flooring Program Codes | USKADBL |
|---|
| Task Lighting | Yes |
|---|
| Volts | 120 |
|---|
| Height(IN,inches) | 32.5000 |
|---|
| Prop 65 | Standard |
|---|
| Accessory Relationships | Yes |
|---|
| CFM Motor Class | 585 |
|---|
| Net Weight | 0.0 in |
|---|
| Size (in.) | 36 |
|---|
| Auto Function | Auto On and Speed Adjust |
|---|
| CFM Motor Class | 585 |
|---|
| Carton Height | 23 1/2 in |
|---|
| Width | 36 in |
|---|
| Size (in.) | 36 |
|---|
| Task Lighting | Yes |
|---|
| Carton Width | 41 in |
|---|
| Accessory Relationships | Yes |
|---|
| Size (in.) | 36 |
|---|
| Carton Width | 41 in |
|---|
| UL | Yes |
|---|
| Night Light | Yes |
|---|
| Number of Night Light Settings | 1 |
|---|
| Filters | Grease Filters |
|---|
| Auto Function | Auto On and Speed Adjust |
|---|
| Gross Weight | 102 in |
|---|
| Height(IN,inches) | 32.5000 |
|---|
| Depth(IN,inches) | 27.0000 |
|---|
| Carton Height(IN,inches) | 23.5000 |
|---|
| Flooring Program Codes | USKADBL |
|---|
| Volts | 120 |
|---|
| Depth | 27 in |
|---|
| Height | 32 1/2 in |
|---|
| Number of Task Light Settings | 1 |
|---|
| Duct Direction | Vertical |
|---|
| Perimeter Ventilation | Perimeter Ventilation |
|---|
| Depth | 27 in |
|---|
| Duct Type | Round |
|---|
| Hood Type | Island Mount |
|---|
| Venting | Exterior or Recirculating |
|---|
| Carton Height | 23 1/2 in |
|---|
| Blower Type | Centrifugal |
|---|
| Number of Night Light Settings | 1 |
|---|
| HVI (Sones HS Vertical) | 5.5 |
|---|
| Amps | 15 |
|---|
| HVI (Sones HS Vertical) | 5.5 |
|---|
| Amps | 15 |
|---|
| Style | Hoods |
|---|
| Night Light Type | Halogen |
|---|
| Night Light | Yes |
|---|
| Carton Height(IN,inches) | 23.5000 |
|---|
| Carton Depth | 34 in |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| Carton Width | 41 in |
|---|
| Hood Type | Island Mount |
|---|
| Venting | Exterior or Recirculating |
|---|
| Control Type | Electronic Touch |
|---|
| Duct Type | Round |
|---|
| Filters | Grease Filters |
|---|
| Height | 32 1/2 in |
|---|
| Flooring Program Codes | USKADBL |
|---|
| Number of Vent Speeds | 3 |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Hood Type | Island Mount |
|---|
| Number of Night Light Settings | 1 |
|---|
| Prop 65 | Standard |
|---|
| Width | 36 in |
|---|
| Task Light Type | LED |
|---|
| Depth | 27 in |
|---|
| Carton Width(IN,inches) | 41.0000 |
|---|
| Width | 36 in |
|---|
| Number of Vent Speeds | 3 |
|---|
| Carton Height(IN,inches) | 23.5000 |
|---|
| Carton Width(IN,inches) | 41.0000 |
|---|
| HVI (Sones HS Vertical) | 5.5 |
|---|
| Gross Weight(LB,pounds) | 102 |
|---|
| Depth(IN,inches) | 27.0000 |
|---|
| Auto Function | Auto On and Speed Adjust |
|---|
| Style | Hoods |
|---|
| Number of Vent Speeds | 3 |
|---|
| Perimeter Ventilation | Perimeter Ventilation |
|---|
| Auto Turn On | Auto Turn On |
|---|
| Carton Depth(IN,inches) | 34.0000 |
|---|
| UL | Yes |
|---|
| Duct Outlet Size (in.) | 6 |
|---|
| UL | Yes |
|---|
| Width(IN,inches) | 36.0000 |
|---|
| Material | Stainless Steel |
|---|
| Night Light Type | Halogen |
|---|
| Duct Direction | Vertical |
|---|
| Gross Weight | 102 in |
|---|
| Gross Weight(LB,pounds) | 102 |
|---|
| Net Weight | 0.0 in |
|---|
| Material | Stainless Steel |
|---|
| Carton Height | 23 1/2 in |
|---|
| Task Light Type | LED |
|---|
| Carton Depth | 34 in |
|---|
| Prop 65 | Standard |
|---|
| Blower Type | Centrifugal |
|---|
