Product Description

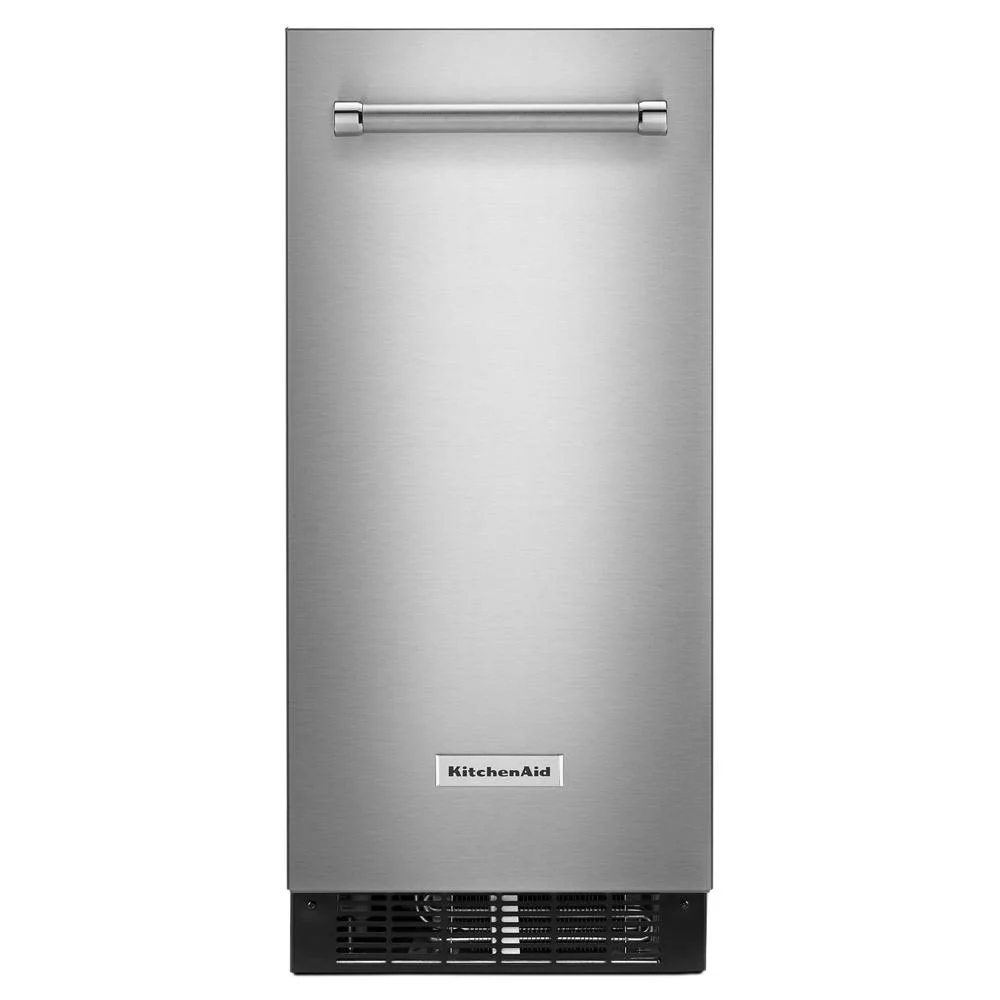

This 15" automatic ice maker uses Clear Ice Technology to help produce cubes of uniform shape and clarity for every occasion. Distinctive styling makes it an appealing complement to other KitchenAid® appliances, with Fully Flush Installation for a built-in look. The signature handle design opens the door to reveal a storage bin that holds up to 25 pounds of ice.
Features
- Fully Flush Installation with Articulating Hinge : allows the ice maker's door to sit flush without protruding or leaving a gap between the ice maker and the adjoining cabinets. Articulating hinge design allows the door to open 90 degrees without swinging beyond its normal closed width, providing a built-in look that adds a touch of style to your kitchen or bar space.
- Clear Ice Technology : provides cubes of uniform 3/4" x 3/4" x 1/2" size and shape that are ideal for daily use or a variety of entertaining needs. Clear Ice Technology allows for attractive drink presentation and a slow melt rate so beverages won't water down quickly.
- Built-In Drain Pump System : Allows this ice maker to be installed nearly anywhere in the home within 100 feet of an under-sink drain line, so you can keep a continuous supply of clear ice in your kitchen or entertaining space
- Self-Cleaning Cycle : makes routine maintenance easy using a "clean cycle" and Affresh® ice maker cleaner.
- Holds 25 Pounds of Ice : ensures a generous supply of fresh ice is conveniently at your fingertips.
- PrintShield™ Finish : resists smudges and fingerprints. The specialized coating for stainless steel is easy to clean with just water and a soft cloth, so you can spend more time cooking and less time cleaning up.
- Filter-Ready :
provides a dedicated space where a filter can be inserted to help remove contaminants, improving taste and clarity. A filter is not required but can be purchased separately. Use filter #F2WC9I1 and change every six months for best results.
- Reversible Door : offers flexible installation options by allowing hinge installation on either side of the door.
Specifications
| Cutout Depth(IN,inches) | 25.0000 |
|---|
| Cabinet Width (IN,inches) | 14 7/8 |
|---|
| Cutout Depth(IN,inches) | 25 |
|---|
| Cutout Height(IN,inches) | 34 1/2 |
|---|
| Cutout Width(IN,inches) | 15 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 24 |
|---|
| Depth Closed Including Handles(IN,inches) | 25 3/8 |
|---|
| Depth Excluding Doors(IN,inches) | 22 1/8 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 39 1/2 |
|---|
| Height To Top Of Cabinet(IN,inches) | 33 5/8 |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34 1/16 |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Cabinet Finish | Textured |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Door Opening | Right |
|---|
| Handle Color | Stainless Steel |
|---|
| Handle Location | Horizontal |
|---|
| Handle Material | Metal |
|---|
| Handle Type | Towel Bar |
|---|
| Reversible Door | Yes |
|---|
| Control Location | Interior Up Front |
|---|
| Control Type | Electronic Touch |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Ice Maker On/Off | Yes |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Selections | Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable |
|---|
| Water Filter Location | Interior |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Drain Pump | Pump Included |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Interior Light | LED |
|---|
| Liner Color | White |
|---|
| Liner Finish | Plastic |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| ADA Compliant | No |
|---|
| Carton Depth(IN,inches) | 28 3/8 |
|---|
| Carton Height(IN,inches) | 36 1/8 |
|---|
| Carton Width(IN,inches) | 17 1/4 |
|---|
| Depth Excluding Doors(IN,inches) | 22.1250 |
|---|
| Carton Height(IN,inches) | 36.1250 |
|---|
| CEE Tier | Not Rated |
|---|
| Depth With Door Open 90 Degree | 39 9/16 in |
|---|
| Reversible Door | Yes |
|---|
| Gross Weight | 107 in |
|---|
| Cutout Depth(IN,inches) | 25.0000 |
|---|
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
|---|
| Cabinet Finish | Textured |
|---|
| Drain Pump | Pump Included |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
|---|
| Volts | 115/120 |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| Net Weight | 96.5 in |
|---|
| Carton Width(IN,inches) | 17.2500 |
|---|
| Interior Light | LED |
|---|
| Cutout Height (in) | 34 1/2 in |
|---|
| Handle Location | Horizontal |
|---|
| Ice Maker On/Off | Yes |
|---|
| ADA Compliant | No |
|---|
| Carton Depth | 28 3/8 in |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Depth Closed Excluding Handles | 24 5/8 in |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Depth With Door Open 90 Degree | 39 9/16 in |
|---|
| Prop 65 | Standard |
|---|
| Height To Top Of Cabinet | 33 5/8 in |
|---|
| Depth Closed Excluding Handles(IN,inches) | 24.0000 |
|---|
| Ice Maker On/Off | Yes |
|---|
| Carton Width | 17 1/4 in |
|---|
| Depth Excluding Doors | 22 1/16 in |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| Carton Depth | 28 3/8 in |
|---|
| Cutout Height (in) | 34 1/2 in |
|---|
| Handle Color | Stainless Steel |
|---|
| CEE Tier | Not Rated |
|---|
| Cutout Depth (in) | 25 in |
|---|
| Depth Closed Including Handles(IN,inches) | 25.3750 |
|---|
| Carton Height(IN,inches) | 36.1250 |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| Interior Light | LED |
|---|
| Liner Color | White |
|---|
| Interior Liner Finish | Plastic |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
| Drain Pump | Pump Included |
|---|
| UL | Yes |
|---|
| Handle Material | Metal |
|---|
| Control Type | Electronic Touch |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
| Amps | 15 or 20 |
|---|
| Volts | 115/120 |
|---|
| CEE Tier | Not Rated |
|---|
| Energy Star® Qualified | No |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Accessory Relationships | Yes |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| Style | Ice Makers |
|---|
| Cabinet Width (in) | 14 7/8 inch |
|---|
| Carton Depth | 28 3/8 inch |
|---|
| Carton Height | 36 1/8 inch |
|---|
| Carton Width | 17 1/4 inch |
|---|
| Cutout Depth (in) | 25 inch |
|---|
| Cutout Height (in) | 34 1/2 inch |
|---|
| Cutout Width (in) | 15 inch |
|---|
| Depth | 26 1/16 inch |
|---|
| Depth Closed Excluding Handles | 24 5/8 inch |
|---|
| Depth Closed Including Handles | 26 1/16 inch |
|---|
| Depth Excluding Doors | 22 1/16 inch |
|---|
| Depth With Door Open 90 Degree | 39 9/16 inch |
|---|
| Gross Weight | 107 inch |
|---|
| Height To Top Of Cabinet | 33 5/8 inch |
|---|
| Height To Top Of Door Hinge | 34 1/16 inch |
|---|
| Net Weight | 96.5 inch |
|---|
| ADA Compliant | No |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Cabinet Width (in) | 14 7/8 in |
|---|
| Cutout Depth (in) | 25 in |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Handle Color | Stainless Steel |
|---|
| UL | Yes |
|---|
| Interior Liner Finish | Plastic |
|---|
| Cutout Width (in) | 15 in |
|---|
| Water Filter Location | Interior |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Handle Location | Horizontal |
|---|
| Cutout Height(IN,inches) | 34.5000 |
|---|
| Control Type | Electronic Touch |
|---|
| Handle Location | Horizontal |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Width(IN,inches) | 17.2500 |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Amps | 15 or 20 |
|---|
| Handle Type | Towel Bar |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Carton Height | 36 1/8 in |
|---|
| Cutout Width(IN,inches) | 15.0000 |
|---|
| Depth Closed Including Handles(IN,inches) | 25.3750 |
|---|
| Control Type | Electronic Touch |
|---|
| Carton Height(IN,inches) | 36.1250 |
|---|
| Carton Width | 17 1/4 in |
|---|
| Cutout Height(IN,inches) | 34.5000 |
|---|
| Cutout Depth(IN,inches) | 25.0000 |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Liner Color | White |
|---|
| Height To Top Of Door Hinge | 34 1/16 in |
|---|
| Depth Excluding Doors(IN,inches) | 22.1250 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 39.5000 |
|---|
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
|---|
| ADA Compliant | No |
|---|
| Water Filter Part Number | F2WC9I1 |
|---|
| Selections | Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable |
|---|
| Depth Closed Excluding Handles(IN,inches) | 24.0000 |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| Accessory Relationships | Yes |
|---|
| Depth Closed Excluding Handles(IN,inches) | 24.0000 |
|---|
| Cabinet Width (IN,inches) | 14.8750 |
|---|
| Stainless Steel Cutting Grid | 3/4in. x 3/4in. Cubes |
|---|
| Handle Type | Towel Bar |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| Water Filter Location | Interior |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| Height To Top Of Door Hinge | 34 1/16 in |
|---|
| UL | Yes |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Energy Star® Certified | No |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
|---|
| Height To Top Of Door Hinge(IN,inches) | 34.0625 |
|---|
| Handle Material | Metal |
|---|
| Drain Connection | Rear Access 5/8in. OD |
|---|
| Height To Top Of Cabinet(IN,inches) | 33.6250 |
|---|
| Door Opening | Right |
|---|
| Drain Pump | Pump Included |
|---|
| Depth Closed Including Handles | 26 1/16 in |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 39.5000 |
|---|
| Cabinet Width (IN,inches) | 14.8750 |
|---|
| Height To Top Of Door Hinge | 34 1/16 in |
|---|
| Cabinet Width (in) | 14 7/8 in |
|---|
| Depth Closed Including Handles | 26 1/16 in |
|---|
| Height To Top Of Cabinet | 33 5/8 in |
|---|
| Cabinet Finish | Textured |
|---|
| Depth Closed Excluding Handles | 24 5/8 in |
|---|
| Reversible Door | Yes |
|---|
| Cabinet Width (in) | 14 7/8 in |
|---|
| Cutout Depth (in) | 25 in |
|---|
| Net Weight | 96.5 in |
|---|
| Cabinet Finish | Textured |
|---|
| Liner Color | White |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Ice Maker On/Off | Yes |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Carton Height | 36 1/8 in |
|---|
| Cutout Width(IN,inches) | 15.0000 |
|---|
| Carton Width | 17 1/4 in |
|---|
| Handle Type | Towel Bar |
|---|
| Control Location | Interior Up Front |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Carton Height | 36 1/8 in |
|---|
| Door Opening | Right |
|---|
| Water Filter Location | Interior |
|---|
| Accessory Relationships | Yes |
|---|
| Depth Excluding Doors(IN,inches) | 22.1250 |
|---|
| Water Supply Pressure (PSI) | 30 - 120 psi |
|---|
| Cutout Height(IN,inches) | 34.5000 |
|---|
| Depth Closed Excluding Handles | 24 5/8 in |
|---|
| Net Weight | 96.5 in |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Depth Excluding Doors | 22 1/16 in |
|---|
| Cutout Width (in) | 15 in |
|---|
| Control Location | Interior Up Front |
|---|
| Carton Depth(IN,inches) | 28.3750 |
|---|
| Cabinet Material | Prepainted Steel |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| Carton Width(IN,inches) | 17.2500 |
|---|
| Volts | 115/120 |
|---|
| Cutout Width(IN,inches) | 15.0000 |
|---|
| Ice Capacity Storage (lbs) | 25.0 |
|---|
| Depth With Door Open 90 Degree | 39 9/16 in |
|---|
| Amps | 15 or 20 |
|---|
| Refrigeration Configuration | Ice Maker |
|---|
| Control Location | Interior Up Front |
|---|
| Carton Depth(IN,inches) | 28.3750 |
|---|
| Selections | Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable |
|---|
| Depth | 26 1/16 in |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Gross Weight(LB,pounds) | 107 |
|---|
| CEE Tier | Not Rated |
|---|
| Depth Excluding Doors | 22 1/16 in |
|---|
| Energy Star® Certified | No |
|---|
| Gross Weight | 107 in |
|---|
| Cabinet Width (IN,inches) | 14.8750 |
|---|
| Style | Ice Makers |
|---|
| Carton Depth(IN,inches) | 28.3750 |
|---|
| Water Filter Indicator/Reset | Yes |
|---|
| Depth Closed Including Handles(IN,inches) | 25.3750 |
|---|
| Depth | 26 1/16 in |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 39.5000 |
|---|
| Style | Ice Makers |
|---|
| Handle Color | Stainless Steel |
|---|
| Interior Light | LED |
|---|
| Cutout Height (in) | 34 1/2 in |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Cutout Width (in) | 15 in |
|---|
| Gross Weight | 107 in |
|---|
| Net Weight(LB,pounds) | 96 |
|---|
| Volts | 115/120 |
|---|
| Selections | Articulating Hinge,Clear Ice Technology,Easy Access Filter Install,Ice Scoop,Max Ice,True Flush Installable |
|---|
| Depth Closed Including Handles | 26 1/16 in |
|---|
| Handle Material | Metal |
|---|
| Carton Depth | 28 3/8 in |
|---|
| Door Opening | Right |
|---|
| Prop 65 | Standard |
|---|
| Height To Top Of Cabinet | 33 5/8 in |
|---|
| Interior Liner Finish | Plastic |
|---|
| Reversible Door | Yes |
|---|
| Style | Ice Makers |
|---|
| Depth | 26 1/16 in |
|---|
| Prop 65 | Standard |
|---|
| Defrost Type | Automatic Defrost |
|---|
| Amps | 15 or 20 |
|---|
| Water Inlet Connection | 1/4in. OD PEX Tubing |
|---|
| Ambient Temperature Range | 55F to 110F |
|---|
| Energy Star® Certified | No |
|---|
