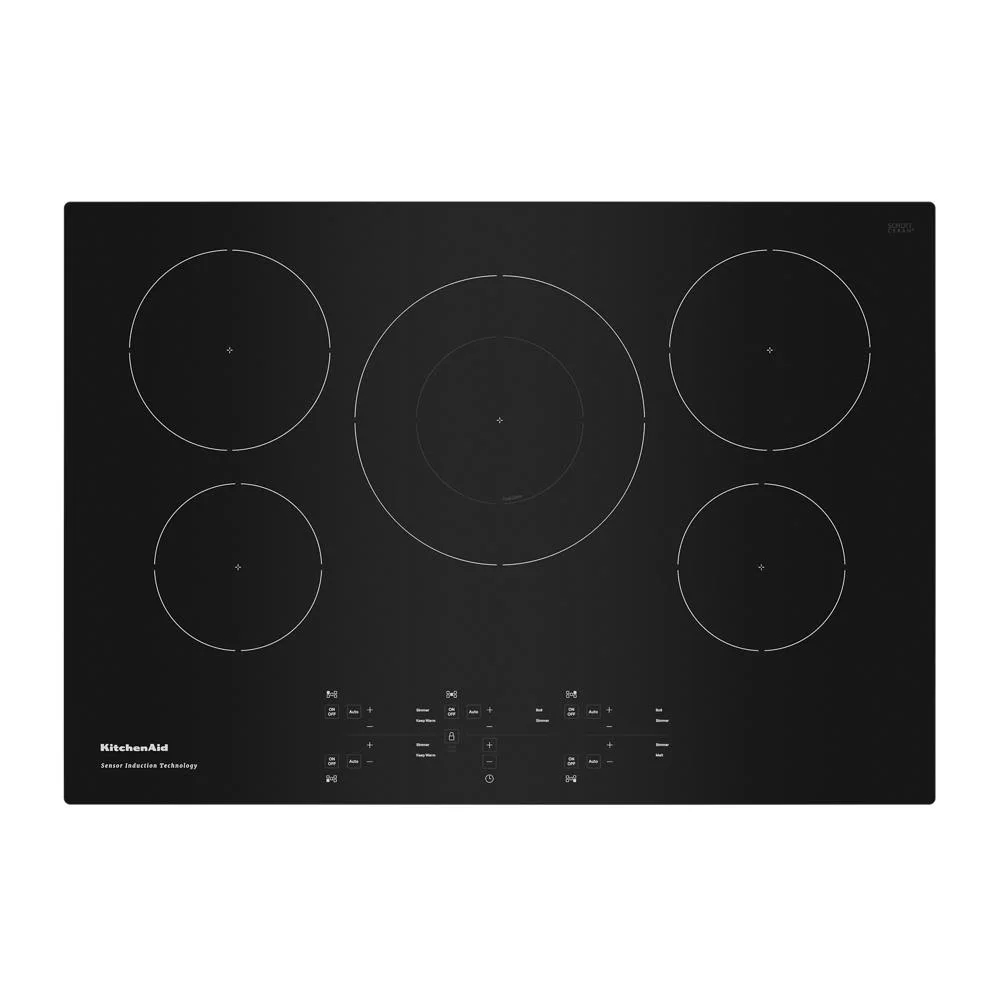

Product Description
Level up everyday cooking adventures with the speed and precision of this 30" KitchenAid® Sensor Induction Cooktop. Sensor Induction Technology generates heat directly within cookware, reaching high temperatures quickly and cooling down rapidly for precise control that enables a full range of cooking techniques.
Features
- Sensor Induction Technology : Generates heat directly within cookware, reaching high temperatures quickly and cooling down rapidly for precise control that enables a full range of cooking techniques.
- Auto Presets for Melt, Simmer, Keep Warm and Boil : Automatically set the right heat for different techniques and stages of cooking, taking the guesswork out of choosing settings.
- Power Boost Function : Allows you to exceed the maximum heat-level setting for 5 minutes, to help you get to a rapid boil
- Touch-Activated Controls : For assisted cooking modes, auto presets and numerical power settings are simple to use. The seamless design is also easy to clean.
- Pan Size Detection : Recognizes the size and placement of cookware to generate heat directly within the pan. An indicator light and sound will alert you if you turn the cooktop on without a pan on the selected element or if your pan is not compatible with induction cooking.
- Control Lock : Disables cooking mode for easy cleaning when not in use.
- Frameless Design : Allows flush installation for a seamless look or standard installation to fit an existing cooktop cutout.
- Requires Induction-Compatible Cookware : Such as multi-ply stainless steel, enamelled steel or cast iron. Aluminum and copper cookware will not work unless it has a base made of iron or steel. Look for pans marked "Works with Induction" or test to see if a magnet will stick to the bottom.
Specifications
| Cutout Depth Min(IN,inches) | 20 3/4 |
|---|
| Cutout Width Min(IN,inches) | 29 9/16 |
|---|
| Depth(IN,inches) | 21 1/4 |
|---|
| Height(IN,inches) | 2 5/16 |
|---|
| Maximum Height(IN,inches) | 4 |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Width(IN,inches) | 30 3/4 |
|---|
| Combinations with Oven | KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Cooktop Type | Standard |
|---|
| Fuel Type | Electric Induction |
|---|
| Size (in.) | 30 |
|---|
| Control Location | Front |
|---|
| Control Type | Tap Touch |
|---|
| Infinite Heat Controls | No |
|---|
| Automatic Pan Detection | Yes |
|---|
| Automatic Pan Size Adjustment | Yes |
|---|
| Digital Display | Yes |
|---|
| Downdraft Vent | No |
|---|
| Griddle | NA |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| LP Convertible | No |
|---|
| Power Boost | Yes |
|---|
| Power Outage Compatible | No |
|---|
| True Flush Installation | Yes |
|---|
| Cooktop Configuration | All Burners |
|---|
| Cooktop Element Style | Induction |
|---|
| Cooktop Surface Color | Black |
|---|
| Ignition Type | Electronic Button |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Cooktop Surface Material | Glass |
|---|
| Number of Open Bays | NA |
|---|
| Center Front Element-Burner Power | 3600W/ 4000W Boost |
|---|
| Center Front Element-Burner Size | 11in. |
|---|
| Center Front Element-Burner Type | Round |
|---|
| Left Front Element-Burner Power | 1500W/ 1800W Boost |
|---|
| Left Front Element-Burner Size | 6in. |
|---|
| Left Front Element-Burner Type | Round |
|---|
| Left Rear Element-Burner Power | 2100W/2150W Boost |
|---|
| Left Rear Element-Burner Size | 7in. |
|---|
| Left Rear Element-Burner Type | Round |
|---|
| Right Front Element-Burner Power | 1500W/1800W Boost |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Right Front Element-Burner Type | Dual |
|---|
| Right Rear Element-Burner Power | 1800W/ 2150W Boost |
|---|
| Right Rear Element-Burner Size | 7in. |
|---|
| Right Rear Element-Burner Type | Round |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 25 5/16 |
|---|
| Carton Height(IN,inches) | 7 11/16 |
|---|
| Carton Width(IN,inches) | 34 3/16 |
|---|
| Gross Weight(LB,pounds) | 590 |
|---|
| Amps | 30 |
|---|
| Hz | 60 |
|---|
| Power Cord Included | Yes |
|---|
| Volts | 240 |
|---|
| Watts | 10560 |
|---|
| 208V Compatible | Yes |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Depth | 25 5/16 inch |
|---|
| Carton Height | 7 11/16 inch |
|---|
| Carton Width | 34 3/16 inch |
|---|
| Depth | 21 1/4 inch |
|---|
| Height | 2 5/16 inch |
|---|
| Width | 30 3/4 inch |
|---|
| Gross Weight | 59 inch |
|---|
| Maximum Height | 4 inch |
|---|
| Net Weight | 46.0 inch |
|---|
| Hz | 60 |
|---|
| Cutout Depth Min(IN,inches) | 20.7500 |
|---|
| Height(IN,inches) | 2.3125 |
|---|
| UL | Yes |
|---|
| Right Rear Element-Burner Size | 7in. |
|---|
| Cooktop Surface Material | Glass |
|---|
| Griddle | N/A |
|---|
| Right Rear Element-Burner Power | 1800W/ 2100W Boost |
|---|
| Gross Weight(LB,pounds) | 590 |
|---|
| Left Rear Element-Burner Power | 1800W/ 2100W Boost |
|---|
| Downdraft Vent | No |
|---|
| Prop 65 | Standard |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Center Front Element-Burner Type | Round |
|---|
| Carton Width(IN,inches) | 34.1875 |
|---|
| Height(IN,inches) | 2.3125 |
|---|
| True Flush Installation | Yes |
|---|
| Number of Open Bays | N/A |
|---|
| Power Cord Included | Yes |
|---|
| Ignition Type | Electronic Button |
|---|
| Carton Height | 7 11/16 in |
|---|
| Width(IN,inches) | 30.7500 |
|---|
| Number of Open Bays | N/A |
|---|
| 208V Compatible | Yes |
|---|
| Control Location | Front |
|---|
| Carton Height(IN,inches) | 7.6875 |
|---|
| Digital Display | Yes |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Right Front Element-Burner Type | Round |
|---|
| Maximum Height | 4 in |
|---|
| Width(IN,inches) | 30.7500 |
|---|
| Combinations with Oven | KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Left Rear Element-Burner Power | 1800W/ 2100W Boost |
|---|
| Left Front Element-Burner Size | 6in. |
|---|
| Cooktop Element Style | Induction |
|---|
| Automatic Pan Size Adjustment | Yes |
|---|
| Right Rear Element-Burner Power | 1800W/ 2100W Boost |
|---|
| Control Location | Front |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Gross Weight | 59 in |
|---|
| Center Front Element-Burner Type | Round |
|---|
| LP Convertible | No |
|---|
| Left Rear Element-Burner Size | 7in. |
|---|
| Digital Display | Yes |
|---|
| Cutout Depth Min(IN,inches) | 20.7500 |
|---|
| UL | Yes |
|---|
| Power Outage Compatible | No |
|---|
| Cooktop Surface Material | Glass |
|---|
| Center Front Element-Burner Power | 2100W/3600W Boost |
|---|
| Combinations with Oven | KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Fuel Type | Electric Induction |
|---|
| Digital Display | Yes |
|---|
| Power Boost | Yes |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Left Front Element-Burner Type | Round |
|---|
| Cooktop Configuration | All Burners |
|---|
| Right Rear Element-Burner Power | 1800W/ 2100W Boost |
|---|
| Volts | 240 |
|---|
| LP Convertible | No |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Carton Depth | 25 5/16 in |
|---|
| Control Type | Tap Touch |
|---|
| Fuel Type | Electric Induction |
|---|
| Left Rear Element-Burner Type | Round |
|---|
| Height | 2 5/16 in |
|---|
| Control Location | Front |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| True Flush Installation | Yes |
|---|
| Carton Depth | 25 5/16 in |
|---|
| Amps | 30 |
|---|
| Griddle | N/A |
|---|
| Width | 30 3/4 in |
|---|
| Size (in.) | 30 |
|---|
| Right Rear Element-Burner Size | 7in. |
|---|
| Maximum Height(IN,inches) | 4.0000 |
|---|
| Carton Width(IN,inches) | 34.1875 |
|---|
| Accessory Relationships | Yes |
|---|
| Center Front Element-Burner Power | 2100W/3600W Boost |
|---|
| Control Type | Tap Touch |
|---|
| Cooktop Configuration | All Burners |
|---|
| Carton Depth | 25 5/16 in |
|---|
| Cooktop Surface Color | Black |
|---|
| Accessory Relationships | Yes |
|---|
| Width(IN,inches) | 30.7500 |
|---|
| Left Rear Element-Burner Size | 7in. |
|---|
| Left Rear Element-Burner Power | 1800W/ 2100W Boost |
|---|
| Control Type | Tap Touch |
|---|
| Cooktop Element Style | Induction |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Maximum Height | 4 in |
|---|
| Cutout Depth Min(IN,inches) | 20.7500 |
|---|
| Right Rear Element-Burner Size | 7in. |
|---|
| Carton Height | 7 11/16 in |
|---|
| Power Outage Compatible | No |
|---|
| Prop 65 | Standard |
|---|
| Carton Width(IN,inches) | 34.1875 |
|---|
| Accessory Relationships | Yes |
|---|
| Right Front Element-Burner Type | Round |
|---|
| Volts | 240 |
|---|
| Volts | 240 |
|---|
| Right Rear Element-Burner Type | Round |
|---|
| Size (in.) | 30 |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Left Rear Element-Burner Type | Round |
|---|
| Automatic Pan Detection | Yes |
|---|
| Cooktop Surface Color | Black |
|---|
| Infinite Heat Controls | No |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Automatic Pan Size Adjustment | Yes |
|---|
| Right Rear Element-Burner Type | Round |
|---|
| Height | 2 5/16 in |
|---|
| Left Front Element-Burner Size | 6in. |
|---|
| Maximum Height(IN,inches) | 4.0000 |
|---|
| Left Front Element-Burner Type | Round |
|---|
| Carton Width | 34 3/16 in |
|---|
| Cutout Width Min(IN,inches) | 29.5625 |
|---|
| Carton Depth(IN,inches) | 25.3125 |
|---|
| Net Weight | 46.0 in |
|---|
| Left Rear Element-Burner Type | Round |
|---|
| Height | 2 5/16 in |
|---|
| Ignition Type | Electronic Button |
|---|
| Infinite Heat Controls | No |
|---|
| Number of Open Bays | N/A |
|---|
| Right Rear Element-Burner Type | Round |
|---|
| Left Front Element-Burner Power | 1200W/1600W Boost |
|---|
| Cooktop Surface Color | Black |
|---|
| Left Front Element-Burner Type | Round |
|---|
| Power Cord Included | Yes |
|---|
| Power Boost | Yes |
|---|
| Amps | 30 |
|---|
| Downdraft Vent | No |
|---|
| Gross Weight | 59 in |
|---|
| Depth(IN,inches) | 21.2500 |
|---|
| 208V Compatible | Yes |
|---|
| Left Front Element-Burner Power | 1200W/1600W Boost |
|---|
| Width | 30 3/4 in |
|---|
| Fuel Type | Electric Induction |
|---|
| Depth | 21 1/4 in |
|---|
| Power Boost | Yes |
|---|
| True Flush Installation | Yes |
|---|
| Watts | 10560 |
|---|
| Power Outage Compatible | No |
|---|
| Center Front Element-Burner Size | 10in. |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Carton Height | 7 11/16 in |
|---|
| Depth | 21 1/4 in |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Net Weight | 46.0 in |
|---|
| Cutout Width Min(IN,inches) | 29.5625 |
|---|
| Carton Height(IN,inches) | 7.6875 |
|---|
| Watts | 10560 |
|---|
| Right Front Element-Burner Type | Round |
|---|
| Depth(IN,inches) | 21.2500 |
|---|
| Center Front Element-Burner Size | 10in. |
|---|
| Amps | 30 |
|---|
| Cooktop Element Style | Induction |
|---|
| Left Front Element-Burner Power | 1200W/1600W Boost |
|---|
| Combinations with Oven | KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Left Rear Element-Burner Size | 7in. |
|---|
| Left Front Element-Burner Size | 6in. |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Center Front Element-Burner Size | 10in. |
|---|
| Depth | 21 1/4 in |
|---|
| Size (in.) | 30 |
|---|
| Right Front Element-Burner Power | 1200W/ 1600W Boost |
|---|
| Maximum Height(IN,inches) | 4.0000 |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Griddle | N/A |
|---|
| Infinite Heat Controls | No |
|---|
| Automatic Pan Detection | Yes |
|---|
| Carton Width | 34 3/16 in |
|---|
| Height(IN,inches) | 2.3125 |
|---|
| Gross Weight(LB,pounds) | 590 |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Cutout Width Min(IN,inches) | 29.5625 |
|---|
| Cooktop Type | Standard |
|---|
| Watts | 10560 |
|---|
| Net Weight(LB,pounds) | 46 |
|---|
| Hz | 60 |
|---|
| Center Front Element-Burner Type | Round |
|---|
| Depth(IN,inches) | 21.2500 |
|---|
| Carton Depth(IN,inches) | 25.3125 |
|---|
| Cooktop Configuration | All Burners |
|---|
| Maximum Height | 4 in |
|---|
| Cooktop Surface Material | Glass |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Width | 30 3/4 in |
|---|
| Hz | 60 |
|---|
| Net Weight | 46.0 in |
|---|
| Gross Weight(LB,pounds) | 590 |
|---|
| Carton Height(IN,inches) | 7.6875 |
|---|
| Cooktop Type | Standard |
|---|
| Automatic Pan Size Adjustment | Yes |
|---|
| Prop 65 | Standard |
|---|
| LP Convertible | No |
|---|
| Cooktop Type | Standard |
|---|
| Gross Weight | 59 in |
|---|
| Right Front Element-Burner Power | 1200W/ 1600W Boost |
|---|
| Power Cord Included | Yes |
|---|
| Carton Width | 34 3/16 in |
|---|
| Automatic Pan Detection | Yes |
|---|
| Ignition Type | Electronic Button |
|---|
| Downdraft Vent | No |
|---|
| UL | Yes |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Center Front Element-Burner Power | 2100W/3600W Boost |
|---|
| Carton Depth(IN,inches) | 25.3125 |
|---|
| 208V Compatible | Yes |
|---|
| Right Front Element-Burner Power | 1200W/ 1600W Boost |
|---|
