Product Description

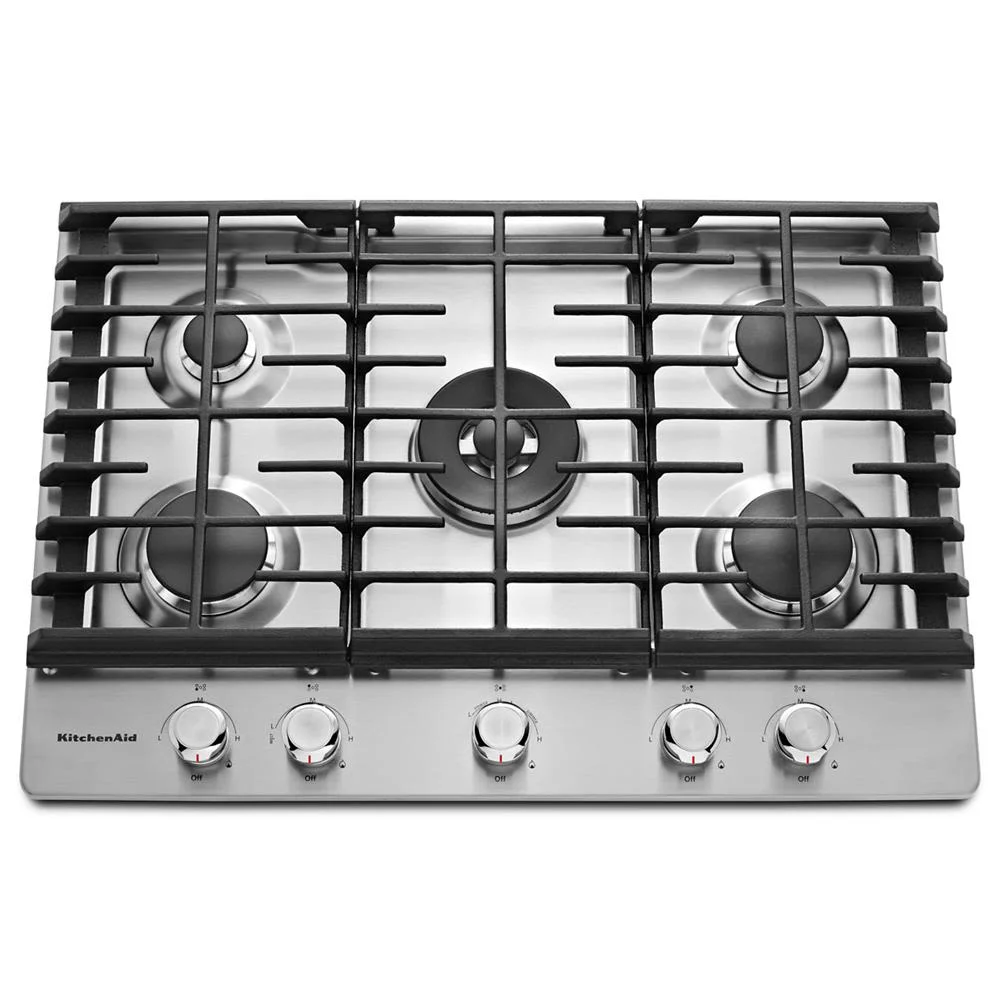

This 30-inch gas cooktop provides exceptional power with five individual burners, including a powerful 17,000 BTU Dual Ring Burner. For added versatility, the 6,000 BTU Even-Heat™ Simmer Burner creates ideal conditions to melt without scorching. The CookShield Finish protects the cooktop against stains that may occur due to high-temperature cooking and makes it easy to wipe clean without harsh chemicals.
Features
- 6,000 BTU Even-Heat™ Simmer Burner : A diffuser plate allows more control of the flame at the lowest setting, for more precise simmering and melting.
- CookShield Finish : protects the cooktop from stains that may
occur with high temperature cooking. The
permanent finish makes it easy to wipe clean
without harsh chemicals so it looks clean,
bright and beautiful even longer.
- Electronic Ignition : Automatically lights burners so no standing pilot light is needed
- Full-Width Cast-Iron Grates : Enhance the beautiful look of the cooktop and allow easy movement of cookware around the entire cooking surface.
- Multi-Finish Knobs : Enhance the look of the cooktop surface with sturdy construction that adds to their premium feel.
- LP Conversion Kit : Allows you to convert the cooktop so it can be used with LP gas.
Specifications
| Cutout Depth Max(IN,inches) | 20 |
|---|
| Cutout Depth Min(IN,inches) | 19 1/2 |
|---|
| Cutout Depth(IN,inches) | 19 13/16 |
|---|
| Cutout Height(IN,inches) | 5 1/4 |
|---|
| Cutout Width Max(IN,inches) | 29 5/16 |
|---|
| Cutout Width Min(IN,inches) | 28 1/2 |
|---|
| Cutout Width(IN,inches) | 28 7/8 |
|---|
| Depth(IN,inches) | 21 |
|---|
| Height(IN,inches) | 3 1/16 |
|---|
| Maximum Height(IN,inches) | 4 19/32 |
|---|
| Net Weight(LB,pounds) | 54 |
|---|
| Width(IN,inches) | 30 |
|---|
| Combinations with Oven | KOSC104FSS,KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Cooktop Type | Standard |
|---|
| Fuel Type | Gas |
|---|
| Size (in.) | 30 |
|---|
| Control Location | Front |
|---|
| Control Type | Knobs |
|---|
| Infinite Heat Controls | Yes |
|---|
| Knob Color | Stainless Steel |
|---|
| Knob Type | Metal |
|---|
| Automatic Pan Detection | No |
|---|
| Digital Display | No |
|---|
| Downdraft Vent | No |
|---|
| Griddle | Optional Accessory |
|---|
| Heating Element On Indicator Light | No |
|---|
| Hot Surface Indicator Light | No |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| LP Convertible | Yes - Kit Included |
|---|
| Power Boost | No |
|---|
| Power Outage Compatible | Yes |
|---|
| Selection | Simmer |
|---|
| Cooktop Element Style | Sealed Burner |
|---|
| Cooktop Surface Color | Color Coordinated |
|---|
| Ignition Type | Direct Spark Ignition |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Cooktop Surface Material | Stainless Steel |
|---|
| Number of Open Bays | NA |
|---|
| Center Rear Element-Burner Power | 17,000 BTU |
|---|
| Center Rear Element-Burner Type | Professional Dual Tier |
|---|
| Left Front Element-Burner Power | 10000 BTU |
|---|
| Left Front Element-Burner Type | Burner |
|---|
| Left Rear Element-Burner Power | 6,000 BTU |
|---|
| Left Rear Element-Burner Type | Simmer |
|---|
| Right Front Element-Burner Power | 10,000 BTU |
|---|
| Right Front Element-Burner Type | Burner |
|---|
| Right Rear Element-Burner Power | 7,000 BTU |
|---|
| Right Rear Element-Burner Type | Burner |
|---|
| Grate Details | Cast Iron Grates,Continuous,Dishwasher Safe,Matte Finish |
|---|
| Number of Grates | 3 |
|---|
| ADA Compliant | ADA Height and Side Reach Compliant |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 25 |
|---|
| Carton Height(IN,inches) | 12 1/16 |
|---|
| Carton Width(IN,inches) | 34 13/16 |
|---|
| Cutout Height Min(IN,inches) | 5 1/4 |
|---|
| Gross Weight(LB,pounds) | 60 |
|---|
| Amps | 15 |
|---|
| Hz | 60 |
|---|

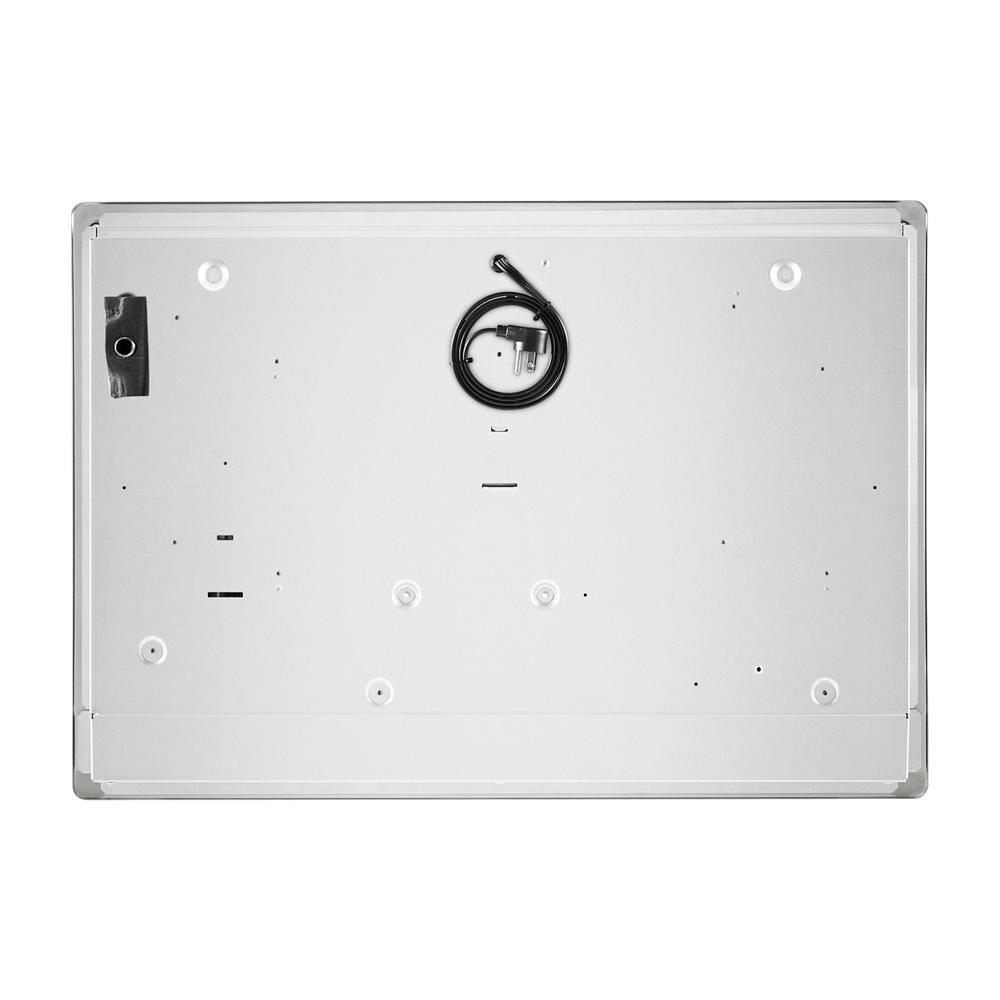

| Power Cord Included | Yes |
|---|
| Volts | 120 |
|---|
| Accessory Relationships | Yes |
|---|
| Cookshield Finish | Cookshield Finish |
|---|
| Carton Depth | 25 inch |
|---|
| Carton Height | 12 1/16 inch |
|---|
| Carton Width | 34 13/16 inch |
|---|
| Cutout Depth (in) | 19 13/16 inch |
|---|
| Cutout Height (in) | 5 1/4 inch |
|---|
| Cutout Width (in) | 28 7/8 inch |
|---|
| Depth | 21 inch |
|---|
| Height | 3 1/16 inch |
|---|
| Width | 30 inch |
|---|
| Gross Weight | 60 inch |
|---|
| Maximum Height | 4 19/32 inch |
|---|
| Net Weight | 53.6 inch |
|---|
