Product Description

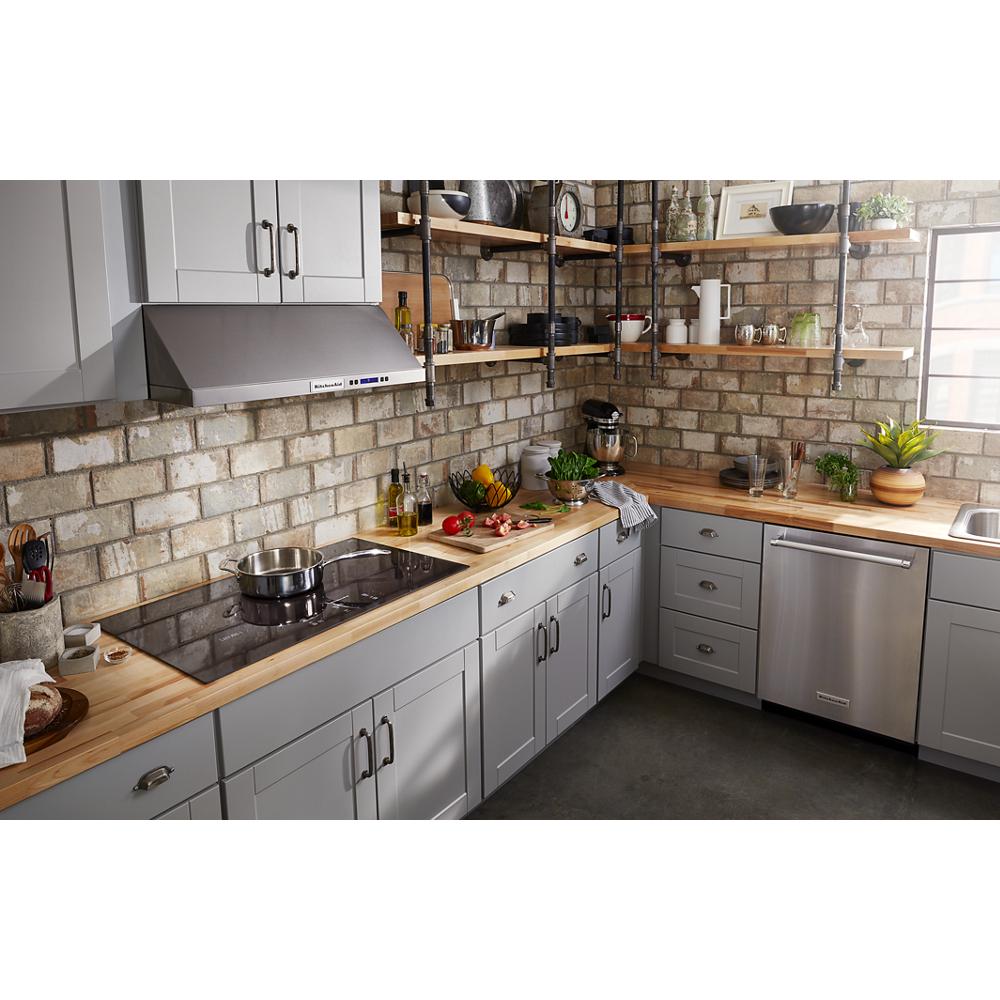

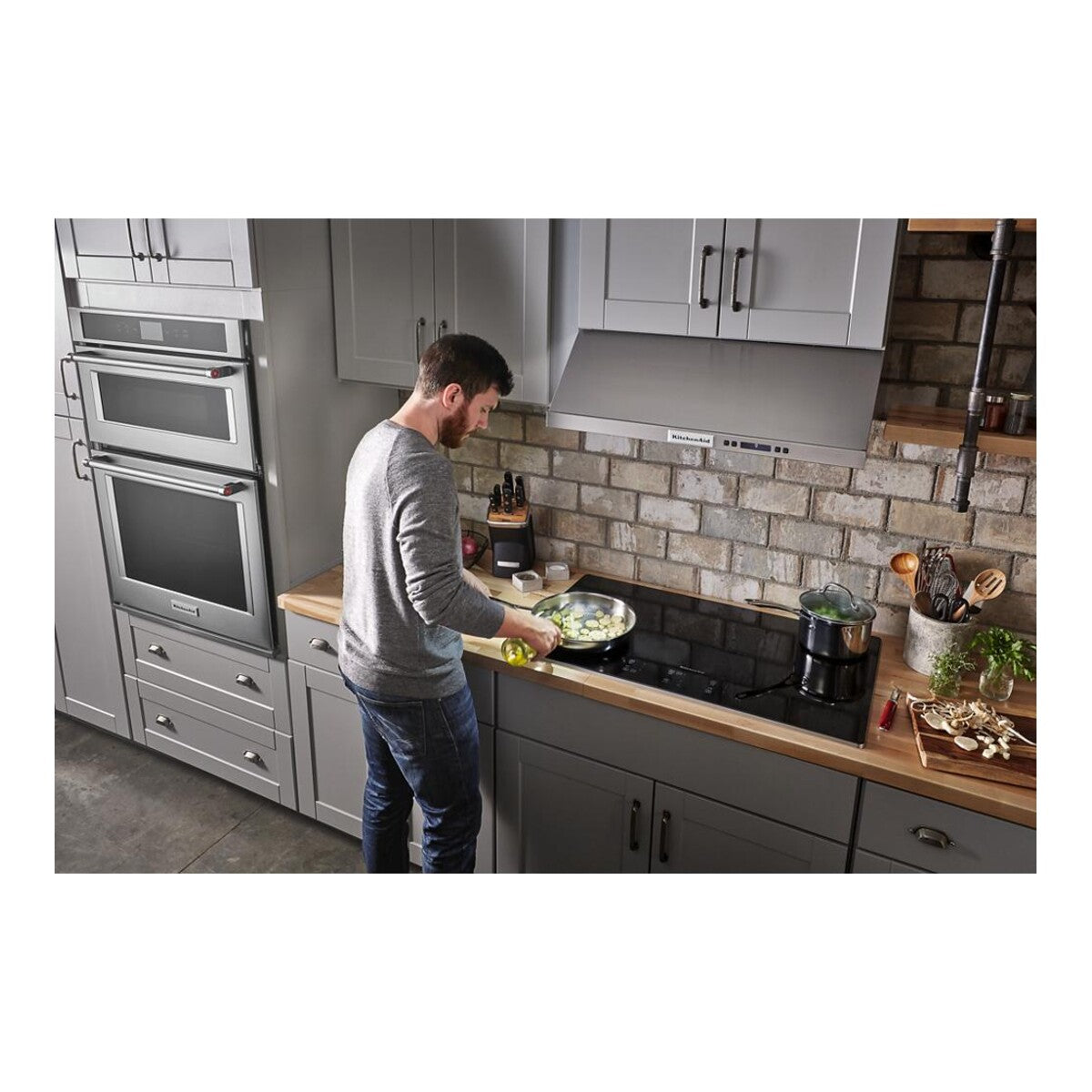

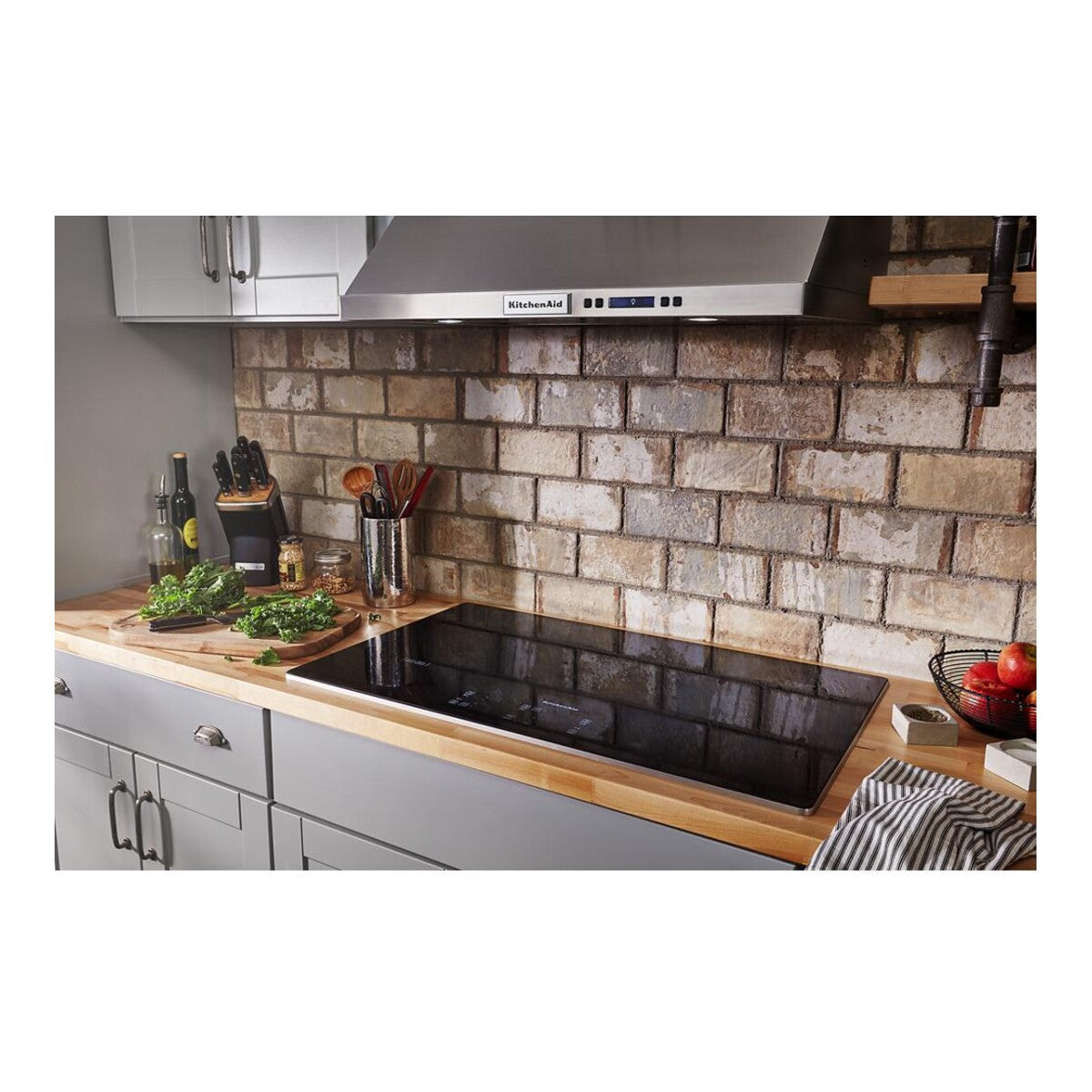

This 36" electric cooktop combines the lasting beauty of a black glass surface with the performance of a 10'' Even-Heat™ Ultra Power™ Element with Simmer Setting, two 6'' Even-Heat™ Elements with Melt Setting, and 12''/9''/6'' Triple-Ring Round Element that maximizes your flexibility with three distinct rings to allow for element selection based on cookware size.
Features
- 10''/6'' Even-Heat™ Ultra Power™ Element with Simmer Setting : Adds versatility for high and low temperature cooking. Even-Heat™ Technology delivers constant power and a range of simmer settings. Two element sizes in one make it ideal for boiling, yet also accept small pans for various cooking tasks.
- 6'' Even-Heat™ Element with Melt Setting : Combines the benefits of Even-Heat™ Technology with a dedicated setting that reaches the low temperatures needed to melt chocolate or butter without scorching.
- 12''/9''/6'' Triple-Ring Round Element : Maximizes your flexibility with three distinct sizes that allow for element selection based on cookware size.
- 8'' 1800-Watt Round Element : Efficiently heats a variety of pan sizes and can reach a power output of up to 1800-watts for every day use.
- 6'' 1200-Watt Round Element : Can reach a power output of up to 1200-watts to handle your daily cooking needs.
- Touch-Activated Controls : Offer an intuitive, easy-to-use touch screen experience.
- Hot Surface Indicator : Protects you by providing a visual indication if a cooking surface is on or still hot, so you can create with confidence.
- Control Lock : Disables cooking mode for easy cleaning when not in use.
Specifications
| Cutout Depth Max(IN,inches) | 20 9/16 |
|---|
| Cutout Depth Min(IN,inches) | 20 3/8 |
|---|
| Cutout Width Max(IN,inches) | 35 9/16 |
|---|
| Cutout Width Min(IN,inches) | 34 9/16 |
|---|
| Depth(IN,inches) | 20 1/4 |
|---|
| Height(IN,inches) | 3 5/8 |
|---|
| Minimum Height(IN,inches) | 3.833333 |
|---|
| Net Weight(LB,pounds) | 44 |
|---|
| Width(IN,inches) | 34.42857 |
|---|
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Cooktop Type | Standard |
|---|
| Fuel Type | Electric |
|---|
| Size (in.) | 36 |
|---|
| Control Location | Right Front |
|---|
| Control Type | Tap Touch |
|---|
| Infinite Heat Controls | No |
|---|
| Automatic Pan Detection | No |
|---|
| Automatic Pan Size Adjustment | No |
|---|
| Digital Display | No |
|---|
| Downdraft Vent | No |
|---|
| Griddle | NA |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| LP Convertible | No |
|---|
| Power Boost | No |
|---|
| Power Outage Compatible | No |
|---|
| Cooktop Configuration | All Burners |
|---|
| Cooktop Element Style | Radiant |
|---|
| Cooktop Surface Color | Black |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Cooktop Surface Material | Glass |
|---|
| Center Rear Element-Burner Power | 3000/2200/1100W |
|---|
| Center Rear Element-Burner Size | 12in./9in./6in. |
|---|
| Center Rear Element-Burner Type | Triple |
|---|
| Left Front Element-Burner Power | 3200/2300W |
|---|
| Left Front Element-Burner Size | 10in./6in. |
|---|
| Left Front Element-Burner Type | Even Heat Dual |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Right Front Element-Burner Power | 1,800W |
|---|
| Right Front Element-Burner Size | 8in. |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Right Rear Element-Burner Power | 1,300W |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| Right Rear Element-Burner Type | Even Heat |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 25 |
|---|
| Carton Height(IN,inches) | 9 1/4 |
|---|
| Carton Width(IN,inches) | 40 3/4 |
|---|
| Gross Weight(LB,pounds) | 50 |
|---|
| Amps | 40 |
|---|
| Hz | 60 |
|---|
| Power Cord Included | No |
|---|
| Volts | 240 |
|---|
| 208V Compatible | Yes |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Depth | 25 inch |
|---|
| Carton Height | 9 1/4 inch |
|---|
| Carton Width | 40 3/4 inch |
|---|
| Depth | 20 1/4 inch |
|---|
| Height | 3 5/8 inch |
|---|
| Width | 34.42857 inch |
|---|
| Gross Weight | 50 inch |
|---|
| Net Weight | 44.0 inch |
|---|
| Carton Depth | 25 in |
|---|
| Accessory Relationships | Yes |
|---|
| Hz | 60 |
|---|
| Amps | 40 |
|---|
| Depth | 20 1/4 in |
|---|
| Volts | 240 |
|---|
| Net Weight(LB,pounds) | 44 |
|---|
| Center Rear Element-Burner Size | 12in./9in./6in. |
|---|
| Cutout Width Min(IN,inches) | 34.5625 |
|---|
| Net Weight | 44.0 in |
|---|
| Net Weight(LB,pounds) | 44 |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Digital Display | No |
|---|
| Amps | 40 |
|---|
| Cutout Depth Max(IN,inches) | 20.5625 |
|---|
| Gross Weight | 50 in |
|---|
| Cutout Width Max(IN,inches) | 35.5625 |
|---|
| Center Rear Element-Burner Type | Triple |
|---|
| Fuel Type | Electric |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| Prop 65 | Standard |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Left Front Element-Burner Size | 10in./6in. |
|---|
| Width(IN,inches) | 34.4286 |
|---|
| Center Rear Element-Burner Size | 12in./9in./6in. |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Carton Depth(IN,inches) | 25.0000 |
|---|
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Downdraft Vent | No |
|---|
| Power Outage Compatible | No |
|---|
| Digital Display | No |
|---|
| Cooktop Surface Color | Black |
|---|
| Cooktop Element Style | Radiant |
|---|
| Right Front Element-Burner Power | 1,800W |
|---|
| Right Rear Element-Burner Power | 1,300W |
|---|
| Carton Width(IN,inches) | 40.7500 |
|---|
| Cooktop Configuration | All Burners |
|---|
| Width(IN,inches) | 34.4286 |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Carton Height | 9 1/4 in |
|---|
| LP Convertible | No |
|---|
| Right Front Element-Burner Size | 8in. |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Gross Weight(LB,pounds) | 50 |
|---|
| Cutout Width Max(IN,inches) | 35.5625 |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| Right Front Element-Burner Power | 1,800W |
|---|
| Carton Width(IN,inches) | 40.7500 |
|---|
| Installs Over Built-In Oven | Yes |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| 208V Compatible | Yes |
|---|
| Width | 34.42857 in |
|---|
| Depth | 20 1/4 in |
|---|
| Carton Width | 40 3/4 in |
|---|
| Left Front Element-Burner Size | 10in./6in. |
|---|
| Gross Weight | 50 in |
|---|
| 208V Compatible | Yes |
|---|
| Cutout Depth Min(IN,inches) | 20.3750 |
|---|
| Size (in.) | 36 |
|---|
| Carton Height(IN,inches) | 9.2500 |
|---|
| Right Rear Element-Burner Type | Even Heat |
|---|
| Control Type | Tap Touch |
|---|
| Right Rear Element-Burner Type | Even Heat |
|---|
| Cutout Depth Min(IN,inches) | 20.3750 |
|---|
| Height(IN,inches) | 3.6250 |
|---|
| LP Convertible | No |
|---|
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Carton Depth(IN,inches) | 25.0000 |
|---|
| Width(IN,inches) | 34.4286 |
|---|
| Amps | 40 |
|---|
| Cutout Depth Max(IN,inches) | 20.5625 |
|---|
| Cutout Width Min(IN,inches) | 34.5625 |
|---|
| Center Rear Element-Burner Type | Triple |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Height | 3 5/8 in |
|---|
| Gross Weight | 50 in |
|---|
| Automatic Pan Detection | No |
|---|
| Cutout Depth Max(IN,inches) | 20.5625 |
|---|
| Automatic Pan Size Adjustment | No |
|---|
| Cooktop Configuration | All Burners |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Cooktop Surface Material | Glass |
|---|
| Right Rear Element-Burner Type | Even Heat |
|---|
| Height | 3 5/8 in |
|---|
| Cutout Width Max(IN,inches) | 35.5625 |
|---|
| Gross Weight(LB,pounds) | 50 |
|---|
| Cooktop Type | Standard |
|---|
| Fuel Type | Electric |
|---|
| Automatic Pan Detection | No |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Right Rear Element-Burner Power | 1,300W |
|---|
| Cooktop Surface Color | Black |
|---|
| Prop 65 | Standard |
|---|
| Accessory Relationships | Yes |
|---|
| Infinite Heat Controls | No |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| 208V Compatible | Yes |
|---|
| Right Front Element-Burner Power | 1,800W |
|---|
| Height | 3 5/8 in |
|---|
| Cooktop Type | Standard |
|---|
| Accessory Relationships | Yes |
|---|
| Carton Width(IN,inches) | 40.7500 |
|---|
| Cooktop Surface Material | Glass |
|---|
| Right Front Element-Burner Size | 8in. |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Hz | 60 |
|---|
| Cutout Depth Min(IN,inches) | 20.3750 |
|---|
| Center Rear Element-Burner Size | 12in./9in./6in. |
|---|
| Control Type | Tap Touch |
|---|
| Control Type | Tap Touch |
|---|
| Width | 34.42857 in |
|---|
| Prop 65 | Standard |
|---|
| Height(IN,inches) | 3.6250 |
|---|
| Minimum Height(IN,inches) | 3.8333 |
|---|
| Cooktop Type | Standard |
|---|
| Carton Depth | 25 in |
|---|
| Infinite Heat Controls | No |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Cooktop Surface Material | Glass |
|---|
| Griddle | N/A |
|---|
| Left Front Element-Burner Type | Even Heat Dual |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Minimum Height(IN,inches) | 3.8333 |
|---|
| Net Weight | 44.0 in |
|---|
| Size (in.) | 36 |
|---|
| Carton Height | 9 1/4 in |
|---|
| Cooktop Element Style | Radiant |
|---|
| Cutout Width Min(IN,inches) | 34.5625 |
|---|
| Cooktop Element Style | Radiant |
|---|
| Net Weight | 44.0 in |
|---|
| Center Rear Element-Burner Type | Triple |
|---|
| Automatic Pan Size Adjustment | No |
|---|
| Right Front Element-Burner Size | 8in. |
|---|
| Control Location | Right Front |
|---|
| UL | Yes |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Fuel Type | Electric |
|---|
| Left Front Element-Burner Size | 10in./6in. |
|---|
| Left Front Element-Burner Type | Even Heat Dual |
|---|
| Net Weight(LB,pounds) | 44 |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Volts | 240 |
|---|
| Power Outage Compatible | No |
|---|
| Power Outage Compatible | No |
|---|
| Left Rear Element-Burner Type | Standard |
|---|
| Height(IN,inches) | 3.6250 |
|---|
| Depth(IN,inches) | 20.2500 |
|---|
| Power Boost | No |
|---|
| Carton Depth(IN,inches) | 25.0000 |
|---|
| Width | 34.42857 in |
|---|
| Griddle | N/A |
|---|
| Depth(IN,inches) | 20.2500 |
|---|
| Minimum Height(IN,inches) | 3.8333 |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Carton Height(IN,inches) | 9.2500 |
|---|
| Control Location | Right Front |
|---|
| Right Rear Element-Burner Size | 6in. |
|---|
| UL | Yes |
|---|
| Cooktop Configuration | All Burners |
|---|
| Control Location | Right Front |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Downdraft Vent | No |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Automatic Pan Detection | No |
|---|
| Hz | 60 |
|---|
| Digital Display | No |
|---|
| Cooktop Surface Color | Black |
|---|
| LP Convertible | No |
|---|
| Power Cord Included | No |
|---|
| Left Front Element-Burner Power | 3200/2300W |
|---|
| Gross Weight(LB,pounds) | 50 |
|---|
| Center Rear Element-Burner Power | 3000/2200/1100W |
|---|
| UL | Yes |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Left Front Element-Burner Type | Even Heat Dual |
|---|
| Carton Width | 40 3/4 in |
|---|
| Griddle | N/A |
|---|
| Power Boost | No |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Power Cord Included | No |
|---|
| Left Front Element-Burner Power | 3200/2300W |
|---|
| Depth(IN,inches) | 20.2500 |
|---|
| Size (in.) | 36 |
|---|
| ADA Compliant | ADA Height and Operation Compliant |
|---|
| Carton Width | 40 3/4 in |
|---|
| Center Rear Element-Burner Power | 3000/2200/1100W |
|---|
| Power Boost | No |
|---|
| Carton Depth | 25 in |
|---|
| Power Cord Included | No |
|---|
| Downdraft Vent | No |
|---|
| Infinite Heat Controls | No |
|---|
| Depth | 20 1/4 in |
|---|
| Carton Height | 9 1/4 in |
|---|
| Automatic Pan Size Adjustment | No |
|---|
| Number of Cooking Element-Burners | 5 |
|---|
| Center Rear Element-Burner Power | 3000/2200/1100W |
|---|
| Volts | 240 |
|---|
| Combinations with Oven | KOSC504,KOSE500,KOSE507,KOSE900,KOST100,KOST107 |
|---|
| Right Front Element-Burner Type | Standard |
|---|
| Right Rear Element-Burner Power | 1,300W |
|---|
| Carton Height(IN,inches) | 9.2500 |
|---|
| Left Front Element-Burner Power | 3200/2300W |
|---|
