Product Description
Innovation Noise Control Technology™ reduces noise while fan is in use Cooktop Hood Sync allows hood control on Freedom® cooktop touchscreen Cooktop Hood Sync enables hood activation once Freedom® cooktop is on Remotely monitor, control, and start through the Home Connect app Flexibility to program custom settings the through Home Connect app Manage Thermador Connected Experience kitchen suite with one network Access tips and tricks on Home Connect app to master every aspect Opt to receive mobile notifications as a reminder to clean filters Performance Grease-capturing mesh filters framed by stainless steel 600 CFM blower to match in performance with Masterpiece® cooktops Select the precise fan speed needed with four different settings Automatic mode detects temperatures to adjust fan speed automatically 10-min delay shut off ensure lingering odor do not interrupt a course Delay shut off time can extend or reduce through Home Connect app Check filter reminder light illuminates after 40 hours of operation Convert to recirculation for hard to duct installs, kit sold separate Vertical ducting direction possible 8" round duct discharge Design Sleek, smooth touch control make cleaning easy with a damp cloth Beautiful illumination with white multiple level LED lighting 0-100% light slider in Home Connect app allows perfect level of light Dishwasher-safe hybrid mesh filters with stainless steel frame Built-in remote control panel accessory available, sold separate
Features
- Wi-Fi Enabled : allows for remote monitoring and control of lights and fan speed, notification to clean the grease filter via Home Connect app, works with smart home devices and services like Amazon Alexa.
- Noise Control Technology™ : utilizes insulation that reduces noise up to 35% compared to hoods without it - so you can focus on entertaining.
- Delay Shut Off & Automatic Mode : features an Automatic Mode, that adjusts the fan speed according to your cooking style, as well as Delay Shut Off, which runs the hood 10 minutes after you are done cooking to remove any lingering odors.
- LED Lighting : highlights your meal from first course to last with multi-level vivid LED Lighting.
- Sleek Electronic Touch Control Panel : convenient control that is easy-to-use and easy-to-clean.

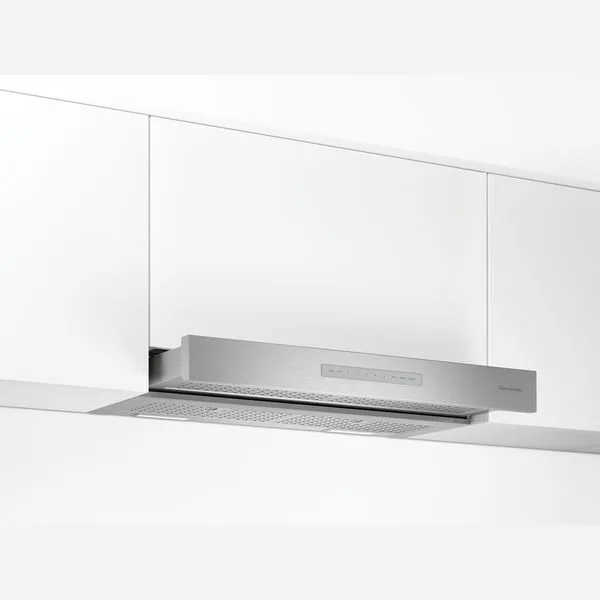

- Masterpiece® Drawer hoods blend luxury and performance, featuring a sliding canopy that can be pulled forward or pushed back
Specifications
| Volts (V) | 120 |
|---|
| Color body | Stainless Steel |
|---|
| Light Control Type | Continuous |
|---|
| Light Control Type | Continuous |
|---|
| Total output power of the motors | 455 |
|---|
| Type of manual control devices | touch control |
|---|
| Material | Stainless Steel |
|---|
| Gross weight (kg) | 29.0 |
|---|
| Typology | Built-in/Built-under |
|---|
| Watts (W) | 455 |
|---|
| Type of automatic control devices | Control via cooker/hotplate |
|---|
| Plug type | Fixed Connection, No Plug |
|---|
| Optional accessories | CHFHMDW30, RECHMDW30, REMCPW |
|---|
| Height of the packed product (mm) | 470 |
|---|
| Number of motors | 1 |
|---|
| Remote control | Yes |
|---|
| Color body | Stainless Steel |
|---|
| Odour filter | No |
|---|
| Plug type | Fixed Connection, No Plug |
|---|
| Internal article number | HMDW30WS |
|---|
| Number of speed settings | 4-stage |
|---|
| Color body | Stainless Steel |
|---|
| Gross weight (kg) | 29.0 |
|---|
| Material | Stainless Steel |
|---|
| Total luminance (lux) | 150 |
|---|
| Current (A) | 15 |
|---|
| Air exhaust | Yes |
|---|
| Brand | Thermador |
|---|
| Diameter of air duct (mm) | 200 |
|---|
| Type of automatic control devices | Control via cooker/hotplate |
|---|
| EAN code | 825225935681 |
|---|
| Total luminance (lux) | 150 |
|---|
| Typology | Built-in/Built-under |
|---|
| Material | Stainless Steel |
|---|
| Type of control | Electronic |
|---|
| Product group | Hood |
|---|
| Number of lights | 2 |
|---|
| Depth of the packed product (mm) | 880 |
|---|
| Width of the packed product (mm) | 470 |
|---|
| Number of lights | 2 |
|---|
| Power cord length (cm) | 0.0 |
|---|
| Number of motors | 1 |
|---|
| Odour filter | No |
|---|
| Net weight (kg) | 22.7 |
|---|
| Type of lamps used | Low consumption |
|---|
| SKU | HMDW30WS |
|---|
| Frequency (Hz) | 60 |
|---|
| Current (A) | 15 |
|---|
| Number of speed settings | 4-stage |
|---|
| Installation type | Built-under |
|---|
| Construction type | Built-in |
|---|
| Width of the packed product (mm) | 470 |
|---|
| Type of control | Electronic |
|---|
| Odour filter | No |
|---|
| Construction type | Built-in |
|---|
| Product series | Masterpiece® |
|---|
| Type of control | Illuminated Buttons, Touch Control |
|---|
| Watts (W) | 455 |
|---|
| Number of lights | 2 |
|---|
| Gross weight (kg) | 29.0 |
|---|
| Optional accessories | CHFHMDW30, RECHMDW30, REMCPW |
|---|
| Power cord length (cm) | 0.0 |
|---|
| Diameter of air duct (mm) | 200 |
|---|
| Motor location | Integrated motor in hood chimney |
|---|
| Current (A) | 15 |
|---|
| Volts (V) | 120 |
|---|
| Type of control | Illuminated Buttons, Touch Control |
|---|
| Frequency (Hz) | 60 |
|---|
| No-return airflow flap | Yes |
|---|
| Height of the packed product (mm) | 470 |
|---|
| Type of automatic control devices | Control via cooker/hotplate |
|---|
| Total luminance (lux) | 150 |
|---|
| Brand | Thermador |
|---|
| EAN code | 825225935681 |
|---|
| Power cord length (cm) | 0.0 |
|---|
| Diameter of air duct (mm) | 200 |
|---|
| Type of lamps used | Low consumption |
|---|
| Light Control Type | Continuous |
|---|
| Motor location | Integrated motor in hood chimney |
|---|
| Volts (V) | 120 |
|---|
| Product group | Hood |
|---|
| EAN code | 825225935681 |
|---|
| SKU | HMDW30WS |
|---|
| Motor location | Integrated motor in hood chimney |
|---|
| Height of the packed product (mm) | 470 |
|---|
| Depth of the packed product (mm) | 880 |
|---|
| Type of control | Electronic |
|---|
| Plug type | fixed connection, no plug |
|---|
| Total output power of the motors | 455 |
|---|
| Product series | Masterpiece® |
|---|
| No-return airflow flap | Yes |
|---|
| Air exhaust | Yes |
|---|
| No-return airflow flap | Yes |
|---|
| Frequency (Hz) | 60 |
|---|
| Watts (W) | 455 |
|---|
| Product series | Masterpiece® |
|---|
| Air exhaust | Yes |
|---|
| Optional accessories | CHFHMDW30, RECHMDW30, REMCPW |
|---|
| Construction type | Built-in |
|---|
| Number of speed settings | 4-stage |
|---|
| Installation type | Built-under |
|---|
| Type of lamps used | Low consumption |
|---|
| SKU | HMDW30WS |
|---|
| Net weight (kg) | 22.7 |
|---|
| Type of manual control devices | touch control |
|---|
| Internal article number | HMDW30WS |
|---|
| Net weight (kg) | 22.7 |
|---|
| Width of the packed product (mm) | 470 |
|---|
| Depth of the packed product (mm) | 880 |
|---|
| Brand | Thermador |
|---|
| Internal article number | HMDW30WS |
|---|
| Product group | Hood |
|---|
| Remote control | Yes |
|---|
| Total output power of the motors | 455 |
|---|
| Remote control | Yes |
|---|
| Number of motors | 1 |
|---|
| Typology | Built-in/Built-under |
|---|
| Installation type | Built-under |
|---|
| Type of manual control devices | touch control |
|---|
| Type of control | Illuminated Buttons, Touch Control |
|---|
