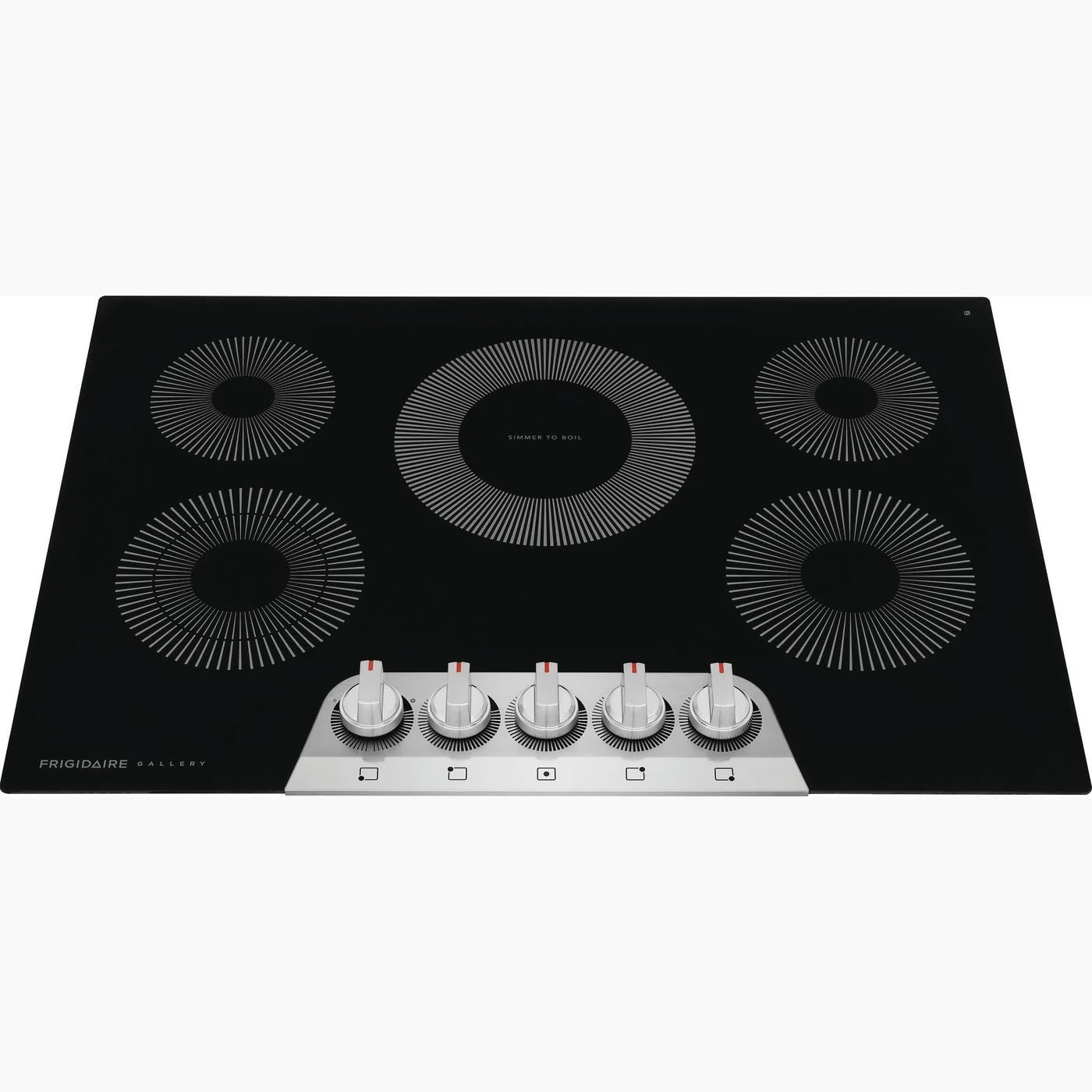

Product Description
The Frigidaire Gallery 30" Electric Cooktop provides delicious results every time with the EvenTemp® Element that delivers consistent heat across the elements surface, reducing hot and cold spots in your pan. Enjoy ultimate cooking flexibility with powerful elements designed to meet all of your cooking needs, including a Dual Expandable Element and Keep Warm Zone. Plus, these cooktops feature bright, backlit LED knobs that light up when the cooktop is in use, conveniently placed on the front of the cooktop.
Features
- Heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.
- Designed to meet all of your cooking needs with a powerful 3,200 Watt EvenTemp® Element, Dual Expandable Element, and convenient Keep Warm Zone.
- Lights up when the burner is turned on.
- We promise that your new 30" Frigidaire radiant cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Our convenient 2-in-1 element expands from 5" for smaller pots to 7" for larger cookware, providing more cooktop flexibility.
- Keep food warm until everything - and everyone - is ready.
- Located on the front of the cooktop so you to adjust the temperature without reaching over hot items.
- Wipe away spills more easily with the smooth ceramic glass cooktop.
- Cooktops are approved for installation above any of our Frigidaire electric wall ovens.
Specifications
| UL Listed | Yes |
|---|
| Cooking Surface Type | Smooth |
|---|
| Center Rear Element Burner | 3200 Watts |
|---|
| Display Type | Mechanical |
|---|
| Warranty - Labor | 1 Year |
|---|
| Minimum Cutout Depth | 19 5/8" |
|---|
| Left Front Element Burner (Small) | 750 Watts |
|---|
| Maximum Cutout Width | 29 7/8" |
|---|
| Control Location | Front |
|---|
| Cooking Surface Type | Smooth |
|---|
| Left Front Element Burner (Small) | 750 Watts |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| Minimum Cutout Width | 28 1/2" |
|---|
| Left Rear Element Burner Size | 6" |
|---|
| Center Rear Element Burner Size | 9" |
|---|
| Hot-Surface Indicator Light | Yes |
|---|
| Left Front Element Burner (Large) | 1800 Watts |
|---|
| Minimum Circuit Required | 40 Amps |
|---|
| Left Front Element Burner Size (Large) | 7" |
|---|
| Product Weight | 31 lbs |
|---|
| Left Front Element Burner Size (Small) | 5" |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| Cooking Surface Type | Smooth |
|---|
| Display Type | Mechanical |
|---|
| Amps @ 240 Volts | 38.3 Amps |
|---|
| Right Rear Element Burner Size | 6" |
|---|
| Right Front Element Burner Size | 7" |
|---|
| Right Rear Element Burner | 1200 Watts |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Prop 65 Label | Yes |
|---|
| Left Front Element Burner (Large) | 1800 Watts |
|---|
| Power Supply Connection Location | Right Center |
|---|
| Left Front Element Burner Size (Large) | 7" |
|---|
| Left Rear Element Burner Size | 6" |
|---|
| Maximum Cutout Depth | 20 1/2" |
|---|
| Warranty - Parts | 1 Year |
|---|
| Right Rear Element Burner | 1200 Watts |
|---|
| ADA Compliant | Yes |
|---|
| Center Rear Element Burner Size | 9" |
|---|
| Amps @ 240 Volts | 38.3 Amps |
|---|
| Right Front Element Burner | 1800 Watts |
|---|
| Left Rear Element Burner Size | 6" |
|---|
| Right Front Element Burner Size | 7" |
|---|
| Display Type | Mechanical |
|---|
| Warranty - Parts | 1 Year |
|---|
| Left Rear Element Burner | 1200 Watts |
|---|
| Amps @ 240 Volts | 38.3 Amps |
|---|
| CSA Listed | Yes |
|---|
| Control Location | Front |
|---|
| Sabbath Mode | No |
|---|
| Prop 65 Label | Yes |
|---|
| Hot-Surface Indicator Light | Yes |
|---|
| Minimum Cutout Depth | 19 5/8" |
|---|
| Product Weight | 31 lbs |
|---|
| Center Rear Element Burner | 3200 Watts |
|---|
| Product Weight | 31 lbs |
|---|
| Left Rear Element Burner | 1200 Watts |
|---|
| Right Rear Element Burner Size | 6" |
|---|
| Left Front Element Burner Size (Small) | 5" |
|---|
| Hot-Surface Indicator Light | Yes |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| Minimum Cutout Width | 28 1/2" |
|---|
| Voltage Rating | 240 V |
|---|
| Right Front Element Burner Size | 7" |
|---|
| Warranty - Labor | 1 Year |
|---|
| Maximum Cutout Depth | 20 1/2" |
|---|
| Left Front Element Burner (Small) | 750 Watts |
|---|
| UL Listed | Yes |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Connected Load @ 240V | 9.2 kW |
|---|
| Sabbath Mode | No |
|---|
| Right Front Element Burner | 1800 Watts |
|---|
| Voltage Rating | 240 V |
|---|
| Cutout Height | 5" |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Right Rear Element Burner Size | 6" |
|---|
| Connected Load @ 240V | 9.2 kW |
|---|
| CSA Listed | Yes |
|---|
| Right Rear Element Burner | 1200 Watts |
|---|
| ADA Compliant | Yes |
|---|
| Power Supply Connection Location | Right Center |
|---|
| Center Rear Element Burner | 3200 Watts |
|---|
| Minimum Cutout Depth | 19 5/8" |
|---|
| Prop 65 Label | Yes |
|---|
| Maximum Cutout Width | 29 7/8" |
|---|
| Center Rear Element Burner Size | 9" |
|---|
| Left Front Element Burner Size (Small) | 5" |
|---|
| Warranty - Parts | 1 Year |
|---|
| ADA Compliant | Yes |
|---|
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
|---|
| Left Front Element Burner Size (Large) | 7" |
|---|
| Minimum Circuit Required | 40 Amps |
|---|
| Sabbath Mode | No |
|---|
| Cutout Height | 5" |
|---|
| Minimum Circuit Required | 40 Amps |
|---|
| Connected Load @ 240V | 9.2 kW |
|---|
| CSA Listed | Yes |
|---|
| Left Front Element Burner (Large) | 1800 Watts |
|---|
| Control Location | Front |
|---|
| Right Front Element Burner | 1800 Watts |
|---|
| Minimum Cutout Width | 28 1/2" |
|---|
| Power Supply Connection Location | Right Center |
|---|
| Warranty - Labor | 1 Year |
|---|
| Cutout Height | 5" |
|---|
| Maximum Cutout Width | 29 7/8" |
|---|
| Maximum Cutout Depth | 20 1/2" |
|---|
| UL Listed | Yes |
|---|
| Left Rear Element Burner | 1200 Watts |
|---|
| Voltage Rating | 240 V |
|---|
| Frigidaire Fit Promise | Yes |
|---|
