Product Description

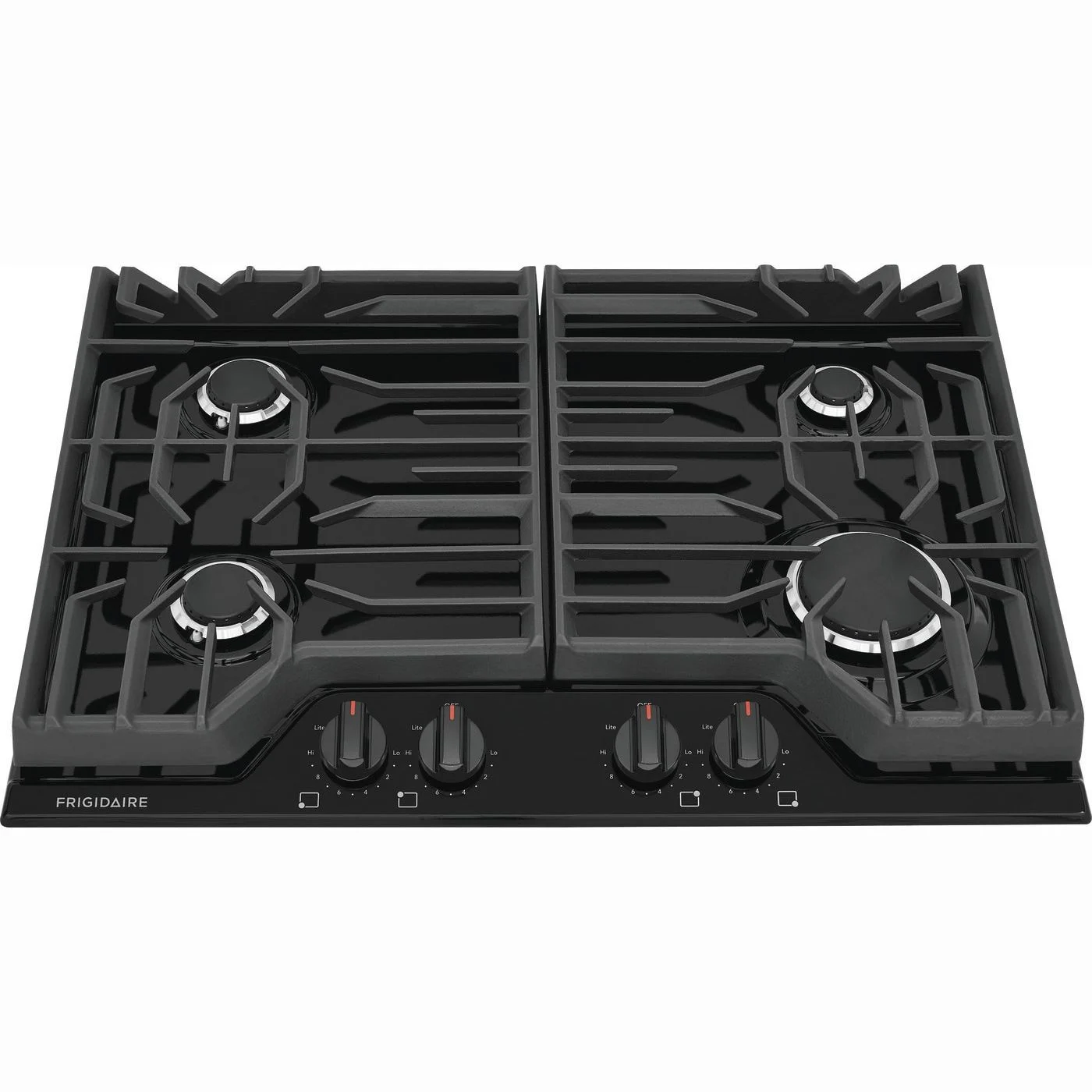

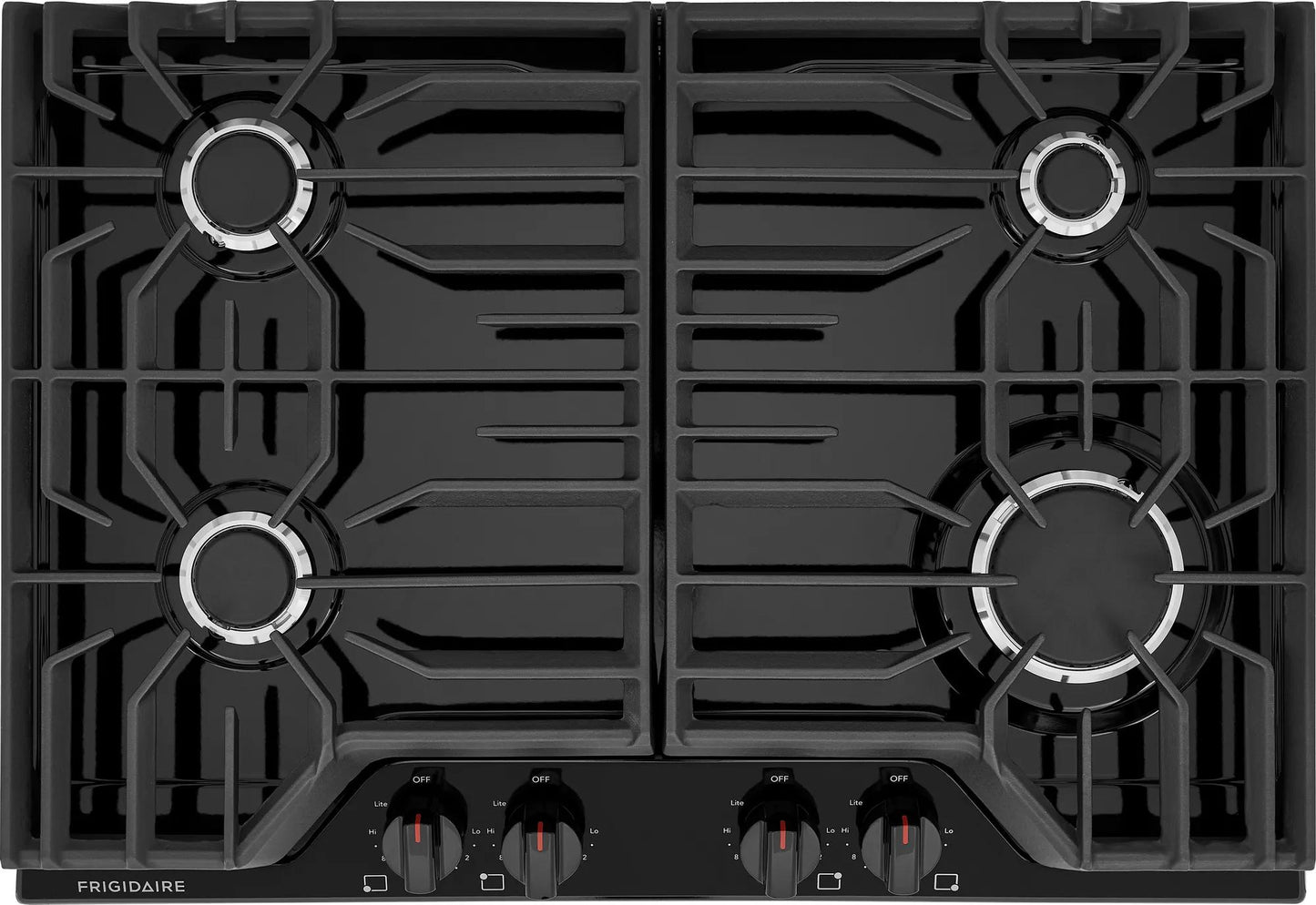

The Frigidaire 30" Gas Cooktop offers powerful, flexible burners that get meals on the table faster and meet all your cooking needs. Edge-to-edge continuous grates make it easy to move pots and pans without lifting, providing an effortless cooking experience. These cooktops are part of our Frigidaire Fit Promise program that allow you to purchase with peace of mind that your new cooktop will fit your existing cut out.
Features
- Boil water and prepare meals quickly with the 16,000 BTU burner.
- From boil to simmer, get the job done right with the 16,000 BTU power burner and the 5,000 BTU burner, perfect for delicate sauces.
- Simmer burner delivers a low heat that allows you to prepare delicate foods or sauces without burning or scorching the bottom.
- Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
- We promise that your new 30" Frigidaire gas cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.
- Clean-up is less of a hassle with the recessed cooktop that contains spills and common cooking messes.
- Cooktops are approved for installation above any of our Frigidaire or Frigidaire Gallery Single Electric Wall Ovens.
Specifications
| Cooking Surface Type | Gas |
|---|
| Grate Style | Continuous |
|---|
| Left Rear Element Burner | 9500 BTU |
|---|
| Display Type | Mechanical |
|---|
| LP Conversion Kit Included | Yes |
|---|
| Product Weight | 37 lbs |
|---|
| Power Supply Connection Location | Top Right |
|---|
| Left Front Element Burner | 9500 BTU |
|---|
| UL Listed | Yes |
|---|
| Prop 65 Label | Yes |
|---|
| Grate Quantity | 2 |
|---|
| Cutout Height | 7 1/2" |
|---|
| Power Cord Included | Yes |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| ADA Compliant | Yes |
|---|
| Voltage Rating | 120 V |
|---|
| Product Weight | 37 lbs |
|---|
| Prop 65 Label | Yes |
|---|
| Grate Style | Continuous |
|---|
| Maximum Cutout Width | 29 5/16" |
|---|
| Grate Quantity | 2 |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Grate Material | Cast Iron |
|---|
| Warranty - Labor | 1 Year |
|---|
| ADA Compliant | Yes |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| Warranty - Parts | 1 Year |
|---|
| Grate Style | Continuous |
|---|
| Power Supply Connection Location | Top Right |
|---|
| Warranty - Labor | 1 Year |
|---|
| LP Conversion Kit Included | Yes |
|---|
| Voltage Rating | 120 V |
|---|
| Minimum Cutout Depth | 19" |
|---|
| Cutout Height | 7 1/2" |
|---|
| Power Cord Included | Yes |
|---|
| Right Front Element Burner | 16000 BTU |
|---|
| Frigidaire Fit Promise | Yes |
|---|
| Grate Quantity | 2 |
|---|
| Amps @ 120 Volts | 5 Amps |
|---|
| Left Front Element Burner | 9500 BTU |
|---|
| CSA Listed | Yes |
|---|
| Warranty - Labor | 1 Year |
|---|
| Control Location | Front |
|---|
| Left Front Element Burner | 9500 BTU |
|---|
| Display Type | Mechanical |
|---|
| Sealed Burners | Yes |
|---|
| Cutout Height | 7 1/2" |
|---|
| Gas Supply Connection Location | Top Right |
|---|
| Right Front Element Burner | 16000 BTU |
|---|
| Amps @ 120 Volts | 5 Amps |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| Maximum Cutout Width | 29 5/16" |
|---|
| Amps @ 120 Volts | 5 Amps |
|---|
| Right Rear Element Burner | 5000 BTU |
|---|
| Grate Material | Cast Iron |
|---|
| Sealed Burners | Yes |
|---|
| Left Rear Element Burner | 9500 BTU |
|---|
| Grate Material | Cast Iron |
|---|
| Right Rear Element Burner | 5000 BTU |
|---|
| Maximum Cutout Width | 29 5/16" |
|---|
| UL Listed | Yes |
|---|
| Voltage Rating | 120 V |
|---|
| Warranty - Parts | 1 Year |
|---|
| Prop 65 Label | Yes |
|---|
| Warranty - Parts | 1 Year |
|---|
| Installed Over a Wall Oven | Yes |
|---|
| UL Listed | Yes |
|---|
| Cooking Surface Type | Gas |
|---|
| Power Supply Connection Location | Top Right |
|---|
| Control Location | Front |
|---|
| Minimum Cutout Depth | 19" |
|---|
| Product Weight | 37 lbs |
|---|
| Gas Supply Connection Location | Top Right |
|---|
| Cooking Surface Type | Gas |
|---|
| ADA Compliant | Yes |
|---|
| Minimum Cutout Width | 27 1/4" |
|---|
| Maximum Cutout Depth | 20" |
|---|
| Gas Supply Connection Location | Top Right |
|---|
| Sealed Burners | Yes |
|---|
| CSA Listed | Yes |
|---|
| Maximum Cutout Depth | 20" |
|---|
| Minimum Cutout Width | 27 1/4" |
|---|
| Right Rear Element Burner | 5000 BTU |
|---|
| Left Rear Element Burner | 9500 BTU |
|---|
| Power Cord Included | Yes |
|---|
| LP Conversion Kit Included | Yes |
|---|
| Minimum Cutout Width | 27 1/4" |
|---|
| CSA Listed | Yes |
|---|
| Right Front Element Burner | 16000 BTU |
|---|
| Minimum Cutout Depth | 19" |
|---|
| Maximum Cutout Depth | 20" |
|---|
| Display Type | Mechanical |
|---|
| Control Location | Front |
|---|
