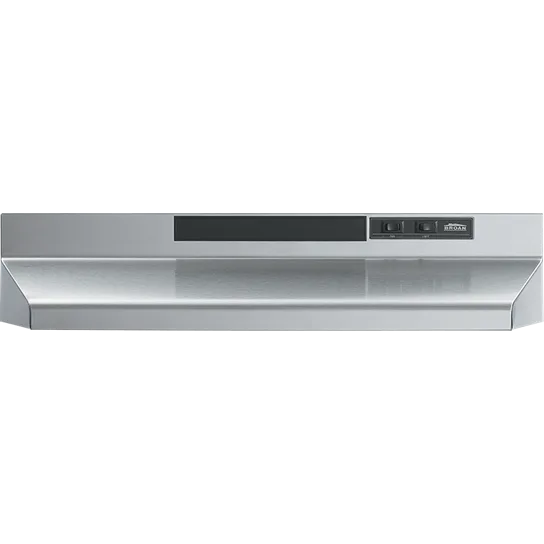

Product Description
This range hood can work in an ADA-compliant application. See Additional Information above.
Features
- "Four-way convertible; installs ducted 3-1/4" x 10" (vertical and horizontal), 7" round (vertical) and non-ducted.
Non-Ducted Filter sold separately - Model 41F
- 160 CFM, 6.5 Sone (3-1/4" x 10" discharge) or 190 CFM (7" round discharge) performance – HVI 2100 Certified
- Dishwasher-safe aluminum grease filter
- A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
- Includes 3-1/4" x 10" damper/adapter and 7" round adapter
- BP87 dampers sold separately"
Specifications
| Duct Connector Size | 3-1/4" x 10", 7" Round Non-Ducted |
|---|
| Filter Included | Yes |
|---|
| Control Feature Filter Reminder | No |
|---|
| Light Bulbs Included | No |
|---|
| Accessories Optional | Yes |
|---|
| Max Sones/100 CFM | 4.1 |
|---|
| Light Bulb Quantity | 1 |
|---|
| Filter Type | Aluminum |
|---|
| Rated Voltage | 120 |
|---|
| Sones Certified Vertical Round Low | N/A |
|---|
| Flue Accommodates ceilings up to xx ft | N/A |
|---|
| Sones Certified Vertical Rectangular Low | N/A |
|---|
| UL Listed | Yes |
|---|
| ADA Compliance | See Additional Information above |
|---|
| Sones Certified Horizontal Rectangular High | 6.5 |
|---|
| Dishwasher Safe Filters | Yes |
|---|
| Damper Included | Yes |
|---|
| Lighting Type | Incandescent |
|---|
| Timer | No |
|---|
| Delay Shut Off | No |
|---|
| Nightlight Setting | No |
|---|
| Cabinet Width (inches) | 42" |
|---|
| Switch Control Settings | 2 |
|---|
| Lighting Function | One-level |
|---|
| Switch Style | Rocker |
|---|
| HVI Certified | Yes |
|---|
| Color/Finish | Stainless Steel |
|---|
| ENERGY STAR® certified product | No |
|---|
| Sones Certified Vertical Round High | 6.5 |
|---|
| Product Depth (inches) | 17-1/2" |
|---|
| Heat Sentry - Temperature Sensor | No |
|---|
| Sones Certified Vertical Rectangular High | 6.5 |
|---|
| Non-Stick Coated | No |
|---|
| Minimum Height Above Cook Top | 18" |
|---|
| Blower Included | Yes |
|---|
| Rated Amps | 2.5 |
|---|
| CFM (Airflow) | 190 |
|---|
| Product Width (inches) | 42" |
|---|
| Sones Certified Horizontal Rectangular Low | N/A |
|---|
| Product Height (inches) | 6" |
|---|
| Digital Clock | No |
|---|
| Blower Air Mover Type | Fan |
|---|
| Remote Control | No |
|---|
| Boost Mode | No |
|---|
| Accommodates Ceiling Height | N/A |
|---|
| Mounting Type | Under Cabinet |
|---|
