Product Description

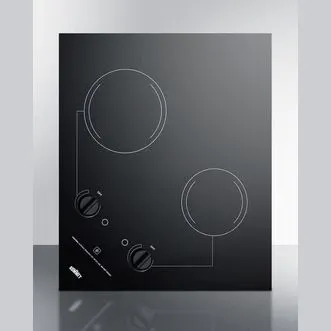

The CR2B223G is a 230V radiant cooktop made with EuroKera ceramic black glass. The smooth surface ensures easy cleanup with a sleek, modern look. This unit is designed to fit many common counter cutouts sized 20" x 16". The burners and knobs are specially laid out so that they are easy and intuitive to use when the unit is installed in a landscape or portrait configuration.
Features
- Fits popular cutout size : Designed for built-in installation in 20" x 16" cutouts
- Versatile placement : Specially designed to be mounted portrait or landscape style with controls being easy to read and manage in either direction
- EuroKera black ceramic glass surface : Easy cleanup and elegant style on a smooth ceramic glass surface
- Two heating elements : One 1800W burner and one 1200W burner for fast cooking
- 230V operation : Professional installation required
- Push-to-turn controls : Prevents accidents by requiring a small amount of force to turn on cooktop heat
- Residual heat indicator : Indicator will illuminate to warn if some part of the glass surface is too hot to touch
- Indicator lights : Operating indicators light up to show which burner is in use
- ADA compliant design : Upfront controls and easy-to-operate knobs offer easier accessibility
Specifications
| Parts & Labor Warranty | 1 Year |
|---|
| Number of Elements | 2 |
|---|
| Element #1 Size | 5.5" (14 cm) |
|---|
| Countertop Cutout Height | 3.0" (8 cm) |
|---|
| Element #2 Size | 7.0" (18 cm) |
|---|
| Canadian Electrical Safety | ETL-C |
|---|
| Amps | 20.0 |
|---|
| Height of Cabinet | 3.25" (8 cm) |
|---|
| Depth | 18.0" (46 cm) |
|---|
| Voltage/Frequency | 230 V AC/60 Hz |
|---|
| US Electrical Safety | ETL |
|---|
| Countertop Cutout Width | 20.0" (51 cm) |
|---|
| controls | Dial |
|---|
| Shipping Weight | 25.0 lbs. (11 kg) |
|---|
| Countertop Cutout Depth | 16.0" (41 cm) |
|---|
| Heating Type | Radiant |
|---|
| Element Type | Glasstop |
|---|
| Cabinet | Black |
|---|
| Element #1 Wattage | 1200.0 |
|---|
| Element #2 Wattage | 1800.0 |
|---|
| Surface | Glass |
|---|
| Width | 21.25" (54 cm) |
|---|
| Weight | 18.0 lbs. (8 kg) |
|---|
