Product Description

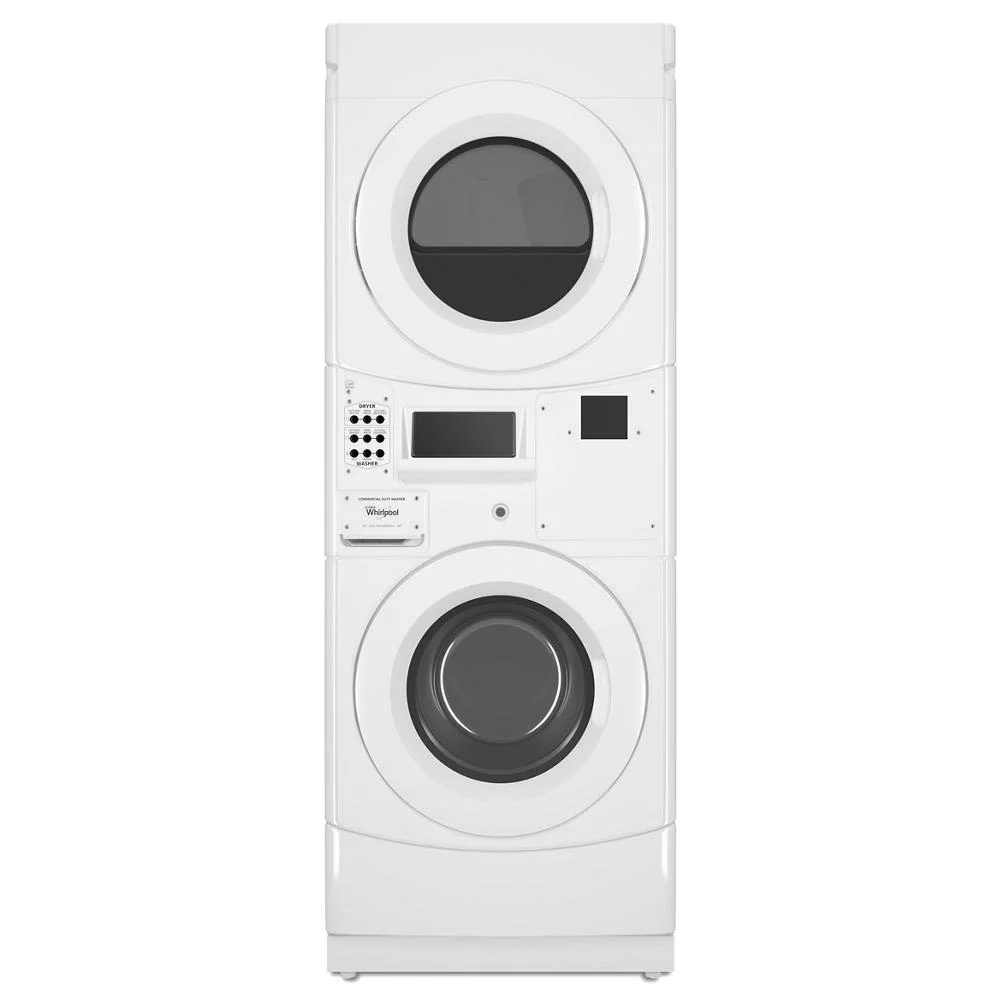

Maximize floor productivity with the stack washer/dryer that's built to give laundry facilities the durability and performance needed to withstand the heavy traffic of commercial laundry – all within the space of a single unit. Built from heavy, galvanized steel and a porcelain-enamel top – the cabinet has been designed to increase machine longevity and handle regular usage. The powerful drive system was engineered and tested to provide more turns over the life of the washer, and provide customers with an exceptional cleaning experience. A six-point suspension with four dampers and two springs delivers automatic load balancing – keeping cycle times consistent to help optimize laundry efficiency. Owners can take advantage of the microprocessor controls with customizable vend prices and cycle options – giving them more opportunities to generate revenue. This also lets customers choose which cycle selection best fits their washing needs. Plus, the advanced dryer venting system deliversan optimal drying performance, helping laundry facilities cut utility costs and run with efficiency. Our electric, stack washer/dryer option, is card-reader ready, Energy Star® qualified, and backed by a 2-year limited warranty.
Features
- Space Saving Configuration : This washer/dryer combination maximizes facility productivity, saves space, and delivers the exceptional cleaning performance end-users expect. The large capacity of the 3.1 cu.ft. washer, provides ample room for bulky items, while the extra-large, 6.7 cu.ft. dryer allows for loads to be dried effectively - all within the space ofa single unit.
- Time-of-Day Pricing : Controls offer the flexibility to program different vend pricing based on the day of the week and time of day. This allows owners to take full advantage of revenue-generating opportunities for their operation.
- High-Efficiency Wash System : High-efficiency technology delivers energy savings without sacrificing cleaning performance. Water is lifted from tub base through baffle holes, then showered through the load during agitation pattern.
- Shaft Sleeve : Helps to eliminate drive shaft wear. The robust axial compression tube locks the two inner races of the premium NSK bearings ensuring they turn with the shaft, helping to prevent drive shaft wear.
- Premium Bearings : Oversized premium NSK bearings are sealed for added protection enhancing longevity of drive system.
- Trunnion : Shock-resistant, cast-metal trunnion provides additional strength to overall drive system and basket structure.
- Six-Point Suspension : Provides better stability for entire wash unit as a result of four dampers and two springs.
- Porcelain-Enamel Top : The porcelain-enamel top is robust, enhancing machine durability and aesthetics in high-use laundry environments.
- Accelerometer : If an unbalanced load is detected, enables machine to power through final spin by expanding the machine's limits and allowing redistribution of load to occur.
- Progressive Spin Logic : Delivers consistent cycle times by reallocating weight to complete spin out of unbalanced loads.
- Pump Routine : Reduces unbalanced loads through improved pump performance.
- Commercial-Grade Cabinet : Built with galvanized steel, the heavy duty construction of the stack washer/dryer is designed to increase machine longevity, and handle high volumes of laundry.
- Bellow : The strategically-designed bellow helps keep small items from getting caught or snagged, ensuring all items get an equal clean.
- Robust Hinge : This heavy-duty, die-cast door hinge is built to withstand the rigors of commercial laundry, while maintaining its integrity and aesthetics.
- Durable Dispenser : The sturdiness of the soap dispenser adds to the machine's longevity - all the while giving end users a convenient space to load detergents.
- Front-Access Panel : The front-access panel minimizes downtime by providing fast entry to the motor, transmission, and wash tub for streamlined maintenance.
- Triple-Lip Seal with Garter Spring : Provides a more effective seal, reducing potential moisture contamination. Addition of garter spring enhances spring support if any deflection occurs.
- Powerful Drive System : Designed and tested to provide more turns over the life of the washer - this machine helps owners optimize their facility's productivity, and delivers the performance customers expect. A watertight, flexible triple-lip seal with a garter spring helps keep moisture away from the shaft, protecting our premium bearings - while our proven, durable shaft sleeve is designed to reduce shaft wear. These components, along with a die-cast trunnion, help provide consistent washing results, increasing a facility's efficiency.
- Automatic Load Balancing : The automatic load balancing system consists of a six-point suspension, four dampers, and two springs. By sensing and automatically balancing a load, machines are able to work effectively and end on time, creating optimized cleaning cycles and constant turns.
- Microprocessor Controls : Controls offer owners the ability to customize vend prices and washer cycle options, such as Super Cycle, ensuring optimal revenue opportunities. Controls also give customers the option to select the ideal cycle for individual wash needs.
- High-Efficiency Design ENERGY STAR® Washer : ENERGY STAR® certified, and uses an average of 12.24 gallons of water per cycle, which helps reduce energy and water costs.
- 90-Day Labor/2-Year Limited Parts Only Warranty : 90-Day Labor/2-Year Limited Parts Only Warranty
- High-Speed Extraction : Extraction speeds up to 1,000 RPMs help pull water from the load, cutting drying time and increasing turns in both machines over their lives.
- Super Cycle : Super Cycle offers an extra three minutes of wash time or an additional rinse for an additional cost to the user, boosting revenue opportunities.
Specifications
| Depth(IN,inches) | 29.5000 |
|---|
| HZ(Dryer) | 60 |
|---|
| Depth(IN,inches) | 29.5000 |
|---|
| Carton Depth | 33 1/2 in |
|---|
| Dryer Capacity (cu. ft.) | 6.7 |
|---|
| Washer Capacity (cu. ft.) | 3.1 |
|---|
| Height(IN,inches) | 74.0000 |
|---|
| Amps(Dryer) | 15 |
|---|
| Average Hot Water Usage Warm Water Cycle(GI,Gallons) | 1.50 |
|---|
| Dryer Capacity (cu. ft.) | 6.7 |
|---|
| Width(IN,inches) | 27.0000 |
|---|
| Carton Depth(IN,inches) | 33.5000 |
|---|
| Door Opening Diameter | 14.25 |
|---|
| Extract Speed- Max G-Force/Max RPM | 300/1,000 |
|---|
| Width(IN,inches) | 27.0000 |
|---|
| UL | Yes |
|---|
| Average Hot Water Usage Hot Water Cycle(GI,Gallons) | 2.28 |
|---|
| Inlet Hose Length(FT,feet) | 4.0 |
|---|
| Width(IN,inches) | 27.0000 |
|---|
| Gross Weight | 383 in |
|---|
| Average Total Water Usage per Cycle(GI,Gallons) | 12.24 |
|---|
| Average Hot Water Usage Warm Water Cycle(GI,Gallons) | 1.50 |
|---|
| Carton Depth(IN,inches) | 33.5000 |
|---|
| Height | 74 in |
|---|
| Gross Weight(LB,pounds) | 383 |
|---|
| Carton Height(IN,inches) | 75.4375 |
|---|
| Carton Depth(IN,inches) | 33.5000 |
|---|
| Extract Speed- Max G-Force/Max RPM | 300/1,000 |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 33.5000 |
|---|
| Height | 74 inch |
|---|
| Average Total Water Usage per Cycle(GI,Gallons) | 12.24 |
|---|
| Water Factor | 4.00 |
|---|
| Carton Depth | 33 1/2 in |
|---|
| Average Total Water Usage per Cycle(GI,Gallons) | 12.24 |
|---|
| Volts(Dryer) | 240 |
|---|
| Depth | 29 1/2 in |
|---|
| Width | 27 in |
|---|
| Door Opening Diameter | 14.25 |
|---|
| Carton Width(IN,inches) | 29.2500 |
|---|
| Width(IN,inches) | 27.0000 |
|---|
| Door Opening Diameter | 14.25 |
|---|
| Extract Speed- Max G-Force/Max RPM | 300/1,000 |
|---|
| Water Factor | 4.00 |
|---|
| Average Hot Water Usage Warm Water Cycle(GI,Gallons) | 1.50 |
|---|
| Motor Horsepower | 1/2 HP |
|---|
| Net Weight(LB,pounds) | 378 |
|---|
| Amps(Dryer) | 15 |
|---|
| Motor Horsepower | 1/2 HP |
|---|
| Washer Capacity (cu. ft.) | 3.1 |
|---|
| Operating Pressure (PSI) | 20-100 |
|---|
| HZ(Dryer) | 60 |
|---|
| Net Weight | 0.0 in |
|---|
| Height | 74 in |
|---|
| Width | 27 in |
|---|
| Inlet Hose Length(FT,feet) | 4.0 |
|---|
| Average Hot Water Usage Hot Water Cycle(GI,Gallons) | 2.28 |
|---|
| Inlet Hose Length(FT,feet) | 4.0 |
|---|
| Amps(Dryer) | 15 |
|---|
| Carton Width(IN,inches) | 29.2500 |
|---|
| Carton Height(IN,inches) | 75.4375 |
|---|
| Gross Weight | 383 inch |
|---|
| Operating Pressure (PSI) | 20-100 |
|---|
| CSA | CSA |
|---|
| Motor Horsepower | 1/2 HP |
|---|
| Prop 65 | Standard |
|---|
| Drain Hose Length(FT,feet) | 6.0 |
|---|
| HZ(Dryer) | 60 |
|---|
| Depth | 29 1/2 in |
|---|
| Height | 74 in |
|---|
| Average Hot Water Usage Hot Water Cycle(GI,Gallons) | 2.28 |
|---|
| Carton Height(IN,inches) | 75.4375 |
|---|
| UL | Yes |
|---|
| Prop 65 | Standard |
|---|
| Carton Height | 75 7/16 in |
|---|
| Carton Width | 29 1/4 in |
|---|
| Net Weight | 0.0 in |
|---|
| CSA | CSA |
|---|
| Net Weight | 0.0 inch |
|---|
| Width | 27 inch |
|---|
| Inlet Hose Length(FT,feet) | 4.0 |
|---|
| Average Hot Water Usage Hot Water Cycle(GI,Gallons) | 2.28 |
|---|
| Water Factor | 4.00 |
|---|
| Carton Width | 29 1/4 in |
|---|
| Carton Height | 75 7/16 in |
|---|
| Depth(IN,inches) | 29.5000 |
|---|
| Height(IN,inches) | 74.0000 |
|---|
| Net Weight(LB,pounds) | 378 |
|---|
| Height(IN,inches) | 74.0000 |
|---|
| Gross Weight(LB,pounds) | 383 |
|---|
| Carton Depth | 33 1/2 in |
|---|
| Average Total Water Usage per Cycle(GI,Gallons) | 12.24 |
|---|
| Depth(IN,inches) | 29.5000 |
|---|
| Carton Height | 75 7/16 inch |
|---|
| Volts(Dryer) | 240 |
|---|
| Carton Height(IN,inches) | 75.4375 |
|---|
| Gross Weight | 383 in |
|---|
| Dryer Capacity (cu. ft.) | 6.7 |
|---|
| Carton Width(IN,inches) | 29.2500 |
|---|
| Drain Hose Length(FT,feet) | 6.0 |
|---|
| Depth | 29 1/2 inch |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Net Weight | 0.0 in |
|---|
| Prop 65 | Standard |
|---|
| Drain Hose Length(FT,feet) | 6.0 |
|---|
| Amps(Dryer) | 15 |
|---|
| Average Hot Water Usage Warm Water Cycle(GI,Gallons) | 1.50 |
|---|
| Carton Width | 29 1/4 in |
|---|
| Gross Weight(LB,pounds) | 383 |
|---|
| Carton Width(IN,inches) | 29.2500 |
|---|
| Height(IN,inches) | 74.0000 |
|---|
| Operating Pressure (PSI) | 20-100 |
|---|
| Drain Hose Length(FT,feet) | 6.0 |
|---|
| Width | 27 in |
|---|
| Net Weight(LB,pounds) | 378 |
|---|
| Net Weight(LB,pounds) | 378 |
|---|
| Door Opening Diameter | 14.25 |
|---|
| Carton Width | 29 1/4 inch |
|---|
| Gross Weight(LB,pounds) | 383 |
|---|
| Carton Depth | 33 1/2 inch |
|---|
| Washer Capacity (cu. ft.) | 3.1 |
|---|
| Carton Height | 75 7/16 in |
|---|
| HZ(Dryer) | 60 |
|---|
| Operating Pressure (PSI) | 20-100 |
|---|
| CSA | CSA |
|---|
| Extract Speed- Max G-Force/Max RPM | 300/1,000 |
|---|
| Volts(Dryer) | 240 |
|---|
| CSA | CSA |
|---|
| Water Factor | 4.00 |
|---|
| Dryer Capacity (cu. ft.) | 6.7 |
|---|
| Depth | 29 1/2 in |
|---|
| Gross Weight | 383 in |
|---|
| Washer Capacity (cu. ft.) | 3.1 |
|---|
| Volts(Dryer) | 240 |
|---|
| Motor Horsepower | 1/2 HP |
|---|
