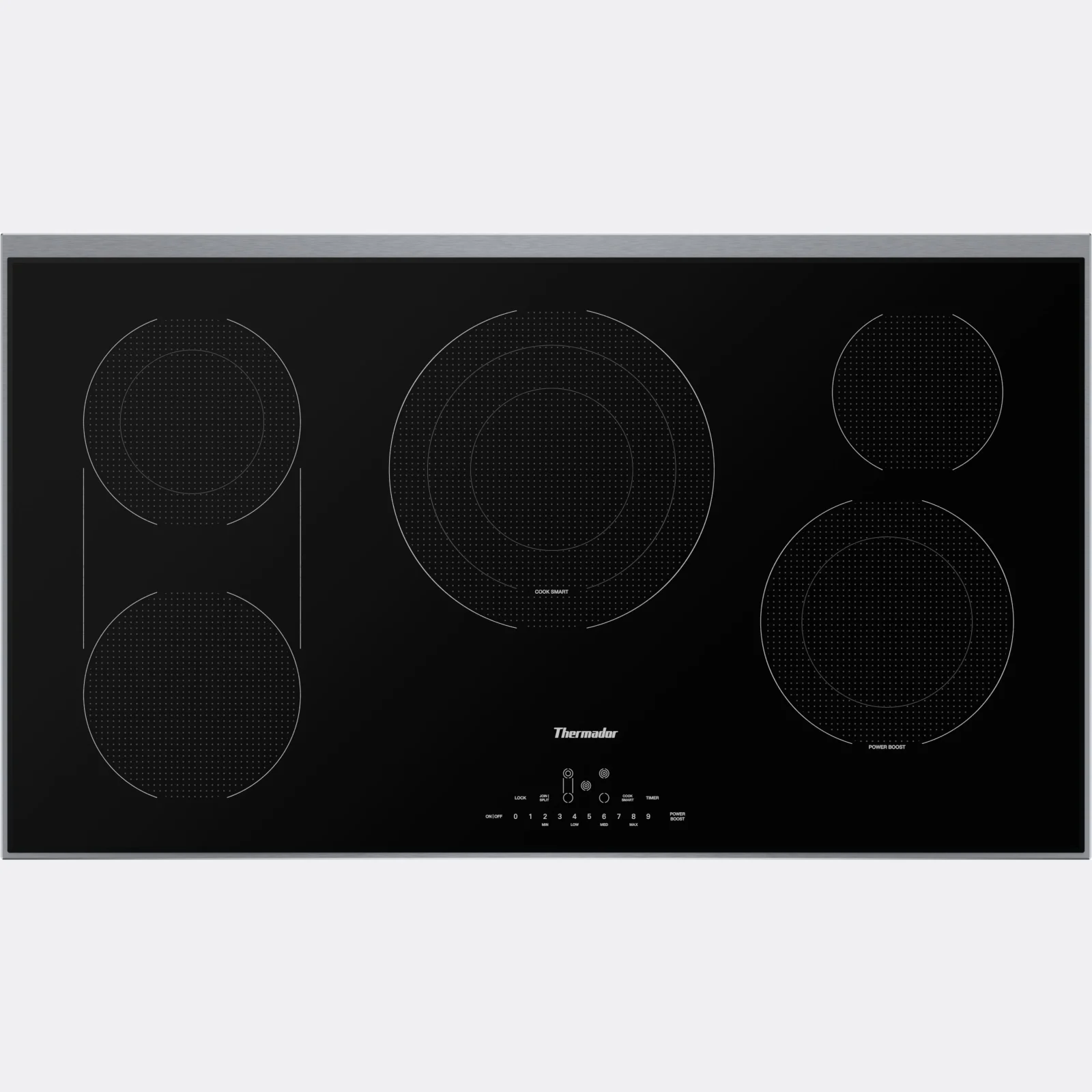

Product Description
Innovation Cooksmart® feature - 4 preset frying levels controlled by a sensor Performance Five elements and ten cooking zones provides the space and power for most cookware Large triple element offers the capability to use multiple pan sizes Residual heat indicator shows you what elements are still hot Wipe protection function allows user to clean the surface of the control panel without risk of changing the settings Design Touch control panel with blue light illumination offers 17 power settings Full stainless steel frame
Features
- Illuminated Touch Control Panel : this intuitive panel allows for simple selection of power levels and easy cleaning, while being seamlessly integrated into your cooktop.
- Stainless Steel Frame : A sleek frame surrounds the cooktop surface.
- CookSmart® : A sensor ensures optimal results with 4 preset frying levels, each programmed for different types of food.
- Dual Zone Bridge Element : is an exclusive feature that connects two round cooking zones, enabling use of large oval or rectangular cookware for even heating.
- Triple Element : Combine three cooking zones into one to adapt to the size of your cookware.
- Masterpiece® Series electric cooktops offer excellent performance, precise control and a sleek elegant profile
Specifications
| Width of the packed product (mm) | 610 |
|---|
| Minimum height for installation (mm) | 505 |
|---|
| Power cord length (cm) | 96.0 |
|---|
| Plug type | No Plug |
|---|
| Plate on indicator | 1 |
|---|
| Basic surface material | Ceramic |
|---|
| Maximum width for installation (mm) | 886 |
|---|
| Net weight (kg) | 15.6 |
|---|
| Power of 5th heating element (kW) | 1.2 |
|---|
| Frequency (Hz) | 60 |
|---|
| Power on indicator | Yes |
|---|
| Location of 2nd heating element | center left |
|---|
| Included accessories | 1 x glass scraper |
|---|
| Time-setting options | No delay options |
|---|
| Width of the packed product (mm) | 610 |
|---|
| Main on/off switch | Yes |
|---|
| Location of 6th heating element | center right |
|---|
| Dimension of the heating element | 180 |
|---|
| Power of the heating element | 1.7 |
|---|
| Cord included | Yes |
|---|
| Product group | Hob |
|---|
| Number of radiant elements | 5 |
|---|
| Maximum height for installation (mm) | 508 |
|---|
| Power of 3rd heating element (kW) | 0.7 ; 1.7 |
|---|
| Location of 6th heating element | center right |
|---|
| Current (A) | 50/40 |
|---|
| Product name / series name | Cooking zone ceramic |
|---|
| Prevent boiling over with cooking sensor | No |
|---|
| Location of 5th heating element | back right |
|---|
| Number of electric warming zones | 0 |
|---|
| Power of the heating element | 1.7 |
|---|
| Number of radiant elements | 5 |
|---|
| Net weight (kg) | 15.6 |
|---|
| Construction type | Built-in |
|---|
| Wok burner supported | No |
|---|
| Power of 3rd heating element (kW) | 0.7 ; 1.7 |
|---|
| Depth for installation (mm) | 100 |
|---|
| Dimension of 3rd heating element (mm) | 120 ; 180 |
|---|
| Basic surface material | Ceramic |
|---|
| Location of 6th heating element | center right |
|---|
| Ignition system | No |
|---|
| Product group | Hob |
|---|
| Safety device | Auto Safety Shutoff, Childproof Lock, Panel Lock |
|---|
| Ignition system | No |
|---|
| Minimum width for installation (mm) | 883 |
|---|
| Temperature control for perfect frying results | Yes |
|---|
| Dimension of 3rd heating element (mm) | 120 ; 180 |
|---|
| Main on/off switch | Yes |
|---|
| Available manual languages | [EN, ES, FR] |
|---|
| Depth for installation (mm) | 100 |
|---|
| Flexible induction technology supported | No |
|---|
| Optional accessories | CHEFSPAN08 |
|---|
| Location of 2nd heating element | center left |
|---|
| Power on indicator | Yes |
|---|
| Energy input | Electric |
|---|
| Depth of the packed product (mm) | 1100 |
|---|
| Current (A) | 50/40 |
|---|
| Plug type | no plug |
|---|
| Residual heat indicator | Separate |
|---|
| Volts (V) | 240/208 |
|---|
| Type of regulation | Stepless energy regulated |
|---|
| Location of 4th heating element | middle back |
|---|
| Color of frame | Stainless Steel |
|---|
| Number of electric cooking zones | 5 |
|---|
| Residual heat indicator | Separate |
|---|
| Net weight (kg) | 15.6 |
|---|
| Number of electric cooking zones | 5 |
|---|
| Time-setting options | No delay options |
|---|
| Prevent boiling over with cooking sensor | No |
|---|
| Product group | Hob |
|---|
| Minimum width for installation (mm) | 883 |
|---|
| Safety device | Auto Safety Shutoff, Childproof Lock, Panel Lock |
|---|
| Number of induction elements | 0 |
|---|
| Available manual languages | [EN, ES, FR] |
|---|
| Color of frame | Stainless Steel |
|---|
| Hob with booster function | Yes |
|---|
| Type of lid | Without |
|---|
| Depth for installation (mm) | 100 |
|---|
| Number of electric elements | 0 |
|---|
| Volts (V) | 240/208 |
|---|
| Minimum height for installation (mm) | 505 |
|---|
| Number of gas burners | 0 |
|---|
| EAN code | 825225960249 |
|---|
| EAN code | 825225960249 |
|---|
| Cord included | Yes |
|---|
| Energy input | Electric |
|---|
| Dimension of 5th heating element (mm) | 140 |
|---|
| Basic surface material | Ceramic |
|---|
| Power of 5th heating element (kW) | 1.2 |
|---|
| Watts (W) | 10520 |
|---|
| Plate on indicator | 1 |
|---|
| Construction type | Built-in |
|---|
| Gross weight (kg) | 19.8 |
|---|
| Brand | Thermador |
|---|
| Power on indicator | Yes |
|---|
| Number of electric warming zones | 0 |
|---|
| Location of 4th heating element | middle back |
|---|
| Type of control | Front |
|---|
| Temperature control for perfect frying results | Yes |
|---|
| Safety device | Auto Safety Shutoff, Childproof Lock, Panel Lock |
|---|
| Height of the packed product (mm) | 210 |
|---|
| EAN code | 825225960249 |
|---|
| Available manual languages | [EN, ES, FR] |
|---|
| Total number of cooktop burners | 5 |
|---|
| Plate on indicator | 1 |
|---|
| Automatic programmes | Yes |
|---|
| Flexible induction technology supported | No |
|---|
| Location of 5th heating element | back right |
|---|
| Watts (W) | 10520 |
|---|
| Location of 3rd heating element | back left |
|---|
| Location of the heating element | front left |
|---|
| Gross weight (kg) | 19.8 |
|---|
| Number of halogen elements | 0 |
|---|
| Timer | Yes |
|---|
| Type of 3rd heating element | Radiant heating |
|---|
| Plug type | No Plug |
|---|
| Number of gas burners | 0 |
|---|
| Hob with booster function | Yes |
|---|
| Type of frame | Convenience frame |
|---|
| Automatic programmes | Yes |
|---|
| Type of control | Front |
|---|
| Internal article number | CET366YB |
|---|
| Type of lid | Without |
|---|
| Depth of the packed product (mm) | 1100 |
|---|
| Minimum width for installation (mm) | 883 |
|---|
| Power of the heating element | 1.7 |
|---|
| Location of the heating element | front left |
|---|
| Frequency (Hz) | 60 |
|---|
| Location of 5th heating element | back right |
|---|
| Hob with booster function | Yes |
|---|
| Included accessories | 1 x glass scraper |
|---|
| Type of 5th heating element | Radiant heating |
|---|
| Type of control | Electronic |
|---|
| Maximum width for installation (mm) | 886 |
|---|
| Internal article number | CET366YB |
|---|
| Type of electrical connection | 2 phase |
|---|
| Type of frame | Convenience frame |
|---|
| Number of gas burners | 0 |
|---|
| Number of electric elements | 0 |
|---|
| Optional accessories | CHEFSPAN08 |
|---|
| Type of frame | Convenience frame |
|---|
| Type of control | Front |
|---|
| Type of electrical connection | 2 phase |
|---|
| Current (A) | 50/40 |
|---|
| Total number of cooktop burners | 5 |
|---|
| Depth of the packed product (mm) | 1100 |
|---|
| Internal article number | CET366YB |
|---|
| Location of control panel | Front |
|---|
| Construction type | Built-in |
|---|
| Dimension of 3rd heating element (mm) | 120 ; 180 |
|---|
| Type of regulation | Stepless energy regulated |
|---|
| Dimension of the heating element | 180 |
|---|
| Maximum width for installation (mm) | 886 |
|---|
| Location of control panel | Front |
|---|
| Power cord length (cm) | 96.0 |
|---|
| Total number of cooktop burners | 5 |
|---|
| Wok burner supported | No |
|---|
| Maximum height for installation (mm) | 508 |
|---|
| Number of radiant elements | 5 |
|---|
| Dimension of the heating element | 180 |
|---|
| Height of the packed product (mm) | 210 |
|---|
| Type of 3rd heating element | Radiant heating |
|---|
| Number of electric cooking zones | 5 |
|---|
| Type of heating element | Radiant heating |
|---|
| Residual heat indicator | Separate |
|---|
| Product name / series name | Cooking zone ceramic |
|---|
| Type of control | Electronic |
|---|
| SKU | CET366YB |
|---|
| Wok burner supported | No |
|---|
| Type of 5th heating element | Radiant heating |
|---|
| Ignition system | No |
|---|
| Energy input | Electric |
|---|
| Timer | Yes |
|---|
| Prevent boiling over with cooking sensor | No |
|---|
| Number of electric warming zones | 0 |
|---|
| Dimension of 5th heating element (mm) | 140 |
|---|
| Brand | Thermador |
|---|
| Temperature control for perfect frying results | Yes |
|---|
| Location of 4th heating element | middle back |
|---|
| SKU | CET366YB |
|---|
| Location of the heating element | front left |
|---|
| Number of electric elements | 0 |
|---|
| Optional accessories | CHEFSPAN08 |
|---|
| Type of control | Electronic |
|---|
| Type of electrical connection | 2 phase |
|---|
| Type of heating element | Radiant heating |
|---|
| Width of the packed product (mm) | 610 |
|---|
| Height of the packed product (mm) | 210 |
|---|
| Time-setting options | No delay options |
|---|
| Power of 3rd heating element (kW) | 0.7 ; 1.7 |
|---|
| Frequency (Hz) | 60 |
|---|
| Timer | Yes |
|---|
| Gross weight (kg) | 19.8 |
|---|
| Flexible induction technology supported | No |
|---|
| Brand | Thermador |
|---|
| Power cord length (cm) | 96.0 |
|---|
| Power of 5th heating element (kW) | 1.2 |
|---|
| Location of control panel | Front |
|---|
| Type of 3rd heating element | Radiant heating |
|---|
| Type of 5th heating element | Radiant heating |
|---|
| Minimum height for installation (mm) | 505 |
|---|
| Number of induction elements | 0 |
|---|
| Location of 2nd heating element | center left |
|---|
| Number of halogen elements | 0 |
|---|
| Included accessories | 1 x glass scraper |
|---|
| Location of 3rd heating element | back left |
|---|
| Volts (V) | 240/208 |
|---|
| Main on/off switch | Yes |
|---|
| Number of halogen elements | 0 |
|---|
| SKU | CET366YB |
|---|
| Product name / series name | Cooking zone ceramic |
|---|
| Maximum height for installation (mm) | 508 |
|---|
| Location of 3rd heating element | back left |
|---|
| Automatic programmes | Yes |
|---|
| Cord included | Yes |
|---|
| Number of induction elements | 0 |
|---|
| Type of lid | Without |
|---|
| Type of heating element | Radiant heating |
|---|
| Watts (W) | 10520 |
|---|
| Color of frame | Stainless steel |
|---|
| Type of regulation | Stepless energy regulated |
|---|
| Dimension of 5th heating element (mm) | 140 |
|---|
