Product Description

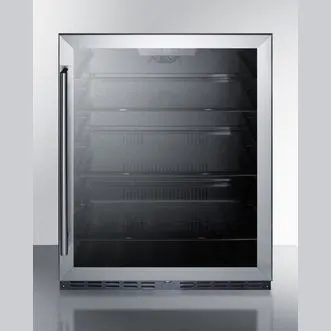

Sized with a convenient 24" footprint, the AL57GCSS is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The wrapped stainless steel cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit has a user-reversible double pane tempered glass door with attractive stainless steel trim. A stainless steel handle completes the look and a factory-installed lock in the kickplate offers additional security. The flush back
Features
- ADA compliant design : 32" height allows easy installation under lower ADA compliant counters
- Built-in capable : Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Factory installed lock : Keyed lock for a secure interior
- Double pane tempered glass door : Stainless steel trimmed glass door offers a heat-safe view of the interior
- Stainless steel wrapped cabinet : Stainless steel exterior for a professional look with lasting durability
- Professional handle : Stainless steel handle completes the look
- Frost-free operation : No-frost operation for minimum user maintenance
- Digital thermostat : Electronic controls located inside the unit for precise temperature management
- Recessed LED light : Efficient and attractive presentation with LED lighting
- Adjustable glass shelves : Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Bottle slots : Floor is specially slotted to store wine and other bottles safely in place
- Internal fan : Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Reversible door : User-reversible door swing for added flexibility
- Open door alarm : Audible alarm will sound if the door is left open longer than one minute
- High temperature alarm : High temperature alarm sounds if the unit's interior goes out of the recommended range
- Sabbath mode setting : Optional setting lets you disable the lighting and alarm for up to 96 hours
- Temperature Memory Function : Unit will retain its last settings when power is restored in the event of power loss
- Sealed back : Space-saving design that offers easier cleanability
- Right angle plug : Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Commercially approved : ETL-S listed to NSF-7 Standards for use in commercial establishments
- Fully finished cabinet : Allows the unit to be used freestanding
- 100% CFC Free : Environmentally friendly design with no ozone-damaging chemicals
Specifications
| Interior Height | 25.0" (64 cm) |
|---|
| Capacity | 5.0 cu.ft. (142 L) |
|---|
| Refrigerant Type | R600a |
|---|
| Compressor Warranty | 5 Years |
|---|
| Low Side PSI | 105.0 |
|---|
| Amps | 1.0 |
|---|
| Compressor Step Depth | 5.25" (13 cm) |
|---|
| US Electrical Safety | ETL |
|---|
|
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
|
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
|
|---|
|
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
|
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
|
|---|
| Adjustable Shelves | Yes |
|---|
| Sanitation | ETL-S |
|---|
| Temperature Range | 36 to 43ºF |
|---|
| Refrigerant Amount | 0.99oz. |
|---|
| Level Legs Qty | 4 |
|---|
| Fan Type | Interior and Exterior |
|---|
| Weight | 110.0 lbs. (50 kg) |
|---|
| Energy Usage/Year | 270.0kWh/year |
|---|
| Voltage/Frequency | 115 V AC/60 Hz |
|---|
| Defrost Type | Frost-Free |
|---|
| Interior Depth | 17.5" (44 cm) |
|---|
| Width | 23.63" (60 cm) |
|---|
| Reversible | Yes |
|---|
| Thermostat Type | Digital |
|---|
| Compressor Step Width | 20.0" (51 cm) |
|---|
| Depth with door at 90° | 45.0" (114 cm) |
|---|
| Shipping Weight | 120.0 lbs. (54 kg) |
|---|
| Depth | 22.63" (57 cm) |
|---|
| Cabinet | Stainless Steel |
|---|
| Compressor Step Height | 3.25" (8 cm) |
|---|
| Door Swing | RHD |
|---|
| Depth with Handle | 24.63" (63 cm) |
|---|
| Door | Glass |
|---|
| Interior Light | Yes |
|---|
| Canadian Electrical Safety | ETL-C |
|---|
| Shelf Type | Glass |
|---|
| High Side PSI | 270.0 |
|---|
|
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
|
LHD
Door reversal to left hand swing
|
|---|
| Shelf Qty | 3 |
|---|
|
KEY
Extra keys available for purchase
|
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
|
|---|
| Parts & Labor Warranty | 1 Year |
|---|
| Interior Width | 20.0" (51 cm) |
|---|
| Height of Cabinet | 32.0" (81 cm) |
|---|
