Product Description

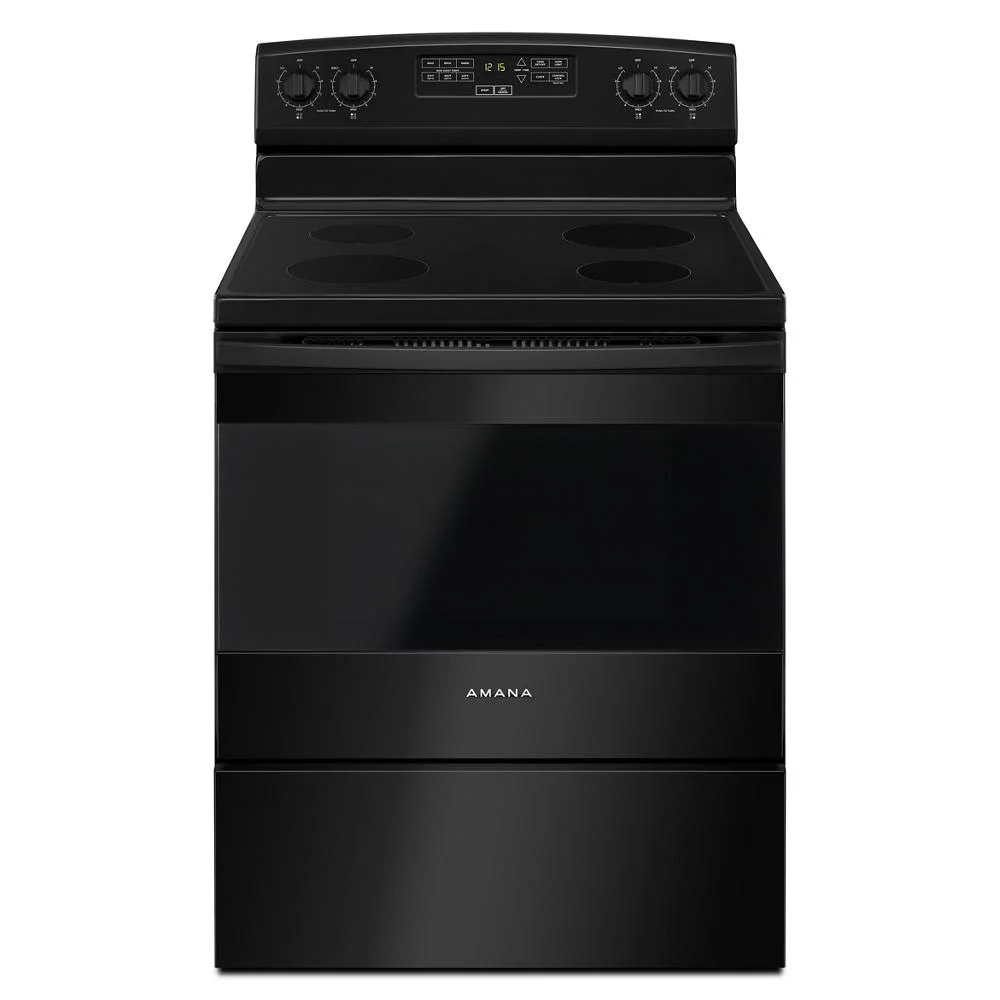

This 30-inch Amana® Electric Range comes with Bake Assist Temps to help you get dinner going. Simply choose a preset temperature setting to get started. Or set your bake or broil temperatures with Easy Touch Electronic Controls Plus, which are extra-large and easy-to-read. And when you need to know how your dinner is doing without opening the oven door, the Extra-Large Oven Window lets you see and savor.
Features
- Large Oven Capacity (4.8 cu. ft.) : Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
- Indicator Lights : Check your oven's status and settings at a glance with the Indicator Lights.
- Contemparary Design : With clean lines and modern finishes, our line of free-standing ranges lets you easily choose the features and design details that best fit your budget and lifestyle
- Versatile Cooktop : Our Versatile Cooktop with multiple element options provides up to 1,800 watts to help you cook more of your favorites at the same time.
- Bake Assist Temps : Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.
- Easy Touch Electronic Controls Plus : Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
- Temp Assure™ Cooking System : Temp Assure™ Cooking System distributes heat throughout the entire oven to deliver delicious results.
- Extra-Large Oven Window : See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
- Storage Drawer : This storage drawer comes with plenty of space to put those pots and pans out of sight and out of mind.
- Warm Hold : Warm Hold delivers low heat to the oven so dishes are ready to serve when you are.
- Oven Lockout : Oven Lockout is a safety feature that locks your oven and its controls to help protect against accidental use.
Specifications
| Oven Control Location | Backguard |
|---|
| Power Cord Included | No |
|---|
| Hidden Bake Element | No |
|---|
| Cooktop Control Type | Knobs |
|---|
| Carton Depth | 29 in |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Cutout Depth(IN,inches) | 24 |
|---|
| Cutout Height(IN,inches) | 36 |
|---|
| Cutout Width(IN,inches) | 30 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25 5/16 |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46 11/16 |
|---|
| Depth(IN,inches) | 27 3/4 |
|---|
| Height(IN,inches) | 46 7/8 |
|---|
| Maximum Height(IN,inches) | 47 7/8 |
|---|
| Minimum Height(IN,inches) | 46 7/8 |
|---|
| Width(IN,inches) | 29 7/8 |
|---|
| Fuel Type | Electric |
|---|
| Range Type | Freestanding |
|---|
| Size (in.) | 30 |
|---|
| Door Removable | Yes |
|---|
| Door Type | Glass Window |
|---|
| Drawer Type | Storage Drawer |
|---|
| Handle Color | Black |
|---|
| Handle Material | Plastic |
|---|
| Handle Type | Reach Through Handle |
|---|
| Oven Window Size | Extra Large |
|---|
| Display Color | Green |
|---|
| Electronic Display Type | LED |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| LP Convertible | No |
|---|
| Natural Gas Convertible | No |
|---|
| Power On Indicator Light | Yes |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Interior Color | Grey |
|---|
| Oven Control Location | Backguard |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Oven Cooking System | Thermal |
|---|
| Bake Element Power | 2,400 W |
|---|
| Hidden Bake Element | No |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Broiler Location | Top of Oven |
|---|
| Convection Element Type | None |
|---|
| Convection Functions | No |
|---|
| Number of Oven Lights | 1 |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Oven Light Type | Incandescent |
|---|
| Oven Interior Depth(IN,inches) | 18 1/2 |
|---|
| Oven Interior Height(IN,inches) | 18 1/8 |
|---|
| Oven Interior Width(IN,inches) | 24 1/2 |
|---|
| Number of Oven Racks | 2 |
|---|
| Number of Rack Guides | 5 |
|---|
| Oven Rack Type | Standard |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Cooktop Control Knob Color | Color Coordinated |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Cooktop Control Location | Backguard |
|---|
| Cooktop Control Type | Knobs |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Cooktop Surface Color | Black |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Left Front Element-Burner Power | 1,800W |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Left Front Element-Burner Type | Radiant |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Left Rear Element-Burner Type | Radiant Hyper |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| ADA Compliant | No |
|---|
| Prop 65 | Standard |
|---|
| UL | Yes |
|---|
| Carton Depth(IN,inches) | 29 |
|---|
| Carton Height(IN,inches) | 48 3/4 |
|---|
| Carton Width(IN,inches) | 32 |
|---|
| Cutout Height Min(IN,inches) | 36 |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| Amps | 40 |
|---|
| Power Cord Included | No |
|---|
| Height(IN,inches) | 46.8750 |
|---|
| Electronic Display Type | LED |
|---|
| Number of Oven Lights | 1 |
|---|
| Carton Depth(IN,inches) | 29.0000 |
|---|
| Net Weight | 0.0 in |
|---|
| Depth(IN,inches) | 27.7500 |
|---|
| Convection Element Type | None |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| Handle Color | Black |
|---|
| Door Removable | Yes |
|---|
| Amps | 40 |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Oven Cooking System | Thermal |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| Oven Configuration | Single Oven |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Bake Element Power | 2,400 W |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Convection Functions | No |
|---|
| Prop 65 | Standard |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Cutout Width (in) | 30 in |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Carton Height(IN,inches) | 48.7500 |
|---|
| Oven Window Size | Extra Large |
|---|
| Door Type | Glass Window |
|---|
| Oven Light Type | Incandescent |
|---|
| Height | 46 7/8 in |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Net Weight | 0.0 in |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Amps | 40 |
|---|
| Electronic Display Type | LED |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Cooktop Control Type | Knobs |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Depth Closed Excluding Handles | 25 5/16 in |
|---|
| Fuel Type | Electric |
|---|
| Interior Color | Grey |
|---|
| Oven Rack Type | Standard |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Volts | 120/240 |
|---|
| Accessory Relationships | Yes |
|---|
| Oven Configuration | Single Oven |
|---|
| Range Configuration | Freestanding |
|---|
| Capacity (Cu Ft) | 4.80 inch |
|---|
| Carton Depth | 29 inch |
|---|
| Carton Height | 48 3/4 inch |
|---|
| Carton Width | 32 inch |
|---|
| Cutout Depth (in) | 24 inch |
|---|
| Cutout Height (in) | 36 inch |
|---|
| Cutout Width (in) | 30 inch |
|---|
| Depth | 27 3/4 inch |
|---|
| Height | 46 7/8 inch |
|---|
| Width | 29 7/8 inch |
|---|
| Depth Closed Excluding Handles | 25 5/16 inch |
|---|
| Depth With Door Open 90 Degree | 46 11/16 inch |
|---|
| Gross Weight | 187 inch |
|---|
| Maximum Height | 47 7/8 inch |
|---|
| Minimum Height | 46 7/8 inch |
|---|
| Net Weight | 0.0 inch |
|---|
| Interior Color | Grey |
|---|
| Volts | 120/240 |
|---|
| Cutout Height Min(IN,inches) | 36.0000 |
|---|
| ADA Compliant | No |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Capacity (Cu Ft) | 4.80 in |
|---|
| Height | 46 7/8 in |
|---|
| Fuel Type | Electric |
|---|
| Oven Control Location | Backguard |
|---|
| Handle Material | Plastic |
|---|
| Broiler Location | Top of Oven |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Left Front Element-Burner Power | 1,800W |
|---|
| UL | Yes |
|---|
| Gross Weight | 187 in |
|---|
| Electronic Display Type | LED |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Prop 65 | Standard |
|---|
| Depth With Door Open 90 Degree | 46 11/16 in |
|---|
| Number of Rack Guides | 5 |
|---|
| Volts | 120/240 |
|---|
| Carton Width | 32 in |
|---|
| Height(IN,inches) | 46.8750 |
|---|
| Carton Height(IN,inches) | 48.7500 |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Size (in.) | 30 |
|---|
| Convection Functions | No |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Cutout Depth (in) | 24 in |
|---|
| Display Color | Green |
|---|
| Amps | 40 |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Number of Oven Racks | 2 |
|---|
| Oven Rack Type | Standard |
|---|
| Accessory Relationships | Yes |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Gross Weight | 187 in |
|---|
| Oven Cleaning Type | Manual Clean |
|---|
| Width | 29 7/8 in |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Display Color | Green |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Door Type | Glass Window |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Right Rear Element-Burner Size | 8in. |
|---|
| Minimum Height | 46 7/8 in |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Cooktop Control Location | Backguard |
|---|
| Oven Configuration | Single Oven |
|---|
| Cutout Height (in) | 36 in |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Left Rear Element-Burner Type | Radiant Hyper |
|---|
| Minimum Height | 46 7/8 in |
|---|
| Oven Control Type | Electronic Touch |
|---|
| Depth With Door Open 90 Degree | 46 11/16 in |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Cooktop Control Location | Backguard |
|---|
| Carton Depth | 29 in |
|---|
| Size (in.) | 30 |
|---|
| Left Rear Element-Burner Type | Radiant Hyper |
|---|
| Number of Rack Guides | 5 |
|---|
| Maximum Height | 47 7/8 in |
|---|
| Door Removable | Yes |
|---|
| Oven Cooking System | Thermal |
|---|
| Handle Color | Black |
|---|
| Capacity (Cu Ft) | 4.80 in |
|---|
| Handle Type | Reach Through Handle |
|---|
| Carton Depth | 29 in |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Carton Height(IN,inches) | 48.7500 |
|---|
| Carton Height | 48 3/4 in |
|---|
| Prop 65 | Standard |
|---|
| Natural Gas Convertible | No |
|---|
| Cutout Width (in) | 30 in |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| Maximum Height | 47 7/8 in |
|---|
| Broiler Element Power | 3,400 W |
|---|
| Oven Window Size | Extra Large |
|---|
| LP Convertible | No |
|---|
| Depth | 27 3/4 in |
|---|
| Door Type | Glass Window |
|---|
| Bake Element Power | 2,400 W |
|---|
| Convection Element Type | None |
|---|
| Right Front Element-Burner Size | 6in. |
|---|
| Carton Height | 48 3/4 in |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Oven Light Type | Incandescent |
|---|
| Left Rear Element-Burner Type | Radiant Hyper |
|---|
| Depth Closed Excluding Handles | 25 5/16 in |
|---|
| Size (in.) | 30 |
|---|
| Oven Window Size | Extra Large |
|---|
| Cutout Depth (in) | 24 in |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Cooktop Control Type | Knobs |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| Depth | 27 3/4 in |
|---|
| Handle Type | Reach Through Handle |
|---|
| Natural Gas Convertible | No |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Minimum Height | 46 7/8 in |
|---|
| Cutout Height Min(IN,inches) | 36.0000 |
|---|
| Cutout Width (in) | 30 in |
|---|
| Depth(IN,inches) | 27.7500 |
|---|
| Left Front Element-Burner Power | 1,800W |
|---|
| Oven Control Location | Backguard |
|---|
| Convection Element Type | None |
|---|
| Cooktop Surface Color | Black |
|---|
| Carton Depth(IN,inches) | 29.0000 |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Range Configuration | Freestanding |
|---|
| Carton Depth(IN,inches) | 29.0000 |
|---|
| Net Weight | 0.0 in |
|---|
| Number of Oven Racks | 2 |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| Broiler Location | Top of Oven |
|---|
| Bake Element Power | 2,400 W |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Cooktop Control Location | Backguard |
|---|
| Oven Configuration | Single Oven |
|---|
| Range Configuration | Freestanding |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| Number of Oven Lights | 1 |
|---|
| Height | 46 7/8 in |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Gross Weight(LB,pounds) | 187 |
|---|
| Cutout Width(IN,inches) | 30.0000 |
|---|
| ADA Compliant | No |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Interior Color | Grey |
|---|
| Maximum Height | 47 7/8 in |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Power On Indicator Light | Yes |
|---|
| Right Rear Element-Burner Power | 1,800W |
|---|
| Minimum Height(IN,inches) | 46.8750 |
|---|
| Cutout Height Min(IN,inches) | 36.0000 |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Number of Cooking Element-Burners | 4 |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Cooktop Control Knob Color | Color Coordinated |
|---|
| Door Removable | Yes |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Handle Color | Black |
|---|
| Cooktop Control Knob Color | Color Coordinated |
|---|
| Capacity (Cu Ft) | 4.80 in |
|---|
| Range Type | Freestanding |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
|---|
| Left Front Element-Burner Power | 1,800W |
|---|
| Cutout Height (in) | 36 in |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Power On Indicator Light | Yes |
|---|
| Oven Light Type | Incandescent |
|---|
| Depth Closed Excluding Handles | 25 5/16 in |
|---|
| Fuel Type | Electric |
|---|
| Handle Material | Plastic |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| Oven Rack Type | Standard |
|---|
| Range Drawer Type | Storage Drawer |
|---|
| Power On Indicator Light | Yes |
|---|
| Width | 29 7/8 in |
|---|
| Cutout Depth(IN,inches) | 24.0000 |
|---|
| Oven Interior Height(IN,inches) | 18.125 |
|---|
| Cooktop Element Style | Smoothtop |
|---|
| Height(IN,inches) | 46.8750 |
|---|
| Heating Element On Indicator Light | Yes |
|---|
| Cutout Height (in) | 36 in |
|---|
| Depth | 27 3/4 in |
|---|
| Depth With Door Open 90 Degree(IN,inches) | 46.6875 |
|---|
| Broiler Element Power | 3,400 W |
|---|
| UL | Yes |
|---|
| Power Cord Included | No |
|---|
| Depth Closed Excluding Handles(IN,inches) | 25.3125 |
|---|
| LP Convertible | No |
|---|
| Cooktop Surface Color | Black |
|---|
| UL | Yes |
|---|
| Carton Height | 48 3/4 in |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Carton Width | 32 in |
|---|
| Cutout Depth (in) | 24 in |
|---|
| Hidden Bake Element | No |
|---|
| Range Configuration | Freestanding |
|---|
| Left Front Element-Burner Type | Radiant |
|---|
| Cooktop Control Knob Color | Color Coordinated |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Maximum Height(IN,inches) | 47.8750 |
|---|
| Left Front Element-Burner Type | Radiant |
|---|
| Oven Interior Width(IN,inches) | 24.500 |
|---|
| Natural Gas Convertible | No |
|---|
| LP Convertible | No |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Selection | Audible Signal,Clock,Control Lock,Sabbath Mode,Timer,Warm Hold |
|---|
| Left Rear Element-Burner Power | 1,200W |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| Depth With Door Open 90 Degree | 46 11/16 in |
|---|
| Accessory Relationships | Yes |
|---|
| Range Type | Freestanding |
|---|
| Volts | 120/240 |
|---|
| Oven Light Switch Location | Oven Control |
|---|
| Number of Oven Lights | 1 |
|---|
| ADA Compliant | No |
|---|
| Broiler Location | Top of Oven |
|---|
| Cooktop Surface Color | Black |
|---|
| Left Rear Element-Burner Size | 6in. |
|---|
| Width(IN,inches) | 29.8750 |
|---|
| Carton Width(IN,inches) | 32.0000 |
|---|
| Depth(IN,inches) | 27.7500 |
|---|
| Accessory Relationships | Yes |
|---|
| Cutout Height(IN,inches) | 36.0000 |
|---|
| Cooktop Surface Material | Porcelain Coated Steel |
|---|
| Power Cord Included | No |
|---|
| Right Front Element-Burner Power | 1200W |
|---|
| Range Type | Freestanding |
|---|
| Oven Cooking System | Thermal |
|---|
| Right Rear Element-Burner Type | Radiant |
|---|
| Display Color | Green |
|---|
| Carton Width | 32 in |
|---|
| Left Front Element-Burner Type | Radiant |
|---|
| Gross Weight | 187 in |
|---|
| Width | 29 7/8 in |
|---|
| Convection Functions | No |
|---|
| Hot Surface Indicator Light | Yes |
|---|
| Width Doors Open 90 Degrees | 46.688 |
|---|
| Oven Interior Depth(IN,inches) | 18.500 |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Handle Material | Plastic |
|---|
| Right Front Element-Burner Type | Radiant |
|---|
| Handle Type | Reach Through Handle |
|---|
| Left Front Element-Burner Size | 8in. |
|---|
| Capacity(FT3,cubic feet) | 4.80 |
|---|
| Hidden Bake Element | No |
|---|
| Number of Rack Guides | 5 |
|---|
| Number of Oven Racks | 2 |
|---|
Manuals
No Manuals available for this product
Warranty & Certifications
No Manuals available for this product
