Product Description

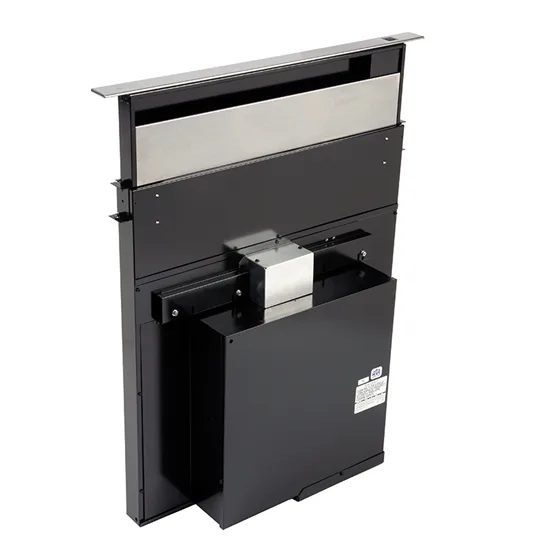

36" Stainless Steel 500 CFM Downdraft with Stainless Steel cover
Innovative downdraft system compatible with virtually all self-contained cooktops. Sleek, trim styling complements any cooktop style or color. Automatically raises into position with the touch of a button. Disappears flush with cooktop surface.
Features
- "500 CFM Interior Blower
- Stainless Steel cover standard. Optional cover colors available : White (Model #273601C), Biscuit (Model #273602C), or Black (Model #273623C)"
Specifications
| Accommodates Ceiling Height | N/A |
|---|
| Damper Included | No |
|---|
| UL Listed | Yes |
|---|
| Timer | No |
|---|
| Control Feature Filter Reminder | No |
|---|
| Switch Style | Rotary Dial |
|---|
| Filter Type | Aluminum |
|---|
| Blower Air Mover Type | Centrifugal Blower |
|---|
| Sones Certified Vertical Round Low | N/A |
|---|
| Light Bulb Quantity | 0 |
|---|
| HVI Certified | Yes |
|---|
| ENERGY STAR® certified product | No |
|---|
| Delay Shut Off | No |
|---|
| CFM (Airflow) | 500 |
|---|
| Light Bulbs Included | No |
|---|
| Sones Certified Vertical Round High | N/A |
|---|
| Heat Sentry - Temperature Sensor | No |
|---|
| Product Height (inches) | 29-1/2" |
|---|
| Nightlight Setting | No |
|---|
| Product Width (inches) | 36" |
|---|
| Remote Control | No |
|---|
| Max Sones/100 CFM | 1.8 |
|---|
| Mounting Type | Under Counter |
|---|
| Non-Stick Coated | No |
|---|
| Digital Clock | No |
|---|
| Product Depth (inches) | 7" |
|---|
| Color/Finish | Stainless Steel |
|---|
| Sones Certified Vertical Rectangular High | N/A |
|---|
| Rated Amps | 4.0 |
|---|
| Boost Mode | No |
|---|
| Lighting Function | N/A |
|---|
| Switch Control Settings | Variable |
|---|
| Accessories Optional | Yes |
|---|
| Duct Connector Size | 3-1/4" x 10" |
|---|
| Blower Included | Yes |
|---|
| Minimum Height Above Cook Top | N/A |
|---|
| Dishwasher Safe Filters | Yes |
|---|
| Rated Voltage | 120 |
|---|
| Sones Certified Horizontal Rectangular High | N/A |
|---|
| Flue Accommodates ceilings up to xx ft | N/A |
|---|
| Sones Certified Horizontal Rectangular Low | N/A |
|---|
| Sones Certified Vertical Rectangular Low | N/A |
|---|
| Filter Included | Yes |
|---|
