Product Description

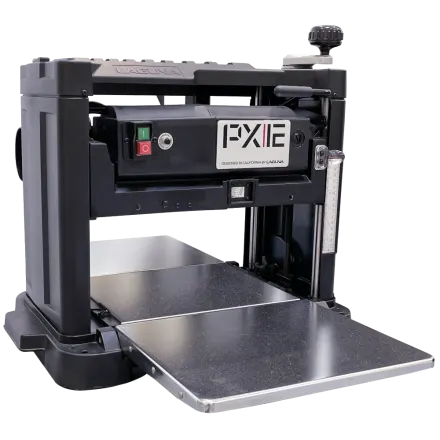

The Laguna PX/12 Benchtop Planer is an all-new addition to the Laguna lineup and is loaded with premium features for making jointing work safer and more enjoyable. It features a new QuadTec I cutterhead which delivers what woodworkers want most in a compact package. The QuadTec I provides quiet, long-lasting performance with its 26 carbide construction and lasts longer than traditional planer knives. In addition, the QuadTec I cutterhead is 4-sided and can be rotated for a new cutting edge. The QuadTec I changes the game when planning tricky grains in hardwoods.
Other Features:
2 HP Motor – Offers plenty of power for best-in-class benchtop planning
10,000 RPM Spin Speed – For motor creating the smoothest possible finish
Pull Out Extensions – Makes it easier to feed stock through the machine
(2) 11-1/4" Fold Out Tables – Also makes it easier to feed stock through the machine
Hair Line Readout – Provides hair line thickness readout for additional convenience
Model Number: MPLANPX12-0130
Specifications
Motor: 110v 2HP Universal 50/60hz/15 Amp.
Circuit Requirement: 20 Amp.
CSA: Yes
Bed Size: 12-1/2″ x 10-1/4″
Pull-Out Extension: 11-1/4″ Flip Down Extensions x 2
Max. Depth of Cut: 3/32″
Max. Stock Thickness: 6″
Min. Stock Thickness: 5/32″
Min. Stock Length: 10″
Max. Stock Width: 12-1/2″
Feed Speed: 26 FPM
Dust Port Diameter: 4″ Step Down to 2-½″
Cutterhead RPM: 10000
Cutterhead Diameter: 1-7/8″
Cutterhead Insert #: 26 x 4-Sided Carbide, 4-Row
Plug (NEMA 5-15P): Yes
Noise (1m away): 92dB
Thickness Readout: Hair Line Readout
Dimensions Set Up Approx. 24″ x 34″
Manuals
Misplace the instructions? No problem! Hartville Hardware is here to help. Below is the instruction manual for the Laguna MPLANPX12-0130 Benchtop Planer. Read it before you buy it, or come back and download it if you have questions.
Laguna MPLANPX12-0130 Benchtop Planer Instruction Manual
