Product Description

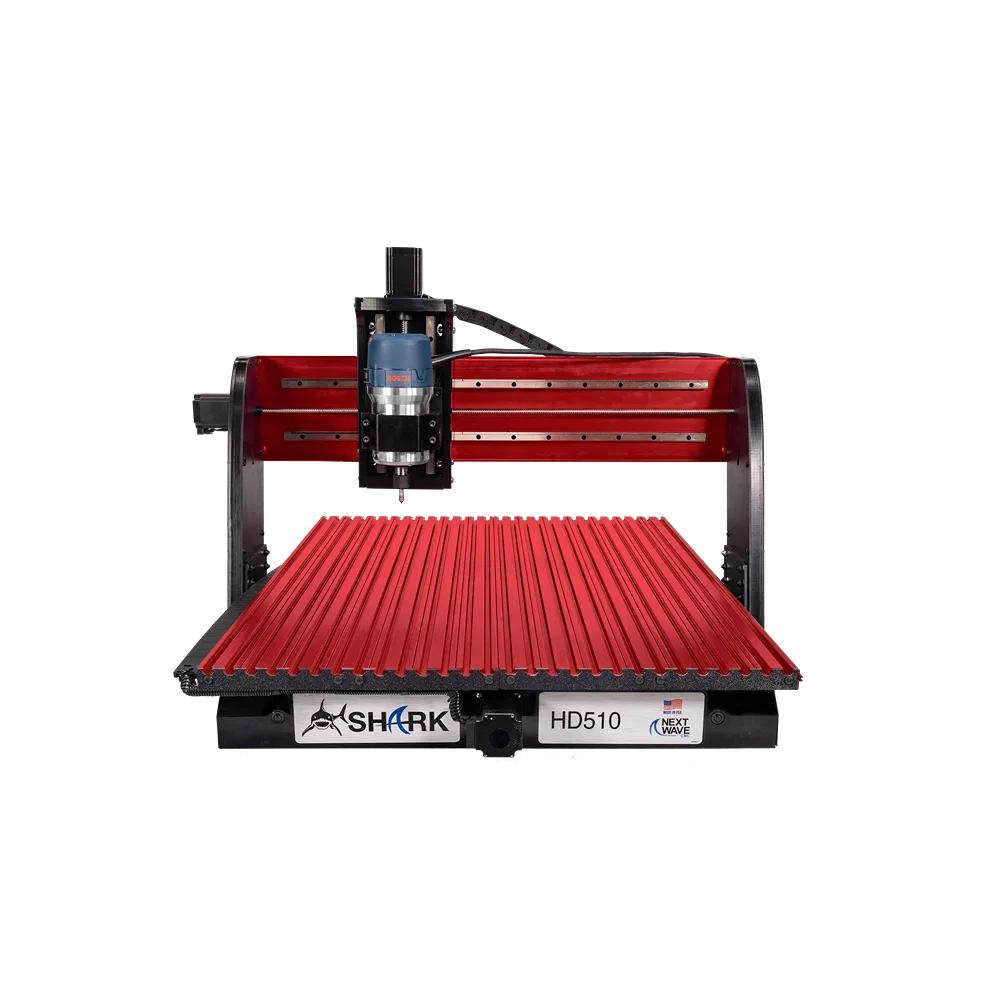

Shark HD510® CNC machine is a must-have tool for any sized workshop. The Shark HD510® is built to handle all machining needs, whether it’s in a home shop or on a production floor. The Shark HD510® is ideal for carving or machining a large variety of projects – from wood and soft metals to composites and plastics. It is fully compatible with Next Wave Automation’s wide-ranging line of additional accessories, such as laser, 4th axis, scanner, and more.
Other Features:
Pendant controller – Features a colored touch screen
X & Y homing capability
Linear guides and bearings on the gantry
Steel encased gantry legs – For increased rigidity
Anti-backlash, wear-compensated leadscrews on all axis
Interlocking rigid aluminum table with virtually unlimited clamp positioning
Aluminum gantry back plate – For heavy machining capabilities
Aluminum router mounting clamp
Automatic router ON/OFF control
USB interface
CNC Shark HD5® is fully compatible with the following routers (sold separately):
Bosch – 1617 and 1618
Porter-Cable – 890 Series
DEWALT – 610, 616, 618
Includes:
The latest version of Vectric VCarve Desktop design software
A color pendant controller
(2) Hold-down clamps
Carbide V-bit
Next Wave CNC's patented Virtual Zero Unlimited software
Model Number: 10022 / HD510®
Specifications
XYZ Travel: 25" x 25" x 7"
Table Dimensions: 28" x 36"
Voltage: 110/115
Overall Dims: (W) 36-1/4" x (L) 38" x (H) 24-1/2"
Made in USA
Manuals
Misplace the user manual? No problem! Hartville Hardware is here to help. Below is the user manual for the Next Wave CNC. Read it before you buy it, or come back and download it if you have any questions after getting your CNC machine home.
Next Wave CNC User Guide
Warranty & Certifications
No Manuals available for this product
